Model Image
Manufacturer

Whirlpool

Model Number

AGR6303MMW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11509626 W11509626 ASSEMBLY, MANIFOLD
W10682676 W10682676 BACK COVER, BROILER
W10588614 W10588614 BACKGUARD, REAR
W10846751 W10846751 BADGE (BLACK)
W10849465 W10849465 BADGE (WHITE)
W11688713 W11688713 BAFFL-BRNR
W11620318 W11620318 BAFFLE, BASE
W11173320 W11173320 BLOCK-BAL
W11098799 W11098799 BOTTM-OVEN
W10675411 W10675411 BOX, FLUE
WPW10613666 WPW10613666 BRACKET
W10535746 W10535746 BRACKET, CONSOLE MOUNT
W11172758 W11172758 BRACKET, FOOT
W10545322 W10545322 BRACKET, MANIFOLD
W10535815 W10535815 BRACKET, REAR
98007410 98007410 BRACKET, REGULATOR
W10574737 W10574737 BRACKET, VALVE
W11105139 W11105139 BRKT-GLASS
W11620514 W11620514 BRKT-MNTG
W11715913 W11715913 BRKT-MNTG
W11712435 W11712435 BRKT-MNTG
W10883315 W10883315 BRKT-MNTG
W11170320 W11170320 BRKT-MNTG
W10831827 W10831827 BUMPER
98004052 98004052 BUMPER, DOOR
WPW10515453 WPW10515453 BURNR-HEAD

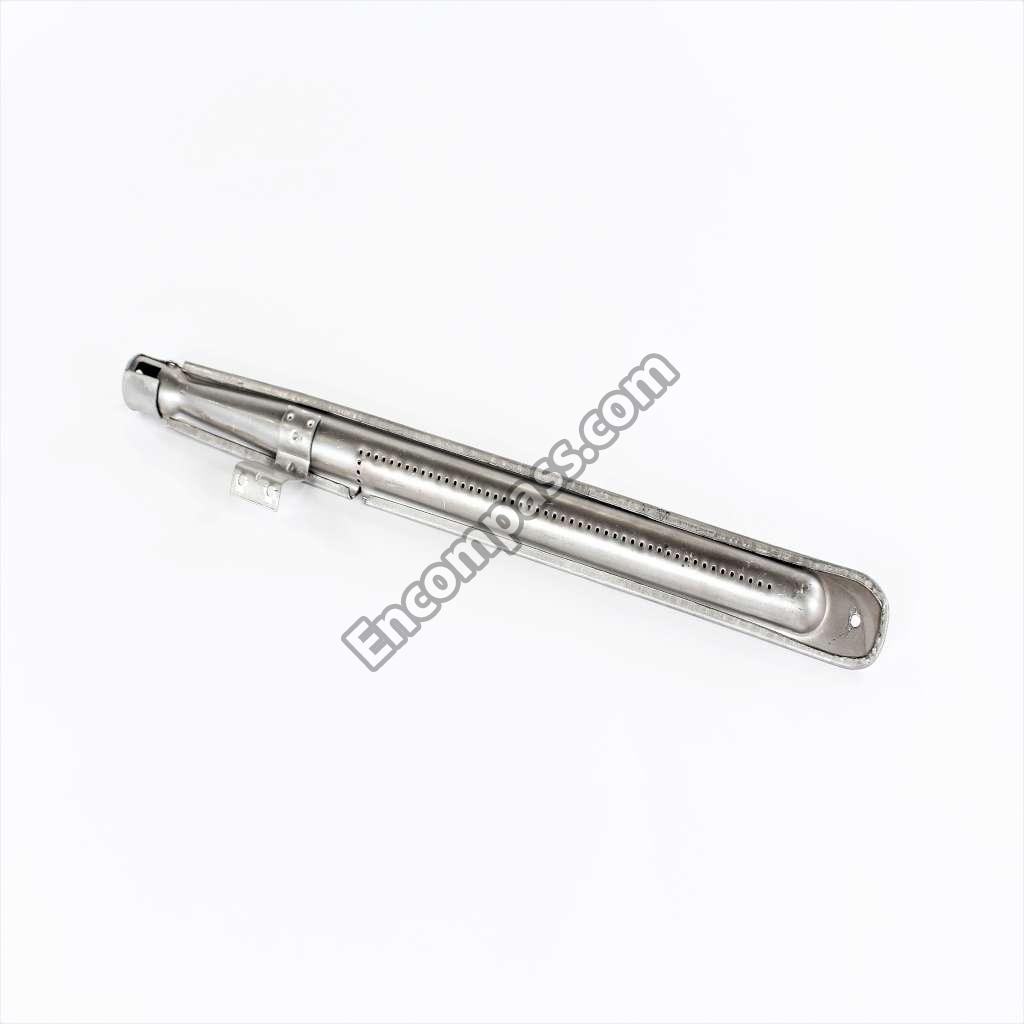

W11220387 W11220387 BURNR-OVEN
WPW10636224 WPW10636224 BURNR-TOP
98015022 98015022 BUSHING, SNAP
W10622750 W10622750 CABLE, SPARK (BLACK)
WP98017461 WP98017461 CAP-BURNER
WPW10169985 WPW10169985 CAP-BURNER
W11229684 W11229684 CLIP
WPW10278150 WPW10278150 CLIP
98005502 98005502 CLIP, OVEN BOTTON
W11510655 W11510655 CLIP, TUBING
98005896 98005896 CLIP, WIRE
W11633126 W11633126 CONSOLE
W11620526 W11620526 CONTROL BOARD
W11620711 W11620711 CONTROL PANEL
W11633120 W11633120 CONTROL PANEL
W11032725 W11032725 COOKTOP
W11032726 W11032726 COOKTOP
W11492823 W11492823 COVER
W10624273 W10624273 COVER, BROILER LEFT
W10624275 W10624275 COVER, BROILER RIGHT
W10670197 W10670197 DEFLECTOR, OVEN
W11620538 W11620538 DOOR HANDLE
W11620487 W11620487 DOOR HINGE
W10857234 W10857234 DOOR HINGE
W11620488 W11620488 DOOR TRIM
W10873109 W10873109 ENDCAP (LEFT HAND) (BLACK)
W10873438 W10873438 ENDCAP (LEFT HAND) (WHITE)
W10873107 W10873107 ENDCAP (RIGHT HAND) (BLACK)
W10873441 W10873441 ENDCAP (RIGHT HAND) (WHITE)
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10819918 W10819918 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
WP98014893 WP98014893 GAS VALVE
W11620105 W11620105 GAS VALVE
W11104748 W11104748 GASKET-WND
WPW10535778 WPW10535778 GASKT-DOOR
W11620710 W11620710 GLASS DOOR
W11633123 W11633123 GLASS DOOR
W11620489 W11620489 GLASS DOOR
WPW10578251 WPW10578251 GRATE-BRNR
W10535809 W10535809 HANDLE, BROILER DOOR (BLACK)
W10498563 W10498563 HANDLE, BROILER DOOR (WHITE)
W11492898 W11492898 HANDLE, OVEN DOOR (WHITE)
W11465032 W11465032 HARNESS, MAIN
W10647966 W10647966 HINGE
W11161898 W11161898 HINGE-RECV
W11167099 W11167099 HOLDER-ORF
W11590294 W11590294 IGNTR-OVEN
WPW10209656 WPW10209656 IGNTR-SURF
WPW10209657 WPW10209657 IGNTR-SURF
W11508819 W11508819 INSTRUCTIONS, INSTALLATION
W11620511 W11620511 INSULATION
W11688850 W11688850 INSULATION
W11688783 W11688783 INSULATION
W11706803 W11706803 INSULATION
WPW10208653 WPW10208653 INSULATION
W10537475 W10537475 INSULATION, BACK
W11492324 W11492324 INSULATION, WRAP
W11506534 W11506534 INSULATION,FLUE
W11620546 W11620546 KNOB
W11620714 W11620714 KNOB

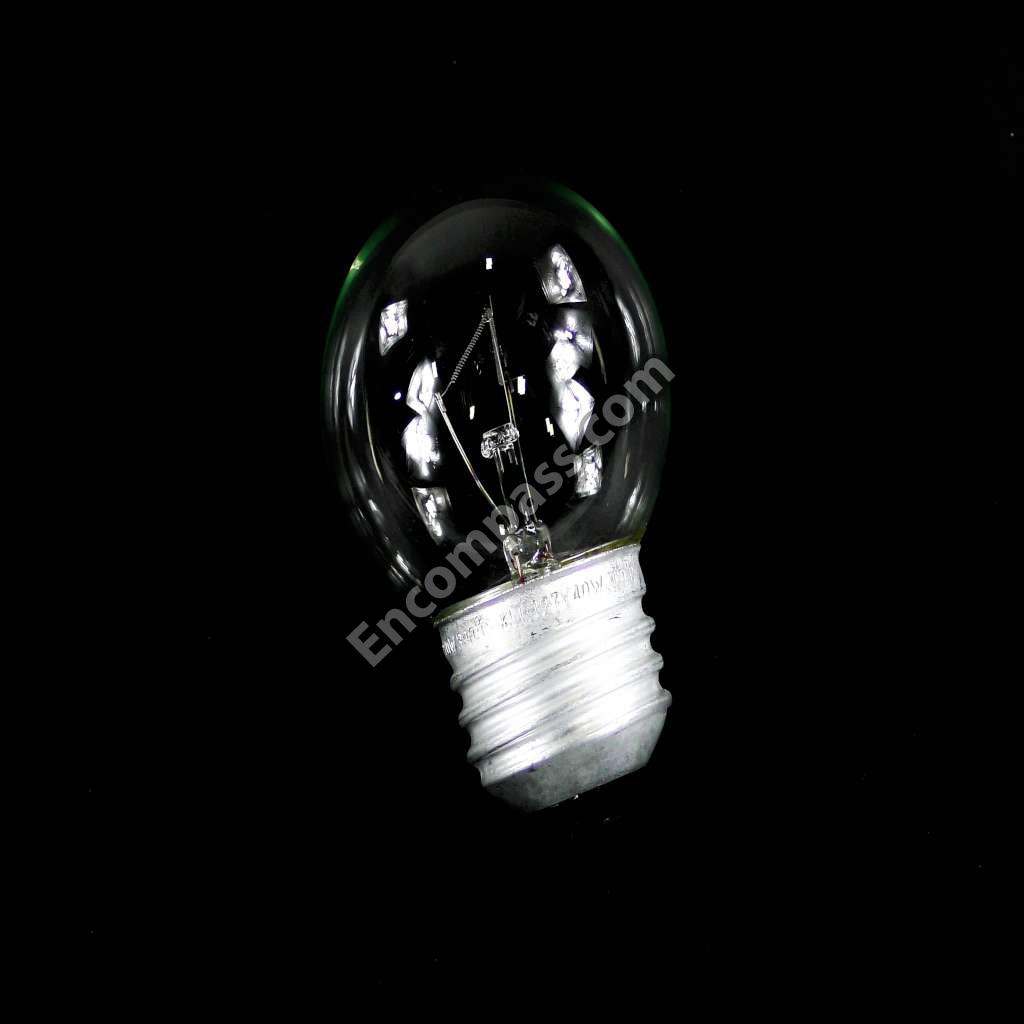

W10888179 W10888179 LIGHT BULB
W10446851 W10446851 LINER, BROILER DRAWER
98012220 98012220 MISCELLANEOUS, KIT, DOOR PIN
W10610297 W10610297 NUT
WP98017349 WP98017349 ORIFICE
WP98017348 WP98017348 ORIFICE
W11508815 W11508815 OWNERS, MANUAL WIRE, DIAGRAM
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10874825 W10874825 PANEL, BROILER DOOR (BLACK)
W11578465 W11578465 PANEL, MANIFOLD (BLACK)
W11578464 W11578464 PANEL, MANIFOLD (WHITE)
W10605426 W10605426 PANEL, SIDE
W11099211 W11099211 PANEL-DRWR
W10816993 W10816993 PANEL-SIDE
W10816996 W10816996 PANEL-SIDE

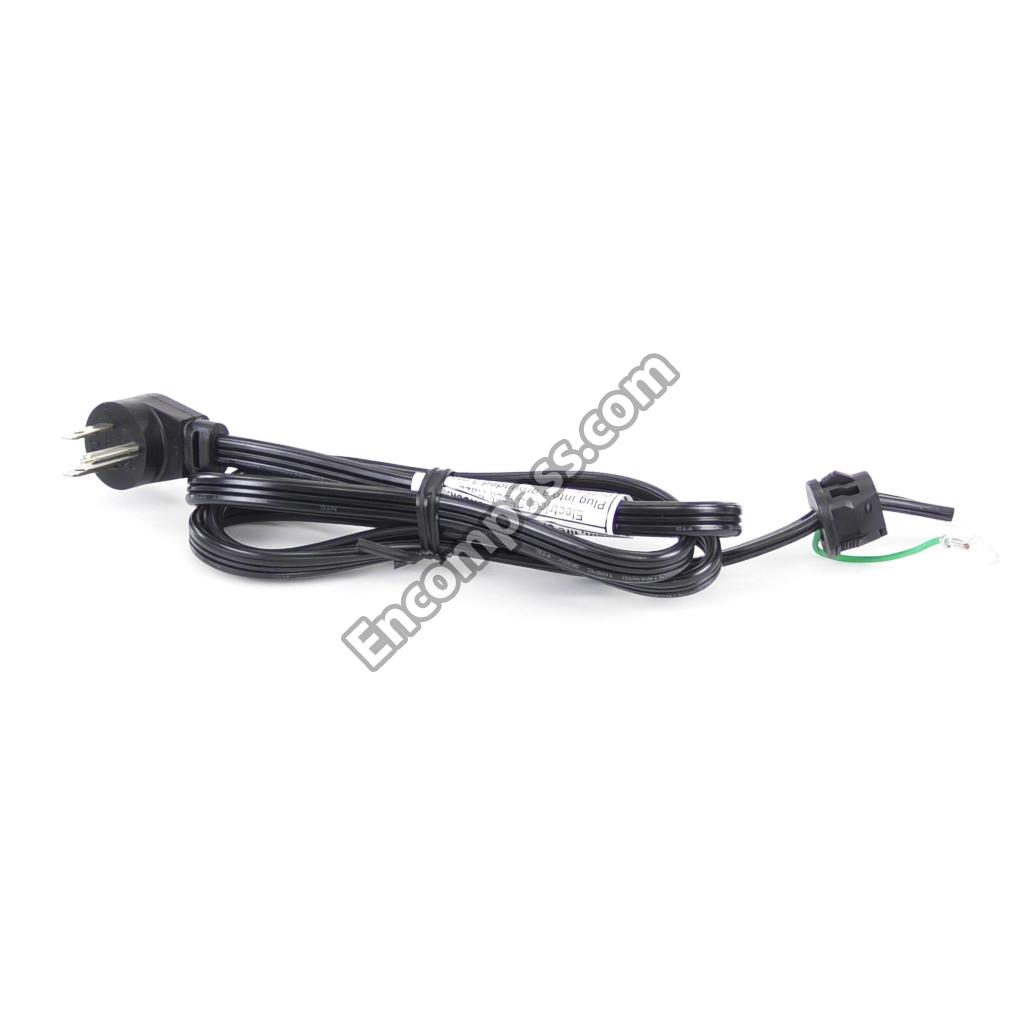

W11173616 W11173616 POWER CORD
WPW10550642 WPW10550642 RACK-OVEN
W10520269 W10520269 RAIL, BASE
W11590249 W11590249 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11346659 W11346659 REGULATOR
W10549293 W10549293 SAFETY VALVE, REAR COVER
WP98007225 WP98007225 SCREW
WP3400832 WP3400832 SCREW
W10850756 W10850756 SCREW
W10837731 W10837731 SCREW
W11676351 W11676351 SCREW
98013634 98013634 SCREW
98017517 98017517 SCREW
W10837674 W10837674 SCREW
WP98008545 WP98008545 SCREW
W10856125 W10856125 SCREW
W10155121 W10155121 SCREW
WP59002061 WP59002061 SCREW
W11206744 W11206744 SCREW
98005658 98005658 SCREW (STAINLESS)
WP3368921 WP3368921 SCREW-TORX
WPW10181986 WPW10181986 SENSOR
W11319572 W11319572 SHIELD
W10532560 W10532560 SIDE PANEL, SUPPORT
W10856866 W10856866 SOCKT-LITE
WPW10170506 WPW10170506 SPUD-ORFCE
W11620541 W11620541 SPUD-ORFCE
98015363 98015363 SUPPORT, REAR
W10577312 W10577312 SUPPORT, SIDE PANEL
WP3391018 WP3391018 TIE-WIRE
W11628651 W11628651 TUBING-GAS
W11684515 W11684515 TUBING-GAS
W11509769 W11509769 VALVE, SADDLE (RIGHT REAR)
W11620515 W11620515 VALVE-BRNR
W11550283 W11550283 VENTURI
W11213836 W11213836 VENTURI
W10861724 W10861724 VENTURI
511873 511873 WHITE PORCELAIN (2 OZ.)
W11620523 W11620523 WIRE HARNESS
98004294 98004294 WIRE TIE, INSULATION
3184020 3184020 WIRE, GROUND
