Manufacturer

Whirlpool

Model Number

AGS751W1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
31970801 31970801 ANTI-TIP PACK
Y0060691 Y0060691 ASSY, BR. BURNER
0306594 0306594 ASSY, HOOD & TUBING
Y0306593 Y0306593 ASSY, ORIFICE & TUBING
0314734 0314734 ASSY, VENTURI-LR
Y0314736 Y0314736 ASSY, VENTURI-RR
12002810 12002810 ASY- DOOR
Y0309905 Y0309905 BRACE, BACKGUARD
31854501 31854501 BRACE, LEVELING LEG (LT)
31854502 31854502 BRACE, LEVELING LEG (RT)
Y0303112 Y0303112 BRACKET IGNITOR MTG
0314084 0314084 BRACKET, DOOR LATCH MTG.
0053182 0053182 BRACKET, GAS VALVE
31957101 31957101 BRACKET, IGNITER MOUNTING
Y0060687 Y0060687 BRACKET, MTG. BR. SUPPORT
Y0058852 Y0058852 BRACKET, OVEN CAVITY
0304971 0304971 BRACKET, SPARK MODULE
Y0302316 Y0302316 BRACKET, SWITCH
0309582 0309582 BRKT, CLOCK MTG
0315624 0315624 BRKT, VENTURI MTG
Y0309627 Y0309627 BUMPER, RUBBER
Y0306073 Y0306073 BURNER 3`` DIE CAST
Y0063802 Y0063802 BURNER BOX, LOWER
Y0307339 Y0307339 BURNER, 4`` DIE CAST
Y0309461 Y0309461 BUSHING, HANDLE (NAL)
Y0091587 Y0091587 CABLE, CLIP ESM
Y0309581 Y0309581 CAMERA LENS, INDIC. LIGHT
314638B 314638B CAP, BURNER (LARGE)
314637B 314637B CAP, BURNER (SMALL)
Y0304019 Y0304019 CHANNEL, BROIL BURNER
Y07714200 Y07714200 CLIP, ELECTRODE
Y0314718 Y0314718 CLOCK ANALOG
Y0306791 Y0306791 COVER PLATE, REAR
Y0315022 Y0315022 COVER, CHIP
Y0306827 Y0306827 COVER, ELECTRICAL
Y0302498 Y0302498 COVER, IG/BAKE BURNER
R0706011 R0706011 DOOR HINGE
31917801 31917801 DOOR LATCH, OVEN DOOR (GAS)
306084W 306084W DRAWER, STORAGE (WHT)
WP3185804 WP3185804 ELCTR-KIT
309523B 309523B END CAP, DOOR (LT-BLK)
309522B 309522B END CAP, DOOR (RT-BLK)
309576B 309576B END CAP, L.H. (BLACK)
309577B 309577B END CAP, R.H. (BLACK)
Y0315148 Y0315148 FILLER, FRONT FRAME
Y0301263 Y0301263 FITTING, 1/8``X 3/8``
306158B 306158B FLUE, DILUTION
314077CG 314077CG FLUE, ENAMELED
Y0309071 Y0309071 FRAME, WINDOW PACK
31715901 31715901 GASKET, OVEN DR 82``
Y0309074 Y0309074 GLASS WINDOW 18`` X 11`` X 3/16``
306151B 306151B GRATE, TOP BURNER
303040B 303040B HANDLE, DOOR DOOR LATCH (BLK)
309624B 309624B HANDLE, OVEN DOOR (BLK)
Y0307394 Y0307394 HARNESS,IGN WIRE 20``
Y0307393 Y0307393 HARNESS,IGN WIRE 31``
Y0309733 Y0309733 HEAT SHIELD, BROIL
Y0308317 Y0308317 INSUL, RET.-BOTTOM
Y0308315 Y0308315 INSUL, RET.-REAR
31976901 31976901 INSULATION
Y0091523 Y0091523 INSULATION, ESM
31975801 31975801 INSULATION, WRAPPER
R0706010 R0706010 KIT, DOOR HINGE(LH-HS)

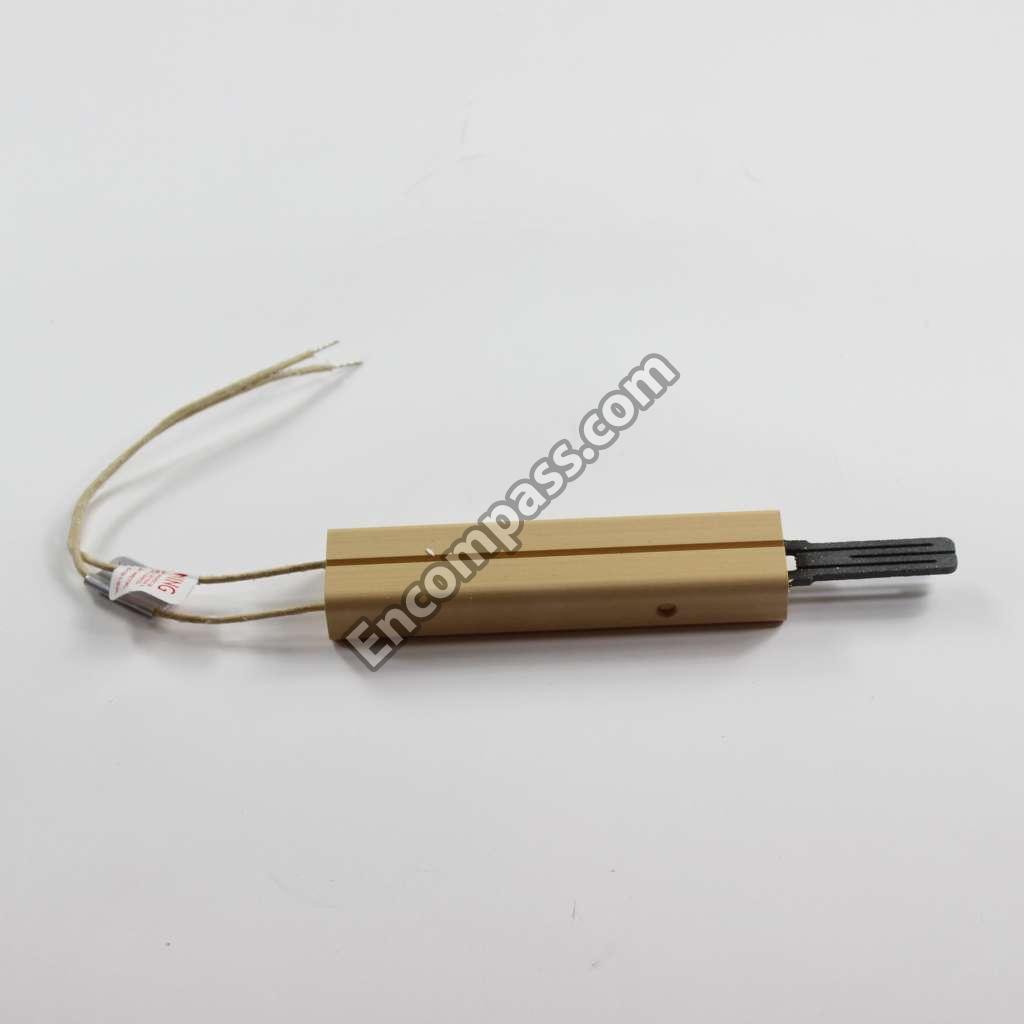

786324 786324 KIT, IGNITOR
32020101 32020101 KIT,SPARK MODULE(SERVICE)
0302300 0302300 KNOB, DOOR LATCH HANDLE (BLK)
314496B 314496B KNOB, SELECTOR (BLK)
314497B 314497B KNOB, THERMOSTAT (BLK)
314494B 314494B KNOB, TOP BURNER (BLK)
Y07715600 Y07715600 KNOB- CLOC
314187B 314187B LEG,LEVELING XXX
8009 8009 LIGHT BULB
WP74011278 WP74011278 LIGHT- OVE
WP903115 WP903115 LIGHT-IND
31927401B 31927401B LINER, DRAWER PANEL (BLK)
WP2402W317-19 WP2402W317-19 LINER, OVEN DOOR
306075W 306075W MAINTOP-WHITE
Y0092374 Y0092374 METAL SCREW 6X3/8 PHIL PAN HD
WP488130 WP488130 NUT
M0282005 M0282005 NUT K
Y0097871 Y0097871 NUT, PAL 3/4-16 X 1.062
Y0060043 Y0060043 ORIFICE, NO.52 NAT
31864901 31864901 ORIFICE, NO.58 LP
58625CG 58625CG OVEN BOTTOM
Y0063709 Y0063709 OVEN BURNER
31821701CG 31821701CG OVEN SHELL (GAS W/LT)
Y0303055 Y0303055 OVEN THERMOSTAT, PUSH TO TURN
317021CG 317021CG PAD, OVEN DOOR
309176W 309176W PANEL, DRAWER (WHT)
314819B 314819B PANEL, GLASS OVEN DOOR (BLK)
314128B 314128B PANEL, MANIFOLD (BLACK)
31825104W 31825104W PANEL, SIDE (WHT)
0307175 0307175 PIPE MANIFOLD
31757201 31757201 PLATE, ACCESS
309751B 309751B PNL, CONT BKGRD (BLACK)
Y0306654 Y0306654 POWER CORD
Y0040848 Y0040848 PROBE RECEPT. COVER STAINLESS
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WP314763J WP314763J RACK-OVEN
Y0308866 Y0308866 REGULATOR, PRESSURE
314196B 314196B RETAINER, INSUL BKGD
0304282 0304282 RETAINER, INSULATION (SIDE)
0315550 0315550 RETAINER, TOP INSUL.
Y0097822 Y0097822 RIVET, POP
Y0302648 Y0302648 RIVET, POP
0314664 0314664 RUNNER STORAGE DWR-LH
Y0314665 Y0314665 RUNNER STORAGE DWR-RH
W10491986 W10491986 SCREW
8169479 8169479 SCREW
W11245710 W11245710 SCREW
WP3400882 WP3400882 SCREW
Y0092365 Y0092365 SCREW 4-40X1
Y0066765 Y0066765 SCREW 6-32 X 3/8
Y0041813 Y0041813 SCREW CABINET TRIM
Y0078780 Y0078780 SCREW DOOR LATCH ARM MOUNTING
Y0300830 Y0300830 SCREW NO.10-32 X .375
Y0072230 Y0072230 SCREW NO.6-32 X 3/8
Y0061164 Y0061164 SCREW NO.8 - 18 X .250
0041801 0041801 SCREW NO.8-18X.375 AB
12991101 12991101 SCREW, HANDLE (BLACK)
Y0309973 Y0309973 SCREW, NO.10-24X11/4 (TRS PH HD)
31750302 31750302 SCREW, NO.3-32 X.187 PAN HD PH
31750706 31750706 SCREW, NO.8 X .375 WAFER HD(BLK)
Y0309016 Y0309016 SCREW, NO.8-18 X 3/8 P HEX WSH T
31750709 31750709 SCREW, STUD
Y0065664 Y0065664 SCREW, TT 23 4-40 X 5/8
Y00000000 Y00000000 SEE NOTE FRONT FRAME, NOT FIELD REPLACABLE
0307065 0307065 SHELF, GAS VALVE
0059596 0059596 SHIELD
31854102 31854102 SHIELD, GLASS HEAT
Y0309068 Y0309068 SHIELD, HEAT
Y0315146 Y0315146 SHIELD, HEAT
0063780 0063780 SHIELD, IGNITOR
Y0314316 Y0314316 SHIELD, SWITCH
0062792 0062792 SHIELD, THERMOSTAT BULB
R0759529 R0759529 SPACER, HANDLE (BLACK)
Y0062445 Y0062445 SPACER, NYLON (.14``)
0306589 0306589 SUPPORT, BKGD (LH)
0306590 0306590 SUPPORT, BKGD (RH)
Y0306826 Y0306826 SWITCH, IGNITION
866294 866294 SWITCH, OVEN LIGHT
Y0063997 Y0063997 SWITCH, ROCKER
Y0309809 Y0309809 SWITCH, SELECTOR
77001254 77001254 SWITCH- LA
Y0314662 Y0314662 TRACK, STORAGE DWR LH
0314663 0314663 TRACK, STORAGE DWR RH
31782202B 31782202B TRIM, UPPER DOOR
0307055 0307055 TUBING, REG TO VALVE
31750803 31750803 U-CLIP, SAFE EDGE

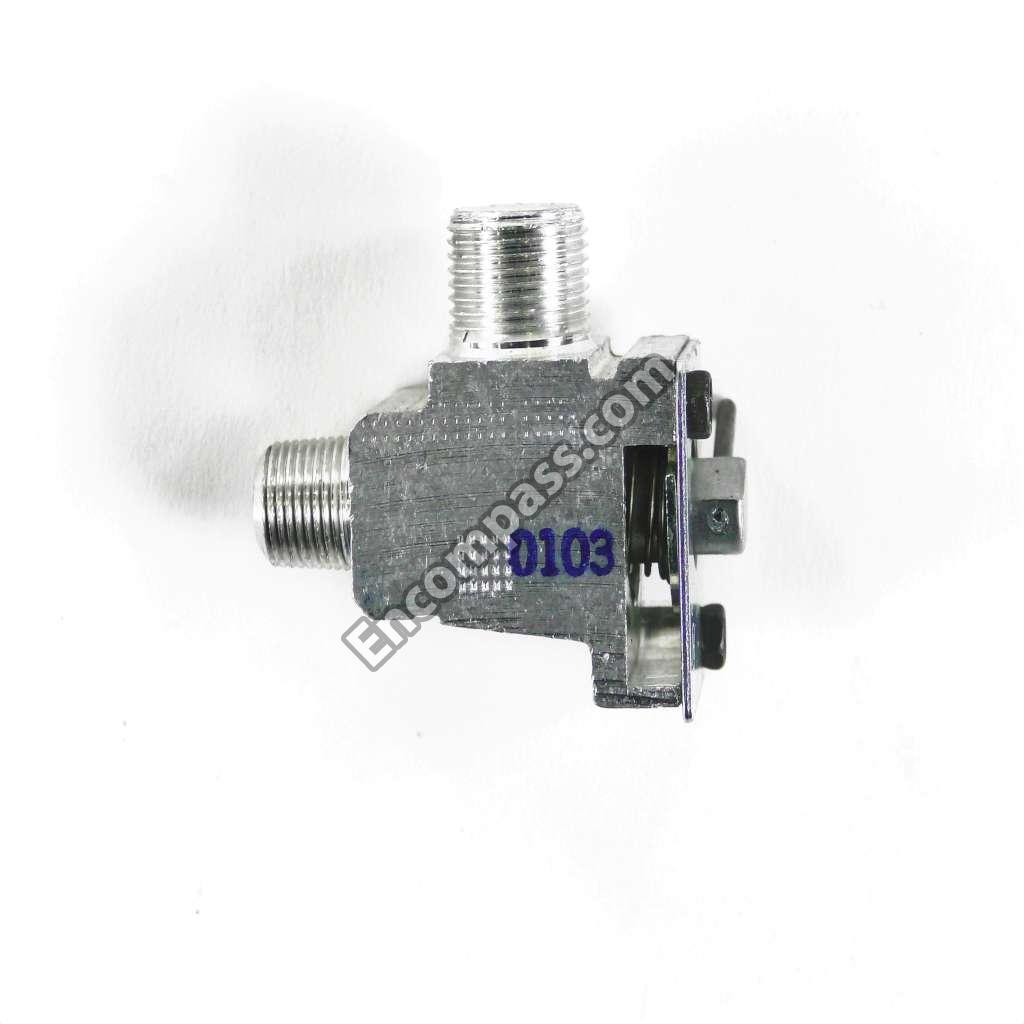

Y0306165 Y0306165 VALVE 7K
Y0306164 Y0306164 VALVE 9K
Y0306429 Y0306429 VALVE, GAS, DUAL
0306428 0306428 VALVE, SHUTOFF
Y0306161 Y0306161 VENTURI ASSEMBLY
0306366 0306366 WELD, AIR DUCT BROIL BURNER
0306651 0306651 WELDM`T, BROIL CHAMBER
Y0065084 Y0065084 WIRE CONNECTOR
