Model Image
Manufacturer

Whirlpool

Model Number

AKE30

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
D8597006 D8597006 ACCESS PANEL
B8393401 B8393401 ANGLE, SUPPORT
B5036902 B5036902 BRACKET, CORNER
B5036901 B5036901 BRACKET, CORNER
C2740601 C2740601 BRACKET, LARGE ELEMENT
C2740501 C2740501 BRACKET, SMALL ELEMENT
M0327601 M0327601 BUSHING, CONDUIT
M0102303 M0102303 CLAMP
M0102305 M0102305 CLAMP, TUBE
M0321505 M0321505 CONNECTOR, CONDUIT
D8596804 D8596804 CONTROL MTG BRACKET
C2740702 C2740702 CONTROL, SURFACE
B5037602 B5037602 COVER, CONTROL HOLE K
D8600002 D8600002 ELEMENT, LARGE
M0571201 M0571201 EYELET
B5036802 B5036802 GASKET
Y0059631 Y0059631 GASKET
C2740402 C2740402 GASKET, RING
C2740401 C2740401 GASKET, RING
D8600903 D8600903 GLASS SUPPORT PNT
D8597201 D8597201 HARNESS, CONDUIT
D8601501 D8601501 HARNESS, IND LIGHT
D8596703 D8596703 HEAT BOX END PNT
D8596511 D8596511 HEAT BOX SIDE PNT
D8596512 D8596512 HEAT BOX SIDE PNT
10159703 10159703 HEATER BOX BAFFLE
10005401 10005401 INDICATOR LIGHT
A4402901 A4402901 INSULATION, IND. LIGHT

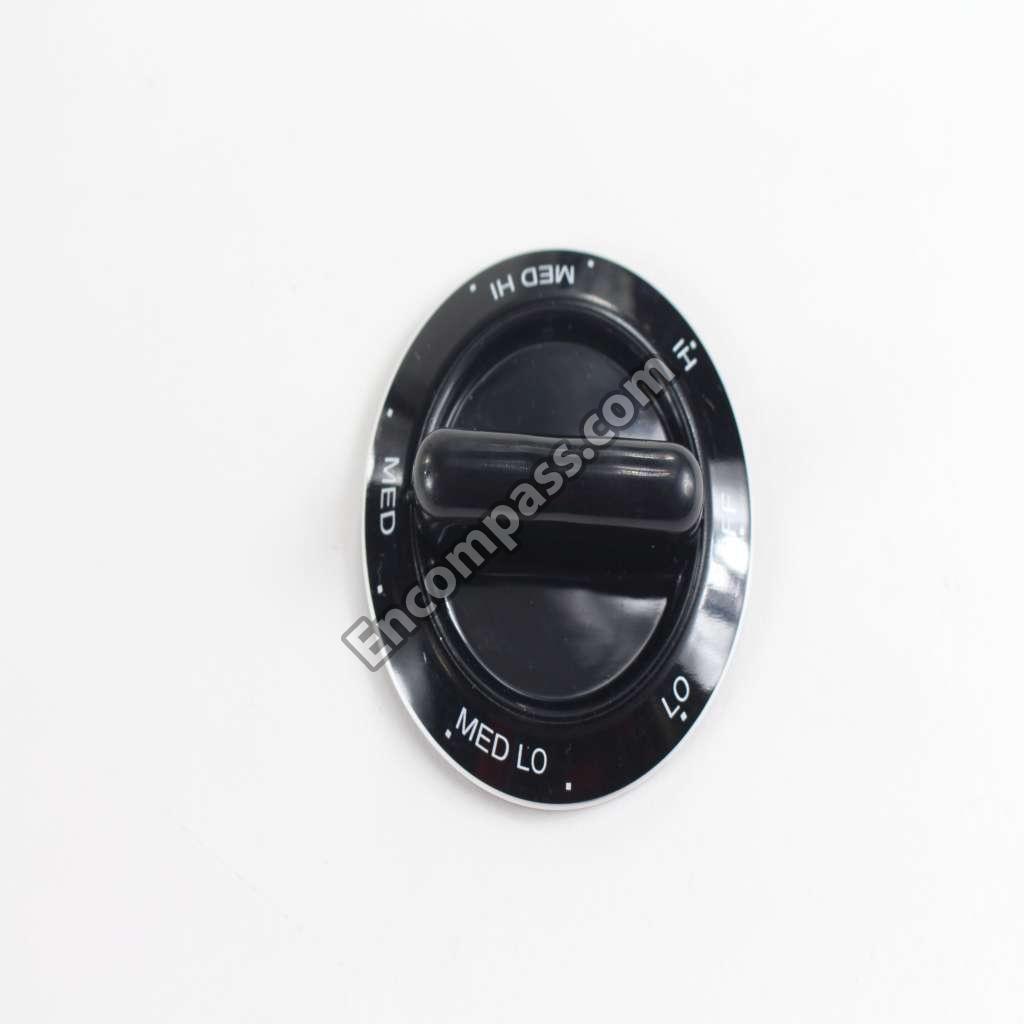

WPD8598001 WPD8598001 KNOB- CONT
74007880 74007880 LIGHT, INDICATOR
M0272803 M0272803 LOCK WASHER
WP7103P070-60 WP7103P070-60 NUT
M0294302 M0294302 NUT
M0294301 M0294301 NUT
M0282005 M0282005 NUT K
Y0307451 Y0307451 PLATE, CONDUIT
C2740302 C2740302 RING LARGE TRIM (BLACK)
C2740301 C2740301 RING SMALL TRIM (BLACK)
WP488234 WP488234 SCREW
WP3388228 WP3388228 SCREW
M0227817 M0227817 SCREW
WPW10068250 WPW10068250 SCREW
M0211519 M0211519 SCREW
74009538 74009538 SCREW
W11214483 W11214483 SCREW
M0227520 M0227520 SCREW
Y04100080 Y04100080 SENSOR, GLASS PROTECTOR
M0293502 M0293502 STUD-SELF CLINCH
WP3147131 WP3147131 SURFACE ELEMENT
M0275044 M0275044 TAPE, VINYL
B5677203 B5677203 TERMINAL BLOCK
D8599506 D8599506 TOP, GLASS
M0282402 M0282402 USR 0041847
A4431801 A4431801 WASHER
