Model Image
Manufacturer

Whirlpool

Model Number

ALE443RAC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
37001141 37001141 AIR DUCT ASSEMBLY
56000 56000 ASSEMBLY, BLOWER FAN
503657W 503657W ASSEMBLY, CYLINDER (WHT)
503605 503605 ASSEMBLY, HEATER DUCT
40013601C 40013601C ASSY, TIMER KNOB (BSQ)
WP37001144 WP37001144 ASY- IDLER
12002559 12002559 BAFFLE, CYLINDER (WHT)
500070 500070 BASE, DRYER
WP40111201 WP40111201 BELT
WP61923 WP61923 BLOCK- TER
40116201 40116201 BRACKE, DOOR STRIKE
WP37001287 WP37001287 BRACKET
WP37001036 WP37001036 BRACKET
500084 500084 BRACKET, L-TOP
WP40113601 WP40113601 BRAKT-ROLL
WP503616WP WP503616WP BULKHEAD
502614WP 502614WP BULKHEAD, REAR
40070501 40070501 BUZZER, ADJUSTABLE
40076402CP 40076402CP CABINET, DRYER & WASHER (BSQ)
WP40094301 WP40094301 CAMERA LENS, LIGHT
WP660658 WP660658 CLAMP
Y503876 Y503876 CLIP, HOLD DOWN
500078 500078 COVER, BLOWER HOUSING
503674C 503674C COVER, TOP (BSQ)
12002135 12002135 DOOR HANDL
LA-1003 LA-1003 DOOR LATCH
WP2200376 WP2200376 DRIVE MOTOR
505518 505518 DUCT, EXHAUST
40012702C 40012702C ENDCAP (LT-BSQ)
37001061 37001061 ENDCAP LT
WP22001650 WP22001650 FASTENER-
WP37001142 WP37001142 FILTER- LI
WP40113801 WP40113801 FUSE-THRML
WPY503978 WPY503978 HEATER ELE
WP61623 WP61623 HEATR-STAT
Y503676 Y503676 HINGE, DOOR & TOP
500003 500003 HINGE, TOP
500338 500338 HOUSING, 10 POSITION
511969 511969 HOUSING, BLOWER
40013402C 40013402C KNOB, SELECTOR (BSQ)
Y500101 Y500101 LEG, LEVELING (PLASTIC)
Y504452 Y504452 LIGHT ASSEMBLY
W10857122 W10857122 LIGHT BULB
505187 505187 LOCATOR, PANEL
40124301 40124301 MNL, OWNERS
RS3200007 RS3200007 MNL,SERVICE-HOME LAUNDRY DRYER
503613 503613 MOUNT, MOTOR
WPW10139757 WPW10139757 NUT
56156 56156 NUT, 3/8-16 SERRATED
WP500092 WP500092 PAD- FELT
40045301CP 40045301CP PANEL, ACCESS (BSQ)
500114 500114 PANEL, ACCESS COVER
503656CP 503656CP PANEL, FRONT (BSQ)
40039610 40039610 PANEL, SUPPORT
37001033 37001033 PANEL, TOP (BSQ)
40051401P 40051401P PANEL,BACK(HOME HOOD)
40092001C 40092001C PANEL,GRAPHIC(BISQUE)
503126 503126 PLUG, HINGE HOLE
503646C 503646C PULL, DOOR (BSQ)
WPY54414 WPY54414 PULLEY-IDR
WPW10116735 WPW10116735 RANGE THERMOSTAT
WP23748 WP23748 RING- RETA
WP3400094 WP3400094 SCREW
WP3351614 WP3351614 SCREW
WP3177991 WP3177991 SCREW
WP3390631 WP3390631 SCREW
WP489464 WP489464 SCREW
WP489128 WP489128 SCREW
W10815455 W10815455 SCREW
500824 500824 SCREW, 1/4-20 UNC HEX
Y62588 Y62588 SCREW, 10BT-12 X 1 TAP
501285 501285 SCREW, NO.12 X 9/16
W10856845 W10856845 SEAL
37001028 37001028 SEAL & LINER, ASSEMBLY(INNER DOOR)
37001119 37001119 SEAL, BLOWER HOUSING
WP37001132 WP37001132 SEAL- CYLI
WP56461 WP56461 SHAFT
Y504185 Y504185 SHIELD, TERMINAL BLOCK
WP56076 WP56076 SPRING- ID
WP500039 WP500039 STRIKE
WP37001042 WP37001042 SUPPORT
WP37001298 WP37001298 SUPPORT
38424L 38424L SWITCH, ROCKER (BSQ)
40084201 40084201 SWITCH, TEMP SELECTOR
W10169313 W10169313 SWITCH-DOR
RT3220004 RT3220004 TECH SHEET,ELEC DRYER-DOMESTIC
WP503979 WP503979 THERMOSTAT

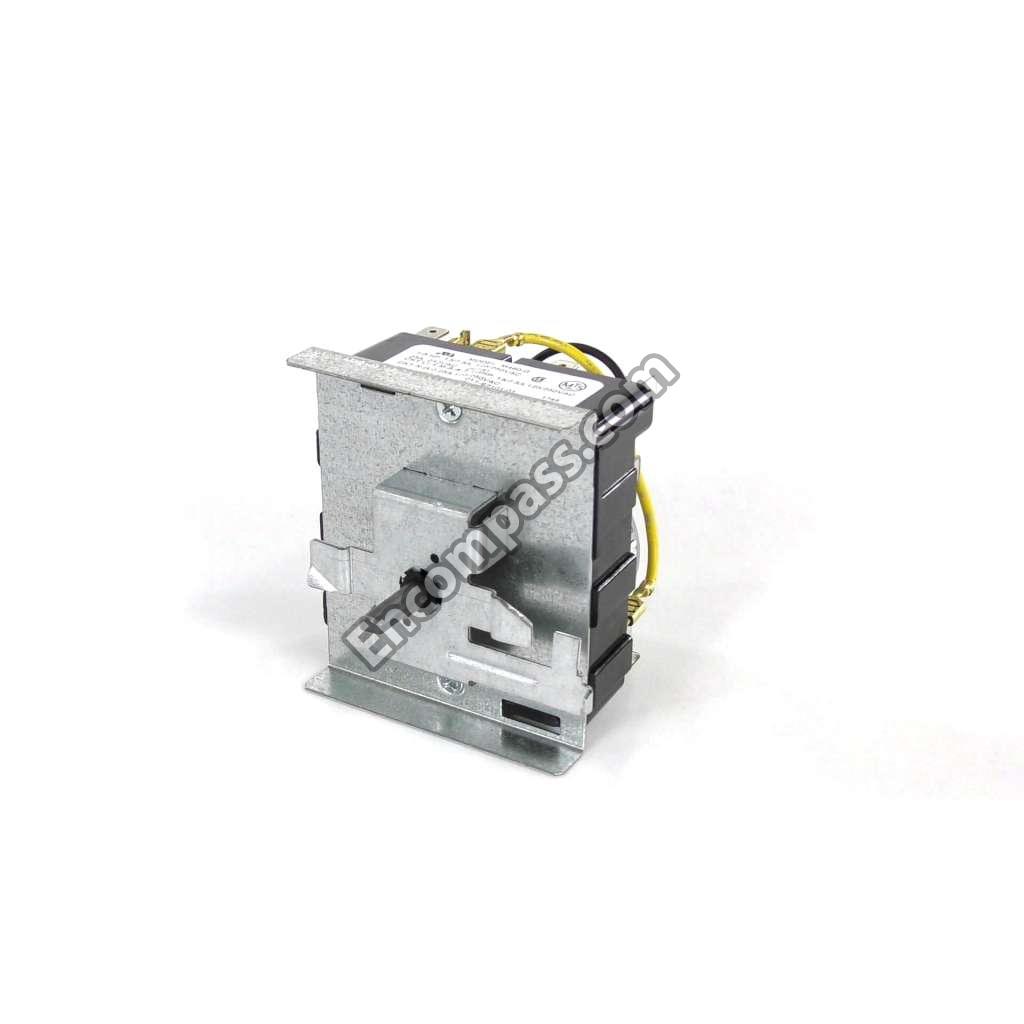

R0000410 R0000410 TIMER
WPW10121334 WPW10121334 WASHER
WPY504082 WPY504082 WASHER, WAVE
505328 505328 WEDGE, DOOR HANDLE
