Model Image
Manufacturer

Whirlpool

Model Number

AQU2003TRW03

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10508629 W10508629 BASKET
WP4-65454-001 WP4-65454-001 BIN, DOOR (7)
8210220 8210220 BOLT
WP8204624 WP8204624 BOLT
4357250 4357250 BOTTOM HINGE (WHITE)
4-82389-002 4-82389-002 BOX, CONTROL
N_P N_P CABINET (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 CAPACITOR
488946 488946 CLAMP, TUBING
1-80308-101 1-80308-101 CLAMP-BULB
1-80247-101 1-80247-101 CLIP
W10309994 W10309994 COMPRESSOR
4-82389-003 4-82389-003 CONTRL-BOX
3-80838-003 3-80838-003 COVER
2217635 2217635 COVER-TERM

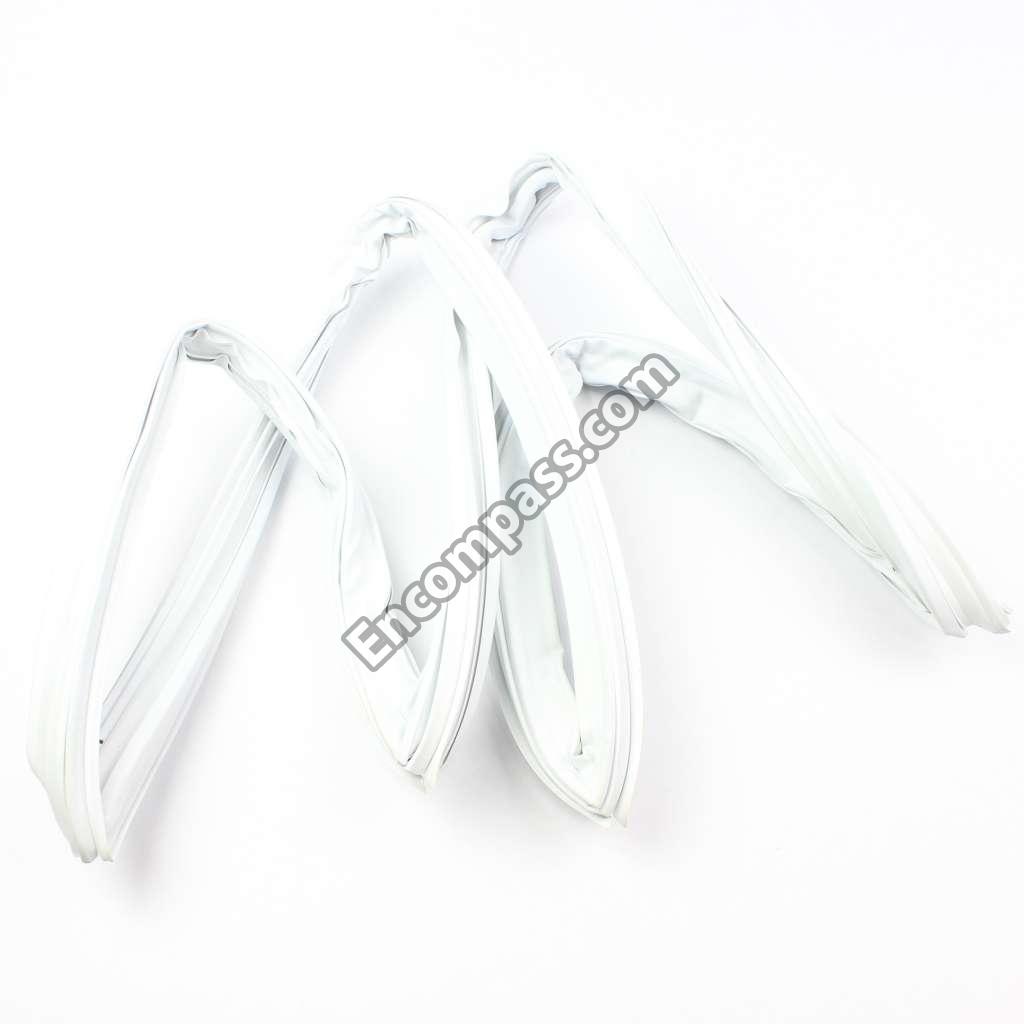

WP4-65151-004 WP4-65151-004 DOOR GASKET
8210361 8210361 DOR-FMD WH
W10843121 W10843121 DRIER-TUBE
W10294508 W10294508 ENERGY LABEL/TAG
4-82413-009 4-82413-009 EVAPORATOR
4-82196-003 4-82196-003 EVAPORATOR
W10294518 W10294518 EVAPORATOR
4-82195-008 4-82195-008 EVAPORATOR
4390809 4390809 EXCHANGER
WP4-60461-002 WP4-60461-002 GRILLE
4356335 4356335 GROMMET
WP3-82013-003 WP3-82013-003 HANDLE
4390731 4390731 HING-BUSHG
WP2-82012-001 WP2-82012-001 INSERT, HANDLE
3-82390-001 3-82390-001 KNOB CONTROL
3-82391-001 3-82391-001 LENS
WP3-82710-001 WP3-82710-001 LEVELER
W11679940 W11679940 LIGHT BULB
2-82534-001 2-82534-001 NAMEPLATE
2-34286-021 2-34286-021 OVERLOAD
W10279026 W10279026 OWNERS MANUAL
W10260291 W10260291 PAN-COMPRS
WP2189000 WP2189000 PLUG-HNDLE
4-82858-001 4-82858-001 POWER CORD
4-82272-001 4-82272-001 RAIL
WP4356738 WP4356738 RELAY-STRT
3-24004-049 3-24004-049 SCREW
4390511 4390511 SCREW
WP489478 WP489478 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP3-24838-048 WP3-24838-048 SCREW
WP489491 WP489491 SCREW
4390489 4390489 SHIM
4356846 4356846 SLEEVE

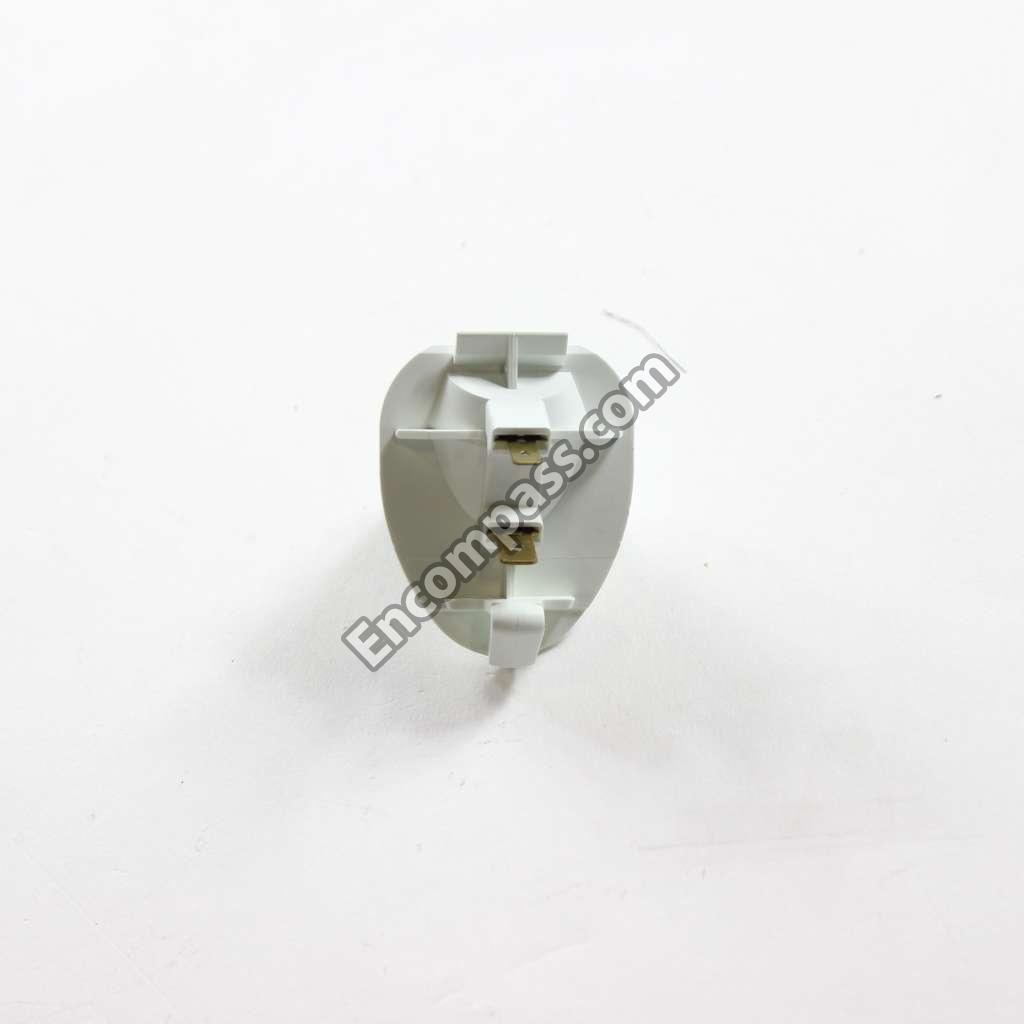

WP3-82393-001 WP3-82393-001 SOCKET
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
W11384469 W11384469 SWITCH
WP4-83053-001 WP4-83053-001 THERMOSTAT
2-81016-105 2-81016-105 TOP HINGE (WHITE)
2-81437-002 2-81437-002 TUBE-DRAIN
3-24898-007 3-24898-007 VENT PLUG
W10851331 W10851331 WASHER
4356847 4356847 WASHER
W10903204 W10903204 WASHER
