Model Image
Manufacturer

Whirlpool

Model Number

AQU2027BRW06

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "INSULATION (2 PIECES, 3"" X 24"" X 48"")"
3-82728-001 3-82728-001 ALARM (BUZZER)
WP2196003 WP2196003 BARRIER
4390933 4390933 BASKET
W10508627 W10508627 BASKET, WIRE
WP1-81801-001 WP1-81801-001 BIMETL-DEF
WP4-65454-001 WP4-65454-001 BIN, DOOR (7)
W11100462 W11100462 BLADE-FAN
1-80252-101 1-80252-101 BLOCK, FOAM
8210220 8210220 BOLT
WP8204624 WP8204624 BOLT
4357250 4357250 BOTTOM HINGE (WHITE)
4390708 4390708 BOX

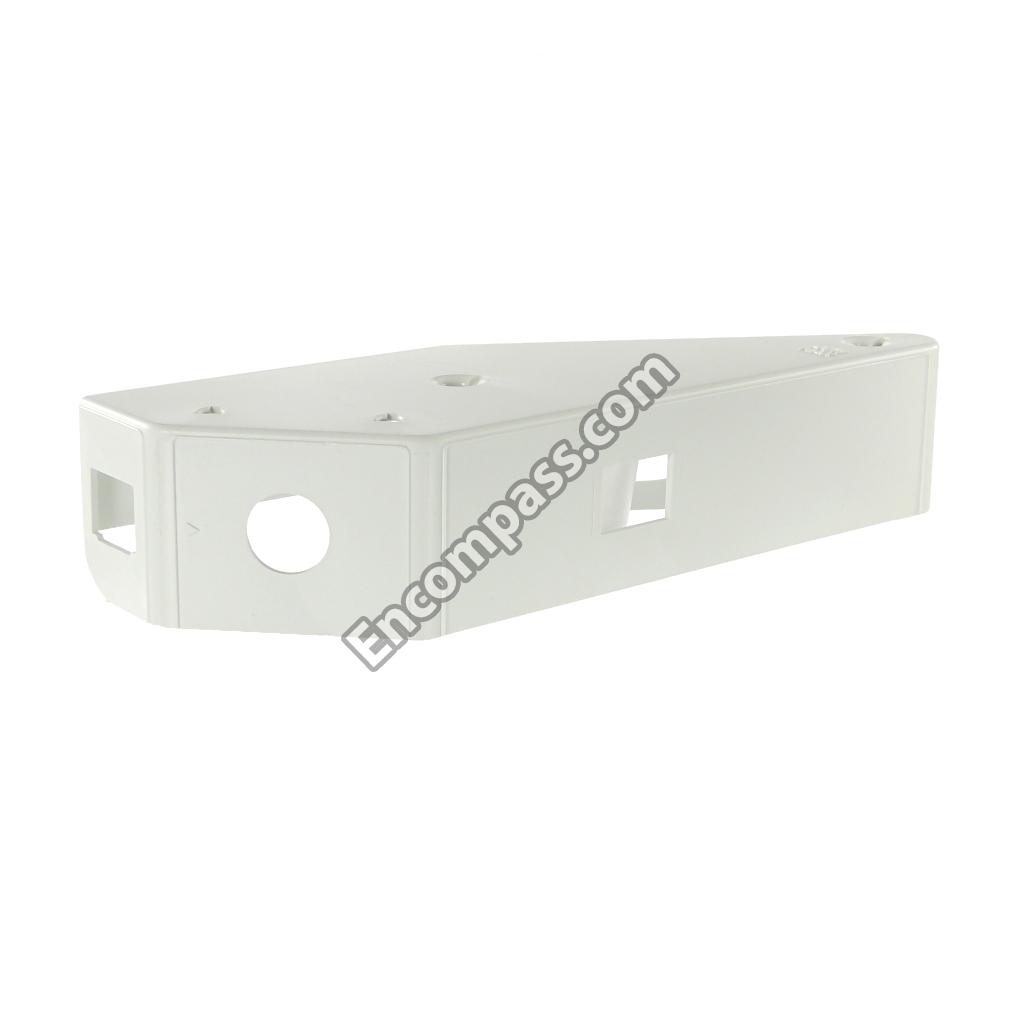

4-82389-005 4-82389-005 BOX, CONTROL
2-80028-101 2-80028-101 BRACKET, FAN
4357128 4357128 BRAKT-MOTR
100000 100000 CABINET (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 CAPACITOR
488946 488946 CLAMP, TUBING
1-80247-101 1-80247-101 CLIP
4356952 4356952 CLIP-THRMT
W10309994 W10309994 COMPRESSOR
W10451951 W10451951 CONDENSER
3-80838-003 3-80838-003 COVER
WP4390662 WP4390662 COVER, EVAPORATOR
2217635 2217635 COVER-TERM
4-82573-002 4-82573-002 DIFFUSER
W10158753 W10158753 DIFFUSER, AIR SHT
68001746 68001746 DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER)
WP4-65151-004 WP4-65151-004 DOOR GASKET
W10843121 W10843121 DRIER-TUBE
W10243404 W10243404 ENERGY LABEL/TAG
WP4-81546 WP4-81546 EVAPORATOR
WP3-80411-103 WP3-80411-103 EVAPORATOR MOTOR
WP4357263 WP4357263 EXCHANGER, HEAT
4390663 4390663 GASKET
4390664 4390664 GASKET
WP4-60461-002 WP4-60461-002 GRILLE
4356335 4356335 GROMMET
4357020 4357020 GROMMET
W10862416 W10862416 GROMMET, DRAIN
R0131138 R0131138 HANDLE ASSEMBLY (INCLUDES ITEM 11)
4-81785-001 4-81785-001 HARNESS, FAN
W11175809 W11175809 HEATER
WP4356840 WP4356840 KEY-DOOR
3-82390-001 3-82390-001 KNOB CONTROL
3-82391-001 3-82391-001 LENS
WP3-82710-001 WP3-82710-001 LEVELER
W11679940 W11679940 LIGHT BULB
3-82130-001 3-82130-001 LIGHT, POWER WARNING
W10279460 W10279460 NAMEPLATE
2-34286-021 2-34286-021 OVERLOAD
W10279026 W10279026 OWNERS MANUAL
799344 799344 PAINT
4357258 4357258 PAN-COMPRS
WP4390675 WP4390675 PAN-DRIP
WP2189000 WP2189000 PLUG-HNDLE
4-82858-001 4-82858-001 POWER CORD
4390820 4390820 RAIL
4-60222-002 4-60222-002 RAIL
4-82272-001 4-82272-001 RAIL
WP4356738 WP4356738 RELAY-STRT
3-24004-049 3-24004-049 SCREW
4390511 4390511 SCREW
60001022 60001022 SCREW
WP489478 WP489478 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP3400094 WP3400094 SCREW
WP3-24838-048 WP3-24838-048 SCREW
WP489491 WP489491 SCREW
WP488163 WP488163 SCREW
WP8533976 WP8533976 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
4-82977-002 4-82977-002 SHELF-WIRE
WP4-82634-002 WP4-82634-002 SHELF-WIRE
W10164624 W10164624 SHIELD-HT
4-80504-101 4-80504-101 SHIELD-HT
8210351 8210351 SHIELD-HT
4390489 4390489 SHIM
4356846 4356846 SLEEVE
WP3-82393-001 WP3-82393-001 SOCKET
350930 350930 SPRAY
4390823 4390823 STOP
2-81124-001 2-81124-001 STOP, DOOR (TOP) (NATURAL)
WPW10170540 WPW10170540 STUD-HNDLE
W11384469 W11384469 SWITCH
W10406953 W10406953 SWITCH, ALARM (ILLUMINATED)
W11238399 W11238399 TAPE

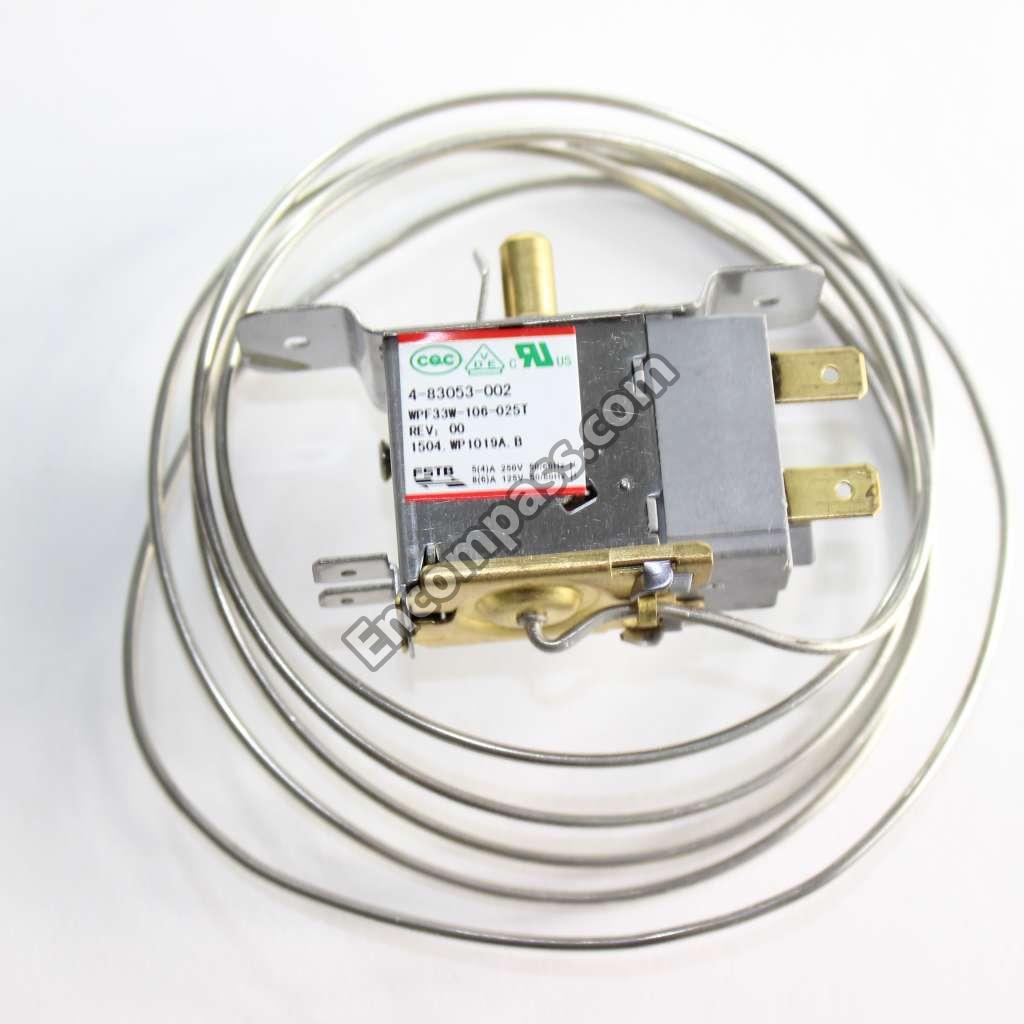

WP4-83053-002 WP4-83053-002 THERMOSTAT
WP3-81329 WP3-81329 TIMER-DEF
2-81016-105 2-81016-105 TOP HINGE (WHITE)
72017 72017 TUCHUP
3-24898-007 3-24898-007 VENT PLUG
4356847 4356847 WASHER
