Model Image
Manufacturer

Whirlpool

Model Number

ARS2667AB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
10176606Q 10176606Q AIR DUCT, WAXED
10114101 10114101 ANCHOR, BLADE
D7877001Q D7877001Q ARM,ICE MAKER SHUT OFF
12002642 12002642 ARM-DISPSR
WP12102104 WP12102104 ARM-DISPSR
WP627843 WP627843 ARM-EJECTR
WP2182124 WP2182124 ARM-STRIPR
12224205Q 12224205Q ASSY, CAN RACK
12313702 12313702 ASSY, CHILLER FRAME
R0161092 R0161092 ASSY, CONTROL-FZ
10882801Q 10882801Q ASSY, CRISPER FRAME
12023401Q 12023401Q ASSY, FILL TUBE
12041617 12041617 ASSY, MC BACK
12452602Q 12452602Q ASSY, ROLLER BRACKET
10544114 10544114 ASSY,COND/PAN-E CT
10882821Q 10882821Q ASSY,CRISPER FRAME
12513302 12513302 ASSY,FACADE CONTROL
12309908BQ 12309908BQ ASSY,FZ DR FOAM(BLACK) SXS
W11227913 W11227913 ASSY,LOW SIDE(SXS 22)
12309705BQ 12309705BQ ASSY,REF DR FOAM(BLACK)
10883331Q 10883331Q ASSY,SPLIT GLIDE SHLF
12039903 12039903 BACK, M.C.
10508107 10508107 BAFFLE, M.C. AIR
10882701 10882701 BAND, CRISPER
10986401 10986401 BAND, DELI
10113801 10113801 BAR, CRSH ICE BUCKET
12314802 12314802 BASKET, FRZ 12``
12314702 12314702 BASKET, FRZ 13``
12498901 12498901 BASKET, TILT OUT
10518702 10518702 BLADE, FAN
10114501 10114501 BLADE, ROTATING
10114601 10114601 BLADE, STATIC
WP2169142 WP2169142 BLADE-FAN
R0000199 R0000199 BLADE-FAN
10629601 10629601 BLOCK, AIR COIL (LEFT)
10629001 10629001 BLOCK, AIR COIL (RIGHT)
D7822406 D7822406 BOX, CONTROL BTM
D7868606 D7868606 BOX, CONTROL TOP
WP10909401 WP10909401 BRACKET
12534801 12534801 BRACKET, TIMER
12421101 12421101 BRACKET, WATER VALVE
10323308 10323308 BRACKET,ELEC MNTG
WP10492701 WP10492701 BRAKT-MTR
12414701 12414701 BRKT, CONT COVER
10894901 10894901 BRKT, COVER MTG.
10495702 10495702 BRKT, DRAIN PAN MTG.
WP10492801 WP10492801 BRKT, UP EVAP. FAN
WP10656102 WP10656102 BRKT-MTR MT/UP
12311905 12311905 BUCKET, FRZ DOOR
WP12309511 WP12309511 BUCKET, REF DOOR
WP10111905 WP10111905 BUCKET- CR
C8964402 C8964402 BUSHING, TOP
R0000009 R0000009 BYPASS
WPD7749401 WPD7749401 CAP- HELIX
WP65889-4 WP65889-4 CAPACITOR
R0000447 R0000447 CHUTE-DRWR
W10833902 W10833902 CLAMP
C8977301 C8977301 CLAMP
C8976201 C8976201 CLAMP
M0102303 M0102303 CLAMP
B5794201 B5794201 CLAMP
M0103904 M0103904 CLAMP, SPEED
M0108001 M0108001 CLAMP, TUBE
10526701 10526701 CLAMP, WIRE
B5720301 B5720301 CLIP
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
W10819546 W10819546 CLIP
W11673433 W11673433 CLIP
WPM0104106 WPM0104106 CLIP
10426801 10426801 CLIP, AIR TUNNEL
M0104102 M0104102 CLIP, CORD
10547002 10547002 CLIP, DRIER
10527401 10527401 CLIP, EVAP
10623003 10623003 CLIP, EVAPORATOR
B5733302 B5733302 CLIP, GROUND
12454803 12454803 CLIP, WATERLINE
M0585206 M0585206 CLIP, WIRE
WPM0114003 WPM0114003 CLIP- SPEE
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP10423131 WP10423131 CONTAINER
R9900109 R9900109 CONTROL, DAMPER
10164701 10164701 CONTROL-AIR
M1200004 M1200004 COTTER PIN K
WP10114901 WP10114901 COUPLING
10178505 10178505 COVER - WIRE
10849403 10849403 COVER E HINGE
D7820401 D7820401 COVER IM
D7788836 D7788836 COVER, AUGER MOTOR
WP67002271 WP67002271 COVER, BLADE
10862713 10862713 COVER, CONTROL
10493302 10493302 COVER, FRZ LIGHT
D7297604 D7297604 COVER, LIGHT SW
10178406 10178406 COVER, O.C.BACK
D7838302 D7838302 COVER, SUPPLY AIR
12445402 12445402 COVER, WATER FILTER-E CT
12421801 12421801 COVER, WATERLINE
Y10270101 Y10270101 COVER-LIGHT
4344043 4344043 COVER-TERM
10914202 10914202 COVER-WATER TANK
WP12740302 WP12740302 CRUSHR-MEC
WP628356 WP628356 CUP-FILL
10275201 10275201 DAMPER, ICE
C8973602 C8973602 DELAY, DOOR
10876302 10876302 DIRECTOR-DELI
R0000202 R0000202 DOOR GASKET
R0000203 R0000203 DOOR GASKET
12313901 12313901 DOOR, CHILLER
12308704 12308704 DOOR- DAIR
WPB2150504 WPB2150504 DRIER
D7850202 D7850202 DRIP TRAY PNT.
10655902 10655902 EVAP COVER- E CT
10890202 10890202 EVAP FAN SHROUD
WPW10189703 WPW10189703 EVAPORATOR MOTOR
WP10513803 WP10513803 EVAPORATOR MOTOR
A3127414 A3127414 EXT. FILL TUBE
12335602 12335602 EXTENSION, CAVITY
10873802 10873802 EXTR, REAR DELI
12501901B 12501901B FACADE,DISPENSER(BLACK)
WF401S WF401S FILTER, WATER
WP4373559 WP4373559 FITTING
10863501 10863501 FOIL, HNG COV
C8960601 C8960601 FOOT, OUTER CASE
12308603 12308603 FRAME, DAIRY
10783803 10783803 FRAME, DELI
12498801 12498801 FRAME,TILT DR SHELF
10782902 10782902 FRAME-CRIS
10115001 10115001 FRONT, ICE CRUSHER
10870904 10870904 FRONT-CI BUCKET
W10815413 W10815413 FUNNEL
B8386602 B8386602 GASKET
B8386608 B8386608 GASKET
A3189337 A3189337 GASKET
10839713 10839713 GASKET (1=1FT.)
10839803 10839803 GASKET (FT.)
A3189335 A3189335 GASKET FOAM
C8976102 C8976102 GASKET, AIR BLOCK
10177901 10177901 GASKET, AIR DUCT
10383201 10383201 GASKET, DAMPER
WPB8345401 WPB8345401 GASKET, DAMPER
10872701 10872701 GASKET, DELI
WPB8381501 WPB8381501 GASKET- DR
A3030305 A3030305 GASKET-PER FT
Y10370066 Y10370066 GLASS, SHELF
67005375 67005375 GLIDE, CONTAINER (LEFT)
67004323 67004323 GLIDE, FRZ. (RT)
12528203 12528203 GLIDE,LEFT CAN RACK
12528204 12528204 GLIDE,RIGHT CAN RACK
10164813 10164813 GRILLE, CONTROL
12502001B 12502001B GRILLE,SUMP(BLACK)
D7785402 D7785402 GRILLE-RTN AIR
WP2264462 WP2264462 GROMMET
M0580002 M0580002 GROMMET A
67003493 67003493 GROMMET, COMPRESSOR
M0581001 M0581001 GROMMET, SCREW
M0580007 M0580007 GROMMET, SCREW
12495001B 12495001B HANDLE,REF/FZ DR(BLACK)
D7824601 D7824601 HARNESS
12072603 12072603 HARNESS, CABINET
10967603 10967603 HARNESS, M.C.
WP12049801 WP12049801 HEATER- EV
10961005B 10961005B HING-BUSHG
12431707 12431707 HINGE, BTM L E-CT
12431709 12431709 HINGE, BTM R E-CT
12426201 12426201 HINGE, TOP (E-CT)
10270203 10270203 HOUSING, LIGHT
12427502 12427502 HOUSING, LIGHT
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP12544001 WP12544001 INLET VALVE
D7821174 D7821174 INNER FZ BACK-PNT
C8902601 C8902601 INSERT, CONTROL
12508208B 12508208B INSERT,FACADE(BLACK)
WPA3223101 WPA3223101 INSERT- PL
D7788201 D7788201 INSULATION
B8380701 B8380701 INSULATION, CHUTE DOOR
10906503 10906503 INSULATION, L.FOOT
10906502 10906502 INSULATION, O.C.BOTTOM
10906501 10906501 INSULATION, R FOOT
12500101 12500101 KIT, RANGE KNOB-22,31,61 (6)
R9800670 R9800670 KIT, SCREW
R0131553 R0131553 KIT, TOE GRILLE (BLK)
R0156692 R0156692 KIT,CHUTE DR NO.3
10246601 10246601 KIT,CHUTE DR NO.3
R0181181 R0181181 KIT,DR CLOSURE
R0130014 R0130014 KIT-SHROUD
10834701 10834701 LABEL, IM
12614205 12614205 LADDER, CANT.
12373101 12373101 LADDER, CENTER
10436404 10436404 LID, UTILITY
W10887190 W10887190 LIGHT BULB
W10857122 W10857122 LIGHT BULB
WPA3073101 WPA3073101 LIGHT BULB
12319001 12319001 LINE,FILTER OUTLET TO I/M 110``
10872601 10872601 MANIFOLD, DELI
12002089 12002089 MOTOR, AUGER
833697 833697 MOTOR-COND
Y12528501 Y12528501 NAMEPLATE (AMANA PLUS)
NOTE_ NOTE_ NOTE: THIS PAGE POSSIBLY TO BE REVISED JULY 2000.
WP627018 WP627018 NUT
WPM0223101 WPM0223101 NUT
M0286708 M0286708 NUT, SPEED
WP10377023 WP10377023 OVERLOAD
M0051701 M0051701 PAD-BUMPER
10507903 10507903 PAN, DRAIN
10783204 10783204 PAN,CRISPER
10784202 10784202 PAN- DELI
M1200202 M1200202 PIN K
A1061501 A1061501 PIN, CHUTE DOOR
M1200108 M1200108 PIN, ROLL
D7753505 D7753505 PLATE, LIGHT SOCKET
12236001 12236001 PLATE-WATER VALVE
WPA3076901 WPA3076901 PLUG, BUTTON
M0311604 M0311604 PLUG, BUTTON (BLK)
A3080001 A3080001 PLUG, BUTTON (BLK)
10916505 10916505 POWER CORD
12500001 12500001 RACK, CAN
10992303 10992303 RACK, UTILITY
12015102 12015102 RAIL, SHELF (LT)
10972802 10972802 RAIL, SHELF (RT)
R0181175 R0181175 RESERVOIR
C8972501 C8972501 RETAINER DOOR DELAY
12310203 12310203 RETAINER, FRZ BUCKET
A1061601 A1061601 RETAINER, ICE ARM
12310201 12310201 RETAINER, REF BUCKET
12273807 12273807 RETAINER,BTM TRIM
12273806 12273806 RETAINER,TOP TRIM
10098801 10098801 RIVET
WPM1205302 WPM1205302 RIVET
B5642901 B5642901 RIVET, POP (WHT)
59002054 59002054 RIVET-POP
WP10450603 WP10450603 ROLLER
10481001 10481001 ROLLER, PAN
M0216705 M0216705 SCREW
12992301 12992301 SCREW
WPM0223816 WPM0223816 SCREW
W11214483 W11214483 SCREW
WP8281196 WP8281196 SCREW
WP489349 WP489349 SCREW
M0216539 M0216539 SCREW
WPW10139210 WPW10139210 SCREW
R0186040 R0186040 SCREW
R0186041 R0186041 SCREW
WP8281227 WP8281227 SCREW
WP98165 WP98165 SCREW
WP67006715 WP67006715 SCREW
WP3400094 WP3400094 SCREW
67006692 67006692 SCREW
W11233072 W11233072 SCREW
W10856125 W10856125 SCREW
WP90767 WP90767 SCREW
WP489399 WP489399 SCREW
WP489474 WP489474 SCREW
WP489464 WP489464 SCREW
WP489069 WP489069 SCREW
67006425 67006425 SCREW (3)
10093306 10093306 SCREW ADJUST
M0229005 M0229005 SCREW K
681390 681390 SCREW, 8-32 X 3/8
67006529 67006529 SCREW, HANDLE
12991101 12991101 SCREW, HANDLE (BLACK)
M0206313 M0206313 SCREW, MACH
M0221523 M0221523 SCREW, SHLDR
M0211357 M0211357 SCREW, SM
M0227217 M0227217 SCREW, SM
W10142650 W10142650 SCREW, TF
M0238846 M0238846 SCREW-SM
M0238636 M0238636 SCREW-SM
12990523 12990523 SCREW-SM/HEX
WPM0500703 WPM0500703 SEAL- O RI
10968801 10968801 SEAL-CRISP FRONT
10809541 10809541 SHELF, CAN RACK
12311804 12311804 SHELF, FRZ DOOR
10870802 10870802 SHELF, ICE CREAM
12489304 12489304 SHELF, REF DOOR
10809726 10809726 SHELF, SPLIT GLIDE
12353304 12353304 SHELF, STA FRZ
12363401 12363401 SHELF, STATIONARY
67005092 67005092 SHELF, STATIONARY
10783124 10783124 SHELF, TOP CRISPER
10893803 10893803 SHIELD, EVAP
10014716 10014716 SHIELD, LIGHT
D7786603 D7786603 SHIELD, LIGHT
12187603 12187603 SHIM, BOTTOM HINGE METAL
10361804 10361804 SHIM, DR BUSHING
B8389007 B8389007 SHIM, TOP HINGE
WP67005716 WP67005716 SHIM- CLOS
12146702 12146702 SHIM-BOT HINGE
10890206 10890206 SHROUD,EVAP FAN-E CT
10784002 10784002 SLEEVE,DELI
10852501 10852501 SLIDE, CRISPER/DELI
12103905 12103905 SNUGGER, DOOR SHELF
10131702 10131702 SOCKET, LIGHT
D7714408 D7714408 SOCKET, LIGHT
10281602 10281602 SOCKET, SGL LIGHT
D7714407 D7714407 SOCKET-LIGHT
A3044208 A3044208 SPACER DAMPER
12146803 12146803 SPACER, BTM HINGE
10113901 10113901 SPACER, COVER
WPA1055105 WPA1055105 SPRING
B8385401 B8385401 SPRING, RETURN
B8380901 B8380901 SPRING,CHUTE DOOR
WP10097202 WP10097202 START-DEV
12636401B 12636401B STOP, DOOR (BLK)
10875101 10875101 STOP, SHELF
M0560005 M0560005 SUPPORT
10508001 10508001 SUPPORT, MACH COMP.
D7749207 D7749207 SUPPORT,AUGER MOTOR
WPC8973801 WPC8973801 SUPPORT- F
D7821004 D7821004 SUPPORT-IM

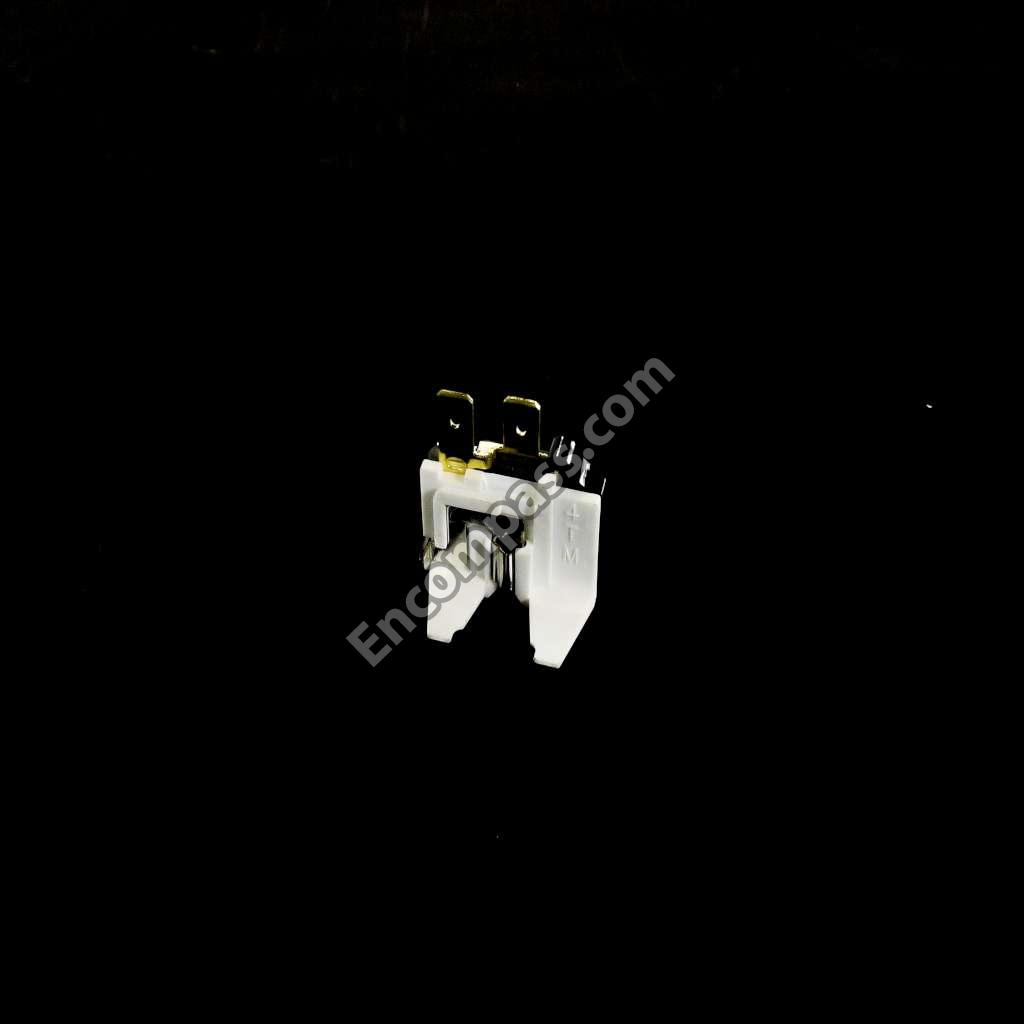

W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
12419601 12419601 SWITCH, LIMIT
R0161088 R0161088 THERMOSTAT
M0585403 M0585403 TIE WIRE
WPM0322202 WPM0322202 TIE WIRE
M0585401 M0585401 TIE, WIRE
R0131577 R0131577 TIMER-DEF
67004412A 67004412A TRAY, BUTTER
10436506 10436506 TRAY, EGG
12314101 12314101 TRIM, BASKET/SHELF
67004181 67004181 TRIM, LWR SHELF
12495104S 12495104S TRIM,BTM HANDLE(STAINLESS)
12113010 12113010 TRIM,LWR CRISPR FRNT
12495103S 12495103S TRIM,TOP HANDLE(STAINLESS)
12273506 12273506 TRIM-E SXS BOT
12273503 12273503 TRIM-E SXS TOP
WPB5705307 WPB5705307 TUBE
10505101 10505101 TUBE, DRAIN
10187601 10187601 TUNNEL WIRE
10187501 10187501 TUNNEL WIRE
C8971902 C8971902 TUNNEL, HEAT EX.
10923101 10923101 TUNNEL, RETAINER
WP12544101 WP12544101 VALVE- SEC
M0270519 M0270519 WASHER
10114401 10114401 WASHER AGITATOR, ICE
10114301 10114301 WASHER STEPPED
M0274067 M0274067 WASHER, NYLON
10275101 10275101 WASHER, WAVED
WP67002052 WP67002052 WHEEL- CRS
Main Menu x
