Model Image
Manufacturer

Whirlpool

Model Number

ART308FFDM07

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "INSULATION (2 PIECES, 3"" X 24"" X 48"")"
876029 876029 "KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
W10310934 W10310934 "SHELF, REFRIGERATOR WIRE (30"")"
876764 876764 "VALVE, ACCESS (3/16"")"
978030 978030 "VALVE, ACCESS (3/4"")"
978027 978027 "VALVE, ACCESS (3/8"")"
978026 978026 "VALVE, ACCESS (5/16"")"
978029 978029 "VALVE, ACCESS (5/8"")"
W11594405 W11594405 AXLE
W11175807 W11175807 AXLE
W11736795 W11736795 BAFFLE-AIR
606755 606755 BAG
WP2163777 WP2163777 BLADE-FAN
W11193484 W11193484 BLADE-FAN
W11745278 W11745278 BRACKET
W11402852 W11402852 BRACKET
W10314197 W10314197 BRACKET, EVAPORATOR
2254454 2254454 BRACKET, EVAPORATOR FAN REAR
WPW10520304 WPW10520304 BUTTON-PLG
WPW10520305 WPW10520305 BUTTON-PLG
WPW10520307 WPW10520307 BUTTON-PLG
WP941839 WP941839 BUTTON-PLG
WP2212648 WP2212648 BUTTON-PLG
WP2212651 WP2212651 BUTTON-PLG
WP2254517 WP2254517 BUTTON-PLG
W11512421 W11512421 CAMERA LENS-LIGHT
W10846529 W10846529 CAP-SCREW
W10853677 W10853677 CAP-SCREW
W10849198 W10849198 CAP-SCREW
WPW10662129 WPW10662129 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11234470 W11234470 CLAMP, PLASTIC
W11092534 W11092534 CLIP
W10812039 W10812039 CLIP
2219077 2219077 CLIP, HARNESS
W11480426 W11480426 COMPRESSOR
W11512423 W11512423 CONDENSER
W11244470 W11244470 CONTROL
W11436574 W11436574 CONTROL BOARD

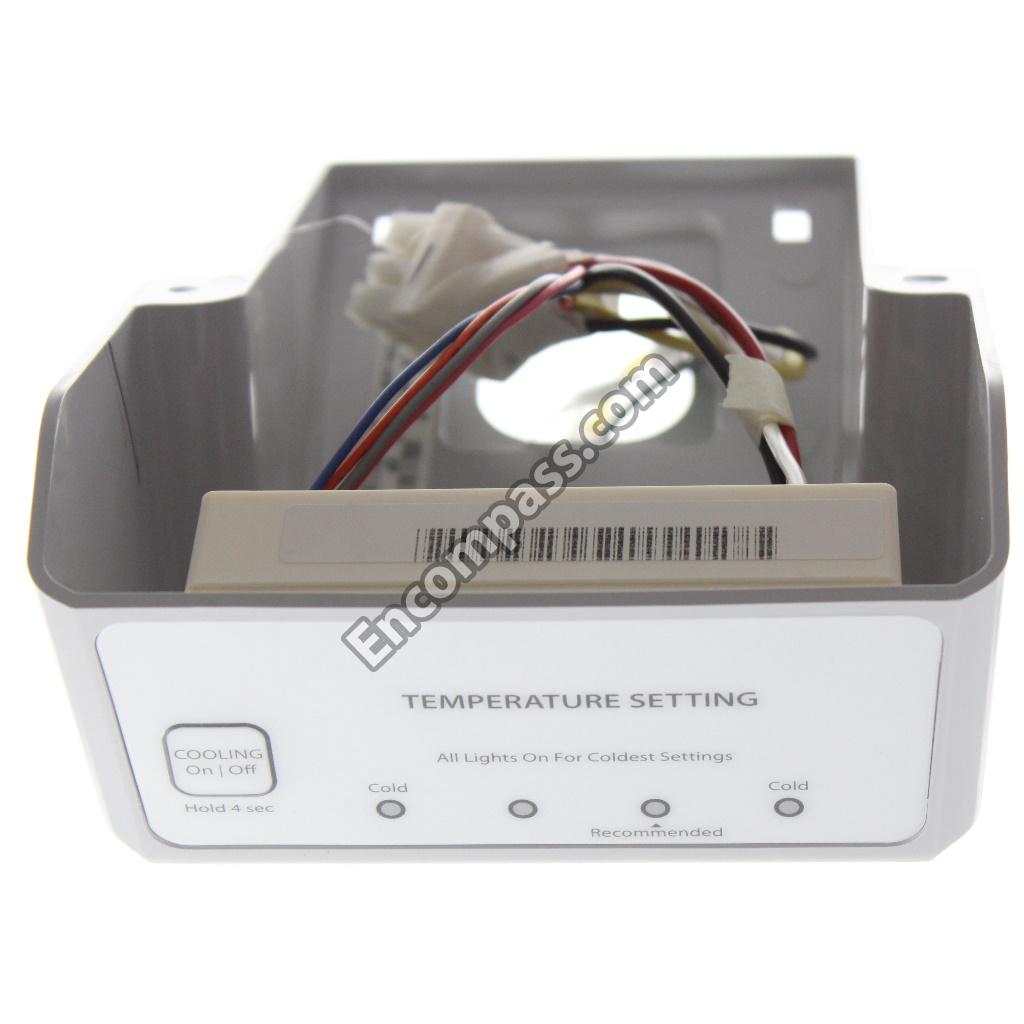

W11352623 W11352623 CONTROL BOX
W11528668 W11528668 COVER
W10854527 W10854527 COVER
W11256504 W11256504 COVER
W10300902 W10300902 COVER, HEATER
W10677275 W10677275 COVER, HOLE
W11024683 W11024683 COVER-EVAP
W11476772 W11476772 COVER-UNIT
W10860753 W10860753 CRISPER PAN
W10638176 W10638176 CUP, AIR DIFFUSER
W11026417 W11026417 DAMPER-AIR
W10861170 W10861170 DIFFUSER
LW10680726 LW10680726 DOOR ASSEMBLY
LW10680725 LW10680725 DOOR ASSEMBLY
LW10680727 LW10680727 DOOR ASSEMBLY
LW10680729 LW10680729 DOOR ASSEMBLY
LW10680728 LW10680728 DOOR ASSEMBLY
LW10680730 LW10680730 DOOR ASSEMBLY
W10838574 W10838574 DOOR GASKET
W11240749 W11240749 DOOR GASKET
W10861499 W10861499 DOOR GASKET
W11229610 W11229610 DOOR GASKET
W11574983 W11574983 DOOR GASKET
WP2261963 WP2261963 DOOR HINGE
WP2254618 WP2254618 DOOR HINGE
W11126055 W11126055 DOOR TRIM
W11170805 W11170805 DOOR TRIM
W11097831 W11097831 DOOR TRIM
W11129820 W11129820 DOOR TRIM
W11106290 W11106290 DOOR TRIM
WP2218113 WP2218113 DOOR-COMP
WP2188234 WP2188234 DOOR-SHELF
W11490399 W11490399 DRIER-TUBE
W10919804 W10919804 DUCT-AIR
WP2156003 WP2156003 ENDCAP
W11095234 W11095234 ENERGY GUIDE
W11407409 W11407409 EVAPORATOR
WP2315539 WP2315539 EVAPORATOR MOTOR
W11383479 W11383479 EXTENSION, DRAIN TUBE
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10849448 W10849448 GASKET
W11030683 W11030683 GASKET, DOOR (GREY)
W11674475 W11674475 GLASS SHELF
WP542638 WP542638 GREASE
WP2264462 WP2264462 GROMMET
WPW10169124 WPW10169124 GROMMET
W10852725 W10852725 GROMMET
W10174743 W10174743 HANDLE, CUP (BLACK)

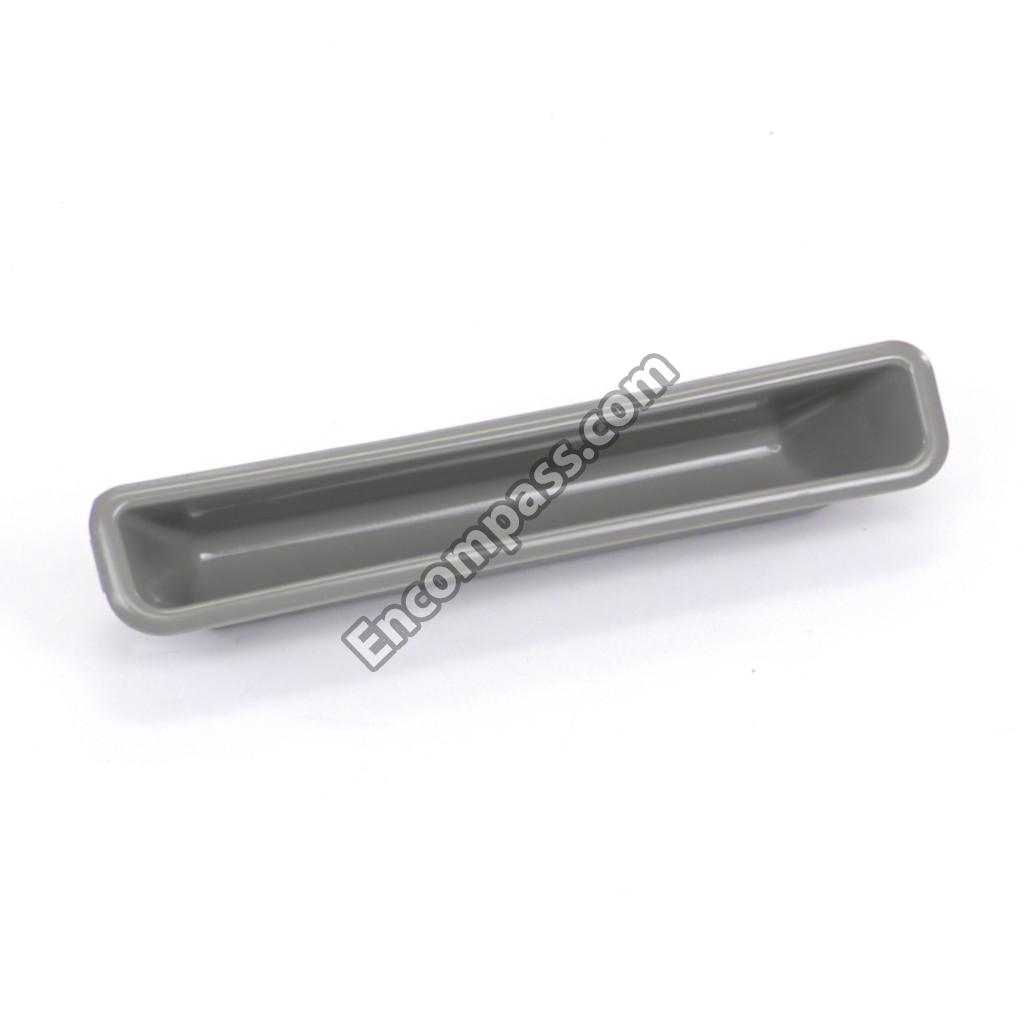

W10240002 W10240002 HANDLE, CUP (GREY)
W10352523 W10352523 HANDLE, CUP (WHITE)
W10856574 W10856574 HEAT-PROBE
WPW10316428 WPW10316428 HEATER
W11026307 W11026307 HINGE-PIN
W11700559 W11700559 ICEMAKER
W11553819 W11553819 INSULATION
833938 833938 KIT, TERMINAL CONNECTOR
8003RP 8003RP KIT, WATER INLET
W10854419 W10854419 LEVELER
W11216993 W11216993 LIGHT BULB
W11127829 W11127829 MOTOR-COND
W11428492 W11428492 NAMEPLATE
W11318226 W11318226 NAMEPLATE
W11182143 W11182143 NAMEPLATE
W10850162 W10850162 ORIFICE
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
W10134625 W10134625 PAINT, TOUCH-UP (1/2OZ. APOLLO GREY)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP2174706 WP2174706 PIN-HITCH
W11164152 W11164152 ROLLER
W11256723 W11256723 ROLLER-CAB
W11096015 W11096015 ROLLER-CAB
WPW10475495 WPW10475495 ROLLER-CAB
WP489442 WP489442 SCREW
WP489497 WP489497 SCREW
WP488163 WP488163 SCREW
W11544659 W11544659 SCREW
WP3400065 WP3400065 SCREW
WP488921 WP488921 SCREW
WP489128 WP489128 SCREW
WP489478 WP489478 SCREW
W10829281 W10829281 SCREW
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER, GUM (4 FEET)
W11678256 W11678256 SHELF-WIRE
WPW10314195 WPW10314195 SHIELD
WP2183852 WP2183852 SHIM
W11169703 W11169703 SHIM
W11528669 W11528669 SHIM-HINGE
W11590562 W11590562 SLIDE
W11092533 W11092533 START-DEV
W10624648 W10624648 SUPPORT PLATE, COMPRESSOR
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
W11386226 W11386226 TECH SHEET
WPW10384183 WPW10384183 THERMISTOR
W11438736 W11438736 THERMISTOR
WP2183003 WP2183003 THIMBLE
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11595235 W11595235 TRACK
W11595233 W11595233 TRACK
W11595232 W11595232 TRACK
W10633582 W10633582 TRAY, EVAPORATOR
W11661102 W11661102 TUBE
W11407403 W11407403 TUBE
W10633573 W10633573 TUBE, DRAIN
W11224759 W11224759 USE & CARE GUIDE
WP978025 WP978025 VALVE
W10847959 W10847959 WASHER
WP489467 WP489467 WASHER
511873 511873 WHITE PORCELAIN (2 OZ.)
W11436564 W11436564 WIRE HARNESS
W11551368 W11551368 WIRE HARNESS
W11611445 W11611445 WIRE HARNESS
