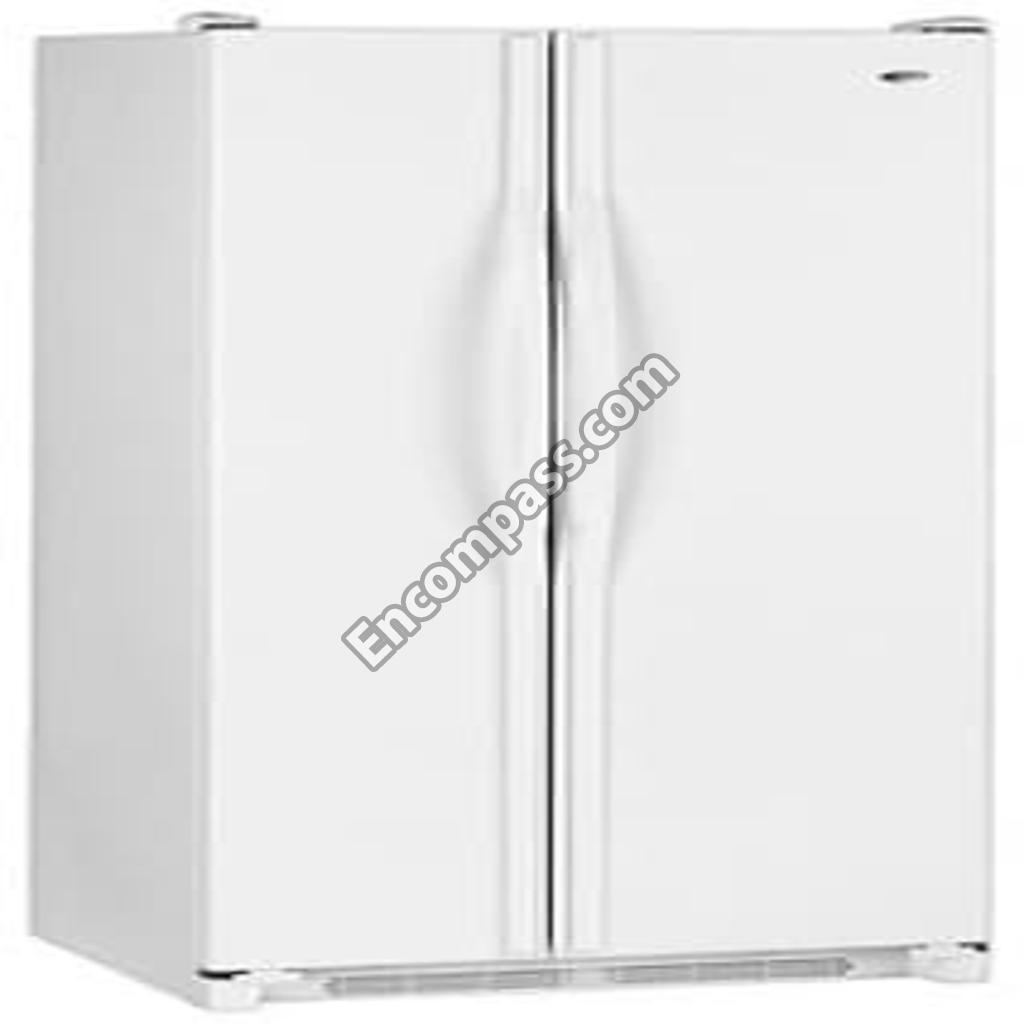

Model Image
Manufacturer

Whirlpool

Model Number

ASB2623HRW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP67004028 WP67004028 Whirlpool ARM-SHUT
12575101WD 12575101WD Whirlpool BACK, MACH COMP
12403312 12403312 Whirlpool BACK- INNE
12457108 12457108 Whirlpool BASEPAN
67006234 67006234 Whirlpool BASKET, 26`` LWR FZ WXS/SXS
67004381 67004381 Whirlpool BASKET26
W10156818 W10156818 Whirlpool BLADE, FAN
WP12587601 WP12587601 Whirlpool BLADE- CON
WP2169142 WP2169142 Whirlpool BLADE-FAN
12590102 12590102 Whirlpool BLOCK AIR
12590101 12590101 Whirlpool BLOCK, AIR COIL (LT)
67002235 67002235 Whirlpool BLOCKEPS
67003354 67003354 Whirlpool BRACKET
WP67004953 WP67004953 Whirlpool BRACKET
WP67005633 WP67005633 Whirlpool BRACKET
WP2256087 WP2256087 Whirlpool BRACKET
67002982 67002982 Whirlpool BRACKET C
12456801V 12456801V Whirlpool BRACKET, FOOT
67004378 67004378 Whirlpool BRACKET- T
67004339 67004339 Whirlpool BUCKET ASSEMBLY., REF. DOOR
67004342 67004342 Whirlpool BUCKET ASY
67004290 67004290 Whirlpool BUCKET FZ
12557501 12557501 Whirlpool BUCKET LW
12664901 12664901 Whirlpool BUCKETCON
12395501W 12395501W Whirlpool BUSHING D
WP67004977 WP67004977 Whirlpool BUSHING- D
12565901 12565901 Whirlpool CAN RACK
WP65889-4 WP65889-4 Whirlpool CAPACITOR
12590210 12590210 Whirlpool CHILLER AS
M0102303 M0102303 Whirlpool CLAMP
W10833902 W10833902 Whirlpool CLAMP
67004117 67004117 Whirlpool CLEAT- HAN
67004116 67004116 Whirlpool CLEAT- HAN
WPM0104106 WPM0104106 Whirlpool CLIP
WP67006852 WP67006852 Whirlpool CLIP
B5720302 B5720302 Whirlpool CLIP
10623003 10623003 Whirlpool CLIP EVAP
10547002 10547002 Whirlpool CLIP, DRIER
67004292 67004292 Whirlpool CLIP, ``C`` CHANNEL
67002827 67002827 Whirlpool CLIP- CHIL
W11673433 W11673433 Whirlpool CLIP- EVAP
WPM0114003 WPM0114003 Whirlpool CLIP- SPEE
WP12627302 WP12627302 Whirlpool CLIP- TOE
W10309990 W10309990 Whirlpool COMPRESSOR
W10160407 W10160407 Whirlpool COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 Whirlpool CONDENSER
WP10423131 WP10423131 Whirlpool CONTAINER
WP67005335 WP67005335 Whirlpool CONTROL BOARD
67002225 67002225 Whirlpool CONTROL C
67003519 67003519 Whirlpool CONTROL- D
W11033771 W11033771 Whirlpool COUPLING
67003342 67003342 Whirlpool COVER B B
12630301W 12630301W Whirlpool COVER LWR
12583101 12583101 Whirlpool COVER SUP
12479803 12479803 Whirlpool COVER WAT
67002291 67002291 Whirlpool COVER, CHILLER
12403404 12403404 Whirlpool COVER, EVAP
67004029 67004029 Whirlpool COVER, TOP HINGE (LT-WHT)
67004030 67004030 Whirlpool COVER, TOP HINGE (RT-WHT)
67003484 67003484 Whirlpool COVER- COR
D7874403 D7874403 Whirlpool COVER-FL TB/PLUG
W10850512 W10850512 Whirlpool DOOR HINGE
67002297 67002297 Whirlpool DOOR LARG
67004268 67004268 Whirlpool DOOR, CHILLER
67002957 67002957 Whirlpool DOOR, DAIRY
12818202WQ 12818202WQ Whirlpool DOR-FIP WH
67004589 67004589 Whirlpool DORFIP
WPB2150504 WPB2150504 Whirlpool DRIER
67003581 67003581 Whirlpool DUCT QUIC
12001940 12001940 Whirlpool EVAP KIT (SXS)--W
WPW10128551 WPW10128551 Whirlpool EVAPORATOR MOTOR
12571801 12571801 Whirlpool EXTENSION
67003796 67003796 Whirlpool FIBER- ACO
WP2300868 WP2300868 Whirlpool FITTING
67002294 67002294 Whirlpool FRAME LAR
67004247 67004247 Whirlpool FRAME MEA
12569401 12569401 Whirlpool FRAME TIL
67004307 67004307 Whirlpool FRAME, CRISPER
67004140 67004140 Whirlpool FRAME, CRISPER SHELF
WPW10289690 WPW10289690 Whirlpool FRONT COVER
67004308 67004308 Whirlpool FRONT CRI
67004315 67004315 Whirlpool FRONT MEA
67004313 67004313 Whirlpool FRONT, LARGE CRISPER
12771404 12771404 Whirlpool FRONT- MEA
12456901 12456901 Whirlpool FUNNEL DR
67001508 67001508 Whirlpool GASKET
67004031 67004031 Whirlpool GASKET DA
12582801 12582801 Whirlpool GASKET DA
B5759649 B5759649 Whirlpool GASKET MC
WP67003968 WP67003968 Whirlpool GASKET, FRZ. DOOR (WHT)
W10133828 W10133828 Whirlpool GASKET, REF. DOOR (WHT)
WP12582901 WP12582901 Whirlpool GASKET- CO
WPB8381501 WPB8381501 Whirlpool GASKET- DR
67002226 67002226 Whirlpool GASKET- FO
67004132 67004132 Whirlpool GLASS MEA
12579601 12579601 Whirlpool GLIDE, CAN RACK (RT)
67002223 67002223 Whirlpool GRILLE ASY
67004379 67004379 Whirlpool GRILLE CH
12634801 12634801 Whirlpool GRILLE, RETURN AIR
12572907 12572907 Whirlpool GRILLE- CH
WP61004743 WP61004743 Whirlpool GROMMET- B
67005680 67005680 Whirlpool GROMMET- C
67003493 67003493 Whirlpool GROMMET- C
WP67002780 WP67002780 Whirlpool GROMMET- F
M0580205 M0580205 Whirlpool GROMMET- S
67004767 67004767 Whirlpool HANDLE ASSEMBLY (WHT)
10508506 10508506 Whirlpool HANDLE, BASKET/SHELF
67004338 67004338 Whirlpool HARNESS C
67003823 67003823 Whirlpool HARNESS, MC
10525901 10525901 Whirlpool HARNESS, WATER VALVE
67005251 67005251 Whirlpool HARNS-WIRE
WP67004188 WP67004188 Whirlpool HEATER- EV
67006489 67006489 Whirlpool HINGE TOP (LT-BLK)
WP12636903ED WP12636903ED Whirlpool HINGE, BOTTOM (RT-BLK)
12636901ED 12636901ED Whirlpool HINGE- BOT
WP12579602 WP12579602 Whirlpool HOLDER-BEV
12889101 12889101 Whirlpool HOUSING, FZ CONTROL
D7824706Q D7824706Q Whirlpool ICE MAKER ASSEMBLY.
W10833899 W10833899 Whirlpool INLET VALVE
WPA3223101 WPA3223101 Whirlpool INSERT- PL
12604201 12604201 Whirlpool INSULATION
67002219 67002219 Whirlpool INSULATION, TUBING
R0181181 R0181181 Whirlpool KIT,DR CLOSURE
12581101 12581101 Whirlpool KNOB, CONTROL
12581102 12581102 Whirlpool KNOB, CONTROL
W11679940 W11679940 Whirlpool LIGHT BULB
67002292 67002292 Whirlpool LINKAGE C
67002293 67002293 Whirlpool LINKAGE- C
833697 833697 Whirlpool MOTOR-COND
W11613295 W11613295 Whirlpool MOTOR-COND
Y12528501 Y12528501 Whirlpool NAMEPLATE
WP627018 WP627018 Whirlpool NUT
M0286708 M0286708 Whirlpool NUT- SPEED
67005660 67005660 Whirlpool OVERLAY
67004327 67004327 Whirlpool OVERLAY C
12837101 12837101 Whirlpool OVERLAY- C
67004143 67004143 Whirlpool OWNERS MAN
67003892 67003892 Whirlpool PAN ADJ C
67004206 67004206 Whirlpool PAN, MEAT
67005639 67005639 Whirlpool PAN, MEAT
WP12579803 WP12579803 Whirlpool PAN- DRAIN
WP67005816 WP67005816 Whirlpool PAN- LG CR
WP67001255 WP67001255 Whirlpool PAN-ICE
67004174 67004174 Whirlpool PIN- ROLLE
67003018 67003018 Whirlpool PLUG AIR
M0311301 M0311301 Whirlpool PLUG BUTTON
10544301 10544301 Whirlpool PLUG IM T
WPA3076901 WPA3076901 Whirlpool PLUG, BUTTON
A3080001 A3080001 Whirlpool PLUGHOLE
M0311605 M0311605 Whirlpool PLUGHOLE
WP67006506 WP67006506 Whirlpool POWER CORD
67004317 67004317 Whirlpool RAIL BASK
67004179 67004179 Whirlpool RAIL BASK
67003840 67003840 Whirlpool RAIL L R
12790001 12790001 Whirlpool RAIL- BASK
67004157 67004157 Whirlpool REFLECTOR
WPM1205302 WPM1205302 Whirlpool RIVET
67004169 67004169 Whirlpool ROLLER
WP10450603 WP10450603 Whirlpool ROLLER
WP12580304 WP12580304 Whirlpool ROLLER BRACKET ASSEMBLY
67004133 67004133 Whirlpool ROLLER, PAN
W10709798 W10709798 Whirlpool SCREW
12846902 12846902 Whirlpool SCREW
W10709801 W10709801 Whirlpool SCREW
681390 681390 Whirlpool SCREW
WP489399 WP489399 Whirlpool SCREW
WP489069 WP489069 Whirlpool SCREW
WP98165 WP98165 Whirlpool SCREW
M0216539 M0216539 Whirlpool SCREW
WP90767 WP90767 Whirlpool SCREW
W11214483 W11214483 Whirlpool SCREW
WPW10139210 WPW10139210 Whirlpool SCREW
12992301 12992301 Whirlpool SCREW
WPM0223816 WPM0223816 Whirlpool SCREW
67006692 67006692 Whirlpool SCREW
W11233072 W11233072 Whirlpool SCREW
71003131 71003131 Whirlpool SCREW
WP8281227 WP8281227 Whirlpool SCREW
WP67006197 WP67006197 Whirlpool SCREW
WP8281196 WP8281196 Whirlpool SCREW
WP489349 WP489349 Whirlpool SCREW
WP67006715 WP67006715 Whirlpool SCREW
M0231426 M0231426 Whirlpool SCREW
67006425 67006425 Whirlpool SCREW (3)
67003334 67003334 Whirlpool SCREW TC
10093320 10093320 Whirlpool SCREW, MACH
W10005070 W10005070 Whirlpool SCREW, TC
W11227370 W11227370 Whirlpool SCREW, TC
67004305 67004305 Whirlpool SEAL CRIS
67004306 67004306 Whirlpool SEAL FRON
WPM0500703 WPM0500703 Whirlpool SEAL- O RI
WP854334 WP854334 Whirlpool SEAL-STRIP
67006053 67006053 Whirlpool SHELF, CRISPER TOP
67004250 67004250 Whirlpool SHELF, LWR FZ
67006882 67006882 Whirlpool SHELF, REF STA
67005092 67005092 Whirlpool SHELF, STATIONARY
67004354 67004354 Whirlpool SHELF, UPR FRZ.
67001507 67001507 Whirlpool SHIELD CR
67004135 67004135 Whirlpool SHIELD, FZ LIGHT
D7846203 D7846203 Whirlpool SHIELD, ICE MAKER
WP67005716 WP67005716 Whirlpool SHIM- CLOS
67004253 67004253 Whirlpool SHROUD EV
67001090 67001090 Whirlpool SHROUD, CONDENSER FAN
67004887 67004887 Whirlpool SLIDE, CONTROL (BLUE)
67004298 67004298 Whirlpool SLIDE, HUMIDITY CONTROL (BLUE)
67004884 67004884 Whirlpool SLIDE-HUMIDITY CONTROL,BLUE
W11447232 W11447232 Whirlpool SOCKET
WPA1055105 WPA1055105 Whirlpool SPRING
W10613606 W10613606 Whirlpool START-DEV
12636401W 12636401W Whirlpool STOP DOOR
WP12576801 WP12576801 Whirlpool STRAP, BALE
WP12603701 WP12603701 Whirlpool SUPPORT- C
WPC8973801 WPC8973801 Whirlpool SUPPORT- F
16025628 16025628 Whirlpool SVC MAN, SXS
W11291138 W11291138 Whirlpool SWITCH
W11396033 W11396033 Whirlpool SWITCH
67004385 67004385 Whirlpool TAG ENERG
16022891 16022891 Whirlpool TECH SHT, SXS
67004311 67004311 Whirlpool THERMOSTAT
WP67004757 WP67004757 Whirlpool THERMOSTAT
WPM0322202 WPM0322202 Whirlpool TIE WIRE
WP67001036 WP67001036 Whirlpool TIMER- DEF
WP841180A WP841180A Whirlpool TRAY
67002296 67002296 Whirlpool TRAY CHIL
67002304 67002304 Whirlpool TRAY, DAIRY
12558101WD 12558101WD Whirlpool TRAY, EVAP DRIP
12314101 12314101 Whirlpool TRIM BASK
67004297 67004297 Whirlpool TRIM HAND
67004181 67004181 Whirlpool TRIM, LWR SHELF
WP12866903 WP12866903 Whirlpool TUBE
WPB5705307 WPB5705307 Whirlpool TUBE
WPW10709808 WPW10709808 Whirlpool TUBE, DISCHARGE
12580401 12580401 Whirlpool TUBE, DRAIN
W11176463 W11176463 Whirlpool WATER TUBE
WPD7813010 WPD7813010 Whirlpool WIRE HARNESS
15003533 15003533 Whirlpool WIRING INFORMATION
