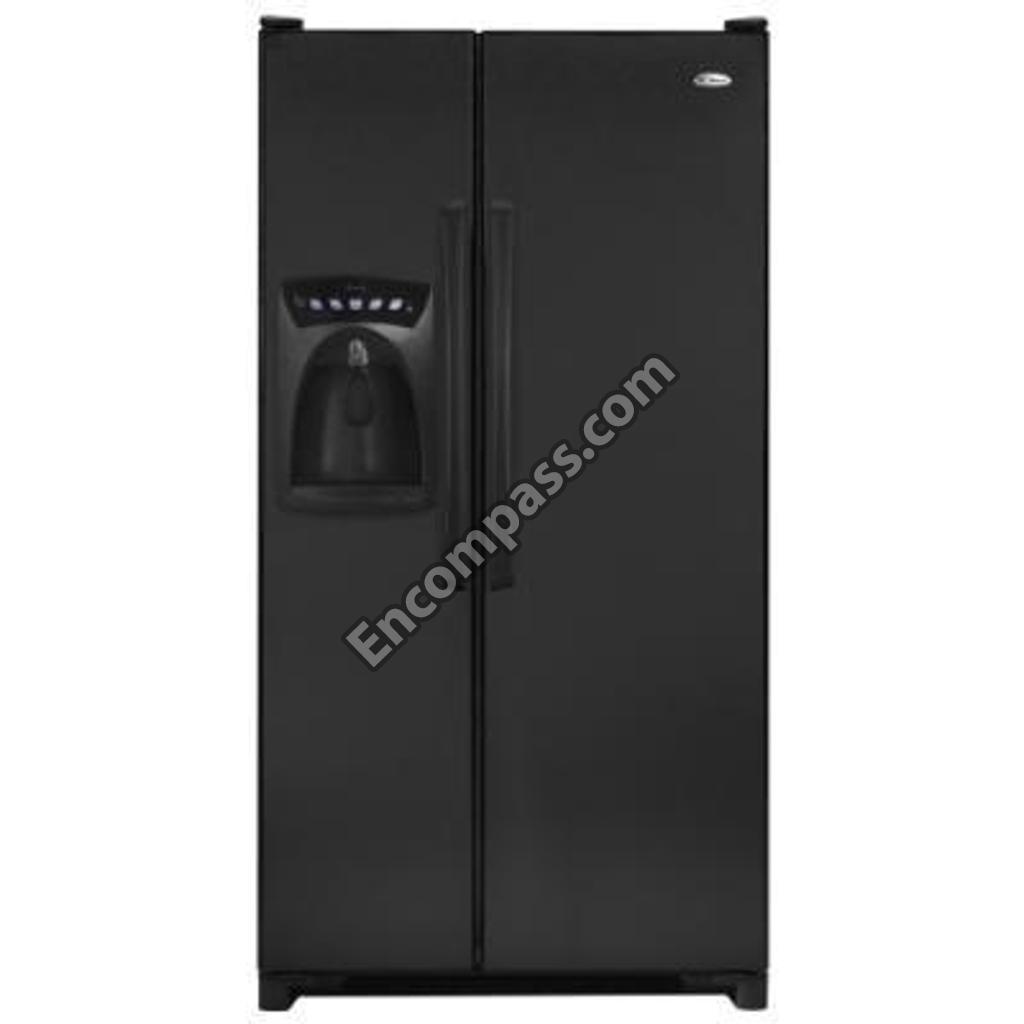

Model Image
Manufacturer

Whirlpool

Model Number

ASD2325KEB

Description

Side-by-side Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
12593203B 12593203B ACTR PAD FRAME ASSEMBLY (BLK)
10114101 10114101 ANCHOR, BLADE
WP627843 WP627843 ARM-EJECTR
WPW10152975 WPW10152975 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
10114401 10114401 AUGER-ICE
67004950 67004950 BACK INNE
12756202 12756202 BACK- INNE
10113801 10113801 BAR, CRSH ICE BUCKET
WP12591403 WP12591403 BASEPAN- M
67006233 67006233 BASKET 33
13031102 13031102 BASKET- 33
10114501 10114501 BLADE ROT
10114601 10114601 BLADE STA
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
12590102 12590102 BLOCK AIR
12590101 12590101 BLOCK, AIR COIL (LT)
67004309 67004309 BLOCK, WATER TANK
WP12777701 WP12777701 BLOCK- FIL
67002235 67002235 BLOCKEPS
12624801 12624801 BOX DEFRO
WP67004953 WP67004953 BRACKET
WP67005633 WP67005633 BRACKET
WP2256087 WP2256087 BRACKET
12456801V 12456801V BRACKET, FOOT
67004965 67004965 BUCKET RE
67004773 67004773 BUCKET UP
67004934 67004934 BUCKET, LWR FZ DR
WP67006006 WP67006006 BUCKET- IC
12395501B 12395501B BUSHING, DOOR (BLK)
12967603B 12967603B BUTTON SP
WPD7749401 WPD7749401 CAP- HELIX
WP65889-4 WP65889-4 CAPACITOR
67005312 67005312 CHILLER AS
WP67006534 WP67006534 CHUTE
WP488366 WP488366 CLAMP
W10833902 W10833902 CLAMP
WPM0104106 WPM0104106 CLIP
WP2315522 WP2315522 CLIP
10623003 10623003 CLIP EVAP
10547002 10547002 CLIP, DRIER
67002827 67002827 CLIP- CHIL
M0104102 M0104102 CLIP- CORD
W11673433 W11673433 CLIP- EVAP
WPM0114003 WPM0114003 CLIP- SPEE
WP12627302 WP12627302 CLIP- TOE
67004701 67004701 CLIP- WATE
67006677 67006677 CLOSURE D
67006134 67006134 CLOSURE, DOOR (BLK)
67006493 67006493 CLOSURE- D
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006132 WP67006132 CONDENSER
12750301 12750301 CONTRL-BOX
W11227239 W11227239 CONTROL BOARD
WP67005335 WP67005335 CONTROL BOARD
WPW10201608 WPW10201608 CONTROL BOARD
67002225 67002225 CONTROL C
67003519 67003519 CONTROL- D
W11033771 W11033771 COUPLING
WP10114901 WP10114901 COUPLING
67003342 67003342 COVER B B
67005221 67005221 COVER CHI
12583101 12583101 COVER SUP
67003912 67003912 COVER TOP
67004191 67004191 COVER, AUGER MOTOR
WP67002271 WP67002271 COVER, BLADE
12624901 12624901 COVER, DEFROST CONTROL
67004194 67004194 COVER, ICE BUCKET
67003913 67003913 COVER, TOP HINGE (RT-BLK)
67003485 67003485 COVER- COR
WP12568001 WP12568001 COVER- FIL
67006101 67006101 COVER- MC
12789003 12789003 COVER-EVAP
67004951 67004951 COVEREVAP
67004611 67004611 COVERVALV
WP12740302 WP12740302 CRUSHR-MEC
WP628356 WP628356 CUP-FILL
10275201 10275201 DAMPER, ICE
67005223 67005223 DOOR CHIL
67005222 67005222 DOOR CHIL
WP67004119 WP67004119 DOOR HINGE
W10850512 W10850512 DOOR HINGE
12983804EDR 12983804EDR DOOR HINGE
67005298 67005298 DOOR ICE
67004926 67004926 DOOR, DAIRY
WP12562701 WP12562701 DOOR- ICE
WPB2150504 WPB2150504 DRIER
WP67003578 WP67003578 DUCT, QUICK ICE 26
WP67003576 WP67003576 ELBOW- FIL
12002515 12002515 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
12571801 12571801 EXTENSION
67007090 67007090 FACADE 5B
67003796 67003796 FIBER- ACO
67005224 67005224 FRAME CHI
67004163 67004163 FRAME MEA
67005295 67005295 FRAME, ADJ CRISPER
67004077 67004077 FRAME, CRISPER SHELF
WPW10289690 WPW10289690 FRONT COVER
10115001 10115001 FRONT- ICE
12456901 12456901 FUNNEL DR
67007048 67007048 FZ DR FOAM
67004031 67004031 GASKET DA
12582801 12582801 GASKET DA
B5759649 B5759649 GASKET MC
67004932 67004932 GASKET, FRZ. DOOR (BLK)
WP12582901 WP12582901 GASKET- CO
WPB8381501 WPB8381501 GASKET- DR
A3189399 A3189399 GASKET- FO
67004164 67004164 GLASS MEA
67004323 67004323 GLIDE, FRZ. (RT)
67005375 67005375 GLIDE- FRZ
67004379 67004379 GRILLE CH
12634801 12634801 GRILLE, RETURN AIR
67007013 67007013 GRILLE, TOE (BLK)
12572907 12572907 GRILLE- CH
WP67002382 WP67002382 GRILLE- SU
WP61004743 WP61004743 GROMMET- B
67005680 67005680 GROMMET- C
M0580205 M0580205 GROMMET- S
WPW10119680 WPW10119680 HANDLE
67006622 67006622 HARNESS H
67004154 67004154 HARNS-WIRE
67004955 67004955 HARNS-WIRE
WP67004948 WP67004948 HEATER- EV
10961005B 10961005B HING-BUSHG
12983803ED 12983803ED HINGE DOOR
67006489 67006489 HINGE TOP (LT-BLK)
WP67006524 WP67006524 HOUSING
67004939 67004939 HOUSING L
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP67006531 WP67006531 INLET VALVE
67004299 67004299 INSERT, FACADE(BLK)
WPA3223101 WPA3223101 INSERT- PL
A0329806 A0329806 INSUL TUBI
12604201 12604201 INSULATION
WP67007098 WP67007098 INSULATION
8003RP 8003RP KIT, WATER INLET
12581101 12581101 KNOB, CONTROL
12581102 12581102 KNOB, CONTROL
W10857122 W10857122 LIGHT BULB
W11679940 W11679940 LIGHT BULB
67005225 67005225 LINKAGE C
67002293 67002293 LINKAGE- C
12842122 12842122 MANUAL, USE & CARE
WP67003226 WP67003226 MOTOR
W11613295 W11613295 MOTOR-COND
12603603 12603603 MOUNT- CRI
WPM0223101 WPM0223101 NUT
M0286708 M0286708 NUT- SPEED
67005296 67005296 OVERLAY C
67003892 67003892 PAN ADJ C
12477402 12477402 PAN, DRAIN
67005807 67005807 PAN, LG CRISPER
67005809 67005809 PAN, MEAT
M1200108 M1200108 PIN ROLL
WP12688503 WP12688503 PLATE, FILTER BACKING
67005933 67005933 PLUG AIR
WPA3076901 WPA3076901 PLUG, BUTTON
C8973701 C8973701 PLUG, FRZ SHELF SUPPORT
W10709784 W10709784 PLUG-HNDLE
M0311604 M0311604 PLUGHOLE
WP67006506 WP67006506 POWER CORD
67004182 67004182 RAIL BASK
67004179 67004179 RAIL BASK
67003840 67003840 RAIL L R
67006888 67006888 REF DR FOA
67005038 67005038 REFLECTOR
R0131625 R0131625 RESERVOIR
WPM1205302 WPM1205302 RIVET
WP10450603 WP10450603 ROLLER
WP12580304 WP12580304 ROLLER BRACKET ASSEMBLY
WP681249 WP681249 SCREW
67006698 67006698 SCREW
W10709797 W10709797 SCREW
67006529 67006529 SCREW
67006564 67006564 SCREW
W11214483 W11214483 SCREW
67006672 67006672 SCREW
WP90767 WP90767 SCREW
W10709798 W10709798 SCREW
67006688 67006688 SCREW
12846902 12846902 SCREW
WP489128 WP489128 SCREW
W10709801 W10709801 SCREW
12992301 12992301 SCREW
67006425 67006425 SCREW
WP33001882 WP33001882 SCREW
WP67004954 WP67004954 SCREW
WP98165 WP98165 SCREW
W11233072 W11233072 SCREW
71003131 71003131 SCREW
W10856125 W10856125 SCREW
WP8281196 WP8281196 SCREW
WP489349 WP489349 SCREW
WP489483 WP489483 SCREW
59002047 59002047 SCREW-TF/HEX ROHS
WP12665101 WP12665101 SEAL- ICE
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
67003670 67003670 SHELF CRI
67004178 67004178 SHELF UPR
67006879 67006879 SHELF, CRISPER TOP
67004689 67004689 SHELF, LOWER FZ (33``)
67005337 67005337 SHELF, REF GLIDE
67005111 67005111 SHELF, REF STA
67001507 67001507 SHIELD CR
67004433 67004433 SHIELD, FZ LIGHT
67004135 67004135 SHIELD, FZ LIGHT
WP67005716 WP67005716 SHIM- CLOS
67001090 67001090 SHROUD, CONDENSER FAN
67004884 67004884 SLIDE- HUM
W11447232 W11447232 SOCKET
12617501 12617501 SOCKET LI
67006000 67006000 SOLENOID
10113901 10113901 SPACER CO
B8385403 B8385403 SPRING, SPORTS FILL-RETURN
WP12565502 WP12565502 SPRING- CH
W10613606 W10613606 START-DEV
67006516 67006516 STOP, DOOR (BLK)
67006518 67006518 STOPDOOR
WP12576801 WP12576801 STRAP, BALE
WP12015002 WP12015002 SUPPORT, SHELF (LT)
WP12603701 WP12603701 SUPPORT- C
WPC8973801 WPC8973801 SUPPORT- F
WP10941102 WP10941102 SUPPORT- S
16025628 16025628 SVC MAN, SXS
12831101 12831101 SWEEP- DUA
W11291138 W11291138 SWITCH
W11396033 W11396033 SWITCH
WP12575501 WP12575501 SWITCH- LI
12853474 12853474 TAG, ENERGY
16026981 16026981 TECH SHT, SXS
67004311 67004311 THERMOSTAT
WP67004757 WP67004757 THERMOSTAT
WPM0322202 WPM0322202 TIE WIRE
67005226 67005226 TRAY CHIL
67004927 67004927 TRAY DAIR
67004949 67004949 TRAY EVAP
67004412A 67004412A TRAY, BUTTER
12792201WD 12792201WD TRAY- EVAP
67002806 67002806 TRAY- SUMP
WP67004411 WP67004411 TRAY-EGG
67005255 67005255 TRIM33 AM
WPB5705307 WPB5705307 TUBE
WP12866902 WP12866902 TUBE, DISCHARGE
12580401 12580401 TUBE, DRAIN
67004938 67004938 TUBE-WATER
10114301 10114301 WASHER STEPPED
10275101 10275101 WASHER WA
EDR4RXD1 EDR4RXD1 WATER FILTER
WP67002052 WP67002052 WHEEL- CRS
W10146387 W10146387 WIRE HARNESS
15003969 15003969 WIRING DIAGRAM
