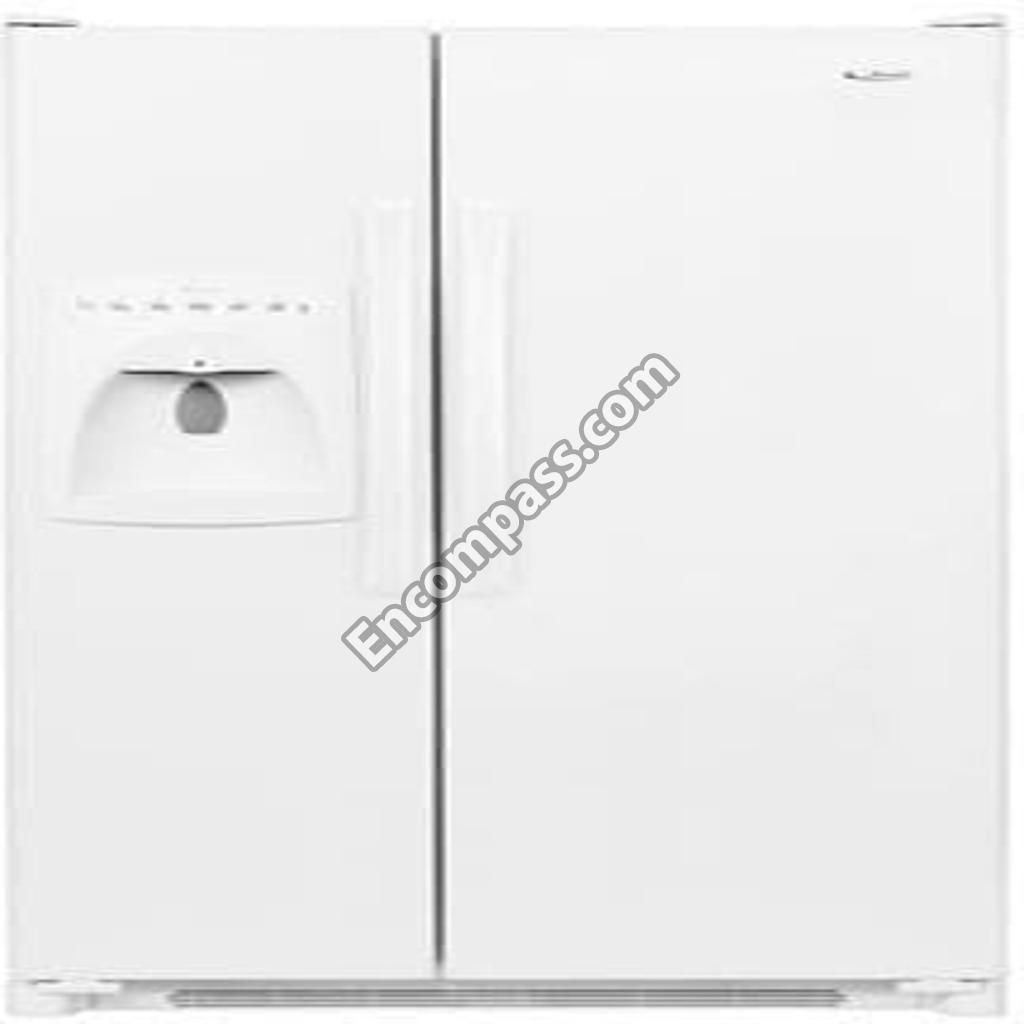

Model Image
Manufacturer

Whirlpool

Model Number

ASD2625KEW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
10114101 10114101 ANCHOR, BLADE
WP627843 WP627843 ARM-EJECTR
WPW10152975 WPW10152975 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
10114401 10114401 AUGER-ICE
67006434 67006434 AXLE- ROLL
67003577 67003577 BACK INNER
10113801 10113801 BAR, CRSH ICE BUCKET
12457108 12457108 BASEPAN
67006234 67006234 BASKET 26
10114501 10114501 BLADE ROT
10114601 10114601 BLADE STA
WP12587601 WP12587601 BLADE- CON
WP2169142 WP2169142 BLADE-FAN
12590102 12590102 BLOCK AIR
12590101 12590101 BLOCK, AIR COIL (LT)
67004309 67004309 BLOCK, WATER TANK
WP12777701 WP12777701 BLOCK- FIL
67002235 67002235 BLOCKEPS
12624801 12624801 BOX DEFRO
WP67004953 WP67004953 BRACKET
WP67005633 WP67005633 BRACKET
WP2256087 WP2256087 BRACKET
12456801V 12456801V BRACKET, FOOT
12557501 12557501 BUCKET LW
12556901 12556901 BUCKET, UPR FZ DR
67004772 67004772 BUCKET, UPR FZ DR
WP67005959 WP67005959 BUCKET- IC
WP67004110 WP67004110 BUCKET-36
12395501B 12395501B BUSHING, DOOR (BLK)
12967603W 12967603W BUTTON, SPORTS FILL (WHT)
WPD7749401 WPD7749401 CAP- HELIX
WP65889-4 WP65889-4 CAPACITOR
WP67006534 WP67006534 CHUTE
WP488366 WP488366 CLAMP
W10833902 W10833902 CLAMP
67004116 67004116 CLEAT- HAN
67004117 67004117 CLEAT- HAN
WPM0104106 WPM0104106 CLIP
WP2315522 WP2315522 CLIP
10623003 10623003 CLIP EVAP
10547002 10547002 CLIP, DRIER
67002827 67002827 CLIP- CHIL
M0104102 M0104102 CLIP- CORD
W11673433 W11673433 CLIP- EVAP
WPM0114003 WPM0114003 CLIP- SPEE
WP12627302 WP12627302 CLIP- TOE
67004701 67004701 CLIP- WATE
67006677 67006677 CLOSURE D
67006493 67006493 CLOSURE- D
W10309990 W10309990 COMPRESSOR
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 CONDENSER
12750301 12750301 CONTRL-BOX
WP67005335 WP67005335 CONTROL BOARD
W11227239 W11227239 CONTROL BOARD
WPW10201608 WPW10201608 CONTROL BOARD
67002225 67002225 CONTROL C
67003519 67003519 CONTROL- D
W11033771 W11033771 COUPLING
WP10114901 WP10114901 COUPLING
67003342 67003342 COVER B B
67004255 67004255 COVER ICE
12583101 12583101 COVER SUP
W10134648 W10134648 COVER, AUGER MOTOR
WP67002271 WP67002271 COVER, BLADE
67002291 67002291 COVER, CHILLER
12624901 12624901 COVER, DEFROST CONTROL
12403404 12403404 COVER, EVAP
67004029 67004029 COVER, TOP HINGE (LT-WHT)
67004030 67004030 COVER, TOP HINGE (RT-WHT)
67004098 67004098 COVER, WATER VALVE
67003484 67003484 COVER- COR
WP12568001 WP12568001 COVER- FIL
67006101 67006101 COVER- MC
WP12740302 WP12740302 CRUSHR-MEC
WP628356 WP628356 CUP-FILL
10275201 10275201 DAMPER, ICE
WP67004119 WP67004119 DOOR HINGE
W10850512 W10850512 DOOR HINGE
67004358 67004358 DOOR ICE
67002297 67002297 DOOR LARG
67004268 67004268 DOOR, CHILLER
67002957 67002957 DOOR, DAIRY
WP12562701 WP12562701 DOOR- ICE
67006861 67006861 DORFIP WH
67006871 67006871 DORFIP WH
WPB2150504 WPB2150504 DRIER
WP67003578 WP67003578 DUCT, QUICK ICE 26
WP67003576 WP67003576 ELBOW- FIL
12001940 12001940 EVAP KIT (SXS)--W
WPW10128551 WPW10128551 EVAPORATOR MOTOR
12571801 12571801 EXTENSION
67006921 67006921 FACADE 5B
67003796 67003796 FIBER- ACO
WP2300868 WP2300868 FITTING
67004413 67004413 FRAME ADJ
67002294 67002294 FRAME LAR
67004247 67004247 FRAME MEA
67004140 67004140 FRAME, CRISPER SHELF
WPW10289690 WPW10289690 FRONT COVER
10115001 10115001 FRONT- ICE
12456901 12456901 FUNNEL DR
67001508 67001508 GASKET
12582801 12582801 GASKET DA
67004031 67004031 GASKET DA
B5759649 B5759649 GASKET MC
67004177 67004177 GASKET TE
WP67003968 WP67003968 GASKET, FRZ. DOOR (WHT)
W10133828 W10133828 GASKET, REF. DOOR (WHT)
WP12582901 WP12582901 GASKET- CO
WPB8381501 WPB8381501 GASKET- DR
67002226 67002226 GASKET- FO
67004132 67004132 GLASS MEA
67004323 67004323 GLIDE, FRZ. (RT)
67005375 67005375 GLIDE- FRZ
67004379 67004379 GRILLE CH
12634801 12634801 GRILLE, RETURN AIR
WP67002259 WP67002259 GRILLE, SUMP (WHT)
12572907 12572907 GRILLE- CH
WP67006687 WP67006687 GRILLE-FRT
WP61004743 WP61004743 GROMMET- B
67005680 67005680 GROMMET- C
WP67002780 WP67002780 GROMMET- F
M0580205 M0580205 GROMMET- S
WPW10119678 WPW10119678 HANDLE
12757704 12757704 HARNESS, AUGER MOTOR
67004955 67004955 HARNS-WIRE
67004154 67004154 HARNS-WIRE
WP67004188 WP67004188 HEATER- EV
10961005B 10961005B HING-BUSHG
W10124359 W10124359 HINGE BOT
67006489 67006489 HINGE TOP (LT-BLK)
WP12636903ED WP12636903ED HINGE, BOTTOM (RT-BLK)
WP67006524 WP67006524 HOUSING
12889101 12889101 HOUSING, FZ CONTROL
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP67006531 WP67006531 INLET VALVE
67004301 67004301 INSERT, FACADE(WHT)
WPA3223101 WPA3223101 INSERT- PL
12604201 12604201 INSULATION
WP67007098 WP67007098 INSULATION
8003RP 8003RP KIT, WATER INLET
12581101 12581101 KNOB, CONTROL
12581102 12581102 KNOB, CONTROL
W11679940 W11679940 LIGHT BULB
W10857122 W10857122 LIGHT BULB
67002292 67002292 LINKAGE C
67002293 67002293 LINKAGE- C
12842122 12842122 MANUAL, USE & CARE
WP67003226 WP67003226 MOTOR
W11613295 W11613295 MOTOR-COND
Y12528501 Y12528501 NAMEPLATE
M0220621 M0220621 NLASCREW, SM
WPM0223101 WPM0223101 NUT
M0286708 M0286708 NUT- SPEED
67004327 67004327 OVERLAY C
12837101 12837101 OVERLAY- C
67003892 67003892 PAN ADJ C
67004848 67004848 PAN, DRAIN
67005817 67005817 PAN, MEAT
WP67005816 WP67005816 PAN- LG CR
M1200108 M1200108 PIN ROLL
WP12688503 WP12688503 PLATE, FILTER BACKING
67005933 67005933 PLUG AIR
WPA3076901 WPA3076901 PLUG, BUTTON
WP12664501 WP12664501 PLUG, BYPASS
W11395888 W11395888 PLUG, BYPASS
C8973701 C8973701 PLUG, FRZ SHELF SUPPORT
W10709784 W10709784 PLUG-HNDLE
M0311605 M0311605 PLUGHOLE
A3080001 A3080001 PLUGHOLE
WP67006506 WP67006506 POWER CORD
67004179 67004179 RAIL BASK
67004182 67004182 RAIL BASK
67003840 67003840 RAIL L R
67005038 67005038 REFLECTOR
R0131625 R0131625 RESERVOIR
WPM1205302 WPM1205302 RIVET
WP67005149 WP67005149 ROLLER
WP10450603 WP10450603 ROLLER
WP12580304 WP12580304 ROLLER BRACKET ASSEMBLY
WP98165 WP98165 SCREW
67006425 67006425 SCREW
12992301 12992301 SCREW
WP489128 WP489128 SCREW
12846902 12846902 SCREW
67006688 67006688 SCREW
W10709798 W10709798 SCREW
WP90767 WP90767 SCREW
67006672 67006672 SCREW
W11214483 W11214483 SCREW
67006841 67006841 SCREW
67006529 67006529 SCREW
W10709797 W10709797 SCREW
WP681249 WP681249 SCREW
WP33001882 WP33001882 SCREW
W11233072 W11233072 SCREW
WP67006415 WP67006415 SCREW
71003131 71003131 SCREW
WP67006197 WP67006197 SCREW
WP8281196 WP8281196 SCREW
WP489349 WP489349 SCREW
67006491 67006491 SCREW
W10005070 W10005070 SCREW, TC
W11227370 W11227370 SCREW, TC
67004173 67004173 SEAL, CRISPER FRAME (REAR)
WP12665101 WP12665101 SEAL- ICE
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
67006053 67006053 SHELF, CRISPER TOP
67004690 67004690 SHELF, LWR FRZ.
67006881 67006881 SHELF, REF STA
67005092 67005092 SHELF, STATIONARY
67004354 67004354 SHELF, UPR FRZ.
67001507 67001507 SHIELD CR
67004433 67004433 SHIELD, FZ LIGHT
67004135 67004135 SHIELD, FZ LIGHT
WP67005716 WP67005716 SHIM- CLOS
67004253 67004253 SHROUD EV
67001090 67001090 SHROUD, CONDENSER FAN
67005209 67005209 SLIDE HUM
67004884 67004884 SLIDE- HUM
W11447232 W11447232 SOCKET
12617501 12617501 SOCKET LI
67006000 67006000 SOLENOID
10113901 10113901 SPACER CO
B8385403 B8385403 SPRING, SPORTS FILL-RETURN
WP12565502 WP12565502 SPRING- CH
W10613606 W10613606 START-DEV
12981303W 12981303W STOP DOOR
WP12576801 WP12576801 STRAP, BALE
WP12015002 WP12015002 SUPPORT, SHELF (LT)
WP12603701 WP12603701 SUPPORT- C
WPC8973801 WPC8973801 SUPPORT- F
WP10941102 WP10941102 SUPPORT- S
16025628 16025628 SVC MAN, SXS
12831101 12831101 SWEEP- DUA
W11291138 W11291138 SWITCH
W11396033 W11396033 SWITCH
WP12575501 WP12575501 SWITCH- LI
12853481 12853481 TAG, ENERGY
16026981 16026981 TECH SHT, SXS
67004311 67004311 TEMP CONTROL ASSEMBLY
WP67004757 WP67004757 THERMOSTAT
67004102 67004102 TRACK WAT
67002296 67002296 TRAY CHIL
67004412A 67004412A TRAY, BUTTER
67002304 67002304 TRAY, DAIRY
12558101WD 12558101WD TRAY, EVAP DRIP
67002260 67002260 TRAY, SUMP (WHT)
WP67004411 WP67004411 TRAY-EGG
67004297 67004297 TRIM HAND
WPB5705307 WPB5705307 TUBE
WP12866903 WP12866903 TUBE
12580401 12580401 TUBE, DRAIN
10114301 10114301 WASHER STEPPED
10275101 10275101 WASHER WA
EDR4RXD1 EDR4RXD1 WATER FILTER
67004938 67004938 WATERLINE ASSEMBLY.
WP67002052 WP67002052 WHEEL- CRS
W10146387 W10146387 WIRE HARNESS
WPW10146386 WPW10146386 WIRE HARNESS
15003928 15003928 WIRING INFORMATION
