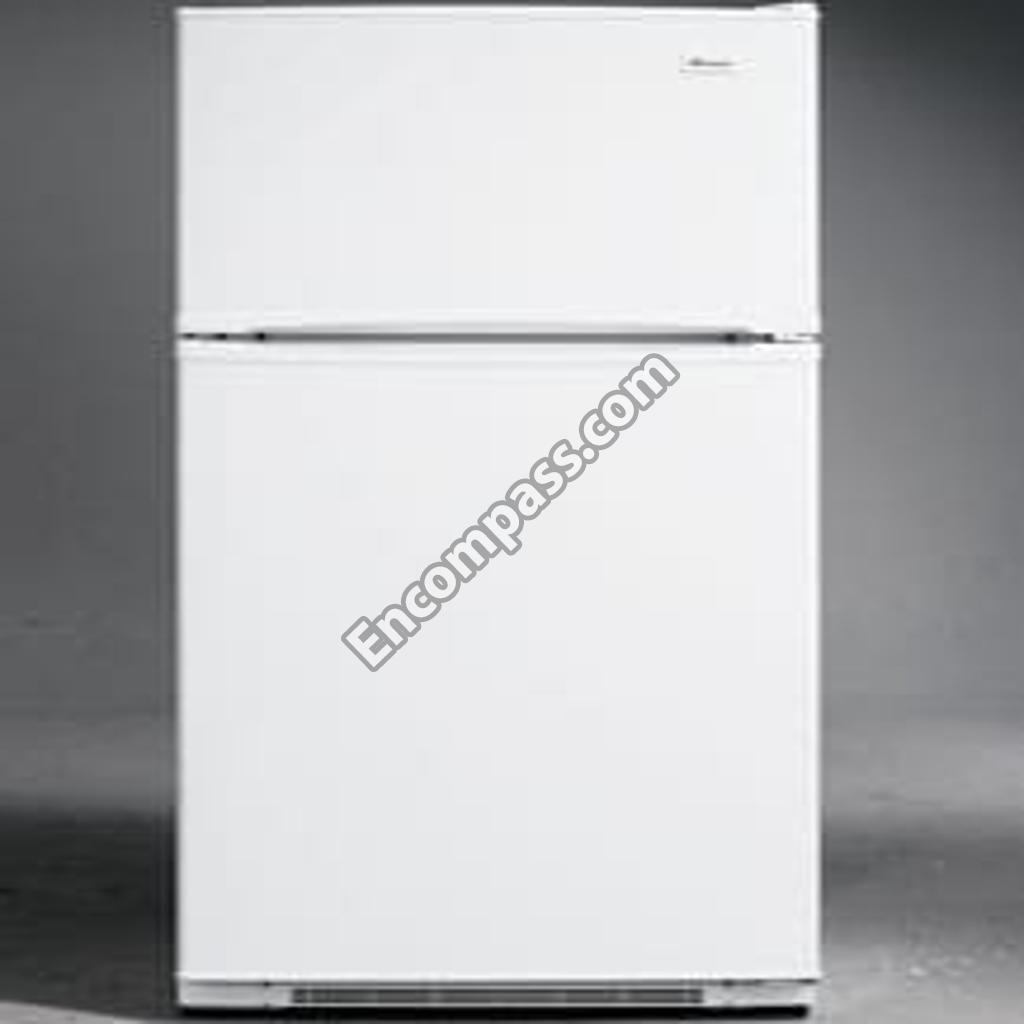

Model Image
Manufacturer

Whirlpool

Model Number

ATB1504ARW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
61005173 61005173 ARM, SENSOR
WP627843 WP627843 ARM-EJECTR
WP2182124 WP2182124 ARM-STRIPR
WP627985 WP627985 BIMETL-DEF
63002045 63002045 BLADE, EVAPORATOR FAN
63001018 63001018 BLADE- CON
63001130 63001130 BOLT HEX
63001129 63001129 BOLT HEX
WP2256087 WP2256087 BRACKET
63001020 63001020 BRACKET F
63001063 63001063 BRACKET, EVAPORATOR FAN
63001023 63001023 BRACKET, VALVE
63001058 63001058 BUSHING E
63001022 63001022 CAP DRAIN
63001115 63001115 CAP HINGE
63001110 63001110 CAP HINGE
63001064 63001064 CAP I M W
63001107 63001107 CAP, BUSHING (WHT)
63001065 63001065 CAP, FILL TUBE
63001005 63001005 CAPACITOR
876595 876595 CAPACITOR
W10833902 W10833902 CLAMP
WP2315522 WP2315522 CLIP
63001019 63001019 CLIP FAN
63001053 63001053 CLIP FUSE
63001010 63001010 CLIP POWE
M0104102 M0104102 CLIP, CORD
63001577 63001577 CLIP, FAN BLADE
63001813 63001813 CLIP, FAN BLADE
63001014 63001014 CLIP, RELAY COVER
61005175 61005175 CLIP, SENSOR ARM
63001050 63001050 CLIP- DEFR
WPM0114003 WPM0114003 CLIP- SPEE
W10309989 W10309989 COMPRESSOR
63001016 63001016 CONDENSER
WP63001102 WP63001102 CONTROL AS
63001009 63001009 CORD, POWER
63001055 63001055 COVER EVA
63001027 63001027 COVER MAC
63001013 63001013 COVER REL
63001109 63001109 COVER UPP
61005374 61005374 COVER, ICE MAKER
WP628356 WP628356 CUP-FILL
63001101 63001101 DAMPER INS
63001345 63001345 DOOR ASSEMBLY., FREEZER (WHT)
63001342 63001342 DOOR ASSEMBLY., FRESH FOOD (WHT)
63001084 63001084 DOOR, DAIRY
WPW10143759 WPW10143759 DRIER-UV

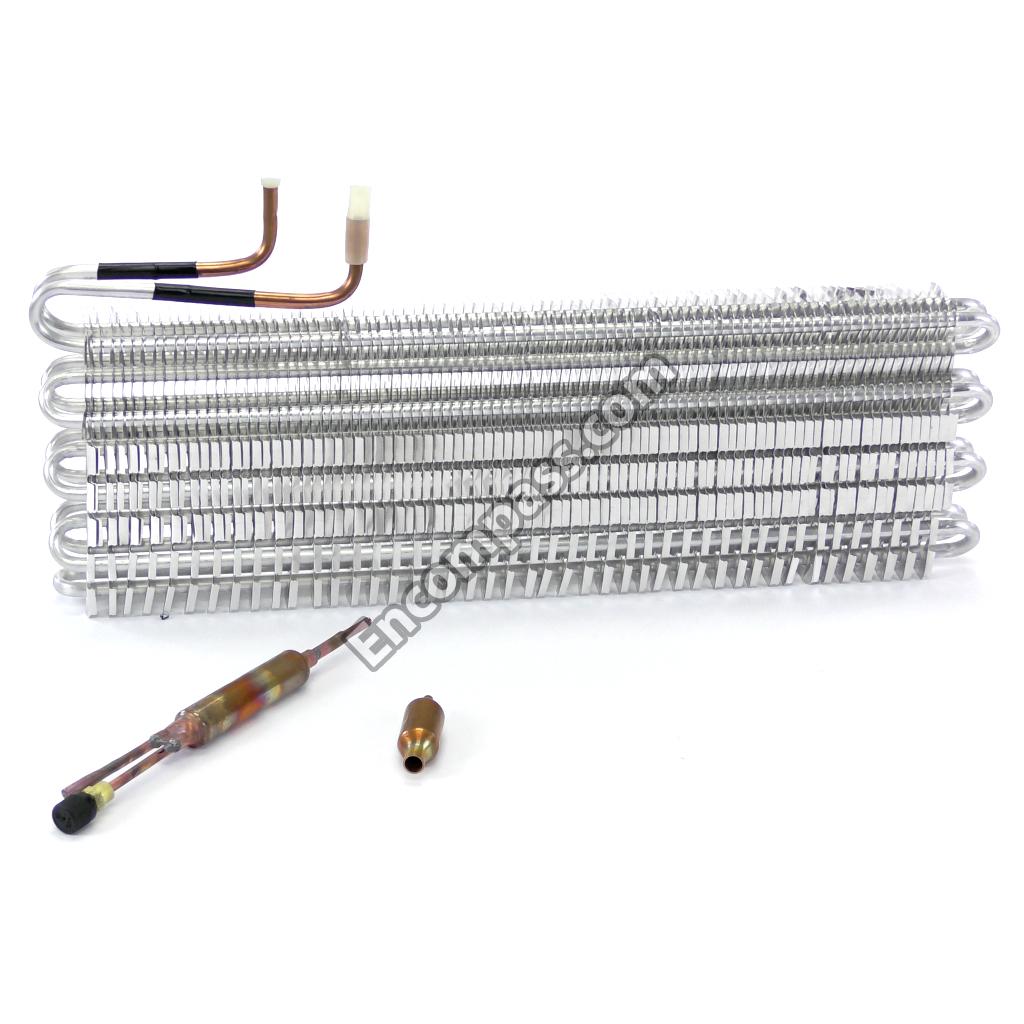

12002262 12002262 EVAPORATOR
61005174 61005174 EXTENSION
63001047 63001047 FOIL ABOV
63001052 63001052 FUSE
63001082 63001082 GASKET, F.F. DOOR (WHT)
63001070 63001070 GASKET, FRZ. DOOR (WHT)
63001039 63001039 GLASS, CRISPER SHELF
95099-1 95099-1 GREASE, SILICONE
63001576 63001576 GROMMET F
WP63001006 WP63001006 GROMMET, COMPRESSOR
63001074 63001074 GROMMET, FAN MOTOR
WP61005940 WP61005940 GROMMET, WATER ENTRY
63001017 63001017 GROMMET- B
63001048 63001048 GUARD LIG
63001049 63001049 HEATER, DEFROST
63001112 63001112 HINGE CEN
63001108 63001108 HINGE UPP
63001128 63001128 HINGE-LOWE
63001029 63001029 HOUSING, CONTROL
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP61005273 WP61005273 INLET VALVE
63001098 63001098 KICKPLATE (WHT)
63001034 63001034 KNOB, CONTROL
63001137 63001137 LABEL, ENERGY GUIDE
63001025 63001025 LEG, LEVELING
W11679940 W11679940 LIGHT BULB
3013911600 3013911600 MANUAL, USE & CARE
63001575 63001575 MOTOR CON
63001057 63001057 MOTOR, EVAPORATOR FAN
63001021 63001021 MOTOR- CON
63001139 63001139 NAMEPLATE
3013913010 3013913010 NLAMMANUAL-
WP627018 WP627018 NUT
WP245183 WP245183 NUT
63001004 63001004 OVERLOAD
63001024 63001024 PAN DRAIN
63001044 63001044 PAN, CRISPER
WP61001886 WP61001886 PAN, ICE
63001002 63001002 PIN WHEEL
63001089 63001089 PIN- LOWER
63001066 63001066 PLUG-HOLE
63001041 63001041 RAIL CRIS
63001031 63001031 RECEPTACLE
63001003 63001003 RELAY- PTC
63001062 63001062 RETAINER
63001226 63001226 SCREW
63001080 63001080 SCREW
63001234 63001234 SCREW
63001231 63001231 SCREW
63001113 63001113 SCREW
W10142289 W10142289 SCREW
3400112 3400112 SCREW
2256637 2256637 SCREW
65275-81 65275-81 SCREW
63001092 63001092 SCREW
67006425 67006425 SCREW
WP489399 WP489399 SCREW
W11233072 W11233072 SCREW
63001093 63001093 SCREW
63001091 63001091 SCREW
63001097 63001097 SCREW
61005388 61005388 SCREW
63001088 63001088 SCREW
WP400021-1 WP400021-1 SCREW
WP489128 WP489128 SCREW
WP8281227 WP8281227 SCREW
63001043 63001043 SEAL CRIS
63001042 63001042 SEAL CRIS
63001180 63001180 SEAL DAMP
63001056 63001056 SEAL EVAP
Y00000000 Y00000000 SEE NOTE (BASE PAN NOT AVAILABLE)
63001037 63001037 SHELF
63001067 63001067 SHELF FRZ
63001071 63001071 SHELF PIC
63001086 63001086 SHELF, BOTTLE PICK OFF
63001038 63001038 SHELF, CRISPER
63001083 63001083 SHELF, DAIRY COMPT.
63001085 63001085 SHELF, PICK OFF
63001015 63001015 SHROUD CO
WP487627 WP487627 SLEEVE
63001040 63001040 SLIDE CON
WP63001008 WP63001008 SPRING, COMPRESSOR
63001087 63001087 STOP DOOR
63001073 63001073 STOP DOOR
63001045 63001045 SUPPORT C
16022675 16022675 SVC MAN, TOP MT
W11291138 W11291138 SWITCH
16022727 16022727 TECH SHT, TOP MT
63001816 63001816 THERMOSTAT
63001051 63001051 THERMOSTAT, DEFROST
63001032 63001032 TIMER DEF
WP841180A WP841180A TRAY
63001054 63001054 TRAY DRIP
WPB5705307 WPB5705307 TUBE
63001131 63001131 TUNNEL ASY
WP63001007 WP63001007 WASHER, COMPRESSOR
63001079 63001079 WASHER, HINGE
63001100 63001100 WHEEL ASM
63001001 63001001 WHEEL REA
63001011 63001011 WIRE GROU
63001095 63001095 WIRE GROU
63001033 63001033 WIRE HARNE
63001028 63001028 WIRE HARNE
63001012 63001012 WIRE HARNE
WP61001882 WP61001882 WIRE HARNESS
63001059 63001059 WIRE HARNESS, FRZ.
15003473 15003473 WIRING INFORMATION
