Manufacturer

Whirlpool

Model Number

ATB2138AEQ

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
63001242 63001242 ADAPTER F
61005173 61005173 ARM, SENSOR
WP627843 WP627843 ARM-EJECTR
WP2182124 WP2182124 ARM-STRIPR
63001822 63001822 BASKET TI
63001697 63001697 BASKET, FRZ.
WP627985 WP627985 BIMETL-DEF
63002045 63002045 BLADE, EVAPORATOR FAN
63001018 63001018 BLADE- CON
63001252 63001252 BOLT
63001251 63001251 BOLT
63001243 63001243 BOLT FAN
WP2256087 WP2256087 BRACKET
63001020 63001020 BRACKET F
63001063 63001063 BRACKET, EVAPORATOR FAN
63001023 63001023 BRACKET, VALVE
63001248 63001248 BUSHING E
63001075 63001075 CAP BUSHI
63001414 63001414 CAP CENTE
63001022 63001022 CAP DRAIN
63001078 63001078 CAP HINGE
63001114 63001114 CAP HINGE
63001064 63001064 CAP I M W
63001065 63001065 CAP, FILL TUBE
63001364 63001364 CAP, SLIDING

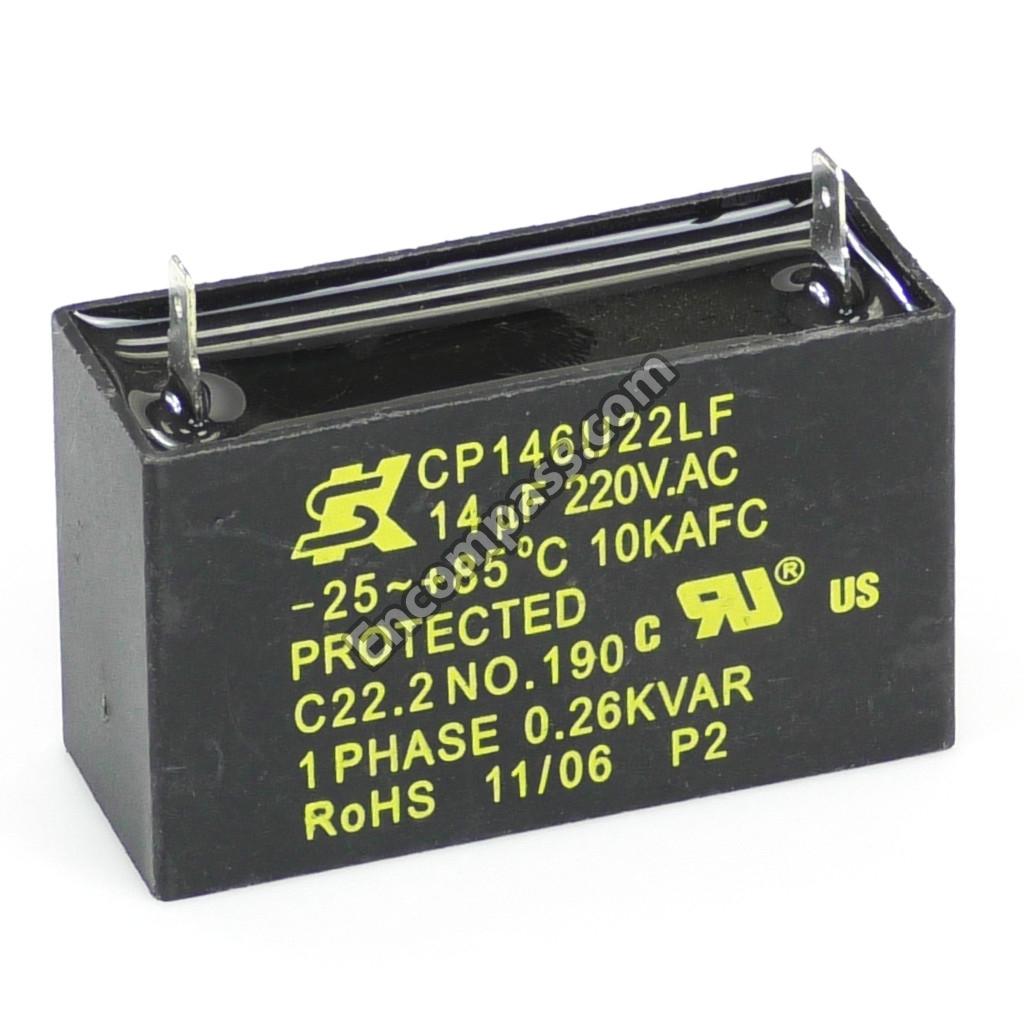

63001005 63001005 CAPACITOR
876595 876595 CAPACITOR
W10833902 W10833902 CLAMP
WP2315522 WP2315522 CLIP
63001346 63001346 CLIP POWE
M0104102 M0104102 CLIP, CORD
63001577 63001577 CLIP, FAN BLADE
63001813 63001813 CLIP, FAN BLADE
63001014 63001014 CLIP, RELAY COVER
61005175 61005175 CLIP, SENSOR ARM
63001050 63001050 CLIP- DEFR
63001351 63001351 CLIP- KICK
WPM0114003 WPM0114003 CLIP- SPEE
W10309989 W10309989 COMPRESSOR
63001789 63001789 CONDENSER
63001358 63001358 CONTROL ASSEMBLY., TEMPERATURE
63001570 63001570 CORD, POWER
63001499 63001499 COVER AIR
63001653 63001653 COVER EVA
63001449 63001449 COVER LIG
63001574 63001574 COVER MAC
63001013 63001013 COVER REL
63001407 63001407 COVER UPP
63001507 63001507 COVER, FAN
61005374 61005374 COVER, ICE MAKER
WP628356 WP628356 CUP-FILL
63001471 63001471 DAMPER/INSULATION ASSEMBLY.
63001634 63001634 DOOR ASSEMBLY., FREEZER (BSQ)
63001707 63001707 DOOR ASSEMBLY., FRESH FOOD (BSQ)
63001605 63001605 DOOR, DAIRY
WPW10143759 WPW10143759 DRIER-UV
63001477 63001477 DUCT ASSEMBLY., AIR
63001824 63001824 END CAP B
63001823 63001823 END CAP B
12002614 12002614 EVAPORATOR
61005174 61005174 EXTENSION
63001593 63001593 GASKET, EVAPORATOR COVER
63001585 63001585 GLASS, CRISPER SHELF
95099-1 95099-1 GREASE, SILICONE
WP63001006 WP63001006 GROMMET, COMPRESSOR
WP61005940 WP61005940 GROMMET, WATER ENTRY
63001017 63001017 GROMMET- B
63001565 63001565 GUIDE SHE
63001595 63001595 HEATER, DEFROST
W10851465 W10851465 HINGE- CEN
63001408 63001408 HINGE- UPP
63001128 63001128 HINGE-LOWE
63001473 63001473 HOUSING C
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP61005273 WP61005273 INLET VALVE
63001627 63001627 INSULATION ASSEMBLY., AIR DUCT
63001779 63001779 KICKPLATE ASSEMBLY. (BSQ)
63001497 63001497 KNOB FREE
63001355 63001355 KNOB- TEMP
63001848 63001848 LABEL, ENERGY GUIDE
63001025 63001025 LEG, LEVELING
63001625 63001625 LEVER DAM
W11679940 W11679940 LIGHT BULB
3013913000 3013913000 MANUAL, USE & CARE
63001241 63001241 MOTOR CON
63001247 63001247 MOTOR, EVAPORATOR FAN
63001415 63001415 NAMEPLATE
WP627018 WP627018 NUT
WP245183 WP245183 NUT
63001004 63001004 OVERLOAD
63001844 63001844 PAN CRISP
63001843 63001843 PAN DELI
63001573 63001573 PAN, DRAIN
63001546 63001546 PAN, ICE
WP61001886 WP61001886 PAN, ICE
63001002 63001002 PIN WHEEL
63001089 63001089 PIN- LOWER
63001357 63001357 PLATE BUL
63001066 63001066 PLUG-HOLE
63001845 63001845 RACK CAN
63001589 63001589 RAIL CRIS
63001520 63001520 RAIL DELI
63001519 63001519 RAIL DELI
63001498 63001498 RAIL SHEL
63001517 63001517 RAIL SHEL
63001356 63001356 RECEPTACLE
63001448 63001448 RECEPTACLE, BULB

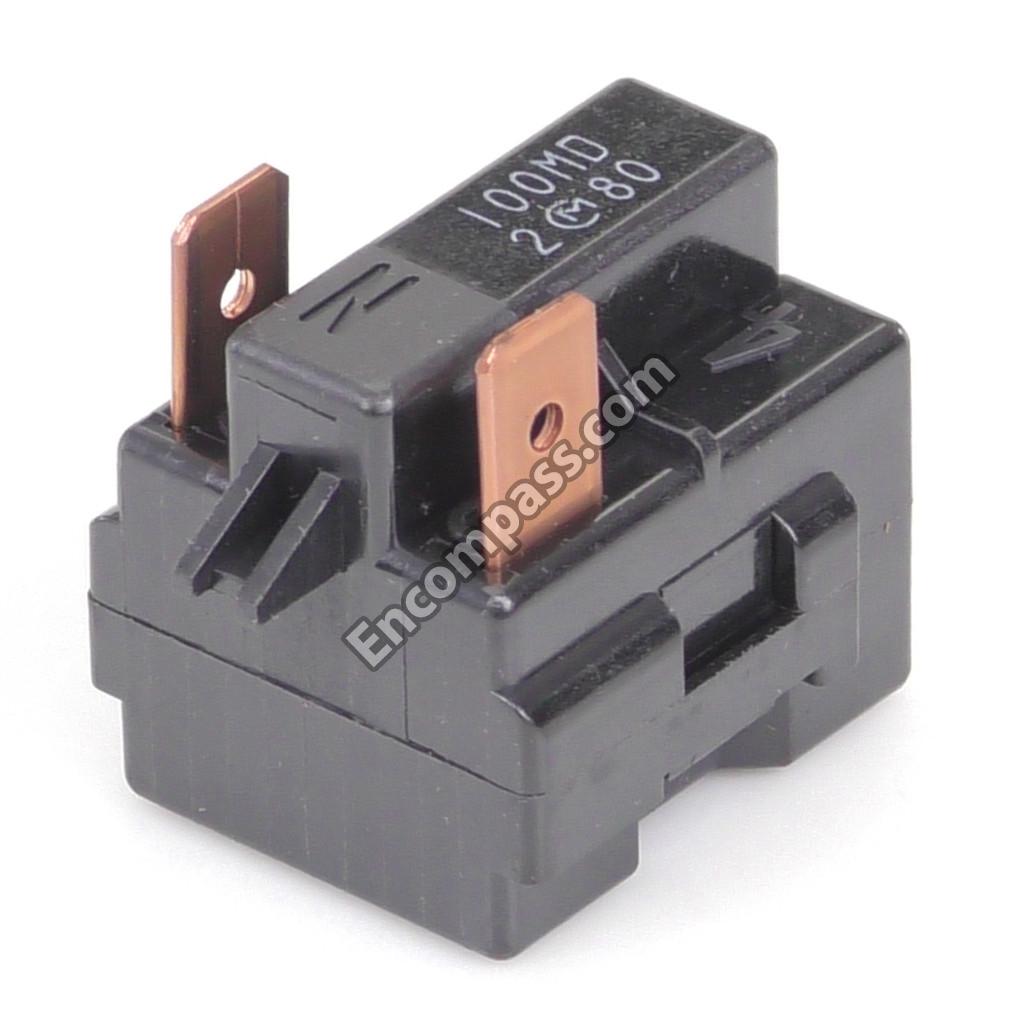

63001003 63001003 RELAY- PTC
63001821 63001821 RETAINER
63001249 63001249 RETAINER
63001556 63001556 ROD TILT
WP1163283 WP1163283 SCREW
63001276 63001276 SCREW
63001226 63001226 SCREW
W10142289 W10142289 SCREW
63001234 63001234 SCREW
63001231 63001231 SCREW
2256637 2256637 SCREW
65275-81 65275-81 SCREW
63001092 63001092 SCREW
67006425 67006425 SCREW
63001572 63001572 SCREW
63001571 63001571 SCREW
WP489399 WP489399 SCREW
63001093 63001093 SCREW
8169475 8169475 SCREW
61005388 61005388 SCREW
63001255 63001255 SCREW
WP400021-1 WP400021-1 SCREW
WP489128 WP489128 SCREW
W11233072 W11233072 SCREW
WP8281227 WP8281227 SCREW
63001427 63001427 SEAL
63001426 63001426 SEAL
63001425 63001425 SEAL
63001424 63001424 SEAL
63001582 63001582 SEAL DAMP
63001592 63001592 SEAL EVAP
63001560 63001560 SEAL SOUN
63001360 63001360 SEAL, DAMPER ASSEMBLY.
63001607 63001607 SEAL, F.F. DOOR (WHT)
63001588 63001588 SEAL- CRIS
63001590 63001590 SEAL- CRIS
63001612 63001612 SEAL- FRZ.
Y00000000 Y00000000 SEE NOTE (BASE PAN NOT AVAILABLE)
16025860 16025860 SERV MAN
63001684 63001684 SHELF
63001682 63001682 SHELF ASSEMBLY, EASY GLIDE
63001710 63001710 SHELF ASSEMBLY., PICK OFF
63001846 63001846 SHELF FRZ
63001613 63001613 SHELF PIC
63001819 63001819 SHELF SPI
63001606 63001606 SHELF, DAIRY
63001609 63001609 SHELF, PICK OFF
63001847 63001847 SHELF, TRIVET
63001586 63001586 SHELF- CRI
63001015 63001015 SHROUD CO
WP487627 WP487627 SLEEVE
63001500 63001500 SLIDE CON
WP63001008 WP63001008 SPRING, COMPRESSOR
63001479 63001479 STOP AIR
63001604 63001604 STOP DOOR
63001438 63001438 STOP DOOR
63001045 63001045 SUPPORT C
W11291138 W11291138 SWITCH
16023495 16023495 TECH SHT,TOP MT
63001388 63001388 THERMOSTAT, DEFROST (2 WIRE)
WP68233-3 WP68233-3 TIMER- DEF
WP841180A WP841180A TRAY
63001594 63001594 TRAY DRIP
63001551 63001551 TRAY EGG
WPB5705307 WPB5705307 TUBE
63001506 63001506 TUNNEL ASY
63001244 63001244 WASHER FA
WP63001007 WP63001007 WASHER, COMPRESSOR
63001079 63001079 WASHER, HINGE
63001443 63001443 WHEEL ASSEMBLY. (FRT)
63001001 63001001 WHEEL REA
63001011 63001011 WIRE GROU
63001820 63001820 WIRE HARNE
63001654 63001654 WIRE HARNE
63001581 63001581 WIRE HARNE
63001240 63001240 WIRE HARNE
63001012 63001012 WIRE HARNE
WP61001882 WP61001882 WIRE HARNESS
15003702 15003702 WIRING INFORMATION
