Model Image
Manufacturer

Whirlpool

Model Number

AWM392L

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
34656HP 34656HP *NLA*ASSEMBLY,FRONT PANEL
34902HP 34902HP *NLA*ASSEMBLY,TOP-DOMESTIC W/B
35139 35139 *NLA*CAP, FLUE COLLAR
35521 35521 *NLA*CLIP,HARNESS HOLDER
33541HP 33541HP *NLA*LID,W/INSTRUCTIONS
26302 26302 *NLA*PLUG,1 CIRCUIT
34499 34499 *NLA*SCREW, #10B X 1/4 TAP IN
35148 35148 *NLA*SCREW,1/4-14 X 3/8 HX HD
24128 24128 *NLA*SLEEVE,LONG
34677 34677 10 CIRCUIT
254P4P 254P4P AGITATOR HOOKS
33441 33441 ARM,ACTUATOR
24132 24132 ARMATURE
34656WP 34656WP ASSEMBLY
40008501 40008501 ASSEMBLY, PRESSURE BULB
34434P 34434P ASSY NUT/LEG BASE
38290 38290 ASSY, COVER (TRANS COVER)
34526P 34526P ASSY, TRANSMISSION
36025P 36025P ASSY, TUB COVER& GASKET
34731 34731 ASSY,BALANCE RING-COMPL
34656LP 34656LP ASSY,FRONT PANEL
31811 31811 ASSY,HOOD & MOUNTING B
34443 34443 ASSY,LEG & STABILIER
33817 33817 ASSY,TIMER SKIRT-BLACK
34902WP 34902WP ASSY,TOP-AMANA
33223 33223 ASSY,TRANSMISSION CASE
56534 56534 BARREL SUPPORT
WP40004001 WP40004001 BEARING- M
253P4 253P4 BELL TOOL
WP28808 WP28808 BELT-AGITA
Y35097 Y35097 BRACE, FRT PNL
36034 36034 BRACKET DIRECTOR-MODULE
39407 39407 BRACKET, VALVE
34890 34890 BRACKET,MOTOR MOUNT
36036 36036 BRACKET,SLL-RIGHT
36037 36037 BRACKETSL
R9900474 R9900474 BRAKE ASSEMBLY
76660 76660 BREAK-SPHN
WP40038001 WP40038001 BUMPER
33446 33446 BUSHING
34475LP 34475LP CABINET
34902HL 34902HL CABINET TOP, ALMOND
27200 27200 CAP SCREW
31249 31249 CAP,END-L.H.-CHROME
31248 31248 CAP,END-R.H.-CHROME
W10833902 W10833902 CLAMP
WP596669 WP596669 CLAMP
WP285655 WP285655 CLAMP
21036 21036 CLIP
51291 51291 CLIP
36014 36014 CLIP RETA
36274 36274 CLIP, HARNESS
35865 35865 CLIP,HOLD-DOWN FRONT PANEL
33433 33433 CLIP,HOLDER-SWITCH
61510 61510 CLIP,WIRE
WP28849 WP28849 CLIP-SPRIN
WP75614 WP75614 CONNECTOR
24134 24134 DIAPHRAGM
34776 34776 DISPENSER,BLEACH
34470 34470 DOMEPIVOT
29673 29673 DOUBLE CONNECTOR
406P3 406P3 DRAIN HOSE EXTENSION KIT
R9900189 R9900189 DRIVE BELL AND SEAL KIT
Y00117 Y00117 FEMALE SOCKET TERMINAL
39371 39371 FILTER LIN
27187 27187 FLINGER
WP40016001 WP40016001 FOOT- RUBB
WP28094 WP28094 GASKET
WP32857 WP32857 GASKET,TUB COVER SMALL
WPY013783 WPY013783 GASKET- IN
34338 34338 GASKETHIN
26577 26577 GEARASM
29161 29161 GEARREDUC
WP26594P WP26594P GREASE
40037801 40037801 GROMMET
211881 211881 GROMMET, CORD
Y00161 Y00161 GROUND CLIP
35035 35035 GUARD CLO
24130 24130 GUIDE,ARMATURE
27018 27018 HELIX
237P4 237P4 HEX WRENCH
36437 36437 HINGE LID
36438 36438 HINGE LID
Y27103 Y27103 HINGE,HOLD-DOWN LUG
289P4 289P4 HOOK, SPRING
35753 35753 HOSE
29210 29210 HOSE CLAMP
35874 35874 HOSE,MIX VALVE TO TUB
WP40053901 WP40053901 HOSE- DRAI
34123 34123 HOUSING
32746 32746 HOUSING
35746 35746 HOUSING
R9900552 R9900552 HUB
202860 202860 INLET HOSE ASSEMBLY.
WP40008301 WP40008301 INSERT
242P4 242P4 INSTALLER
M0325501 M0325501 INSULATOR, POD K
555P3 555P3 KIT, TOOL
258P3 258P3 KIT,CAPACITOR
34475HP 34475HP KIT,SERVICE CABINET
38612WP 38612WP KIT-SERVIC
33610 33610 KNOB
33897 33897 KNOBTIMER
22003428 22003428 LEG, ADJUSTABLE (W/NUT)
34471 34471 LEG,SUPPORT
40041002 40041002 LEVER,IDLER
33442 33442 LEVER,UNBALANCED LOAD
33541LP 33541LP LID
33541WP 33541WP LID,W/INSTRUCTIONS
505187 505187 LOCATOR, PANEL
28102 28102 LOCATOR,PANEL
Y29220 Y29220 LOCKNUT
02431 02431 LOCKWASHER,1/4 EXT SHK
21456 21456 LOCKWASHER,1/4 INTSHKP
04366 04366 LOCKWASHER,5/16INTSHKP
WP40004201P WP40004201P MAIN BEARI
WP27001215 WP27001215 MOTOR ASSEMBLIES
WP40112301 WP40112301 MOTOR SHIELD
34788 34788 MOUNTMOTO
27604P 27604P NEVER-SEEZE 1 OZ TUBE
56079 56079 NLAPARTS CATALOG EKT396
03673 03673 NUT
57584 57584 NUT
WPW10139757 WPW10139757 NUT
WP3400029 WP3400029 NUT
WP210385 WP210385 NUT- LOCK
27222 27222 NUTRETAIN
WP36472 WP36472 O-RING
27243P 27243P OIL,CW TRANSMISSION F-
NOTE_ NOTE_ OUTER TUB COVER AND GASKET TOOL IS FOR REMOVAL OF 36025 OUTER TUB COVER FROM OUTER TUB AND INSTALLATION OF 32857 GASKET IN OUTER TUB COVER.
Y56128 Y56128 PAD BUMPE
36226 36226 PAD, BUMPER .25
R9900543 R9900543 PAD-BRAKE
34903 34903 PANEL, BACK HOOD (USE 37782)
35235 35235 PANEL,GRAPHIC
27172 27172 PIN,DOWEL
23750 23750 PIN,ROLL
27003 27003 PINION,WASHER AGITATOR
Y29160 Y29160 PINIONDRI
27926 27926 PLATE,LEG .063
34675 34675 PLUG
34676 34676 PLUG
23041 23041 PLUG,6 CIRCUIT
23033 23033 PLUG,9 CIRCUIT
34791 34791 POSTMOUNT
40095301 40095301 POWER CORD AND PLUG

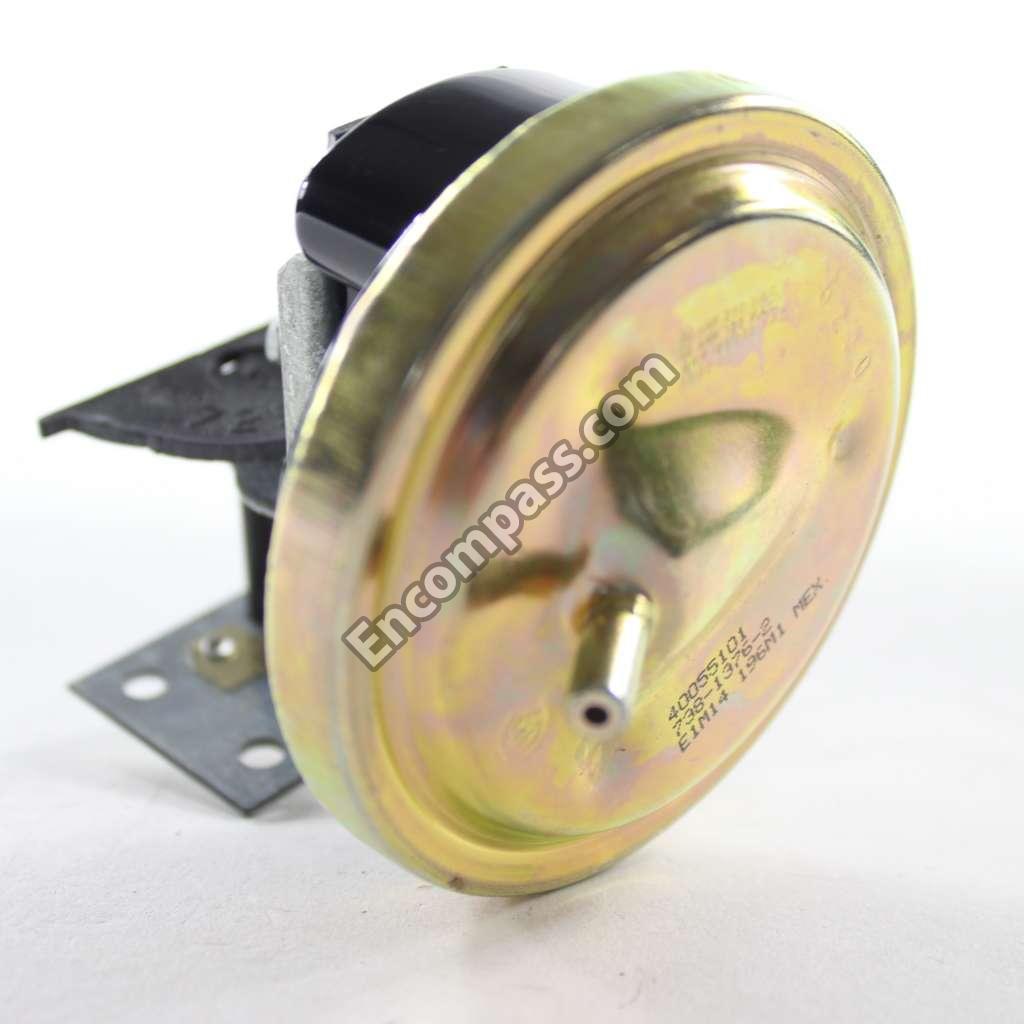

WP40055101 WP40055101 PRESSURE SWITCH
W10841299 W10841299 PREVENTER-
34921 34921 PULLEY
27171 27171 PULLEY,MOTOR
27001233 27001233 PUMP ASSEMBLY
Y31526 Y31526 RACK
26708 26708 RECEPTACLE
26301 26301 RECEPTACLE
26163 26163 RECEPTACLE
32219 32219 RELIEF, STRAIN
WP23748 WP23748 RING- RETA
27197 27197 RINGRETAI
WP27001200 WP27001200 SCREW
40038901 40038901 SCREW
WPW10116787 WPW10116787 SCREW
WP90767 WP90767 SCREW
WPW10119828 WPW10119828 SCREW
WP40063401 WP40063401 SCREW
29273 29273 SCREW
W10856106 W10856106 SCREW
WPY014874 WPY014874 SCREW
25817C 25817C SCREW
WP40063701 WP40063701 SCREW
36510 36510 SCREW
01355 01355 SCREW
31260 31260 SCREW #8
27030 27030 SCREW,1/4-20 SPECIAL
32814 32814 SCREW,1/4-20X7/8 SERRA
52909 52909 SCREW,10B-16 X 1/2 HEX
56392 56392 SCREW,8-18 X 3/8 TAPPI
36035 36035 SCREW,8-18X3/8 PHIL FLT HD
31752 31752 SCREW,NO.8ABX3/4 POZIDRI
274P4 274P4 SEAL TOOL
37577P 37577P SEALANT
Y00000000 Y00000000 SEE NOTE WASHTUB
Y36570 Y36570 SHAFT OUT
WP28802 WP28802 SHAFT,IDLER
34853 34853 SHAFTINPU
WP40065102 WP40065102 SHOULDER SCREW
WP22003814 WP22003814 SLEEVE, DRAIN HOSE
24129 24129 SLEEVE,SHORT
26493 26493 SLIDE
36108 36108 SNUBBER PAD & ISOLATOR
33930A 33930A SOLENOIDM
Y00121 Y00121 SPADE TERMINAL(12 GAUGE)
Y00119 Y00119 SPADE TERMINAL(18 GAUGE)
23224E 23224E SPRING
33443 33443 SPRING
33435 33435 SPRING,CONICAL
30620 30620 SPRING,IDLER LEVER HEL
35948 35948 SPRING,LEG-LARGE TUB
WP37366 WP37366 SPRING- ID
500049 500049 STICKER
24903 24903 STICKER,DISCONNECT POW
WP22002960 WP22002960 STRAINER-
35487 35487 SUPPORT,HOSE
34679P 34679P SWITCH HOLDER
35632 35632 SWITCH, MOTOR
21300 21300 SWITCH,TEMPERATURE
WP27001095 WP27001095 SWITCH-PLG
282P4 282P4 T25 TAMPER RESISTANT BIT
283P4 283P4 TERMINAL EXTRACTOR TOOL
00220 00220 TERMINAL,CRIMP-SINGLE
00234 00234 TERMINAL,INSULATED
Y00116 Y00116 TERMINAL,PIN-MALE
Y00113 Y00113 TERMINAL,RING-1/4 STUD
00110 00110 TERMINAL,RING-10 STUD
00112 00112 TERMINAL,SPADE-3/16 FE
Y00120 Y00120 TERMINALF
Y00188 Y00188 TERMINALF
8539404 8539404 TIE-WIRE
WPM0321209 WPM0321209 TIE-WIRE
31239 31239 TIMER,3 CYCLE
272P4 272P4 TOOL,LID SWITCH INSTAL
24161 24161 TORX BIT HOLDER
273P4 273P4 TUB COVER GASKET TOOL
34438P 34438P TUBASM

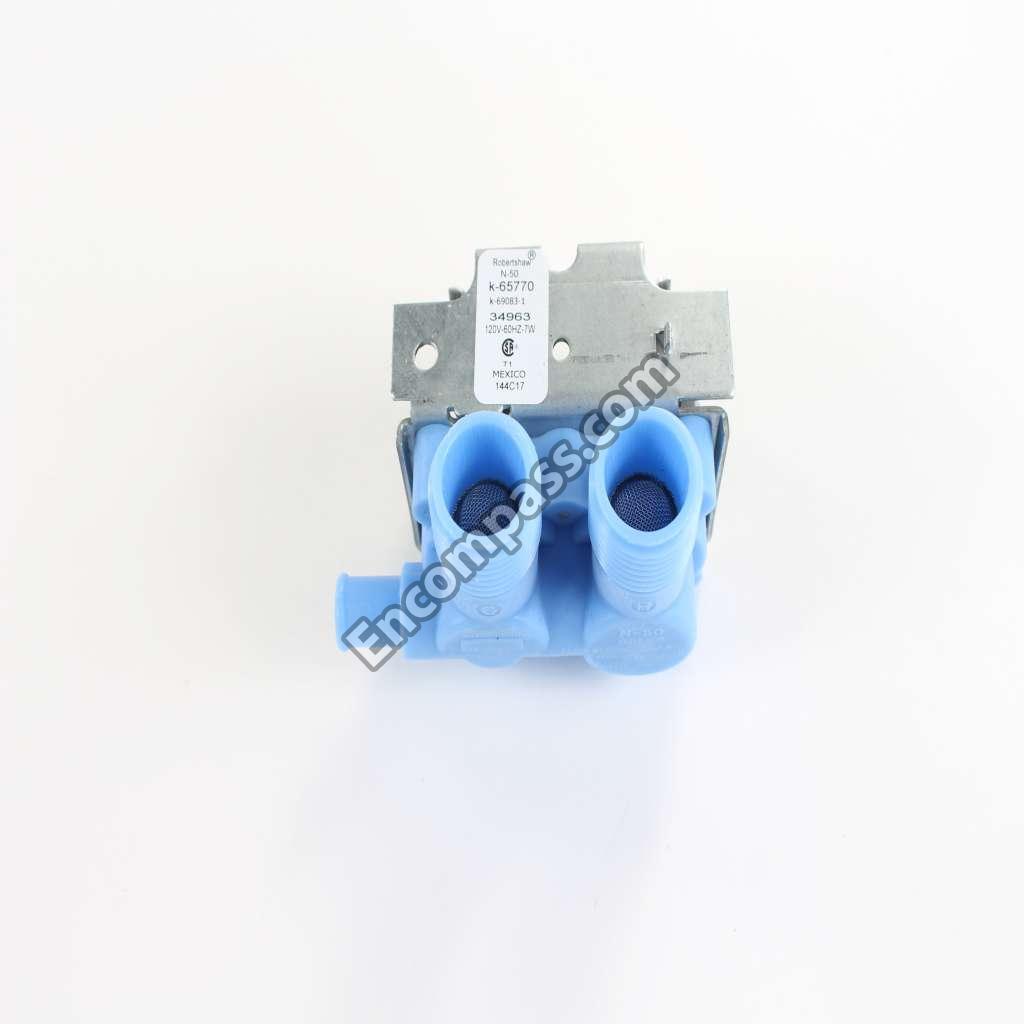

WP34963 WP34963 VALVE-MIXI
39240P 39240P WASH TUB
81392 81392 WASHER
29260 29260 WASHER
WP40041501 WP40041501 WASHER
27015 27015 WASHER
WPW10121334 WPW10121334 WASHER
40000501W 40000501W WASHER AGITATOR
WP40065701 WP40065701 WASHER- 2
35092 35092 WASHER362
Y29443 Y29443 WASHERFEL
WP28800 WP28800 WHEEL,IDLER
291P4 291P4 WRENCH, T - ALLEN
