Model Image
Manufacturer

Whirlpool

Model Number

BRS62CRBNA00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10251516 W10251516 AIR DIFFUSER ASSEMBLY
W10349302 W10349302 AIR FILTER
W10294287 W10294287 ARM-CONTRL
W10318914 W10318914 ARM-EJECTR
WPW10122563 WPW10122563 ARM-STRIPR
W10294285 W10294285 AUGER-ICE
67006434 67006434 AXLE, ROLLER (2)
W10852691 W10852691 BAFFLE
WPW10251467 WPW10251467 BAFFLE-AIR
WP1119018 WP1119018 BEARING
W11590570 W11590570 BIMETL-DEF
WPW10324760 WPW10324760 BIN CONTROL LEVER
WPW10335220 WPW10335220 BIN CONTROL LEVER
W10309878 W10309878 BIN-CNTLVR
W10314925 W10314925 BIN-CNTLVR
WPW10296855 WPW10296855 BIN-CNTLVR
W11106313 W11106313 BIN-FREEZR
W10278732 W10278732 BLADE
W10181990 W10181990 BLADE
W10278733 W10278733 BLADE
W10278731 W10278731 BLADE
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
W10138203 W10138203 BLOCK-BLAD
WPW10282880 WPW10282880 BODY-CNTRL
W10174827 W10174827 BRACKET
W10276181 W10276181 BRACKET
W11266052 W11266052 BRACKET
W11037957 W11037957 BRACKET
W11293380 W11293380 BRACKET
W10847867 W10847867 BRACKET
W11618980 W11618980 BULB-LIGHT
N_P N_P CABINET (NOT A SERVICEABLE PART)
W10876198 W10876198 CAM-DOOR
W10876191 W10876191 CAM-DOOR
WPW10248011 WPW10248011 CAM-DOOR
WPW10257203 WPW10257203 CAM-DOOR
WPW10257206 WPW10257206 CAM-DOOR
WPW10248015 WPW10248015 CAM-DOOR
WP2171706 WP2171706 CAMERA LENS-LIGHT
WP2201147 WP2201147 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10296661 W10296661 CLIP
W11545866 W11545866 CLIP
1119021 1119021 CLIP
2155547 2155547 CLIP
W11623163 W11623163 CLIP
W10683556 W10683556 CLIP
WP2161324 WP2161324 CLIP
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
W11232019 W11232019 CLIP
2215823 2215823 CLIP-AIR, DUCT
W10183407 W10183407 COMPRESSOR (INCLUDES ITEMS 9, 10, 19, & 25) (ALSO ORDER 876765 TUBE KIT)
W11708426 W11708426 CONDENSER
WPW10271543 WPW10271543 CONNECTOR
13021601 13021601 CONNECTOR
W10294543 W10294543 CONTAINER
WPW10158418 WPW10158418 CONTROL BOARD
WPW10235485 WPW10235485 CONTROL BOARD
WPW10276238 WPW10276238 CONTROL BOARD
W10270237 W10270237 CORD-POWER
WPW10169511 WPW10169511 COUPLING
W10425253 W10425253 COVER
W10290871 W10290871 COVER
W10309405 W10309405 COVER
W10276185 W10276185 COVER
W10260977 W10260977 COVER
W10260407 W10260407 COVER
W10260413 W10260413 COVER
WPW10425252 WPW10425252 COVER
W10632059 W10632059 COVER, DOOR STOP (WHITE)
W10239739 W10239739 COVER-EVAP
WPW10260405 WPW10260405 COVER-FILT
W10289697 W10289697 COVER-FRNT
W10284726 W10284726 COVER-UNIT
W10257325 W10257325 COVER-UNIT
W10789144 W10789144 COVER-WIRE
W11661847 W11661847 COVER-WIRE
WPW10632062 WPW10632062 COVER-WIRE
W11226688 W11226688 COVERWIRE
WPW10292504 WPW10292504 CRISPER PAN
W10122561 W10122561 CUP-FILL
WP1119017 WP1119017 DEFLECTOR
LW10287412 LW10287412 DOOR ASSEMBLY MS
LW10341536 LW10341536 DOOR ASSEMBLY MS
LW10287400 LW10287400 DOOR ASSEMBLY WH
LW10341535 LW10341535 DOOR ASSEMBLY WH
W11590581 W11590581 DOOR HINGE
W11573587 W11573587 DOOR HINGE
W11409290 W11409290 DOOR HINGE
W11293373 W11293373 DOOR HINGE
W11293374 W11293374 DOOR HINGE
W10500004 W10500004 DOOR HINGE
W10500000 W10500000 DOOR HINGE
W10284556 W10284556 DOOR-CHUTE
W10283476 W10283476 DOOR-CHUTE
W10346235 W10346235 DOOR-CHUTE
W11661892 W11661892 DOOR-ICE
WPW10143759 WPW10143759 DRIER-UV
4388736 4388736 DRUM
W10251474 W10251474 DUCT-AIR
W10325122 W10325122 ENERGY LABEL
W10276240 W10276240 ESCUTCHEON
W10276256 W10276256 ESCUTCHEON
WP2188822 WP2188822 EVAPORATOR
W10280082 W10280082 EXTENSION
W10251462 W10251462 FAN-SCROLL
WP12587703AP WP12587703AP FILLER
12587703W 12587703W FILLER, WRAPPER (WHITE)
EDR1RXD1 EDR1RXD1 FILTER
W10247979 W10247979 FITTING
WP2300868 WP2300868 FITTING
W10240370 W10240370 GASKET
W10355582 W10355582 GASKET ASSEMBLY
WPW10247884 WPW10247884 GASKET ASSEMBLY
WPW10247885 WPW10247885 GASKET ASSEMBLY
WPW10355585 WPW10355585 GASKET ASSEMBLY
W11178072 W11178072 GLASS SHELF
WPW10238485 WPW10238485 GLASS SHELF
WPW10269146 WPW10269146 GLASS SHELF
WP542638 WP542638 GREASE
WPW10713160 WPW10713160 GRILLE
WPW10713153 WPW10713153 GRILLE
WPW10276220 WPW10276220 GRILLE
WPW10276223 WPW10276223 GRILLE
WPW10169124 WPW10169124 GROMMET
WP2176759 WP2176759 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
W10850503 W10850503 GUIDE
W10499850 W10499850 GUIDE-ICE
W10851029 W10851029 HANDLE
WPW10300794 WPW10300794 HARDWR PAK
W10253294 W10253294 HARNS-DISP
W10859317 W10859317 HARNS-WIRE
W10253250 W10253250 HARNS-WIRE
W10837285 W10837285 HEATER
W10901051 W10901051 HINGE-DOOR
WPW10329943 WPW10329943 HOUSING
WPW10185018 WPW10185018 HOUSING
WP2195914 WP2195914 HOUSING-IM
WPW10294325 WPW10294325 ICE-CONTNR

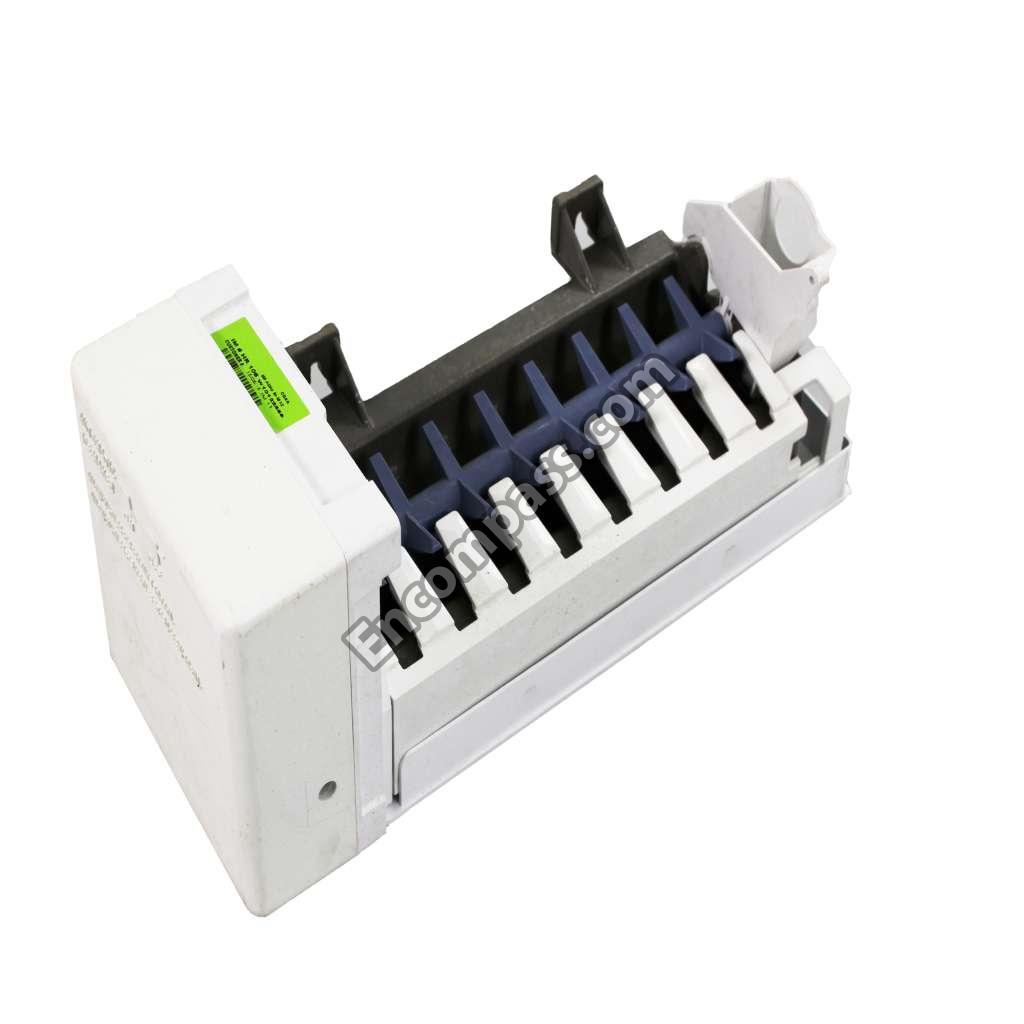

WPW10122558 WPW10122558 ICEMAKER
WPW10258560 WPW10258560 INLET VALVE
WPW10258563 WPW10258563 INLET VALVE
WPW10269099 WPW10269099 LENS-LIGHT
W10280420 W10280420 LENS-LIGHT
WPW10141622 WPW10141622 LEVELER
WP67002552 WP67002552 LIGHT BULB
W11051460 W11051460 MOLD-ICE
WP2321276 WP2321276 MOTOR
WPW10205978 WPW10205978 MOTOR
W10837641 W10837641 MOTOR-COND

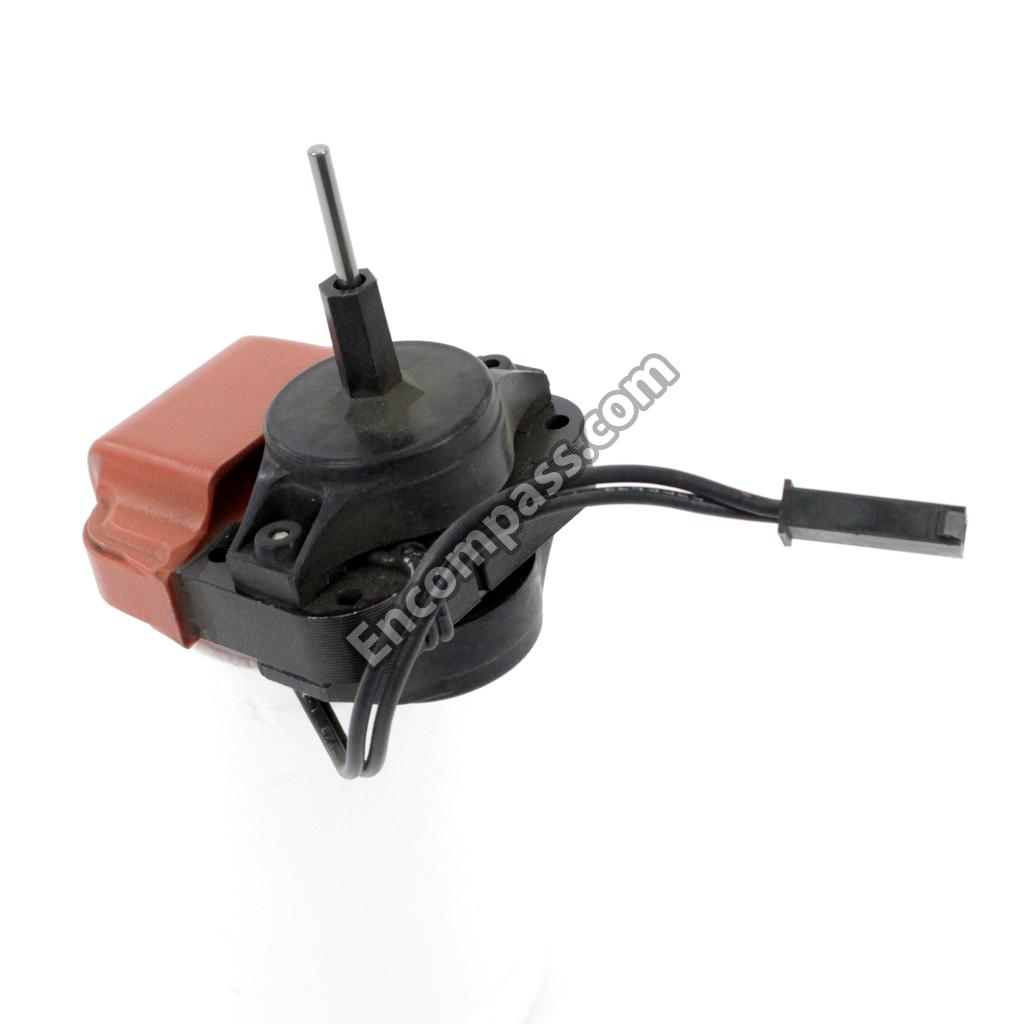

W10315658 W10315658 MOTOR-EVAP
W10190933 W10190933 MOTOR-MODL
2321226 2321226 NAMEPLATE
WPW10370594 WPW10370594 PAD
WPW10370593 WPW10370593 PAD
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT)
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
8171358 8171358 PAINT, BULK (1 QT.) (GRAPHITE`)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP80051 WP80051 PAINT, TOUCH-UP (1/2OZ.) (GRAPHITE)
WPW10256854 WPW10256854 PAN-MEAT
350942 350942 PRIMER
W11613294 W11613294 RESERVOIR
W11671527 W11671527 RETAINER
2302129 2302129 RETAINER
WP489236 WP489236 RING-E
WPW10285005 WPW10285005 RIVET
489229 489229 ROLL PIN
WP67005149 WP67005149 ROLLER
WPW10475495 WPW10475495 ROLLER-CAB
WP693995 WP693995 SCREW
W11096900 W11096900 SCREW
W10001240 W10001240 SCREW
W10142255 W10142255 SCREW
WPW10297485 WPW10297485 SCREW
WPW10308751 WPW10308751 SCREW
WPW10308750 WPW10308750 SCREW
WPW10142283 WPW10142283 SCREW
WPW10141645 WPW10141645 SCREW
WP489483 WP489483 SCREW
WP489464 WP489464 SCREW
WP3400906 WP3400906 SCREW
WP489399 WP489399 SCREW
W11233072 W11233072 SCREW
WP488787 WP488787 SCREW
WPW10296816 WPW10296816 SCREW
WPW10170540 WPW10170540 SCREW
WPW10296804 WPW10296804 SCREW
W11366418 W11366418 SCREW
WP4449745 WP4449745 SCREW
WPW10171469 WPW10171469 SCREW
W11544659 W11544659 SCREW
WP489478 WP489478 SCREW
WPW10141625 WPW10141625 SCREW
718257 718257 SCREW, 8-18 X 1.38
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
W10274575 W10274575 SHIELD
2223680 2223680 SHIELD, HEAT
W11661094 W11661094 SLEEVE
W10294289 W10294289 SLIDE
W11746089 W11746089 SLIDE
W11661565 W11661565 SOCKET
WPW10129867 WPW10129867 SOLENOID
W10138206 W10138206 SPACER
W10189661 W10189661 SPACER
W11032808 W11032808 SPACER, FLAT
WP2305235 WP2305235 SPIGOT
8171357 8171357 SPRAY
350930 350930 SPRAY
1119020 1119020 SPRING
WP2312007 WP2312007 START-DEV
W10277704 W10277704 SUPPORT
W11384469 W11384469 SWITCH
W11457217 W11457217 SWITCH
W11238399 W11238399 TAPE
833938 833938 TERMINAL
W11724692 W11724692 THERMISTOR
628532 628532 THERMOSTAT (ALSO ORDER 542369 CEMENT ALUMILASTIC)
WP2182181 WP2182181 THIMBLE
WP2205813 WP2205813 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W11246841 W11246841 TRAY-DRIP
W10276193 W10276193 TRAY-DRIP
WPW10251469 WPW10251469 TRAY-EVAP
W10280178 W10280178 TRIM
W10276227 W10276227 TRIM-DISPR
WPW10276186 WPW10276186 TRIM-DISPR
W10330406 W10330406 TRIM-PAN
W11236850 W11236850 TRIM-PAN
WPW10256775 WPW10256775 TRIM-PAN
W11311688 W11311688 TUBE
W10858105 W10858105 TUBE
W10299708 W10299708 USE & CARE GUIDE
978030 978030 VALVE
978029 978029 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
WP978025 WP978025 VALVE
978028 978028 VALVE, ACCESS (1/2``)
W10189660 W10189660 WASHER
489234 489234 WASHER, PLAIN
WPW10279882 WPW10279882 WATER TUBE
WPW10279884 WPW10279884 WATER TUBE
W10823511 W10823511 WATER TUBE
W10279406 W10279406 WIRE-JUMPR
W10328011 W10328011 WIRING DIA
