Model Image
Manufacturer

Whirlpool

Model Number

C236WC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3415F003-51 3415F003-51 BAND, MOTOR
WPY708730 WPY708730 BLOCK- TER
712435 712435 BOX, BURNER, COMPLETE
12001898 12001898 BRACKET
Y715443 Y715443 BREAKER C
Y707695 Y707695 BUSHING
712311 712311 BUSHING
Y704607 Y704607 CAMERA LENS
715780 715780 CLAMP CAB
Y707831 Y707831 CLIP
Y707335 Y707335 CLIP
3415F004-51 3415F004-51 CLIP
74004835 74004835 CLIP
Y700503 Y700503 CLIP, RETAINER
Y700450 Y700450 CLIP- SHUN
Y705155 Y705155 CONDUIT, METAL
707766 707766 CONNECTOR
Y704968 Y704968 COVER, MOTOR
WP74008014 WP74008014 DOOR HINGE
WP5700M426-60 WP5700M426-60 ELEMENT
704444 704444 ESCUTCHEON (LT/WHT)
WP707929 WP707929 FILTER- GR
715957K 715957K GASKET
WP7518P054-60 WP7518P054-60 GRATE, GRILL
71002309 71002309 GRILL, AIR (WHT)
Y712438 Y712438 HARNS-WIRE
W11120791 W11120791 INFINITE CONTROL SWITCH
707746 707746 INSULATOR
WP71003558 WP71003558 ISOLATOR-
WPY707869 WPY707869 JAR- DRAIN
712528 712528 KIT, ESTUTCHEON WIRE (LEFT)
712228 712228 KIT, WIRE
WPY703899 WPY703899 KNOB- SWIT
WP5700M611-60 WP5700M611-60 LID-JAR
704209 704209 LIGHT PIL
701925 701925 LIMITER T
WPY707702 WPY707702 LOCKNUT
702889 702889 LOCKNUT CA
70288-9 70288-9 LOCKNUT CAP, W/NYLON INSERT
Y712550 Y712550 MOTOR COVE

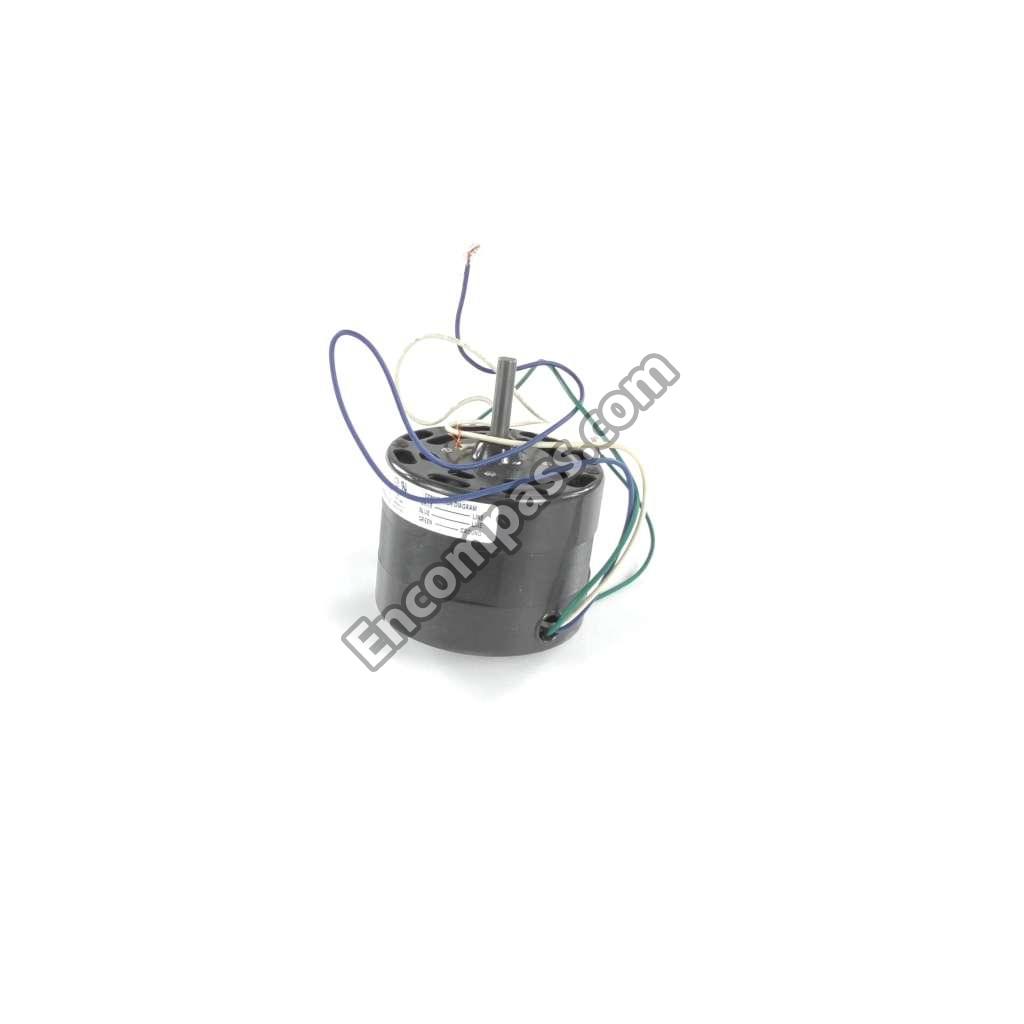

WPY705032 WPY705032 MOTOR, BLOWER
707161 707161 NUT
7103P166-60 7103P166-60 NUT
M0282009 M0282009 NUT
WP488130 WP488130 NUT
Y708862 Y708862 NUT- SPEED
701955 701955 PAN, GRILL (LT)
Y701956 Y701956 PAN, GRILL (RT)
Y707681 Y707681 PLATE, COVER
74011338 74011338 PLATE, ROCK
712434 712434 PLENUM
WPY702434 WPY702434 RECEPTACLE
8038P003-60 8038P003-60 RETAINER
Y707688 Y707688 RETAINER, FILTER
4026F009-51 4026F009-51 RING
4026F008-51 4026F008-51 RING
WP210720 WP210720 RIVET
Y704864 Y704864 SCREW
Y707121 Y707121 SCREW
707407 707407 SCREW
WP59002061 WP59002061 SCREW
WP4381696 WP4381696 SCREW
WP71001171 WP71001171 SCREW
WP90767 WP90767 SCREW
WP74003976 WP74003976 SCREW
W11233072 W11233072 SCREW
WP488234 WP488234 SCREW
WP489128 WP489128 SCREW
W10777874 W10777874 SCROLL, BLOWER ASSEMBLY.
700819 700819 SPRT-ELMNT
12001130 12001130 SWITCHFAN
Y04100716 Y04100716 TOP, MAIN (FR. WHT)
Y707664 Y707664 WASHER
715615 715615 WASHER, LOCK
WPY707985 WPY707985 WHEEL-FAN
712449 712449 WIRE CABLE

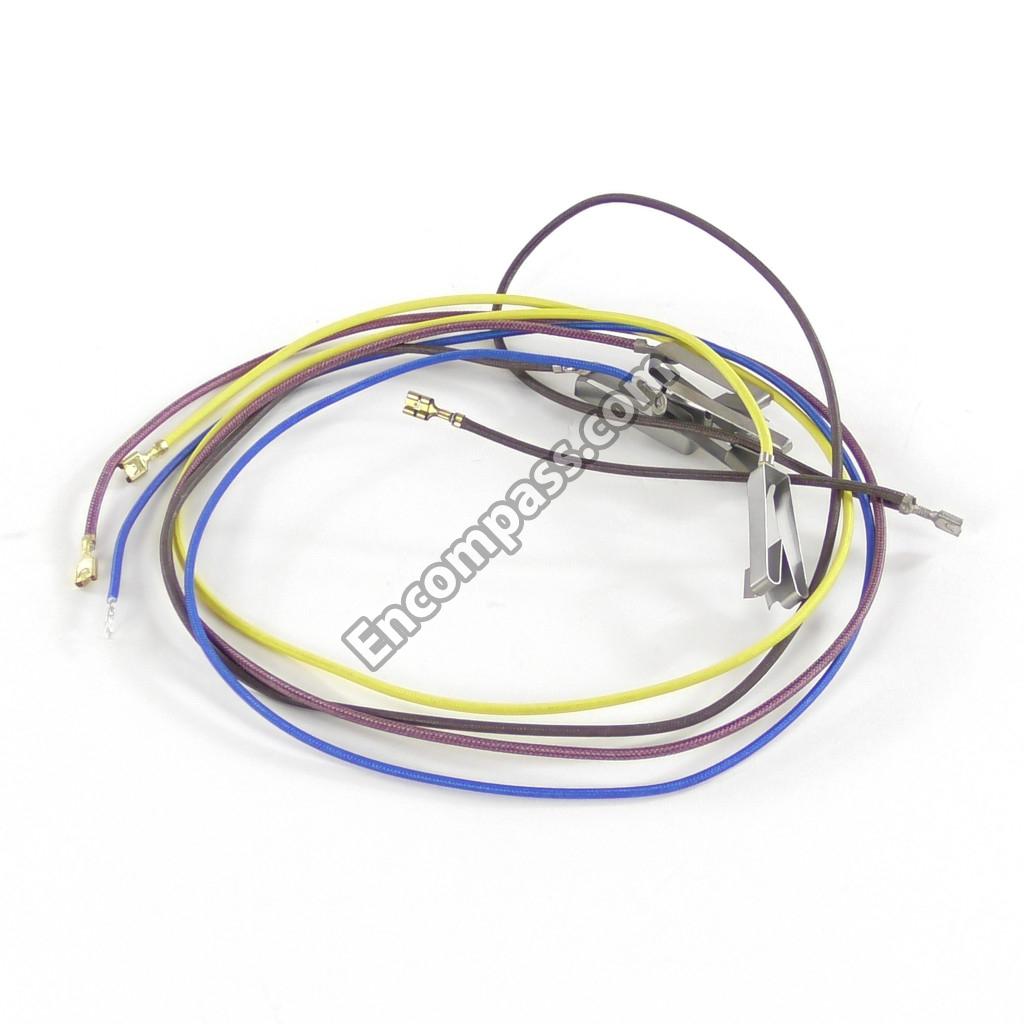

WP5708M002-60 WP5708M002-60 WIRE HARNESS
WP5708M005-60 WP5708M005-60 WIRE HARNESS
WP5708M008-60 WP5708M008-60 WIRE HARNESS
WP5708M007-60 WP5708M007-60 WIRE HARNESS
WP5708M006-60 WP5708M006-60 WIRE HARNESS
WP5708M004-60 WP5708M004-60 WIRE, BLUE
WP5708M001-60 WP5708M001-60 WIRE, BROWN
WP5708M003-60 WP5708M003-60 WIRE, VIOLET
