Manufacturer

Whirlpool

Model Number

CAE2795FQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285863 285863 ACCESSORY PARTS, 4' DRAIN HOSE W/CLAMP
W10135699 W10135699 ACCESSORY PARTS, AFFRESH WASHER CLEANER
W10355010 W10355010 ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
W10576550 W10576550 ACCESSORY PARTS, MAIN TOP REAR SUPPORT
8212526 8212526 ACCESSORY PARTS, WASHER, DRIP TRAY
W11212745 W11212745 ACTUATOR
W11222084 W11222084 ADAPTER
3363920A 3363920A ADAPTER
W10461101 W10461101 ASSEMBLY, TIMER KNOB (GRAY)
W10738339 W10738339 BASKET
WP21258 WP21258 BEARING

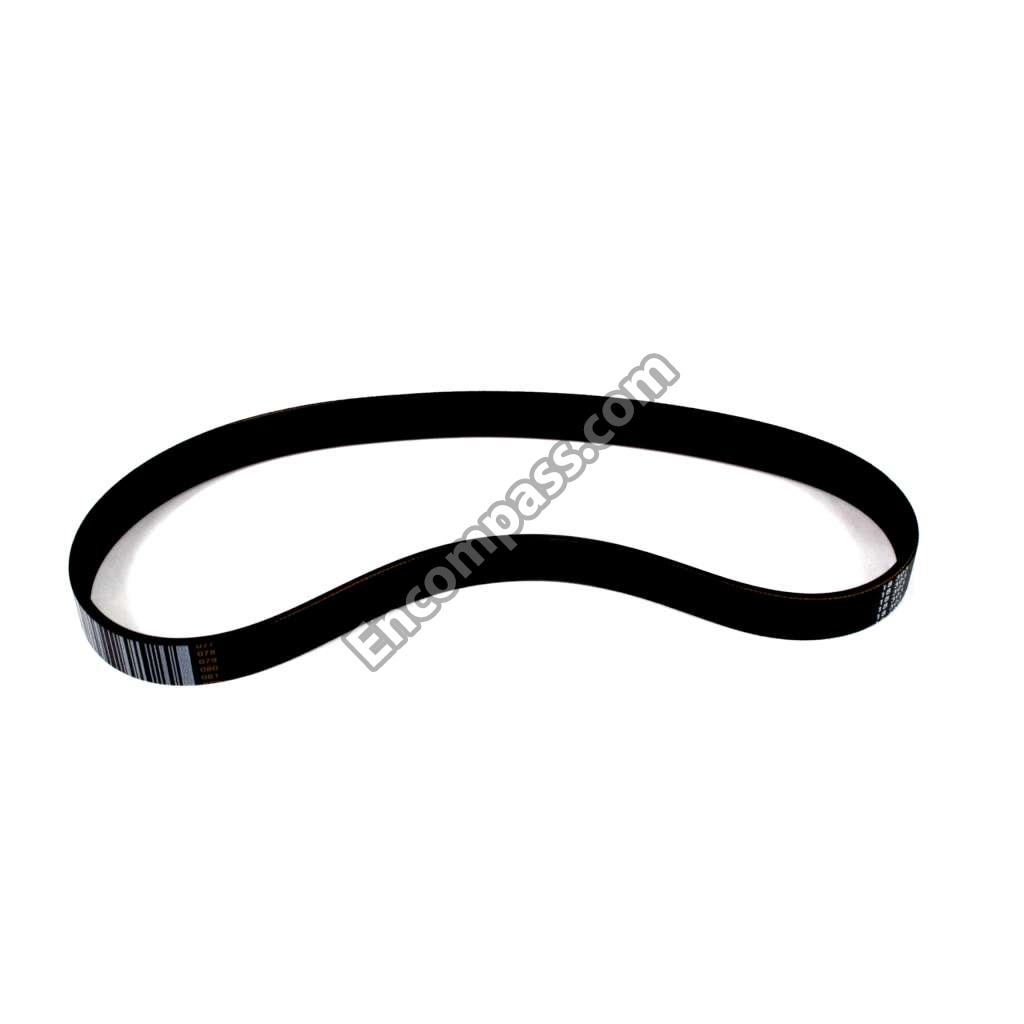

W11213879 W11213879 BELT
WPW10392041 WPW10392041 BEZEL
W10510149 W10510149 BEZEL - PTS
W11084139 W11084139 BLOCK
W11695477 W11695477 BRACE
W11712680 W11712680 BRACE
W10461066 W10461066 BRACKET, BACK
W10850379 W10850379 BRACKET, BASE
W10866521 W10866521 BRACKET, FRONT PANEL
W10882494 W10882494 BRACKET, FRONT TOP
W11252488 W11252488 BUMPER
W10461181 W10461181 BUSHING-TOP, SCREW
W10845574 W10845574 CABINET (WHITE)
WPW10131111 WPW10131111 CAP
W11227944 W11227944 CAPACITOR
WP356138 WP356138 CLAMP
WP285655 WP285655 CLAMP
W10005430 W10005430 CLAMP, CABLE
WP90016 WP90016 CLIP
W11124005 W11124005 CONSOLE

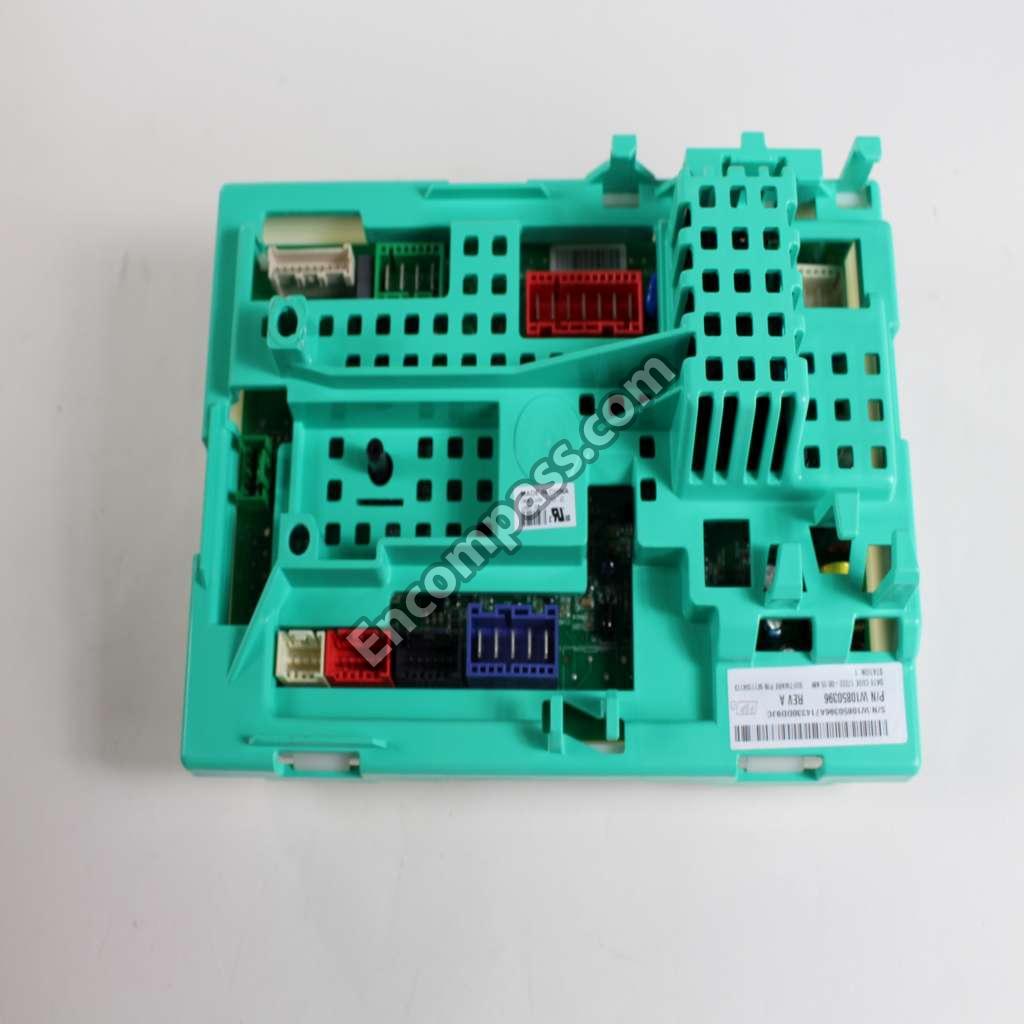

W11188527 W11188527 CONTROL BOARD
W10461180 W10461180 COVER, HARNESS
W11096159 W11096159 DAMPER, SOUND
WPW10482836 WPW10482836 DOOR LATCH

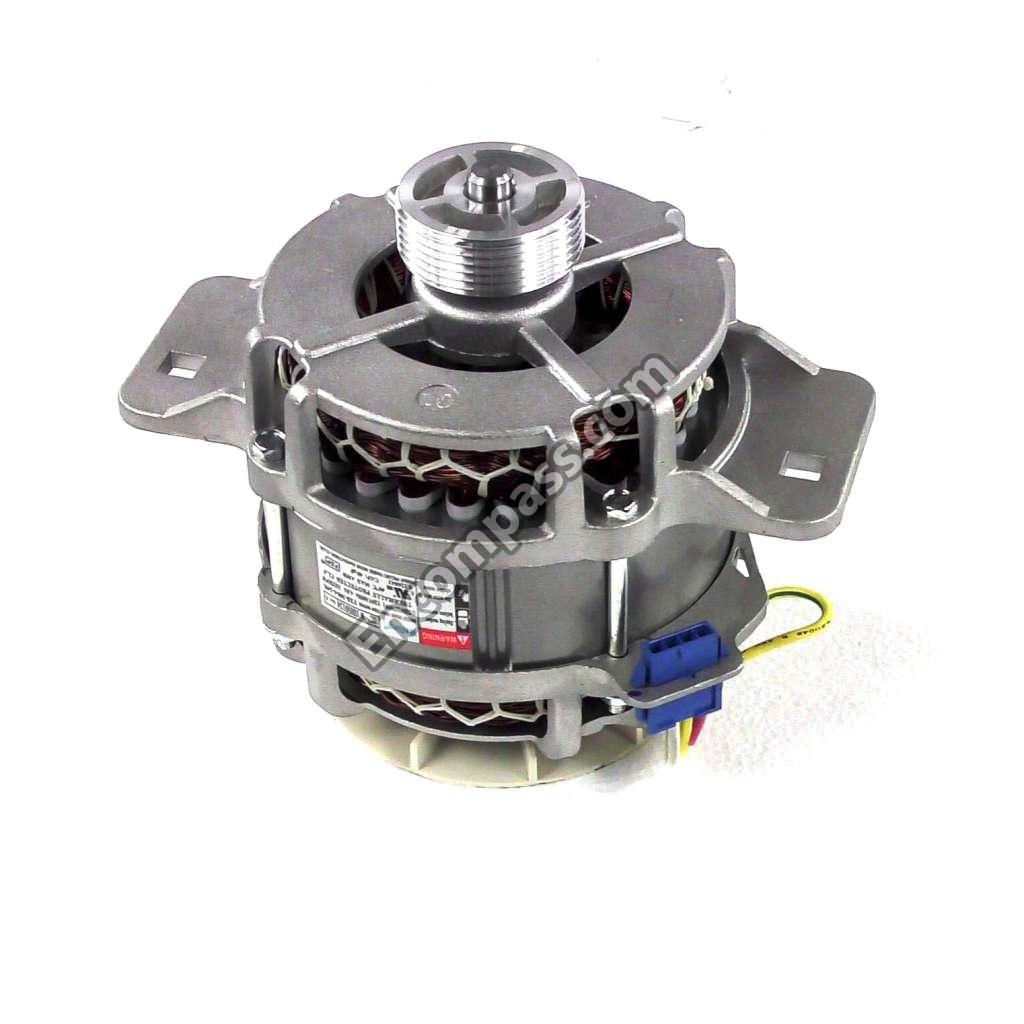

W11222082 W11222082 DRIVE MOTOR
W10862938 W10862938 FEET-LVLNG
WPW10215093 WPW10215093 FILTER
W11159068 W11159068 GEARCASE
W10291184 W10291184 HARNESS, UPPER E-STAR
W10843398 W10843398 HARNESS, VALVE
WP91770 WP91770 HINGE
WP54583 WP54583 HINGE
W10461176 W10461176 HINGE, TOP
W11244231 W11244231 HOSE
WP353244 WP353244 HOSE
W10899966 W10899966 HOSE
W11085908 W11085908 HOSE-FILL
WP76314 WP76314 HOSE-FILL
W10828903 W10828903 INSERT, ENCODER STOP (7 POSITION)
W10837712 W10837712 INSTALLATION INSTRUCTIONS
WPW10491734 WPW10491734 INTERFACE
W10461100 W10461100 KNOB & BUMPER ASSEMBLY (GRAY)
WPW10338625 WPW10338625 LID
W11590580 W11590580 LOCATOR
W11376161 W11376161 LOCK
W10461182 W10461182 LOCK, TOP
WP3359452 WP3359452 NUT
WP90406 WP90406 NUT
WPW10131123 WPW10131123 NUT
WP21366 WP21366 NUT-SPANER
W10318627 W10318627 O-RING
W11089512 W11089512 OVERLAY
WP8283273 WP8283273 PAD
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11704945 W11704945 PANEL
W11486091 W11486091 PANEL-REAR
WPW10461159 WPW10461159 PANEL-REAR
W11676810 W11676810 POWER CORD
WPW10461117 WPW10461117 PUSHBUTTON
W10837642 W10837642 QUICK START GUIDE

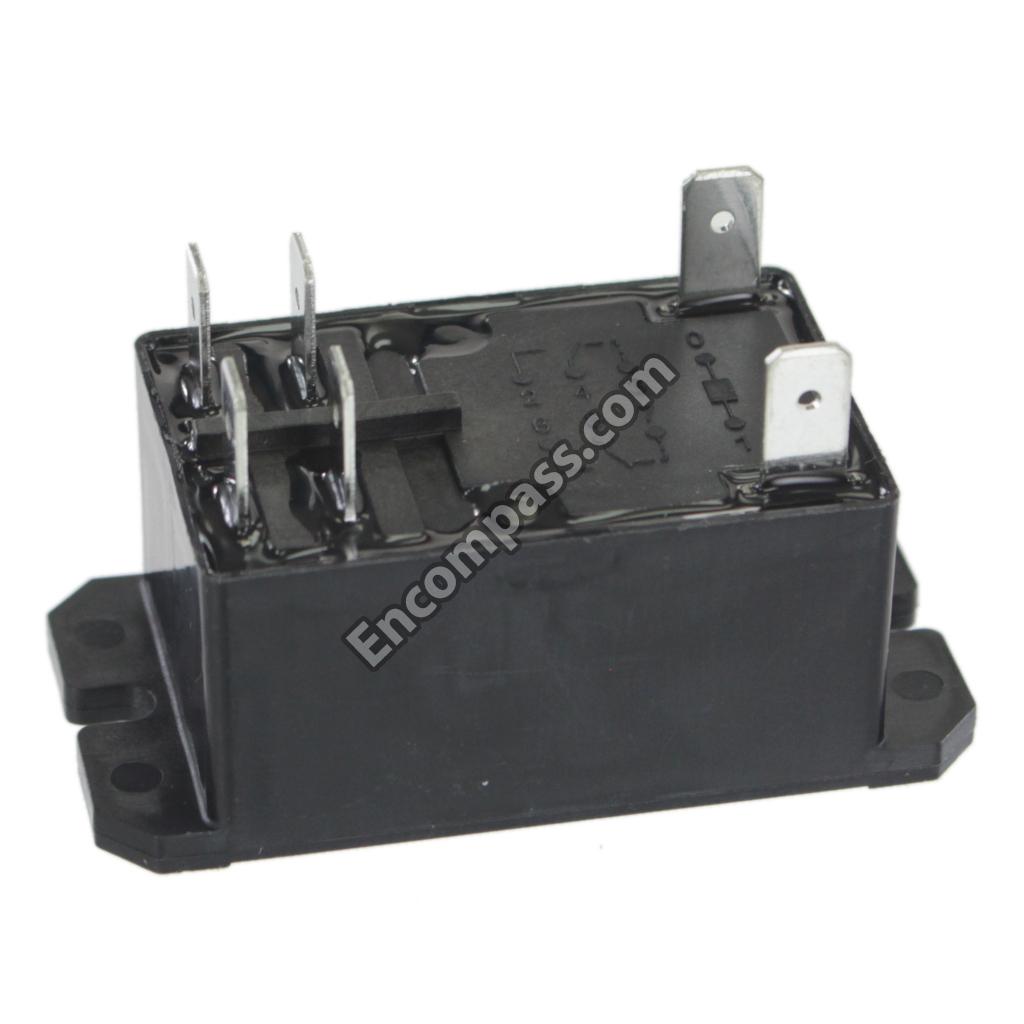

W11384790 W11384790 RELAY
WPW10280024 WPW10280024 RETAINER
WPW10461196 WPW10461196 RING-TUB
WP9740848 WP9740848 SCREW
WPW10119828 WPW10119828 SCREW
WPW10273971 WPW10273971 SCREW
W11679611 W11679611 SCREW
W11685943 W11685943 SCREW
WP489128 WP489128 SCREW
W10846509 W10846509 SCREW
W11170603 W11170603 SCREW
WP489442 WP489442 SCREW
WPW10131119 WPW10131119 SCREW
WP90767 WP90767 SCREW
WP3390631 WP3390631 SCREW
WPW10213953 WPW10213953 SCREW
W10772621 W10772621 SCREW
WP8533928 WP8533928 SCREW
WPW10109200 WPW10109200 SCREW
WPW10004910 WPW10004910 SCREW
WPW10249633 WPW10249633 SCREW
W11685857 W11685857 SCREW
W11596033 W11596033 SCREW
W11573574 W11573574 SCREW
WP285195 WP285195 SEALER
WPW10427633 WPW10427633 SHIELD
W10721967 W10721967 SPLUTCH KIT (60HZ)
W11403873 W11403873 STRAP
WPW10240513 WPW10240513 STRIKE
W10780046 W10780046 SUSPENSION ROD KIT
WPW10285518 WPW10285518 SWITCH-CYC
W10838047 W10838047 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
W10852765 W10852765 TOP (WHITE)
W10371566 W10371566 TUB-OUTER
W10837923 W10837923 USE AND CARE GUIDE
W11205048 W11205048 VALVE
WP16123 WP16123 WASHER
WP3949550 WP3949550 WASHER
W10832827 W10832827 WASHER
WPW10131112 WPW10131112 WASHER AGITATOR
WPW10276397 WPW10276397 WATER PUMP
285835 285835 WATER SYSTEM PARTS, CONNECTOR ASSEMBLY
W10575888 W10575888 WATER SYSTEM PARTS, HOSE FILL KIT
WP35-6467 WP35-6467 WATER SYSTEM PARTS, HOSE, INLET (10' )
285834 285834 WATER SYSTEM PARTS, SIPHON BREAK KIT
W11736785 W11736785 WIRE HARNESS
W11296297 W11296297 WIRE HARNESS
W11243585 W11243585 WIRE HARNESS
W11744742 W11744742 WIRE HARNESS
