Model Image
Manufacturer

Whirlpool

Model Number

CDU600B

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP99001290 WP99001290 ACTUATOR
WP6-904026 WP6-904026 ARM, LOWER SPRAY (W/SHIELD)
Y913093 Y913093 BAR, REINFORCEMENT
99001588 99001588 BARRIER C
WP99001576 WP99001576 BASKET- SI
912563 912563 BOX TERMI
99002361 99002361 BRACKET E
Y913156 Y913156 BRACKET R
912651 912651 BRACKET, ADJUSTING
Y912541 Y912541 BRACKET, HEATING ELEMENT
WPY913203 WPY913203 BRACKET- S
6-912656 6-912656 BRACKET- W
99001580 99001580 BUTTON CO
Y912659 Y912659 CAP, AIR INLET
Y913274 Y913274 CHOPPER
WPW10548433 WPW10548433 CLAMP
WP596669 WP596669 CLAMP
99001008 99001008 CLIP THER
4396672 4396672 CONNECTOR
WPY912910 WPY912910 COVER, VENT
913099 913099 CRANK-D SHAFT
913105 913105 D SHAFT
WP99001885 WP99001885 DEFLECTOR-
99001361 99001361 DOOR ASSEMBLY (BLK)
903098 903098 DOOR LATCH
WP99001291 WP99001291 DOOR LATCH
99002388 99002388 DOOR, INNER
Y912918 Y912918 DOORINNER
913110 913110 E CLIP
Y913109 Y913109 E CLIP-
903096 903096 ELEMENT, HEATING
WP99001995 WP99001995 ELEMENT- H
WP99002360 WP99002360 ELEMENT- H
12001186 12001186 FAN, MOTOR
99002415 99002415 FASTENER
911917 911917 FASTENER, INSULATION
99001057 99001057 FASTENER, PANEL
Y913184 Y913184 FILLER, FRONT PANEL
903486 903486 FILTER, IV
6-904467 6-904467 FLAPPER ASSEMBLY.
WP99002363 WP99002363 FLOAT
WP902894 WP902894 GASKET
WP912529 WP912529 GASKET, PUMP
WP99001553 WP99001553 GROMMET
W10834433 W10834433 HANDLE
W11033847 W11033847 HANDLE- SI
6-914561 6-914561 HINGE
6-914562 6-914562 HINGE (RT)
WP99001355 WP99001355 HOOK, DOOR LATCH
WPY912790 WPY912790 HOOK- DRAI
WP912647 WP912647 HOSE, TOP SHOWER
WPY913158 WPY913158 HOSE- DRAI
912633 912633 HOSE- INJE
WP6-904027 WP6-904027 IMPELLER A
WP912533 WP912533 INJECTOR-
Y913223 Y913223 INSERT, FRONT PANEL (BLK/ALM)
99001659 99001659 INSERT, FRONT PANEL (BLK/WHT)
99002248 99002248 INSERT, FRONT PANEL (WHT/BSQ)
99002413 99002413 INSULATION, ACCESS PANEL
99001718 99001718 INSULATION, DOOR
Y912923 Y912923 KNOB, RINSE AID (WHT)
99001872 99001872 KNOB, TIMER (BLK)
Y912696 Y912696 LENS INDI
912014 912014 LEVER
WPW10143258 WPW10143258 LEVLER-LEG
903483 903483 LID, DETERGENT CUP
WPY913200 WPY913200 LIFTER
WP903115 WP903115 LIGHT-IND
Y913116 Y913116 LINER, VENT
WP912653 WP912653 LINK- DOOR
99001719 99001719 MANUAL, USE & CARE
99001542 99001542 MANUAL, USE & CARE (FRENCH)
6-905330 6-905330 MOTOR (W/O-RING & FAN)
WP902899 WP902899 MOTOR-WAX
WPY912899 WPY912899 NOZZLE- CE
WPY912912 WPY912912 NOZZLE- J
WP911265 WP911265 NUT
912645 912645 NUT HEATI
WP99002005 WP99002005 NUT, RESERVOIR
WPY912930 WPY912930 NUT- SPRAY
W10877037 W10877037 NUT-SPRAY
Y913174 Y913174 O RING
WPY913079 WPY913079 O-RING- HE
99001621 99001621 OVERLAY, CONTROL PANEL (BLK)
WPW10117748 WPW10117748 PAD-INS
WPW10223013 WPW10223013 PAD-INS
99002298 99002298 PANEL- ACC
6-913668 6-913668 PANEL-CNTL
WP6-912640 WP6-912640 PANEL-TOE
99002531 99002531 PIN, LEVER PIVOT
WP6-912678 WP6-912678 PIN- HINGE
WPY912679 WPY912679 PIN- HINGE
WP99001287 WP99001287 PIVOT
Y912913 Y912913 PLATE CHO
WP6-903124 WP6-903124 PLUNGER ASSEMBLY
WP99002571 WP99002571 RACK ASSEMBLY (LWR)
99001454 99001454 RACK ASSEMBLY (UPR)
903482 903482 RELAY MOT
WP99002833 WP99002833 RESERVOIR
WP99001288 WP99001288 RETAINER
Y912666 Y912666 RETAINER, WIRE
6-912650 6-912650 RETAINER-
WP912644 WP912644 RING
Y912686 Y912686 RING LOCK
Y912901 Y912901 RING WEAR
WP99002003 WP99002003 RING-O
WP910654 WP910654 SCREW
Y913157 Y913157 SCREW
99001075 99001075 SCREW
WP132780 WP132780 SCREW
WP33002917 WP33002917 SCREW
WPY912620 WPY912620 SCREW
WP6-912366 WP6-912366 SCREW
WP489128 WP489128 SCREW
912622 912622 SCREW
WP179051 WP179051 SCREW
3400409 3400409 SCREW
WP489491 WP489491 SCREW
Y912892 Y912892 SCREW MOT
Y912891 Y912891 SCREW PUM
912613 912613 SCREW, ADJUSTING BRACKET
913275 913275 SCREW, CHOPPER
Y912904 Y912904 SEAL RING
Y913177 Y913177 SEAL, VENT OUTLET
Y913178 Y913178 SEAL- REIN
WP913108 WP913108 SEAL- SHAF
6-905332 6-905332 SEAT, SEAL
99001992 99001992 SHELF, UPPER RACK
WP6-918554 WP6-918554 SHIELD
Y912931 Y912931 SHIELD MO
99002288 99002288 SHIELD, RADIANT
99001333 99001333 SLEEVE IN
WP99001289 WP99001289 SLIDER
WP6-904023 WP6-904023 SOLENOID
WP99002362 WP99002362 SPACER
WP99001586 WP99001586 SPINNER- T
WPW10116816 WPW10116816 SPRING
WPY912547 WPY912547 SPRING
912648 912648 SPRING LA
6-913202 6-913202 SPRING, FLAPPER
WP912652 WP912652 SPRING- DO
WPY913201 WPY913201 SPRING- RE
WP99002136 WP99002136 STOP- RACK
99001444 99001444 STRAP, HARNESS
99001076 99001076 STRAP, INSULATION
WPY912900 WPY912900 SUPPORT
WP912654 WP912654 SUPPORT
99002254 99002254 SWITCH
99001595 99001595 SWITCH CO
WP99002560 WP99002560 SWITCH- WA
99001006 99001006 THERMOSTAT
99001005 99001005 THERMOSTAT, BOOST (36TX02)
WPW10339879 WPW10339879 TIE-WIRE

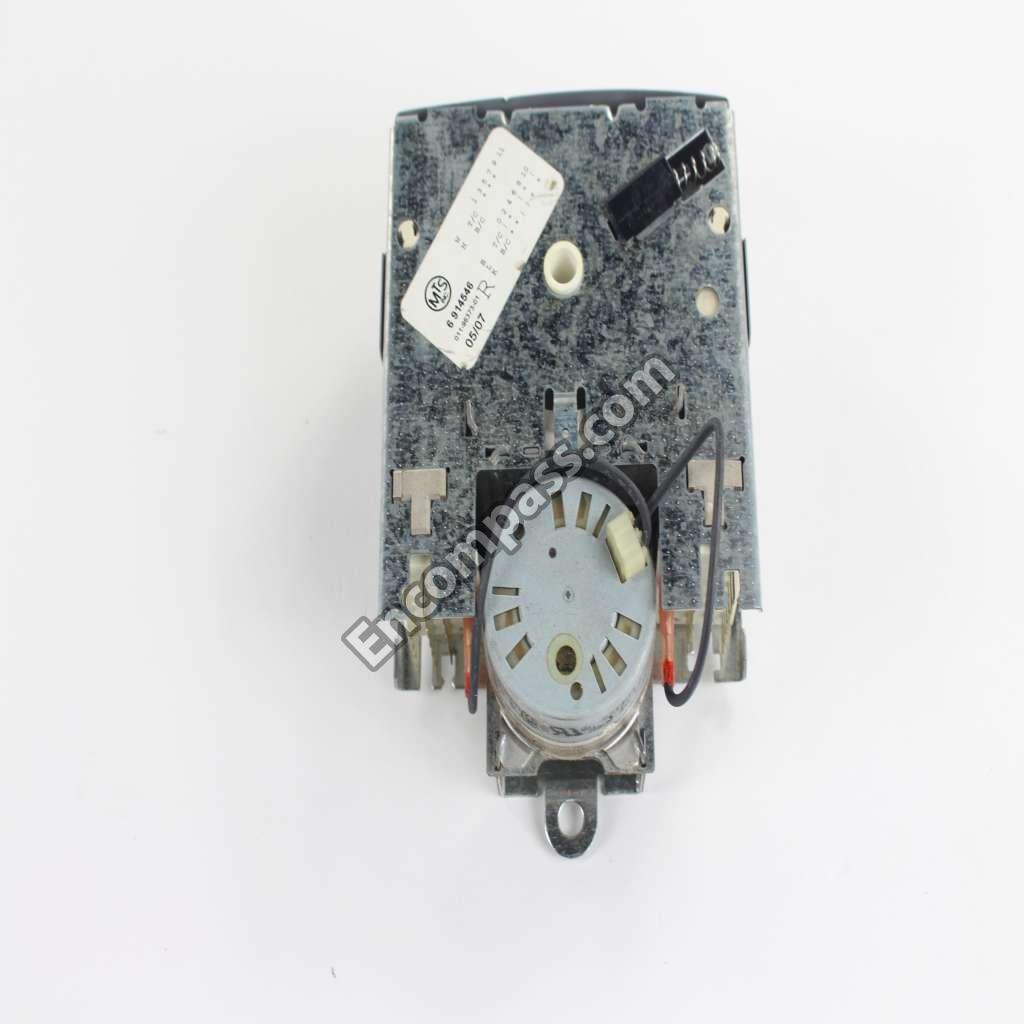

99001592 99001592 TIMER
WP99001929 WP99001929 TIMER
WPY912545 WPY912545 TRACK
Y912936 Y912936 TRIM BOTT
99001350 99001350 TRIM, SIDE (BLK)
WP99002947 WP99002947 TUB WHEEL
Y913096 Y913096 TUBE INLE
WP99001358 WP99001358 VALVE, WATER
Y913095 Y913095 VENT, INLET
Y912915 Y912915 VOLUTE, PUMP (W/SHAFT)
913106 913106 WASHER SH
913-106 913-106 WASHER, SHAFT SEAL
910069 910069 WASHER- TU
WPY912798 WPY912798 WASHER- TU
WP903093 WP903093 WHEEL
WP903815 WP903815 WHEEL
WP99002342 WP99002342 WHEEL- TUB
903882 903882 WIRE GROU
99001593 99001593 WIRE HARNE
15002060 15002060 WIRING INFORMATION
