Model Image
Manufacturer

Whirlpool

Model Number

CE3402L

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
60821 60821 ACESS COVER
56000 56000 ASSEMBLY, BLOWER FAN
56118 56118 ASSY, EXHAUST DUCT
62420L 62420L ASSY, FRT PNL/CARTON
60815W 60815W ASSY, TOP & CARTON
60786 60786 ASSY,AIR DUCT-FRONT
60811 60811 ASSY,BASE-COMPLETE
62142W 62142W ASSY,BULKHEAD-FRONT-SV
61073P 61073P ASSY,CYLINDER-WHITE
61342 61342 ASSY,HOOD & MOUNTING P
32866 32866 ASSY,KNOB-ROTARY-BLACK
61315 61315 ASSY,TIMER KNOB & SKIRT
62078 62078 ASSY,WIRING HARNESS
Y60955 Y60955 ASSY,WIRING HARNESS-CY
Y61027 Y61027 BAFFLE,CYLINDER-EXTEND
Y61399 Y61399 BAFFLE,CYLINDER-SHORT-
WP40111201 WP40111201 BELT
WP61923 WP61923 BLOCK- TER
WP57005 WP57005 BRACKET
56055 56055 BRACKET,BULKHEAD-REAR
56042 56042 BRACKET,CYLINDER ROLLER
61127P 61127P BULKHEAD, WHITE
56938 56938 BUMPER
60815L 60815L CABINET TOP, ALMOND
32863 32863 CAP,END-L.H.-BLK W/SLV
32864 32864 CAP,END-R.H.-BLK W/SLV
WP660658 WP660658 CLAMP
3976587 3976587 CONTROL BOARD
61203 61203 COVER PLATE
60938P 60938P COVER,BLOWER HOUSING
WP62649P WP62649P CYLINDER ROLLER
62153L 62153L DOOR
LA-1003 LA-1003 DOOR LATCH
61379 61379 DOOR SEAL
WP915P3 WP915P3 DRIVE MOTOR
WP22001650 WP22001650 FASTENER-
W10176519 W10176519 FEET-LVLNG
WPY314137 WPY314137 FOOT- RUBB
62420W 62420W FRONT PANEL, WHITE
61927 61927 HEATER ASSEMBLY
61928 61928 HEATER ASSEMBLY 208V
61161P 61161P HEATER BOX
WP61623 WP61623 HEATR-STAT
26592 26592 HEX HEAD SCREW
56045 56045 HINGE (DRYER)
60826 60826 HINGE, TOP
511969 511969 HOUSING, BLOWER
56057 56057 LEVER,IDLER
WP56170P WP56170P LEVER-IDL
W10857122 W10857122 LIGHT BULB
62152W 62152W LINER,DOOR
505187 505187 LOCATOR, PANEL
56078 56078 M400664
59173 59173 MOTOR PULLEY ASSEMBLY
503613 503613 MOUNT, MOTOR
WPW10139757 WPW10139757 NUT
WP488130 WP488130 NUT
57584 57584 NUT
WP62739 WP62739 NUT
56156 56156 NUT, 3/8-16 SERRATED
23407 23407 NUT,SPEED-8A TINN C15
Y56128 Y56128 PAD, BUMPER
58049 58049 PAD,THIN
62153W 62153W PANEL OUTER DOOR
40051401P 40051401P PANEL,BACK(HOME HOOD)
62633 62633 PANEL,GRAPHIC
54068P 54068P PULL,DOOR
WPY54414 WPY54414 PULLEY-IDR
58846 58846 RACK,DRYING
R9900489 R9900489 RANGE THERMOSTAT
WPW10116735 WPW10116735 RANGE THERMOSTAT
10519 10519 RETAINER
WP23748 WP23748 RING- RETA
61376 61376 SCREEN
WP3400094 WP3400094 SCREW
WP3177991 WP3177991 SCREW
WP3390631 WP3390631 SCREW
WP489464 WP489464 SCREW
WP90767 WP90767 SCREW
WP3351614 WP3351614 SCREW
WPY014874 WPY014874 SCREW
WP27001200 WP27001200 SCREW
500226 500226 SCREW, 8B-16X5/8 TAP
501285 501285 SCREW, NO.12 X 9/16
31260 31260 SCREW, NO.8 X 3/8 IND H
56587 56587 SCREW,1/4-20 HEX HD SH
56131 56131 SCREW,10BT X 1 TAPPING
56392 56392 SCREW,8-18 X 3/8 TAPPI
22649 22649 SCREW,8-32 X 13/32 FL
56693 56693 SCREW,NO.6-20X.44/.41 IN
31752 31752 SCREW,NO.8ABX3/4 POZIDRI
56065 56065 SEAL
WP56088 WP56088 SEAL ASM
Y61380 Y61380 SEAL,FRONT PANEL
52906 52906 SETSCREW
WP56461 WP56461 SHAFT
56087 56087 SHIELD,TERMINAL BLOCK
59447 59447 SIGNAL,ROTARY
52310 52310 SPRING
WP56076 WP56076 SPRING- ID
58866 58866 STICKER,WARNING-GROUND
56090P 56090P STRAP, SEAL
Y61511 Y61511 SWITCH,FABRIC SELECTOR
W10169313 W10169313 SWITCH-DOR
60823 60823 TERMINAL BLOCK BRACKET

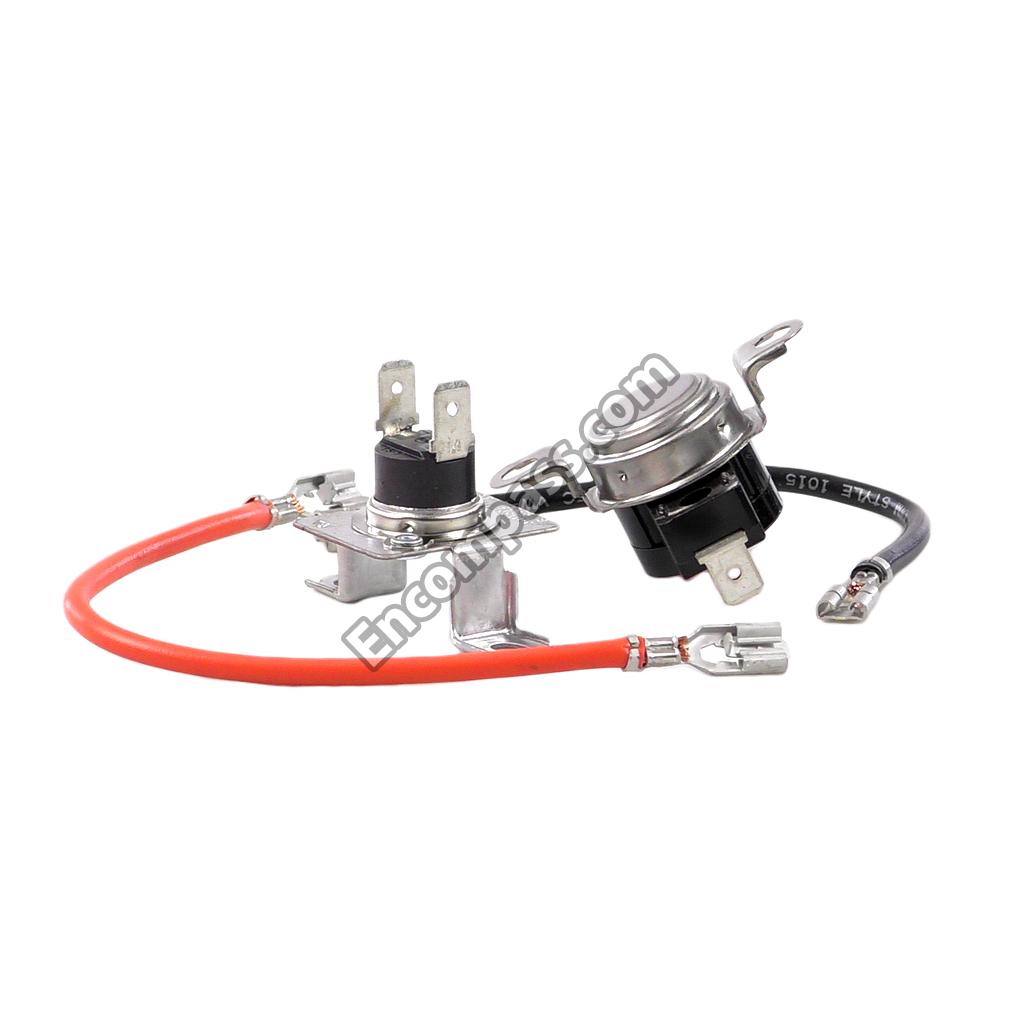

WPY61372 WPY61372 THERMOSTAT
57239 57239 THERMOSTAT,SPST
WP502963 WP502963 TIMER
660987 660987 TRANSFORMER
61323R 61323R TRIM,BOTTOM-AMANA
WPW10121334 WPW10121334 WASHER
M0270504 M0270504 WASHER
23886 23886 WASHER,.578IDX1.25ODX1
51474 51474 WASHER,13/64IDX1/2ODX.
60813LP 60813LP XXXASSY,DRYER CABINET
60813WP 60813WP XXXASSY,DRYER CABINET
