Model Image
Manufacturer

Whirlpool

Model Number

CE35100AAA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
74001772 74001772 BACKMAIN
WPW10245259 WPW10245259 BLOCK-TERM
WPW10196405 WPW10196405 BOWL-DRIP
W10196406RW W10196406RW BOWL-DRIP
WPW10196406 WPW10196406 BOWL-DRIP
4011F239-19 4011F239-19 BOX, BURNER
WP3801F656-51 WP3801F656-51 BRACKET
W10190166 W10190166 BRACKET, POWER SUPPLY
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI
WP7112P004-60 WP7112P004-60 CLIP- THER
4005F747-51 4005F747-51 COVER, ACCESS
74003241 74003241 COVER, MAIN BACK WIRE
4005F432-45 4005F432-45 COVER, VENT
W10876639 W10876639 DOOR HINGE
74008337 74008337 DRAWER, STORAGE
WP74010750 WP74010750 ELEMENT
WPW10310249 WPW10310249 ELMNT-BROL
74003368 74003368 END CAP, CONTROL PNL (LT-BLK)
74003367 74003367 END CAP, CONTROL PNL (RT-BLK)
WP74003430 WP74003430 END CAP, DOOR (BLK)
W11665456 W11665456 FOOT-LEVEL
7902P325-60 7902P325-60 GLASS, DOOR (OUTER-BLK)
74003429 74003429 HANDLE- DO
74003371 74003371 HINGE MAI
74004550 74004550 HOUSING, CONTROL PANEL
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
WP3413F018-19 WP3413F018-19 INSERT
4804F039-60 4804F039-60 INSULATION, OVEN BACK
WP74003112 WP74003112 INSULATION, WRAP
WP74003612 WP74003612 KNOB, SWITCH (BLK)
WP74004153 WP74004153 LIGHT- IND
74003240 74003240 LINING, DOOR
16010161 16010161 MANUAL, SRVC ELEC/GAS RANGE
74005902 74005902 MANUAL, USE & CARE
3605F174-51 3605F174-51 NLANPLATE, CONDUIT TUBING
WP7103P027-60 WP7103P027-60 NUT
WP488130 WP488130 NUT
WPW10131078 WPW10131078 NUT
WP3401F075-19 WP3401F075-19 PAN, BROIL
74003445 74003445 PANEL
74003237 74003237 PANEL
74003825 74003825 PANEL CON
4020F001-80 4020F001-80 PEDESTAL
74003393 74003393 PEDESTAL, SIDE
74003406 74003406 PLUG LOCK
WPW10282492 WPW10282492 RACK-OVEN
12001676 12001676 RECEPTACLE ASSEMBLY.
74003392 74003392 RETAINER, INSULATION (BOTTOM)
12001527 12001527 ROLLER, DRAWER
W10182835 W10182835 RUNNER, DRAWER (2)
7101P280-60 7101P280-60 SCREW
W11684512 W11684512 SCREW
W11233072 W11233072 SCREW
WP4159193 WP4159193 SCREW
W11693756 W11693756 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP98008545 WP98008545 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WP74004005 WP74004005 SCREW
74002432 74002432 SCREW 1 3
74008798 74008798 SCREW W/SHOULDER (NO.8)
WP7212P043-60 WP7212P043-60 SEAL- DOOR
74002334 74002334 SHIELD WI
74003374 74003374 SHIELD, SIGHT
W10857933 W10857933 SPACER
8010P085-60 8010P085-60 SPACER RU
8010P088-60 8010P088-60 SPACER, MAIN TOP (RT)
8010P087-60 8010P087-60 SPACER- MA
74003385 74003385 STRAP INS
74003386 74003386 SUPPORT B
74003366 74003366 SUPPORT C
3807F400-51 3807F400-51 SUPPORT O
74003365 74003365 SUPPORT, CONTROL PANEL (RT)
74001170 74001170 SUPPORT, TOP
WPY04000036 WPY04000036 SURFACE ELEMENT
WPY04000035 WPY04000035 SURFACE ELEMENT
WP9761346 WP9761346 SURFACE ELEMENT
WPW10345407 WPW10345407 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH

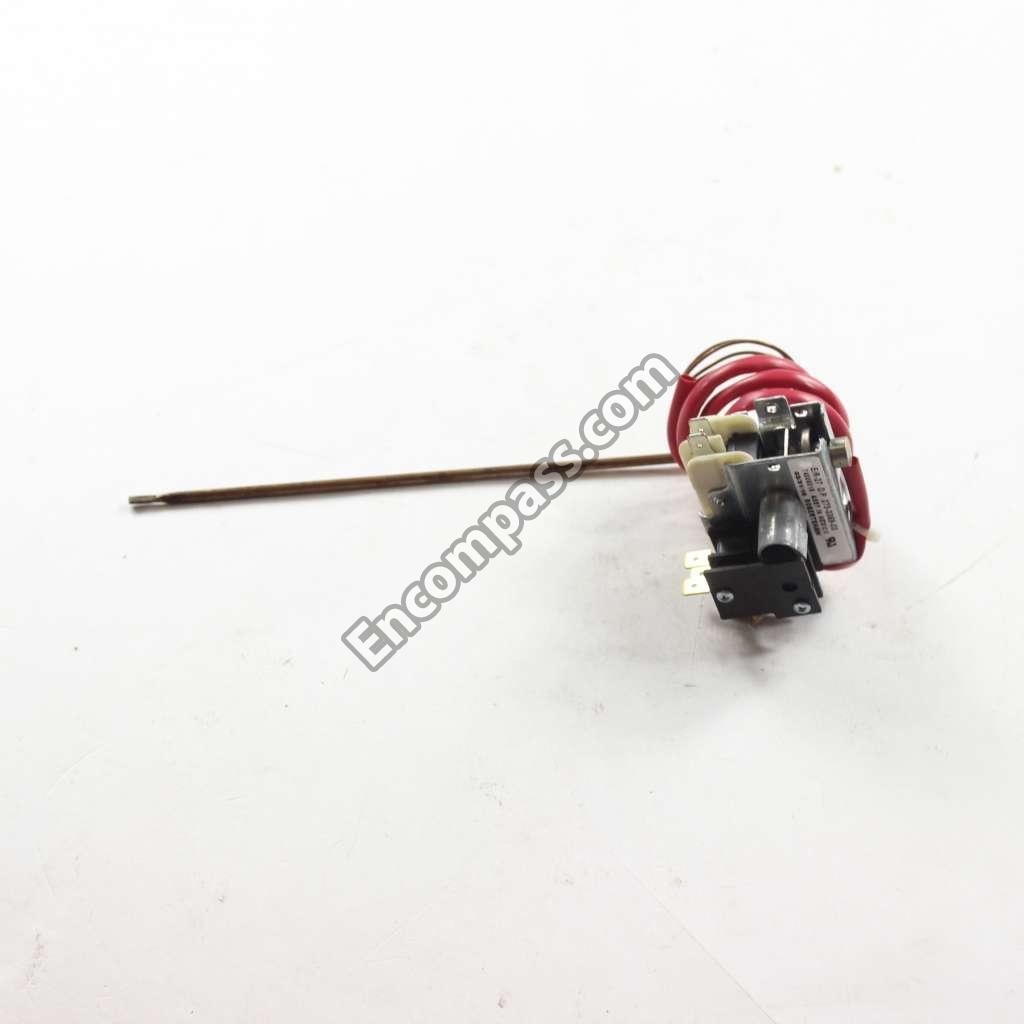

WP74005019 WP74005019 THERMOSTAT
74003450 74003450 TOP, MAIN (ALM)
74003444 74003444 TOP, MAIN (ALM)
74003432 74003432 TRIM, BOTTOM (BLK)
8026P019-60 8026P019-60 TUBE VENT
12001323 12001323 WIRE TERMI
15002208 15002208 WIRING INFORMATION
