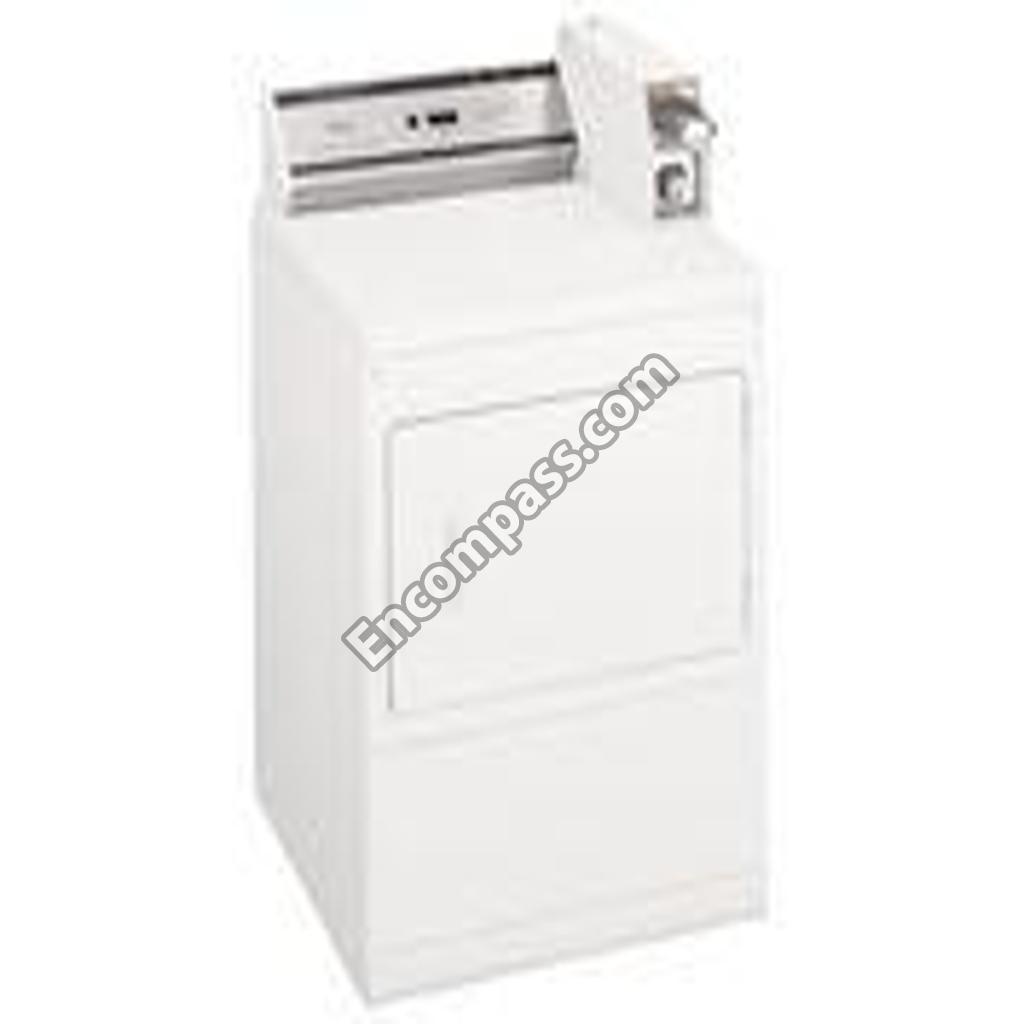

Model Image
Manufacturer

WHI

Model Number

CEM2760KQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part 279731
Whirlpool
279731
4``-90 ELBOW
Checking…
View Product
Part WP691581
Whirlpool
WP691581
ACTUATOR, SWITCH
Checking…
View Product
Part W10545923
Whirlpool
W10545923
ASSEMBLY, DRUM
Checking…
View Product
Part WPW10113136
Whirlpool
WPW10113136
BAFFLE-DRM
Checking…
View Product
Part WP3387242
Whirlpool
WP3387242
BEARING & SEAL
Checking…
View Product
Part 661570
Whirlpool
661570
BELT
Checking…
View Product
Part WP3397659
Whirlpool
WP3397659
BLOCK-TERM
Checking…
View Product
Part WP8576635
Whirlpool
WP8576635
BOLT
Checking…
View Product
Part WP3391943
Whirlpool
WP3391943
BOOT-FOOT
Checking…
View Product
Part W11190039
Whirlpool
W11190039
BOX
Checking…
View Product
Part W10802681
Whirlpool
W10802681
BOX
Checking…
View Product
Part 8066099
Whirlpool
8066099
BRACKET
Checking…
View Product
Part 3361029
Whirlpool
3361029
BRACKET
Checking…
View Product
Part 3353948
Whirlpool
3353948
BRACKET
Checking…
View Product
Part 3393471
Whirlpool
3393471
BRACKET, HEATER
Checking…
View Product
Part W10837240
Whirlpool
W10837240
BRACKET, IDLER
Checking…
View Product
Part WP3387118
Whirlpool
WP3387118
BRACKET, MOTOR
Checking…
View Product
Part W11299300
Whirlpool
W11299300
BULKHEAD
Checking…
View Product
Part WP697557
Whirlpool
WP697557
BULKHEAD
Checking…
View Product
Part W11417441
Whirlpool
W11417441
CABINET
Checking…
View Product
Part WP339854
Whirlpool
WP339854
CAM
Checking…
View Product
Part WP343777
Whirlpool
WP343777
CAM
Checking…
View Product
Part WP339853
Whirlpool
WP339853
CAM
Checking…
View Product
Part WP339855
Whirlpool
WP339855
CAM
Checking…
View Product
Part WP3387974
Whirlpool
WP3387974
CAM (3 PIN (60 MIN.))
Checking…
View Product
Part WP3348109
Whirlpool
WP3348109
CAMERA LENS-LIGHT
Checking…
View Product
Part WPW10096320
Whirlpool
WPW10096320
CAP, END (L.H.)
Checking…
View Product
Part W10096340
Whirlpool
W10096340
CAP, END (R.H.)
Checking…
View Product
Part WPW10461200
Whirlpool
WPW10461200
CASE, METER
Checking…
View Product
Part 279570
Whirlpool
279570
CATCH, DOOR
Checking…
View Product
Part WP660658
Whirlpool
WP660658
CLAMP
Checking…
View Product
Part WP297092
Whirlpool
WP297092
CLIP
Checking…
View Product
Part 3391846
Whirlpool
3391846
CLIP
Checking…
View Product
Part WP3394427
Whirlpool
WP3394427
CLIP
Checking…
View Product
Part WP3390902
Whirlpool
WP3390902
CLIP
Checking…
View Product
Part W10113937
Whirlpool
W10113937
CLIP, GROUNDING
Checking…
View Product
Part 3388600
Whirlpool
3388600
CLIP, LINT DUCT
Checking…
View Product
Part WP3388229
Whirlpool
WP3388229
CLIP, TOE PANEL LOCK
Checking…
View Product
Part WP3406965
Whirlpool
WP3406965
COIN CHUTE
Checking…
View Product
Part 356674
Whirlpool
356674
CONE, WEDGE
Checking…
View Product
Part WP717253
Whirlpool
WP717253
CONNECTOR
Checking…
View Product
Part 3395683
Whirlpool
3395683
CONNECTOR, (MOTOR)
Checking…
View Product
Part WPW10354249
Whirlpool
WPW10354249
COVER
Checking…
View Product
Part 279780
Whirlpool
279780
COVER
Checking…
View Product
Part WPW10119283
Whirlpool
WPW10119283
COVER-TERM
Checking…
View Product
Part WP3954812
Whirlpool
WP3954812
CUSHION
Checking…
View Product
Part W11663440
Whirlpool
W11663440
DOOR
Checking…
View Product
Part W11222846
Whirlpool
W11222846
DOOR, LINT SCREEN
Checking…
View Product
Part W11283272
Whirlpool
W11283272
DOOR, SERVICE (WHITE)
Checking…
View Product
Part 280083
Whirlpool
280083
DOOR-REAR
Checking…
View Product
Part 72017
Whirlpool
72017
DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
Checking…
View Product
Part W10841144
Whirlpool
W10841144
DRIVE MOTOR
Checking…
View Product
Part WP3387911
Whirlpool
WP3387911
DUCT-AIR
Checking…
View Product
Part W10470674
Whirlpool
W10470674
EXHAUST KIT
Checking…
View Product
Part 3390424
Whirlpool
3390424
EXTENSION
Checking…
View Product
Part 49621
Whirlpool
49621
FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
Checking…
View Product
Part 279950
Whirlpool
279950
FUNNEL
Checking…
View Product
Part WP385421
Whirlpool
WP385421
FUNNEL, COIN (COIN MECHANISM PARTS MAY BE ORDERED FROM WHIRLPOOL OR THE VENDOR(S) LISTED BELOW)
Checking…
View Product
Part W11086603
Whirlpool
W11086603
GRILLE, OUTLET
Checking…
View Product
Part 3389522
Whirlpool
3389522
HANDLE
Checking…
View Product
Part 8283165
Whirlpool
8283165
HARNS-WIRE
Checking…
View Product
Part 3401682
Whirlpool
3401682
HARNS-WIRE
Checking…
View Product
Part W10864898
Whirlpool
W10864898
HEATER ELEMENT
Checking…
View Product
Part W11175815
Whirlpool
W11175815
HINGE & PIN ASSEMBLY (2)
Checking…
View Product
Part WP8544363
Whirlpool
WP8544363
HOUSING
Checking…
View Product
Part W11129408
Whirlpool
W11129408
HOUSNG-OUT
Checking…
View Product
Part W11312584
Whirlpool
W11312584
INSERT
Checking…
View Product
Part 4396667
Whirlpool
4396667
INSERT
Checking…
View Product
Part LIT8527795
Whirlpool
LIT8527795
INSTALLATION INSTRUCTIO
Checking…
View Product
Part 8316532
Whirlpool
8316532
INSTALLATION INSTRUCTIONS COIN KIT
Checking…
View Product
Part 100000
Whirlpool
100000
KEY (MONEY BOX) (WHEN ORDERING, SPECIFY VENDOR AND KEY NUMBER)
Checking…
View Product
Part 4396670
Whirlpool
4396670
KIT, DECAL
Checking…
View Product
Part 279973
Whirlpool
279973
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
Checking…
View Product
Part LIT8315969
Whirlpool
LIT8315969
LABEL, WIRING DIAGRAM
Checking…
View Product
Part WP8066120
Whirlpool
WP8066120
LEVER
Checking…
View Product
Part 8316640
Whirlpool
8316640
LIGHT
Checking…
View Product
Part 8530036
Whirlpool
8530036
LINT DUCT ASSEMBLY
Checking…
View Product
Part W11315637
Whirlpool
W11315637
LOCK-CAM
Checking…
View Product
Part WP689559
Whirlpool
WP689559
NUT
Checking…
View Product
Part WP3389249
Whirlpool
WP3389249
NUT
Checking…
View Product
Part WP3359452
Whirlpool
WP3359452
NUT, 3/8 X 16 (R.H.)
Checking…
View Product
Part WP3387709
Whirlpool
WP3387709
NUT, 3/8-16 (L.H.)
Checking…
View Product
Part WP357213
Whirlpool
WP357213
NUT, PUSH-IN (4)
Checking…
View Product
Part WP90406
Whirlpool
WP90406
NUT-CAGE
Checking…
View Product
Part 799344
Whirlpool
799344
PAINT
Checking…
View Product
Part 279722
Whirlpool
279722
PANEL
Checking…
View Product
Part 8316634
Whirlpool
8316634
PANEL-CNTL
Checking…
View Product
Part W11089934
Whirlpool
W11089934
PANEL-REAR
Checking…
View Product
Part 279936
Whirlpool
279936
PIPE-EXHST
Checking…
View Product
Part 3353813
Whirlpool
3353813
PLATE-MOUNTING (2)
Checking…
View Product
Part 8066086
Whirlpool
8066086
PLUG
Checking…
View Product
Part WP387371
Whirlpool
WP387371
PLUG, HOLE
Checking…
View Product
Part 353424
Whirlpool
353424
PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
Checking…
View Product
Part 351297
Whirlpool
351297
POD-INSLTN
Checking…
View Product
Part 350938
Whirlpool
350938
PRIMER, GRAY
Checking…
View Product
Part 279640
Whirlpool
279640
PULLEY-IDR
Checking…
View Product
Part WP8066184
Whirlpool
WP8066184
PULLEY-MTR
Checking…
View Product
Part 717252
Whirlpool
717252
RECEPTACLE, 2 WAY
Checking…
View Product
Part 4392067
Whirlpool
4392067
REPAIR-DYR
Checking…
View Product
Part 63554
Whirlpool
63554
RIVET (2)
Checking…
View Product
Part WP3393657
Whirlpool
WP3393657
RSTRNR-BLT
Checking…
View Product
Part W10120998
Whirlpool
W10120998
SCREEN
Checking…
View Product
Part WP3387230
Whirlpool
WP3387230
SCREW
Checking…
View Product
Part 3400086
Whirlpool
3400086
SCREW
Checking…
View Product
Part 339805
Whirlpool
339805
SCREW
Checking…
View Product
Part W11715721
Whirlpool
W11715721
SCREW
Checking…
View Product
Part WPW10109200
Whirlpool
WPW10109200
SCREW
Checking…
View Product
Part W10841059
Whirlpool
W10841059
SCREW
Checking…
View Product
Part WPW10139210
Whirlpool
WPW10139210
SCREW
Checking…
View Product
Part WP489128
Whirlpool
WP489128
SCREW
Checking…
View Product
Part WP8281182
Whirlpool
WP8281182
SCREW
Checking…
View Product
Part WP488729
Whirlpool
WP488729
SCREW
Checking…
View Product
Part WP308685
Whirlpool
WP308685
SCREW
Checking…
View Product
Part WP3373329
Whirlpool
WP3373329
SCREW
Checking…
View Product
Part WP3389420
Whirlpool
WP3389420
SCREW
Checking…
View Product
Part 681615
Whirlpool
681615
SCREW
Checking…
View Product
Part WP681414
Whirlpool
WP681414
SCREW
Checking…
View Product
Part WP98129
Whirlpool
WP98129
SCREW
Checking…
View Product
Part WP488627
Whirlpool
WP488627
SCREW
Checking…
View Product
Part WP694091
Whirlpool
WP694091
SCREW
Checking…
View Product
Part WP693995
Whirlpool
WP693995
SCREW
Checking…
View Product
Part WP90767
Whirlpool
WP90767
SCREW, 8 A X 3/8
Checking…
View Product
Part 280114
Whirlpool
280114
SEAL
Checking…
View Product
Part WP697770
Whirlpool
WP697770
SEAL
Checking…
View Product
Part WP8566209
Whirlpool
WP8566209
SEAL
Checking…
View Product
Part WP3390735
Whirlpool
WP3390735
SEAL, DOOR
Checking…
View Product
Part WP697813
Whirlpool
WP697813
SEAL, OUTLET HOUSING
Checking…
View Product
Part LIT8528102
Whirlpool
LIT8528102
SERVICE PARTS LIST
Checking…
View Product
Part WPW10359271
Whirlpool
WPW10359271
SHAFT
Checking…
View Product
Part WPW10359272
Whirlpool
WPW10359272
SHAFT
Checking…
View Product
Part 697699
Whirlpool
697699
SHIELD, HEAT
Checking…
View Product
Part W11244229
Whirlpool
W11244229
SLIDE-COIN
Checking…
View Product
Part 350930
Whirlpool
350930
SPRAY (13 OZ.) (WHITE)
Checking…
View Product
Part WP3394986
Whirlpool
WP3394986
SPRING
Checking…
View Product
Part WPW10446781
Whirlpool
WPW10446781
SPRING, IDLER
Checking…
View Product
Part WP8568314
Whirlpool
WP8568314
STRAP
Checking…
View Product
Part WPW10314173
Whirlpool
WPW10314173
SUPPORT
Checking…
View Product
Part WPW10330137
Whirlpool
WPW10330137
SWITCH, PUSHBUTTON (2)
Checking…
View Product
Part W10820036
Whirlpool
W10820036
SWITCH-LID
Checking…
View Product
Part 279782
Whirlpool
279782
SWITCH-PLG
Checking…
View Product
Part 279393
Whirlpool
279393
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
Checking…
View Product
Part 279318
Whirlpool
279318
TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
Checking…
View Product
Part W11224254
Whirlpool
W11224254
TEST KIT
Checking…
View Product
Part WP3390719
Whirlpool
WP3390719
THERMAL FUSE
Checking…
View Product
Part WP3391914
Whirlpool
WP3391914
THERMOSTAT 295~ (146~C)
Checking…
View Product
Part WP3387138
Whirlpool
WP3387138
THERMOSTAT, INTERNAL BIAS
Checking…
View Product
Part WP3391018
Whirlpool
WP3391018
TIE-WIRE
Checking…
View Product
Part 279737
Whirlpool
279737
TIMER
Checking…
View Product
Part WP3406797
Whirlpool
WP3406797
TOEPNL
Checking…
View Product
Part WP3954665
Whirlpool
WP3954665
TOP
Checking…
View Product
Part 358290
Whirlpool
358290
TOP LOCK
Checking…
View Product
Part WPW10512946
Whirlpool
WPW10512946
TRI-RING (4)
Checking…
View Product
Part WPW10121334
Whirlpool
WPW10121334
WASHER
Checking…
View Product
Part W11089212
Whirlpool
W11089212
WASHER
Checking…
View Product
Part W11236646
Whirlpool
W11236646
WASHER, SUPPORT
Checking…
View Product
Part WP697772
Whirlpool
WP697772
WHEEL, BLOWER
Checking…
View Product
Part 3394081
Whirlpool
3394081
WIRE
Checking…
View Product
Part 3398948
Whirlpool
3398948
WIRE
Checking…
View Product
Part 3395559
Whirlpool
3395559
WIRE
Checking…
View Product
    Main Menu x
