Model Image
Manufacturer

Whirlpool

Model Number

CEW3330AAW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8008P017-60 8008P017-60 *NLA*F*GROMMET
74003036 74003036 *NLA*INSULATION OVEN WRAP

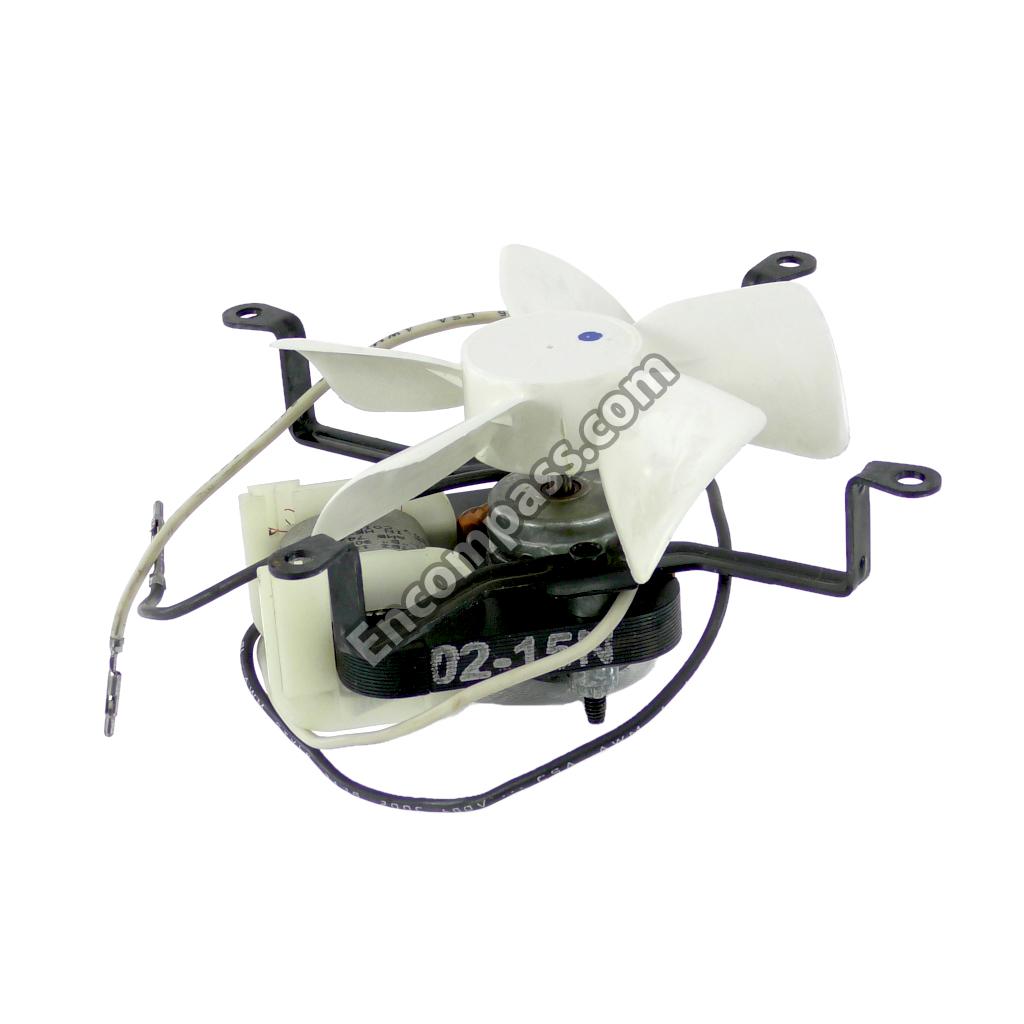

W10127321 W10127321 + FAN- AS
74001798 74001798 BACK, MAIN
3601F353-45 3601F353-45 BAFFLE, DOOR
74002230 74002230 BLOCK, DISCONNECT (MALE)
WPW10245259 WPW10245259 BLOCK-TERM
7116P003-60 7116P003-60 BOLT
74001742 74001742 BOTTOM, MAIN
71003305 71003305 BRACKET, CLOCK MOUNTING
WP7112P094-60 WP7112P094-60 CLIP, GLASS (WHT)
WP5701M667-60 WP5701M667-60 CLOCK (WHT)
7417P005-60 7417P005-60 CONNECTOR
4005F262-51 4005F262-51 COVER FAN
74003389 74003389 COVER, BULB
4005F431-51 4005F431-51 COVER, FAN HOUSING
4005F434-51 4005F434-51 COVER, REAR
8002P087-60 8002P087-60 DOOR LATCH, DOOR

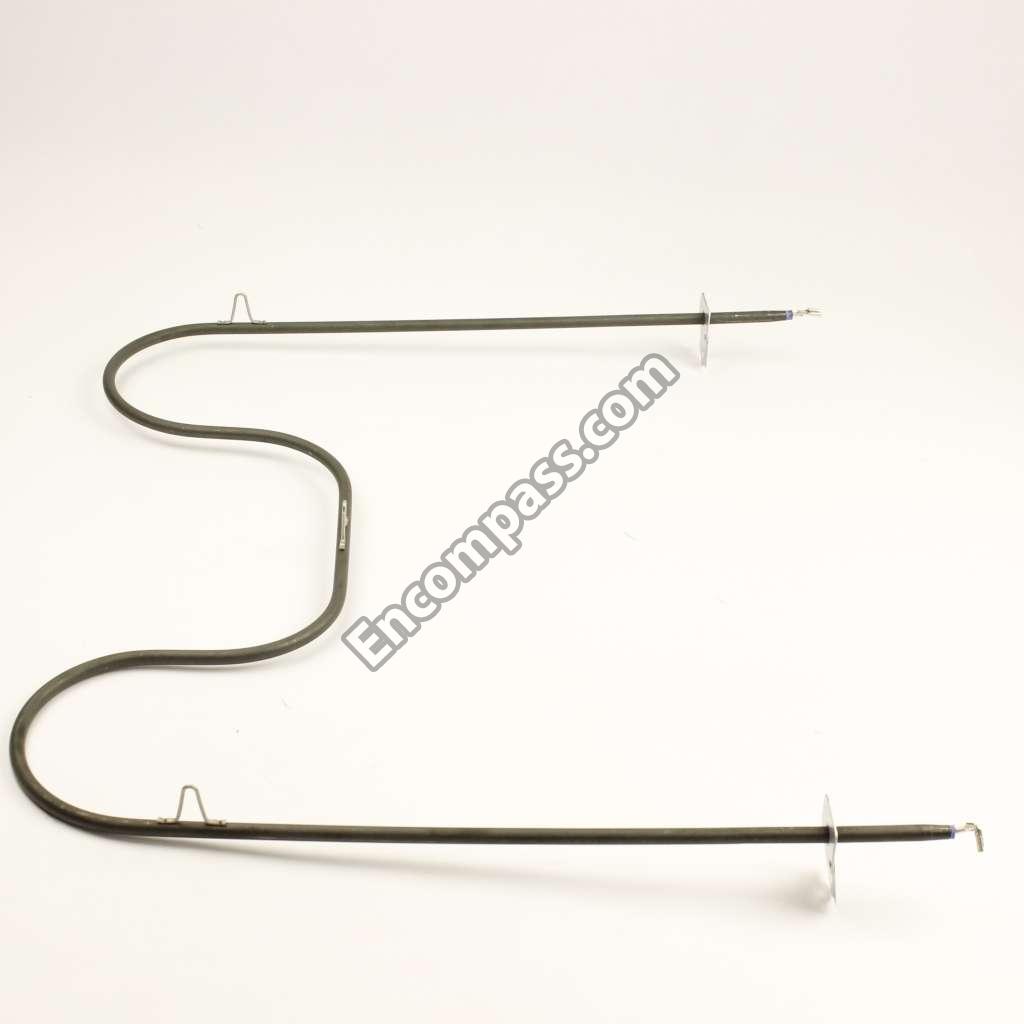

74004040 74004040 ELEMENT, BROIL (4 PASS)
WP74004039 WP74004039 ELMNT-BAKE
WPW10162384 WPW10162384 GASKT-DOOR
74003320 74003320 GLASS, INNER
74004104 74004104 GLASS, OVEN DOOR (WHT)
16000329 16000329 GUIDE, QUICK REF. - MAGIC CHEF
74003991 74003991 HANDLE, OVEN DOOR (WHT)
71003312 71003312 HARNESS M
WP74011141 WP74011141 HINGE- OVE
74003388 74003388 HOUSING, BULB
4001F092-51 4001F092-51 HOUSING, FAN
WP3413F018-19 WP3413F018-19 INSERT
74001084 74001084 INSULATION
74001842 74001842 INSULATION
WP74010942 WP74010942 INSULATION
71003304 71003304 INSULATION, FIBERBOARD
74002240 74002240 INSULATOR
74001804 74001804 INSULATOR
8009P055-60 8009P055-60 LEVER, DOOR LATCH
8009 8009 LIGHT BULB
WP2402W271-19 WP2402W271-19 LINER-DOOR
71003314 71003314 MANUAL, USE & CARE
3605F174-51 3605F174-51 NLANPLATE, CONDUIT TUBING
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
71003311 71003311 OVERLAY, CLOCK (WHT)
WP3401F075-19 WP3401F075-19 PAN, BROIL
71003302 71003302 PANEL, CONTROL (WHT)
71002809 71002809 PANEL, DOOR WHT NLA
2618F082-51 2618F082-51 PANEL, SIDE
3830F008-51 3830F008-51 RACEWAY, WIRE
WPW10282492 WPW10282492 RACK-OVEN
74003391 74003391 RETAINER
74004094 74004094 RETAINER
74001436 74001436 RETAINER
74006342 74006342 RETAINER, DOOR LATCH INSULATION
74001844 74001844 RETAINER, GLASS
74003633 74003633 SCREEN, SMOKE ELIMINATOR
W11233072 W11233072 SCREW
W10856125 W10856125 SCREW
WP4159193 WP4159193 SCREW
WP98008544 WP98008544 SCREW
WP4381696 WP4381696 SCREW
74001388 74001388 SCREW WHT
7101P330-60 7101P330-60 SCREW, SWITCH
74003035 74003035 SHIELD, HEAT
74004095 74004095 SHIELD, VENT (LWR-WHT)
WP74003387 WP74003387 SOCKT-LITE
74001393 74001393 SPACER MT
8010P085-60 8010P085-60 SPACER RU
74003986 74003986 SPACER, DOOR GLASS (BLK)
74003386 74003386 SUPPORT B
3807F400-51 3807F400-51 SUPPORT O
74003383 74003383 SWITCH DO
74004098 74004098 SWITCH, FAN
7403P313-60 7403P313-60 SWITCH, HI-LIMIT
7403P200-60 7403P200-60 SWITCH, ROCKER (WHT)
WP7403P316-60 WP7403P316-60 SWITCH- HI
8270P090-60 8270P090-60 TAPE, FOIL (3`` WIDE)
74004759 74004759 TRIM, SIDE (LT-WHT)
71003306 71003306 TRIM, SIDE (LT-WHT)
74004758 74004758 TRIM, SIDE (RT-WHT)
71003307 71003307 TRIM, SIDE (RT-WHT)
71003300 71003300 TRIM, TOP (WHT)
71003298 71003298 TRIM, VENT (CHR)
74004097 74004097 TUBE VENT
74003953 74003953 TUBING CO
7109P002-60 7109P002-60 WASHER
15002472 15002472 WIRING INFORMATION
