Model Image
Manufacturer

Whirlpool

Model Number

CG1751XWW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
279898 279898 AIR DUCT ASSEMBLY (NOTE: ALSO ORDER ILLUS NO.35)
350956 350956 ALMOND
WP72107 WP72107 ALMOND
WPW10113136 WPW10113136 BAFFLE-DRM
WP3387242 WP3387242 BEARING & SEAL
661570 661570 BELT, DRIVE
3389871 3389871 BRACKET
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
3393423 3393423 BRACKET, ANGLE
694538 694538 BRACKET, COIL
W10837240 W10837240 BRACKET, IDLER
WP3387118 WP3387118 BRACKET, MOTOR
W11299300 W11299300 BULKHEAD
WP697557 WP697557 BULKHEAD
693152 693152 BUMPER
WP693140 WP693140 BURNER
285904 285904 BURNER-GAS
280052 280052 CABINET
280051 280051 CABINET
3389969 3389969 CABLE
279570 279570 CATCH, DOOR
3387561 3387561 CLAMP
WP660658 WP660658 CLAMP
WP297092 WP297092 CLIP
3391846 3391846 CLIP
WP3390902 WP3390902 CLIP
694510 694510 CLIP, HARNESS
3388600 3388600 CLIP, LINT DUCT
3347000 3347000 CLIP, MULTIVENT
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
279834 279834 COIL, 60 HZ. (2 TERMINAL) MAIN)
94612 94612 CONNECTOR
WP717253 WP717253 CONNECTOR
695237 695237 CONVERSION KIT (TYPE 1, 2 & 3) TO TYPE (4) L.P.G.
3393304 3393304 COVER
WPW10354249 WPW10354249 COVER
279780 279780 COVER
WP3389515 WP3389515 COVER, LINT SCREEN
3387873 3387873 DOOR
W11663440 W11663440 DOOR
3393681 3393681 DOOR, REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10545924 W10545924 DRUM
W10470674 W10470674 DRYER EXHAUST KIT NOT INCLUDED, KIT, 4-WAY VENTING
3395997 3395997 EXTENSION, EXHAUST PIPE
49621 49621 FOOT, PLASTIC
WP3390719 WP3390719 FUSE-THRML
279923 279923 GAS VALVE
261890 261890 GOLDEN WHEAT
W10852427 W10852427 GRILL
3389522 3389522 HANDLE
3389523 3389523 HANDLE
3393847 3393847 HARNESS, CONSOLE
3392659 3392659 HARNESS, WIRING
3389967 3389967 HARNS-WIRE
3393846 3393846 HARNS-WIRE
WP61894 WP61894 HEATER, THERMOSTAT (NOTE: USED WITH 660039 THERMOSTAT ONLY)
W11175815 W11175815 HINGE & PIN ASSEMBLY (2)
WP8544363 WP8544363 HOUSING
W11129408 W11129408 HOUSNG-OUT
279311 279311 IGNITOR
LIT3395316 LIT3395316 INSTRUCTIONS, INSTALLATION
LIT3396002 LIT3396002 LABEL, WIRING DIAGRAM
WP694424 WP694424 LEAK LIMITER
350941 350941 LEVELER (THINNER)
3390531 3390531 LINT DUCT ASSEMBLY
LIT3390140 LIT3390140 LIST, SERVICE PARTS
233076 233076 NUT
WP3389249 WP3389249 NUT
WP358160 WP358160 NUT
WP3387709 WP3387709 NUT, 3/8-16 (L.H.)
120614 120614 NUT, HEX
3397656 3397656 ORIFCE-GAS
15775 15775 ORIFICE, BURNER (TYPE 2)
978883 978883 PAINT
799344 799344 PAINT
285367 285367 PAINT
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
279723 279723 PANEL
279722 279722 PANEL
696237 696237 PIPE
3393767 3393767 PIPE, TAIL
WP8563747 WP8563747 PIPE-EXHST
285368 285368 PLATINUM (UNCUT)
W10295523 W10295523 PLUG
WPW10404617 WPW10404617 PLUG
335410 335410 PLUG, MULT- TERMINAL (USES TERMINALS 94613)
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
W11222083 W11222083 POWER CORD
350938 350938 PRIMER, GRAY
279640 279640 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
3393259 3393259 PUSH-NUT

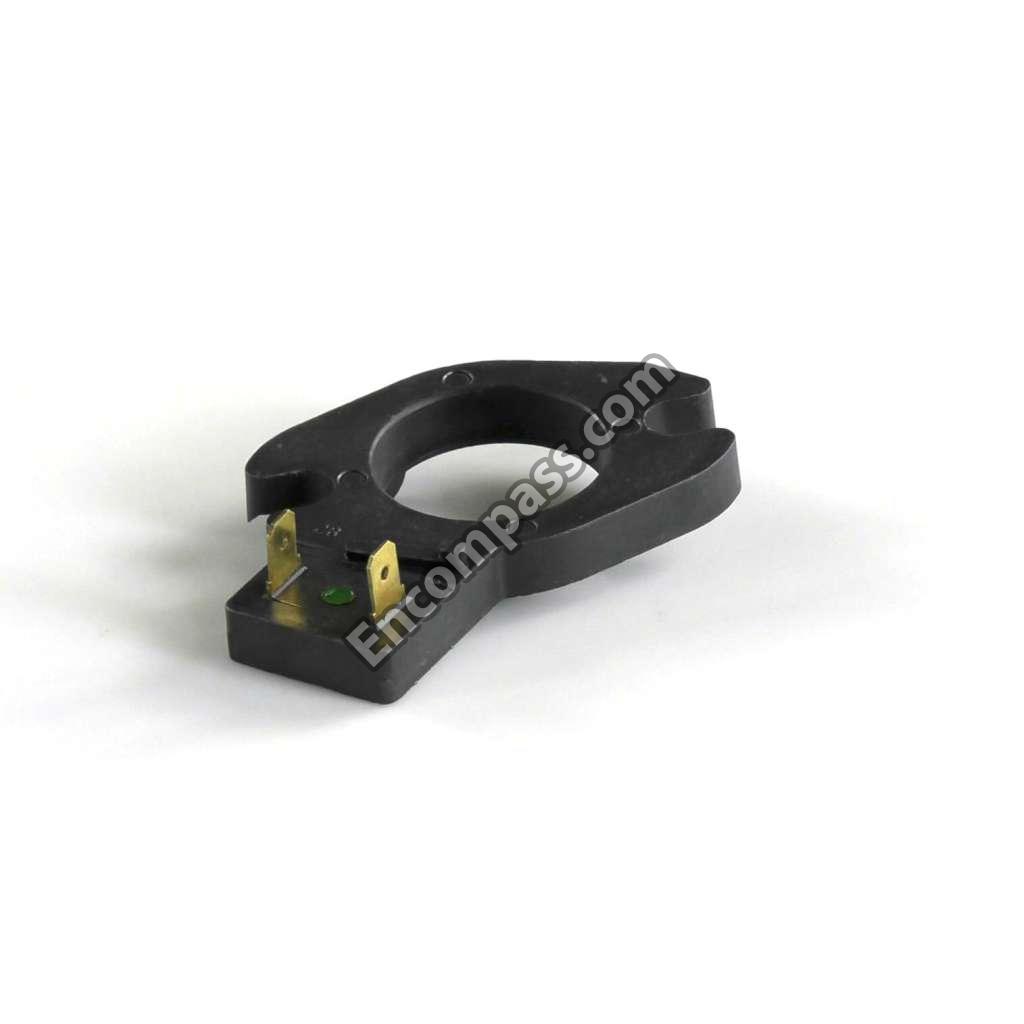

WP338906 WP338906 RADIANT, SENSOR
WP344395 WP344395 RANGE THERMOSTAT
WP694674 WP694674 RANGE THERMOSTAT
WP3391912 WP3391912 RANGE THERMOSTAT
717252 717252 RECEPTACLE (USES TERMINALS 94614 OR 94613)
691707 691707 RECEPTACLE, 3-WAY (USES TERMINAL 94614)
3393406 3393406 RELIEF, STRAIN BLOCK
WP3393657 WP3393657 RSTRNR-BLT
WP3389509 WP3389509 SCREEN
WP3387230 WP3387230 SCREW
WPW10366705 WPW10366705 SCREW
WP693995 WP693995 SCREW
WP308685 WP308685 SCREW
WPW10139210 WPW10139210 SCREW
WP3373329 WP3373329 SCREW
WP3389420 WP3389420 SCREW
681615 681615 SCREW
WP3395530 WP3395530 SCREW
WP488627 WP488627 SCREW
WP694091 WP694091 SCREW
W10850756 W10850756 SCREW
WP488729 WP488729 SCREW
WP179051 WP179051 SCREW
WP681414 WP681414 SCREW
486146 486146 SCREW, 10-24 X 1/2
690372 690372 SCREW, 11-16 X 7/8
694421 694421 SCREW, BRACKET MOUNTING (8-32 X 1/2) (2)
WP694423 WP694423 SCREW, REGULATOR ADJUSTMENT
280114 280114 SEAL
WP697770 WP697770 SEAL
WP8566209 WP8566209 SEAL
WP697813 WP697813 SEAL, OUTLET HOUSING
3393475 3393475 SEAL, THERMOSTAT
WP3390735 WP3390735 SEAL-DOOR
WPW10359271 WPW10359271 SHAFT
WPW10359272 WPW10359272 SHAFT
285365 285365 SPRAY
350930 350930 SPRAY (13 OZ.) (WHITE)
WPW10446781 WPW10446781 SPRING, IDLER
WP694422 WP694422 SPRING, REGULATOR ADJUSTMENT
349241T 349241T SUPPORT
279827 279827 SWITCH, MOTOR START (USE W/3391886 MOTOR)
WP3391902 WP3391902 SWITCH-LID
WP3387138 WP3387138 THERMOSTAT, INTERNAL BIAS
WP3406797 WP3406797 TOEPNL
3406798 3406798 TOEPNL AL
3394421 3394421 TOP
3394420 3394420 TOP (WHITE)
WPW10512946 WPW10512946 TRI-RING (4)
697441 697441 VALVE, GAS
3391948 3391948 WASHER
WPW10121334 WPW10121334 WASHER
W11089212 W11089212 WASHER
W11236646 W11236646 WASHER, SUPPORT
WP697772 WP697772 WHEEL, BLOWER
WP3401850 WP3401850 WIRE HARNESS
3387377 3387377 WIRE, BELT SWITCH
690236 690236 WIRE, GROUND
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
261891 261891 XGOLDEN WHEAT (UNCUT)
