Model Image
Manufacturer

Whirlpool

Model Number

CG206BC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601F261-51 3601F261-51 BAFFL-CONV
3415F003-51 3415F003-51 BAND, MOTOR
Y712275 Y712275 BOX, BURNER
WP3801F403-80 WP3801F403-80 BRACKET
705106 705106 BURNER, REAR
Y704518 Y704518 BURNER, REAR
WP705105 WP705105 BURNER- FR
Y712601 Y712601 BURNR-GRIL
WP7505P283-60 WP7505P283-60 BURNR-TOP
712311 712311 BUSHING
715780 715780 CLAMP CAB
Y707335 Y707335 CLIP
3415F004-51 3415F004-51 CLIP
705463 705463 CLIP
701958 701958 CLIP TINN
Y704423 Y704423 CLIP, J
Y700503 Y700503 CLIP, RETAINER
704549 704549 CLIP, SPRING
Y705155 Y705155 CONDUIT M
Y705154 Y705154 CONNECTOR
71003288 71003288 CONNECTOR-
704548 704548 CORD, POWER
Y704538 Y704538 COVER BUR
702333 702333 COVER, ACCESS(R.H)
Y704968 Y704968 COVER, MOTOR
74004833 74004833 COVER- BUR
WP7772P007-60 WP7772P007-60 COVER-VENT
704503 704503 ESCUTCHEON
Y700556 Y700556 F*CLIP J
WP707929 WP707929 FILTER- GR
704504K 704504K GAS VALVE
715957K 715957K GASKET
12001178 12001178 GRATE, GRILL (2)
12200030 12200030 GRATE-BRNR
211881 211881 GROMMET, CORD
704556 704556 HARNESS, WIRE
04100255 04100255 HARNESS, WIRE
WP71002179 WP71002179 IGNTR-SURF
Y704534 Y704534 INSULATOR
WP71003558 WP71003558 ISOLATOR-
WPY707869 WPY707869 JAR- DRAIN
12200022 12200022 KIT GRILL PAN LH
12200047 12200047 KIT, BURNER TUBE
12200046 12200046 KIT, BURNER TUBE
12200044 12200044 KIT, BURNER TUBE
12200045 12200045 KIT, BURNER TUBE

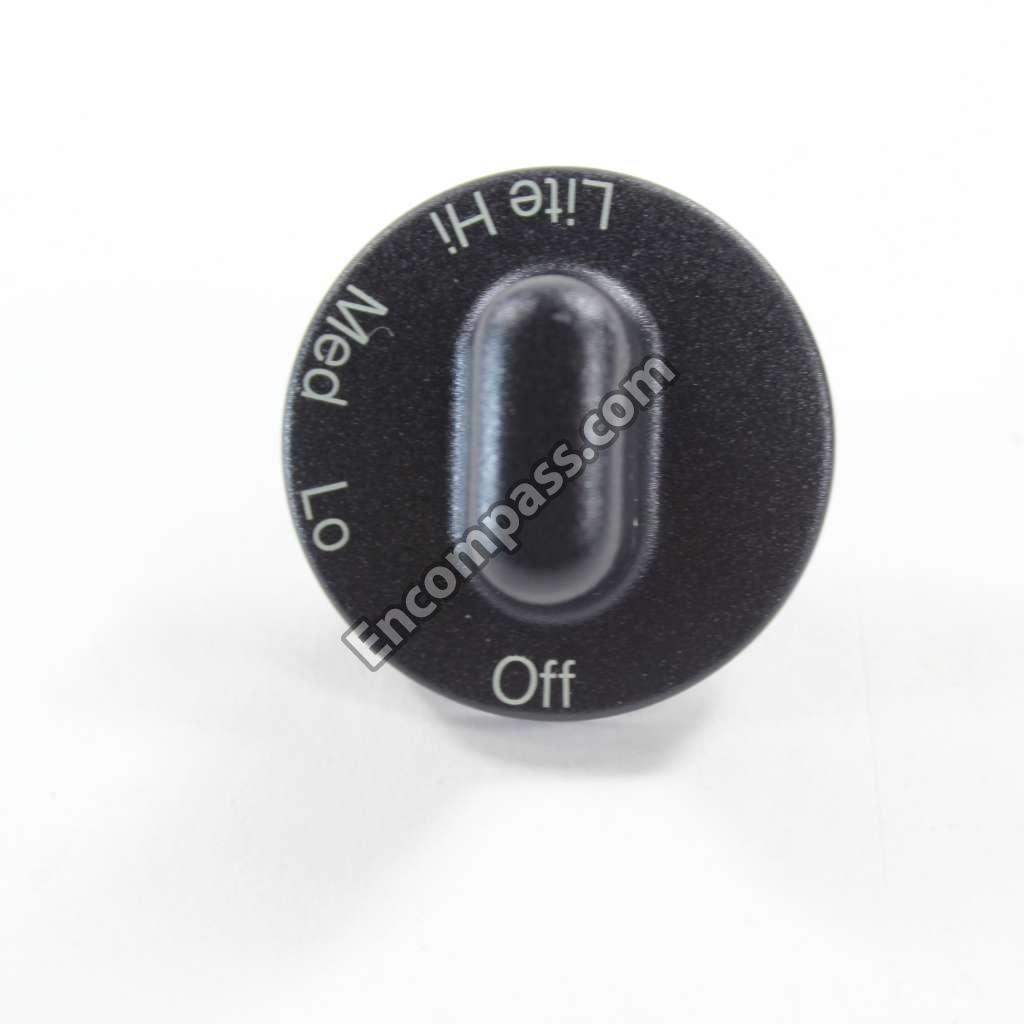

WP71001641 WP71001641 KNOB- VALV
WP5700M611-60 WP5700M611-60 LID-JAR
WPY707702 WPY707702 LOCKNUT
702889 702889 LOCKNUT CA
70288-9 70288-9 LOCKNUT CAP, W/NYLON INSERT
704568 704568 LOCKWASHER
74006155 74006155 MANIFOLD
1430322 1430322 MODULE, SPARK
Y712550 Y712550 MOTOR COVE
WPY705032 WPY705032 MOTOR, BLOWER
Y04100253 Y04100253 NLAMCORD- PO
12001129 12001129 NOZZLE
707161 707161 NUT
M0282005 M0282005 NUT
7103P166-60 7103P166-60 NUT
M0282009 M0282009 NUT
Y052721 Y052721 NUT
WPY703856 WPY703856 NUT
Y704588 Y704588 NUT, 3/4`` HEX
Y04100035 Y04100035 NUT, PUSH
Y704977 Y704977 NUT- 5 8
7103P159-60 7103P159-60 NUT-RETAIN
704528 704528 PAN, GRILL
704529 704529 PAN, GRILL (RT)
3401X055-09 3401X055-09 PAN-MODULE
704536 704536 PIN, LOCATOR
4005F648-80 4005F648-80 PLATE, COVER
712312 712312 PLENUM
W11106948 W11106948 REGULATOR-
7428P029-60 7428P029-60 RELAY
8038P003-60 8038P003-60 RETAINER
Y707688 Y707688 RETAINER, FILTER
4026F009-51 4026F009-51 RING
4026F008-51 4026F008-51 RING
WP210720 WP210720 RIVET
Y707121 Y707121 SCREW
707407 707407 SCREW
WP90767 WP90767 SCREW
702380 702380 SCREW
WP4381696 WP4381696 SCREW
910187 910187 SCREW
WP71001171 WP71001171 SCREW
W11233072 W11233072 SCREW
WP59002061 WP59002061 SCREW
WP12990527 WP12990527 SCREW
Y712320 Y712320 SCREW WA
7101P286-60 7101P286-60 SCREW, BURNER MTG
W10777874 W10777874 SCROLL, BLOWER ASSEMBLY.
Y704979 Y704979 SEAL- PAN
12001809 12001809 SPUD-ORFCE
7403P620-60 7403P620-60 SWITCH, MICRO
WPY704512 WPY704512 SWITCH- VA
WPY704513 WPY704513 SWTCH-IGNR
2001W134-09 2001W134-09 TOP, BLACK
704700 704700 TUBE (RF)
704699 704699 TUBE (RR)
Y705164 Y705164 TUBE RIGH
Y705163 Y705163 TUBE, FRONT
Y704702 Y704702 TUBE, FRONT (LF)
Y705162 Y705162 TUBE, REAR
704701 704701 TUBE, REAR
Y705165 Y705165 TUBE, RIGHT FRONT
Y704505 Y704505 VALVE (LT)
704894-- 704894-- VALVE (LT)
Y704893 Y704893 VALVE (RT)
WPY04100188 WPY04100188 VALVE-BRNR
Y704947 Y704947 WASHER
715617 715617 WASHER TE
WPY707985 WPY707985 WHEEL-FAN
715564 715564 WIRE, GREEN
704514 704514 WIRE, GREEN
