Model Image
Manufacturer

Whirlpool

Model Number

CGM2751KQ2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
C4889201 C4889201 *NLA*M*LINE- SU
279731 279731 4`` - 90 ELBOW OPTIONAL PARTS NOT INCLUDED DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING)
W10545923 W10545923 ASSEMBLY, DRUM
WPW10113136 WPW10113136 BAFFLE-DRM
WP3387242 WP3387242 BEARING & SEAL
661570 661570 BELT
WP8576635 WP8576635 BOLT
WP3391943 WP3391943 BOOT-FOOT
W11190039 W11190039 BOX
3361029 3361029 BRACKET
3353948 3353948 BRACKET
3389871 3389871 BRACKET
3389888 3389888 BRACKET
WP694298 WP694298 BRACKET
694538 694538 BRACKET, COIL
W10837240 W10837240 BRACKET, IDLER
WP3387118 WP3387118 BRACKET, MOTOR
W11299300 W11299300 BULKHEAD
WP697557 WP697557 BULKHEAD
WP693140 WP693140 BURNER
285904 285904 BURNER-GAS
W11417441 W11417441 CABINET
WP339853 WP339853 CAM
WP343777 WP343777 CAM
WP339854 WP339854 CAM
WP339855 WP339855 CAM
WP3387974 WP3387974 CAM (3 PIN (60 MIN.))
WP3348109 WP3348109 CAMERA LENS-LIGHT
WPW10096320 WPW10096320 CAP, END (L.H.)
W10096340 W10096340 CAP, END (R.H.)
WPW10461200 WPW10461200 CASE, METER
279570 279570 CATCH, DOOR
3387561 3387561 CLAMP
WP660658 WP660658 CLAMP
WP297092 WP297092 CLIP
3391846 3391846 CLIP
WP3394427 WP3394427 CLIP
WP3390902 WP3390902 CLIP
W10113937 W10113937 CLIP, GROUNDING
3388600 3388600 CLIP, LINT DUCT
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
279834 279834 COIL, 60 HZ. (2 TERMINAL) MAIN)
WP3406965 WP3406965 COIN CHUTE
356674 356674 CONE, WEDGE
WP3403498 WP3403498 CONNECTOR
3936144 3936144 CONNECTOR (3-CIRCUIT)
3395683 3395683 CONNECTOR, (MOTOR)
WP3403499 WP3403499 CONNECTOR, 2 POSITION
49572A 49572A CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
W10819767 W10819767 COVER
WPW10354249 WPW10354249 COVER
279780 279780 COVER
WP3954812 WP3954812 CUSHION
W11663440 W11663440 DOOR
W11222846 W11222846 DOOR, LINT SCREEN
W11283272 W11283272 DOOR, SERVICE (WHITE)
280083 280083 DOOR-REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10841144 W10841144 DRIVE MOTOR
W11168650 W11168650 DUCT-AIR
W10470674 W10470674 EXHAUST KIT
3390424 3390424 EXTENSION
49621 49621 FOOT - OPTIONAL (EXTENDED LENGTH PACKAGE OF 2 (NOT INCLUDED))
279950 279950 FUNNEL
WP8066047 WP8066047 FUNNEL
WP385421 WP385421 FUNNEL, COIN (COIN MECHANISM PARTS MAY BE ORDERED FROM WHIRLPOOL OR THE VENDOR(S) LISTED BELOW)
279923 279923 GAS VALVE
W11086603 W11086603 GRILLE, OUTLET
3389522 3389522 HANDLE
3401126 3401126 HARNS-WIRE
W11175815 W11175815 HINGE & PIN ASSEMBLY (2)
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
279311 279311 IGNITOR
W11312584 W11312584 INSERT
4396667 4396667 INSERT
LIT8527795 LIT8527795 INSTALLATION INSTRUCTIO
8316532 8316532 INSTALLATION INSTRUCTIONS COIN KIT
100000 100000 KEY (MONEY BOX) (WHEN ORDERING, SPECIFY VENDOR AND KEY NUMBER)
4396670 4396670 KIT, DECAL
WP694424 WP694424 LEAK LIMITER
WP8066120 WP8066120 LEVER, DOOR SWITCH
8316640 8316640 LIGHT
8530036 8530036 LINT DUCT ASSEMBLY
LIT8533542 LIT8533542 LITERATURE PARTS (REPAIR PARTS LIST)
W11315637 W11315637 LOCK-CAM
233076 233076 NUT
WP689559 WP689559 NUT
WP3389249 WP3389249 NUT
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP3387709 WP3387709 NUT, 3/8-16 (L.H.)
WP357213 WP357213 NUT, PUSH-IN (4)
WP90406 WP90406 NUT-CAGE
3397656 3397656 ORIFCE-GAS
15775 15775 ORIFICE, BURNER (TYPE 2)
279722 279722 PANEL
8316634 8316634 PANEL-CNTL
W11089934 W11089934 PANEL-REAR
3393767 3393767 PIPE
696237 696237 PIPE
279936 279936 PIPE-EXHST
3353813 3353813 PLATE-MOUNTING (2)
8066086 8066086 PLUG
W10295523 W10295523 PLUG
WP387371 WP387371 PLUG, HOLE
351297 351297 POD-INSLTN
W11628810 W11628810 POWER CORD
350938 350938 PRIMER, GRAY
279640 279640 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
WP338906 WP338906 RADIANT, SENSOR
WP3391912 WP3391912 RANGE THERMOSTAT
717252 717252 RECEPTACLE, 2 WAY
717315 717315 RECEPTACLE, 4-WAY
4392067 4392067 REPAIR-DYR
63554 63554 RIVET (2)
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
WP3387230 WP3387230 SCREW
3400086 3400086 SCREW
339805 339805 SCREW
W11715721 W11715721 SCREW
WP693995 WP693995 SCREW
WPW10366705 WPW10366705 SCREW
WPW10109200 WPW10109200 SCREW
WP489128 WP489128 SCREW
WPW10139210 WPW10139210 SCREW
WP681414 WP681414 SCREW
WP488729 WP488729 SCREW
WP8281182 WP8281182 SCREW
W10841059 W10841059 SCREW
WP3373329 WP3373329 SCREW
WP3395530 WP3395530 SCREW
WP3389420 WP3389420 SCREW
681615 681615 SCREW
WP98129 WP98129 SCREW
WP488627 WP488627 SCREW
WP694091 WP694091 SCREW
W10850756 W10850756 SCREW
WP308685 WP308685 SCREW
WP90767 WP90767 SCREW, 8 A X 3/8
694421 694421 SCREW, BRACKET MOUNTING (8-32 X 1/2) (2)
WP694423 WP694423 SCREW, REGULATOR ADJUSTMENT
280114 280114 SEAL
WP697770 WP697770 SEAL
WP8566209 WP8566209 SEAL
WP3390735 WP3390735 SEAL, DOOR
WP697813 WP697813 SEAL, OUTLET HOUSING
WPW10359271 WPW10359271 SHAFT
WPW10359272 WPW10359272 SHAFT
W11244229 W11244229 SLIDE-COIN
350930 350930 SPRAY (13 OZ.) (WHITE)
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING, IDLER
WP694422 WP694422 SPRING, REGULATOR ADJUSTMENT
WP8568314 WP8568314 STRAP
WPW10314173 WPW10314173 SUPPORT
WPW10330137 WPW10330137 SWITCH, PUSHBUTTON (2)
WPW10237959 WPW10237959 SWITCH-DOR
279782 279782 SWITCH-PLG
W11224254 W11224254 TEST KIT
WP3392519 WP3392519 THERMAL FUSE
B0592401 B0592401 THERMOSTAT
WP3387138 WP3387138 THERMOSTAT, INTERNAL BIAS
WP3391018 WP3391018 TIE-WIRE
279737 279737 TIMER
WP3406797 WP3406797 TOEPNL
WP3954665 WP3954665 TOP
358290 358290 TOP LOCK
WPW10512946 WPW10512946 TRI-RING (4)
697441 697441 VALVE, GAS
WPW10121334 WPW10121334 WASHER
W11089212 W11089212 WASHER
W11236646 W11236646 WASHER, SUPPORT
WP697772 WP697772 WHEEL, BLOWER
3398948 3398948 WIRE
3394081 3394081 WIRE
3395559 3395559 WIRE

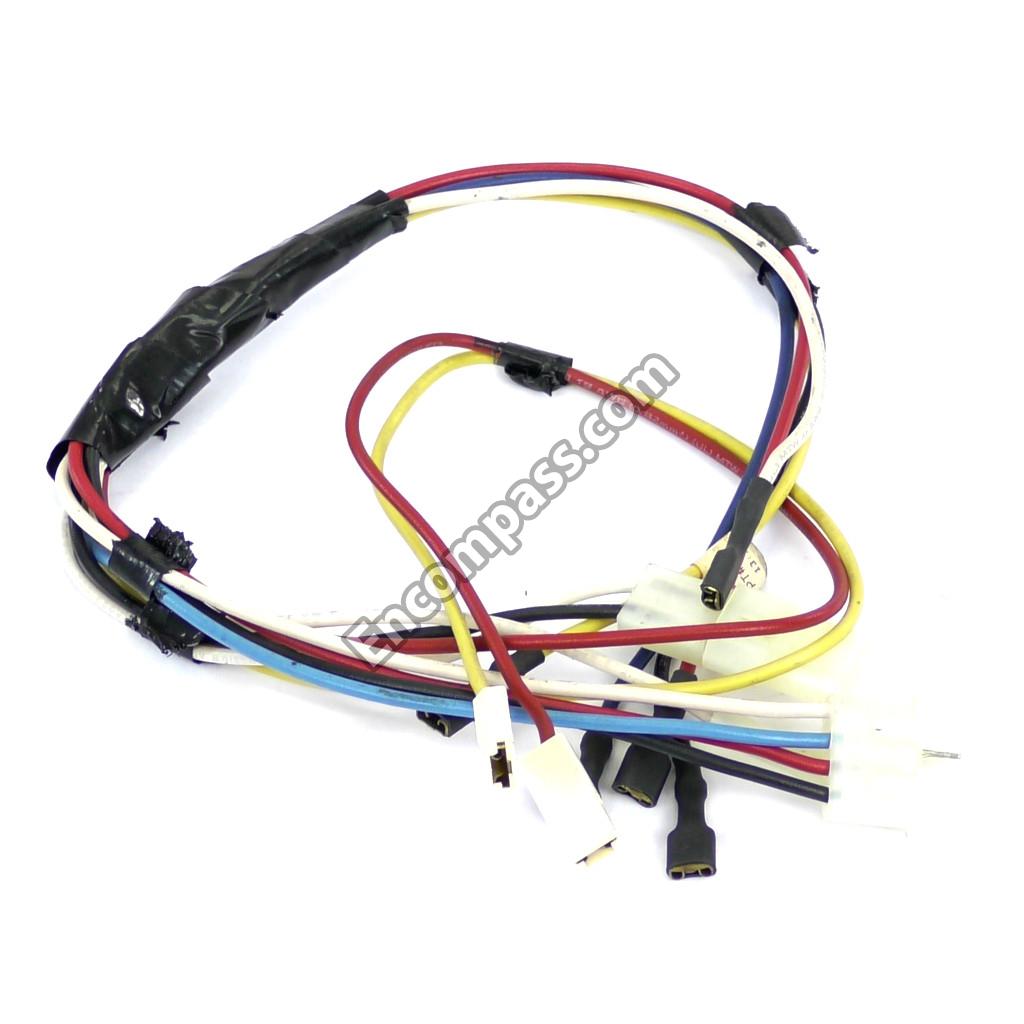

WP8529870 WP8529870 WIRE HARNESS
LIT8533569 LIT8533569 WIRING DIAGRAM
