Model Image
Manufacturer

Whirlpool

Model Number

CGT9000GQ0

Description

Laundry Center/combo

Interactive Exploded View

Parts List

Part Number Description
WP596669 WP596669 APPLIANCE HOSE CLAMP
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
WP488729 WP488729 APPLIANCE SCREW
WP681414 WP681414 APPLIANCE SCREW, 10-16 X 1/2-IN
350938 350938 APPLIANCE SPRAY PAINT (GRAY PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
WP3387118 WP3387118 BASE
W11215531 W11215531 BASE
W11116960 W11116960 BASE, CABINET PD
WPW10198367 WPW10198367 BEZEL
W10198366 W10198366 BEZEL
W10299495 W10299495 BRACE
W10189659 W10189659 BRACE
W10198280 W10198280 BRACKET
8540643 8540643 BRACKET
3389871 3389871 BRACKET
W10181903 W10181903 BRACKET
W10198376 W10198376 BRACKET
W10465334 W10465334 BRACKET
WP8563727 WP8563727 BRACKET
W10198224 W10198224 BRACKET
WP8565237 WP8565237 BRACKET
W10198461 W10198461 BRACKET
WPW10198323 WPW10198323 BRACKET
W10198322 W10198322 BRACKET
W10159907 W10159907 BRACKET
W10160652 W10160652 BRACKET
W10846488 W10846488 BRACKET ASSEMBLY
3389888 3389888 BRACKET SUPPORT
W11200173 W11200173 BRKT - CNSL
W10198343 W10198343 BRKT-SUPPORT
WPW10080170 WPW10080170 BULKHEAD
8565061 8565061 BULKHEAD
WPW10135231 WPW10135231 BURNER
W10198145 W10198145 CABINET ASSEMBLY
W11085097 W11085097 CABLE SET, DOOR LOCK POWER (2 POLE)
W11085110 W11085110 CABLE SET, UI TO CCU COMMUNICATION
W11165684 W11165684 CAM
W10391446 W10391446 CAP
W10018050 W10018050 CAP
W11085100 W11085100 CCU TO MCU - POWER (2 POLE)
8540010 8540010 CLAMP
8281276 8281276 CLAMP
3387561 3387561 CLAMP
W10190263 W10190263 CLIP
WPW10344699 WPW10344699 COLLAR
W10198345 W10198345 COLLAR
WPW10141728 WPW10141728 COMMERCIAL DRYER GAS VALVE ASSEMBLY
W11204019 W11204019 COMMERCIAL LAUNDRY APPLIANCE COIN BOX
W11416034 W11416034 COMMERCIAL LAUNDRY APPLIANCE COIN BOX SECURITY KIT
WPW10131838 WPW10131838 COMMERCIAL LAUNDRY APPLIANCE COIN BOX SERVICE D...
WPW10133242 WPW10133242 COMMERCIAL LAUNDRY APPLIANCE COIN SLIDE ASSEMBLY
W10827410 W10827410 COMMERCIAL LAUNDRY APPLIANCE ELECTRONIC CONTROL...
W11204020 W11204020 COMMERCIAL LAUNDRY APPLIANCE METER CASE
WPW10114740 WPW10114740 COMMERCIAL LAUNDRY APPLIANCE METER CASE ACCESS KEY
WPW10140858 WPW10140858 COMMERCIAL LAUNDRY APPLIANCE METER CASE ACCESS KEY
WPW10247389 WPW10247389 COMMERCIAL LAUNDRY APPLIANCE OPTIC SWITCH ASSEMBLY
W10103350A W10103350A COMMERCIAL WASHER PEDESTAL
W10142721 W10142721 CONNECTOR
W10819767 W10819767 COVER
W10198390 W10198390 COVER
WPW10298953 WPW10298953 DOOR
W11228215 W11228215 DOOR
W11228212 W11228212 DOOR
W10470674 W10470674 DRYER 4-WAY SIDE VENT KIT
WP3393657 WP3393657 DRYER BELT RESTRAINER
W10888146 W10888146 DRYER BLOWER HOUSING
WP697770 WP697770 DRYER BLOWER HOUSING SEAL
WP697772 WP697772 DRYER BLOWER WHEEL
WP693140 WP693140 DRYER BURNER
WP8573824 WP8573824 DRYER BURNER DUCT
WP694298 WP694298 DRYER BURNER IGNITER BRACKET
279311 279311 DRYER BURNER IGNITER KIT
WP234868 WP234868 DRYER BURNER ORIFICE
W10363674 W10363674 DRYER DOOR
WPW10304672 WPW10304672 DRYER DOOR HINGE
WPW10286878 WPW10286878 DRYER DOOR INNER WINDOW
8579663 8579663 DRYER DOOR INNER WINDOW SEAL
279570 279570 DRYER DOOR LATCH KIT
W10215742 W10215742 DRYER DOOR OUTER FRAME
WPW10163915 WPW10163915 DRYER DOOR SEAL
WP8565122 WP8565122 DRYER DOOR STRIKE
WPW10350910 WPW10350910 DRYER DOOR SWITCH
W10865330 W10865330 DRYER DRUM ASSEMBLY
W10852390 W10852390 DRYER DRUM BAFFLE
WPW10131172 WPW10131172 DRYER DRUM BELT
WP3387242 WP3387242 DRYER DRUM FELT SEAL
W11226088 W11226088 DRYER DRUM LIGHT LENS
280114 280114 DRYER DRUM SEAL KIT
WPW10314173 WPW10314173 DRYER DRUM SUPPORT ROLLER
WPW10359272 WPW10359272 DRYER DRUM SUPPORT ROLLER SHAFT
WPW10359271 WPW10359271 DRYER DRUM SUPPORT ROLLER SHAFT
WP8563728 WP8563728 DRYER EXHAUST DUCT
WP8318396A WP8318396A DRYER FOAM SEAL
WP694423 WP694423 DRYER GAS PRESSURE REGULATOR
WP694422 WP694422 DRYER GAS PRESSURE REGULATOR SPRING
3978776 3978776 DRYER GAS SUPPLY PIPE BRACKET
W11168650 W11168650 DRYER HEAT DUCT
346764A 346764A DRYER HOLD-DOWN KIT
WPW10446781 WPW10446781 DRYER IDLER SPRING
WP694424 WP694424 DRYER LEAK LIMITER
WPW10128606 WPW10128606 DRYER LINT CHUTE ASSEMBLY
WP697813 WP697813 DRYER LINT CHUTE SEAL
WP8066208 WP8066208 DRYER LINT DUCT CLIP
W10120998 W10120998 DRYER LINT SCREEN
W11086603 W11086603 DRYER LINT SCREEN GRILLE
W10402145 W10402145 DRYER LP CONVERSION KIT
W10841144 W10841144 DRYER MOTOR ASSEMBLY
WP660658 WP660658 DRYER MOTOR CLAMP
WP8066184 WP8066184 DRYER MOTOR PULLEY
WPW10080210 WPW10080210 DRYER NUT
WPW10139757 WPW10139757 DRYER NUT
WPW10080190 WPW10080190 DRYER NUT, 3/8-IN
WP3391914 WP3391914 DRYER OPERATING THERMOSTAT
WP338906 WP338906 DRYER RADIANT SENSOR
4392067 4392067 DRYER REPAIR KIT
W11116979 W11116979 DRYER SCREW
WPW10159996 WPW10159996 DRYER SCREW
W10850046 W10850046 DRYER SCREW
WPW10366705 WPW10366705 DRYER SCREW
WP3387230 WP3387230 DRYER SCREW
WP98129 WP98129 DRYER SCREW, #6-20 X 1.25-IN
279782 279782 DRYER SWITCH KIT
WP8573713 WP8573713 DRYER THERMAL CUT-OFF FUSE, 325-DEGREE F
WP3392519 WP3392519 DRYER THERMAL FUSE, 195-DEGREE F
WP8577274 WP8577274 DRYER THERMISTOR
8519459 8519459 DRYER TOE PANEL CLIP
WPW10336080 WPW10336080 DRYER TOP PANEL
WPW10512946 WPW10512946 DRYER TRI-RING RETAINER
694538 694538 DRYER VALVE COIL BRACKET
279834 279834 DRYER VALVE COIL KIT
W11236646 W11236646 DRYER WASHER
W10215741 W10215741 DRYER WINDOW
W11228216 W11228216 ELECTRIC CONTROL
W11228120 W11228120 ELECTRIC CONTROL
W10749098 W10749098 FASCIA
W10391445 W10391445 FILTER
W10142722 W10142722 FLAP
W10728444 W10728444 FOOT, RUBBER (LOCK)
W11116978 W11116978 GROMMET
W10300865 W10300865 HANDLE
W10215754 W10215754 HANDLE
W11448328 W11448328 HANDLE-DISPE
WPW10106460 WPW10106460 HOSE
STD316728 STD316728 HOSE CLAMP
STD316716 STD316716 HOSE CLAMP
W10181947 W10181947 KIT
WPW10256915 WPW10256915 LABEL
W11228118 W11228118 LAUNDRY APPLIANCE ELECTRONIC CONTROL BOARD
WP8540725 WP8540725 LAUNDRY APPLIANCE SCREW
WP8534022 WP8534022 LAUNDRY APPLIANCE SCREW
W11181684 W11181684 LAUNDRY CENTER CONTROL PANEL
WPW10376685 WPW10376685 LAUNDRY CENTER DRYER ELECTRONIC CONTROL BOARD
WP8540664 WP8540664 LAUNDRY CENTER TOE PANEL
W11191299 W11191299 LAUNDRY CENTER WASHER DRIVE MOTOR
WPW10405608 WPW10405608 LAUNDRY CENTER WASHER PRESSURE SWITCH AIR CHAMBER

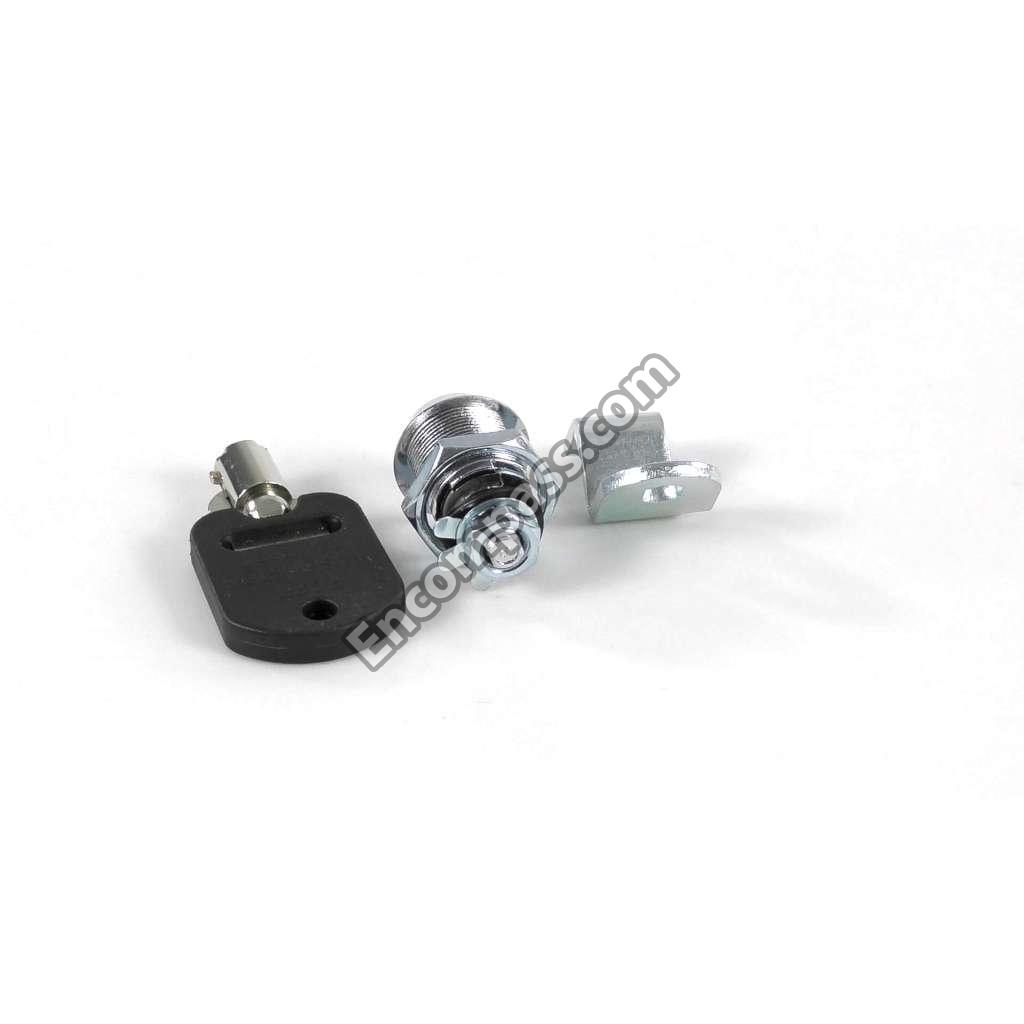

W11191256 W11191256 LOCK
W10198223 W10198223 LOCK CAM
W10571757 W10571757 LP GAS CONVERSION KIT
STD510805 STD510805 MACHINE SCREW
W10846437 W10846437 MAIN HARNESS
W11034058 W11034058 MAIN WIRING HARNESS
WP8183181 WP8183181 NOZZLE
233076 233076 NUT UNION
WPW10283361 WPW10283361 NUT WASHER
234870 234870 ORIFICE
W11197085 W11197085 OUTER HOUSING
W11228217 W11228217 OVERLAY
W10198335 W10198335 OVERLAY
W11113654 W11113654 PAD
W10258342 W10258342 PANEL
WPW10306505 WPW10306505 PANEL
W10874032 W10874032 PANEL
W10542714 W10542714 PANEL
W10865341 W10865341 PANEL - REAR
WP3373329 WP3373329 PANEL SCREW
W10110395 W10110395 PIPE
3393767 3393767 PIPE
W10295523 W10295523 PIPE PLUG
WPW10212604 WPW10212604 PLATE
8565043 8565043 PLUG
W10869140 W10869140 POWER CORD
WPW10344193 WPW10344193 PULLEY
W11228122 W11228122 PUSHBUTTON
8580015 8580015 RAMP
WP308685 WP308685 RANGE SCREW
W10850756 W10850756 RANGE SCREW
W10198451 W10198451 READER CORD
WP487240 WP487240 REFRIGERATOR CAPACITOR SCREW
WP90767 WP90767 REFRIGERATOR ICE MAKER INLET COLLAR SCREW
WP489442 WP489442 REFRIGERATOR SCREW
WP489463 WP489463 REFRIGERATOR SCREW
2162499 2162499 REFRIGERATOR SLEEVE
W11215543 W11215543 RETAINER
W10198373 W10198373 RETAINER
W10200785 W10200785 RETAINER
8519356 8519356 RETAINER
W10822054 W10822054 RETAINER
WP8540766 WP8540766 RUBBER SEAL
8533964 8533964 SCREW
8540134 8540134 SCREW
WPW10259288 WPW10259288 SCREW
WPW10137456 WPW10137456 SCREW
8540329 8540329 SCREW
8540479 8540479 SCREW
8565087 8565087 SCREW
W10853898 W10853898 SCREW
3400408 3400408 SCREW
WP3395530 WP3395530 SCREW
WPW10131119 WPW10131119 SCREW
694421 694421 SCREW, 8-32 X 1
W11036330 W11036330 SERVICE WASH
W10405223 W10405223 SPACER
W11175840 W11175840 SPACER
W10198375 W10198375 SUPPORT
WPW10198199 WPW10198199 SWITCH
WPW10447152 WPW10447152 SWITCH
W11403858 W11403858 TRANSFORMER
697441 697441 VALVE
W10142720 W10142720 VENT PIPE
W10118982 W10118982 WASHER BAFFLE
8518891 8518891 WASHER CABINET PANEL GUIDE PIN
WPW10339879 WPW10339879 WASHER CABLE TIE
WPW10200747 WPW10200747 WASHER COUNTERWEIGHT
WPW10223198 WPW10223198 WASHER COUNTERWEIGHT
W10182109 W10182109 WASHER COUNTERWEIGHT BOLT KIT
W10405233 W10405233 WASHER COVER
W10395619 W10395619 WASHER DISPENSER DRAWER
W10364594 W10364594 WASHER DISPENSER DRAWER HOUSING
W10433390 W10433390 WASHER DISPENSER DRAWER INSERT
W11366227 W11366227 WASHER DISPENSER HOSE
WP8540399 WP8540399 WASHER DISPENSER HOUSING COVER
W10803052 W10803052 WASHER DISPENSER INLET HOSE
W11126066 W11126066 WASHER DOOR BOOT
W11032829 W11032829 WASHER DOOR BOOT SPRING CLAMP
WP8540108 WP8540108 WASHER DOOR BOOT SPRING CLAMP
WPW10388315 WPW10388315 WASHER DOOR GLASS
WPW10210893 WPW10210893 WASHER DOOR HINGE
WPW10207904 WPW10207904 WASHER DOOR INNER FRAME
WPW10375379 WPW10375379 WASHER DOOR LOCK ASSEMBLY
WPW10300867 WPW10300867 WASHER DOOR OUTER FRAME
WP8540221 WP8540221 WASHER DOOR STRIKE
WP8577378 WP8577378 WASHER DRAIN HOSE U-BEND BRACKET
WPW10730972 WPW10730972 WASHER DRAIN PUMP ASSEMBLY
W10034820 W10034820 WASHER DRAIN PUMP CUSHION
WPW10260319 WPW10260319 WASHER DRIVE BELT
WP8540088C WP8540088C WASHER DRIVE PULLEY
W11398765 W11398765 WASHER EXHAUST HOSE
WP8181738 WP8181738 WASHER EXTERNAL DRAIN HOSE CONNECTOR
W11085908 W11085908 WASHER FILL HOSE SET
WPW10085220 WPW10085220 WASHER GROUNDING SWITCH
WP696392 WP696392 WASHER HOSE CLAMP
W10862938 W10862938 WASHER LEVELING LEG
WP3359452 WP3359452 WASHER LEVELING LEG LOCK NUT
238614 238614 WASHER LID BUMPER
WPW10384849 WPW10384849 WASHER MOTOR CONTROL BOARD
WPW10367632 WPW10367632 WASHER NOISE FILTER
W10312454 W10312454 WASHER OUTER TUB
WP8540092 WP8540092 WASHER OUTER TUB CLIP
WPW10111158 WPW10111158 WASHER OUTER TUB GASKET
WP8540268 WP8540268 WASHER POWER CORD COVER
8182635 8182635 WASHER POWER CORD STRAIN RELIEF
WPW10272563 WPW10272563 WASHER PUMP DRAIN HOSE
8540033 8540033 WASHER PUMP GROMMET RETAINER
WP8182512 WP8182512 WASHER PUSH-IN NUT
W11028021 W11028021 WASHER SCREW
WPW10346892 WPW10346892 WASHER SCREW
W11230114 W11230114 WASHER SCREW
WP8540282 WP8540282 WASHER SCREW
WP693995 WP693995 WASHER SCREW
WP3389420 WP3389420 WASHER SCREW
WPW10273971 WPW10273971 WASHER SCREW
8182201 8182201 WASHER SCREW, M3 X 8
W10391451 W10391451 WASHER SEAL
W10763471 W10763471 WASHER SHIPPING BOLT KIT
W10822553 W10822553 WASHER SHOCK ABSORBER
280159 280159 WASHER SUSPENSION SPRING SET
W11366249 W11366249 WASHER TUB-TO-PUMP HOSE
WPW10212598 WPW10212598 WASHER WATER INLET VALVE
WPW10212596 WPW10212596 WASHER WATER INLET VALVE
WPW10467289 WPW10467289 WASHER WATER TEMPERATURE SENSOR
WPW10448876 WPW10448876 WASHER WATER-LEVEL PRESSURE SWITCH
W11252474 W11252474 WASHER WATER-LEVEL PRESSURE SWITCH HOSE
WPW10201879 WPW10201879 WASHER WIRE HARNESS
8182209 8182209 WASHER WIRE HARNESS RETAINER
WP16123 WP16123 WASHING MACHINE WASHER
W10283424 W10283424 WINDOW
WP3401707 WP3401707 WIRE
WPW10239515 WPW10239515 WIRE HARNESS
W11129439 W11129439 WIRE HARNESS
W10242897 W10242897 WIRE HARNESS
W10300896 W10300896 WIRE HARNESS
W10242896 W10242896 WIRE HARNESS
Main Menu x
