Model Image
Manufacturer

Whirlpool

Model Number

CGW3330ADB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
74003036 74003036 *NLA*INSULATION OVEN WRAP
W10127321 W10127321 + FAN- AS
74004108 74004108 BACK, MAIN
3601F307-45 3601F307-45 BAFFLE, BROIL
3601F353-45 3601F353-45 BAFFLE, DOOR
3601F239-45 3601F239-45 BAFFLE, OVEN BOTTOM
7401P037-60 7401P037-60 BLOCK TER
74002230 74002230 BLOCK, DISCONNECT (MALE)
74001742 74001742 BOTTOM, MAIN
WP5504M003-19 WP5504M003-19 BOTTOM, OVEN
71003008 71003008 BURNER, BAKE
7505P293-60 7505P293-60 BURNER, BROIL
74002377 74002377 CLIP OVEN
7112P093-60 7112P093-60 CLIP- GLAS

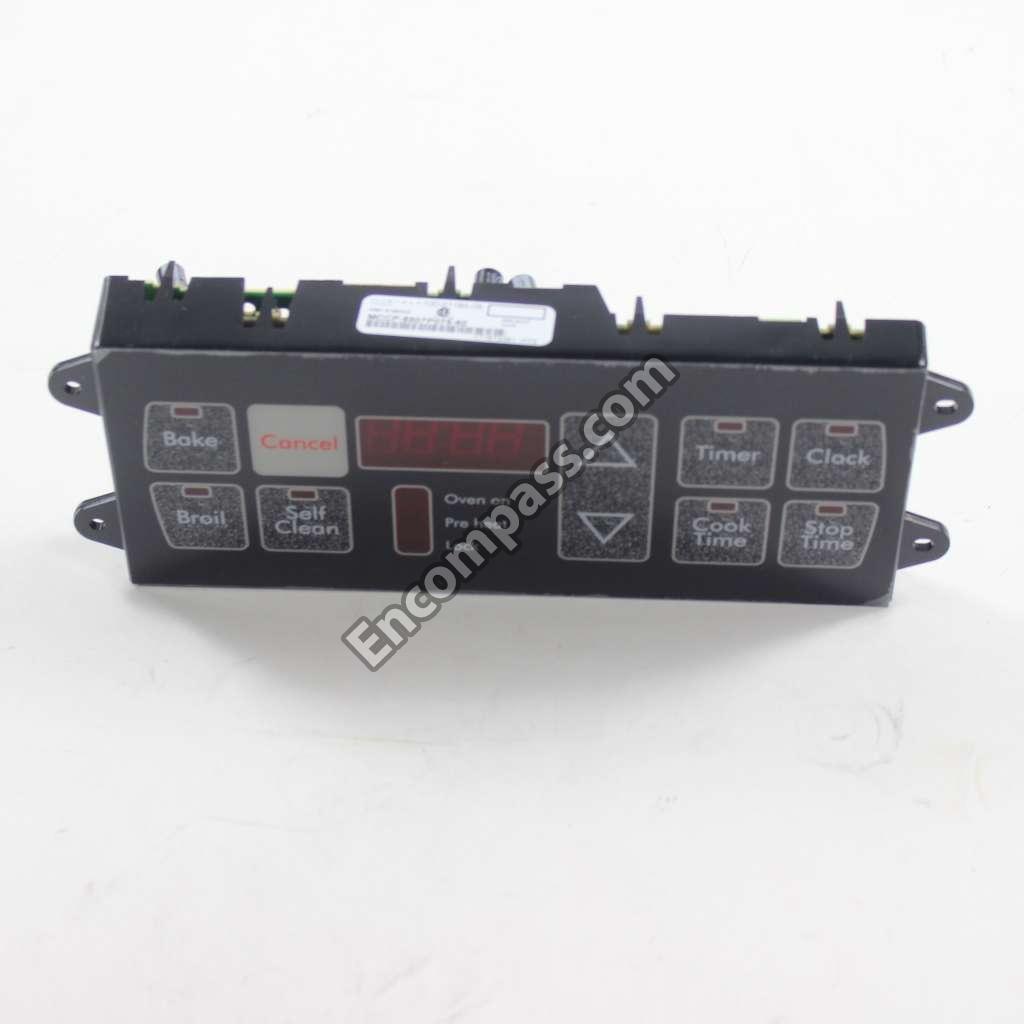

WPW10162787 WPW10162787 CONTROL BOARD
12400044 12400044 CORD, POWER
4005F405-51 4005F405-51 COVER BAC
4005F421-45 4005F421-45 COVER IGN
74003389 74003389 COVER, BULB
4005F402-51 4005F402-51 COVER, TOP
12001942 12001942 DOOR DOOR LATCH KIT
74004131 74004131 EXTRUSION
7756P077-60 7756P077-60 EXTRUSION, LOWER (BLK)
74004123 74004123 EXTRUSION, VENT GRILL (BLK)
7507P067-60 7507P067-60 FITTING B
WPW10162384 WPW10162384 GASKT-DOOR
7902P367-60 7902P367-60 GLASS, DOOR (BLK)
74003320 74003320 GLASS, INNER
8008P021-60 8008P021-60 GROMMET S
16000329 16000329 GUIDE, QUICK REF. - MAGIC CHEF
74003990 74003990 HANDLE, OVEN DOOR (BLK)
74004126 74004126 HARNESS S
74004125 74004125 HARNESS, MAIN
WP74011141 WP74011141 HINGE- OVE
74003388 74003388 HOUSING, BULB
12400035 12400035 IGNITER KIT
WP3413F018-19 WP3413F018-19 INSERT
74004142 74004142 INSERT, CLOCK (FCH)
WP74010942 WP74010942 INSULATION
7003P056-60 7003P056-60 INSULATION
74001842 74001842 INSULATION
74001084 74001084 INSULATION
4804F028-60 4804F028-60 INSULATION, DOOR LATCH ASSEMBLY.
74003503 74003503 INSULATION, OVEN
8009P055-60 8009P055-60 LEVER, DOOR LATCH
8009 8009 LIGHT BULB
WP2402W271-19 WP2402W271-19 LINER-DOOR
74002579 74002579 MANUAL, INSERT CLOCK (FRCH)
74002704 74002704 MANUAL, INSERT CLOCK (FRCH)
16009722 16009722 MANUAL, SERVICE-NO REFUND
74004140 74004140 MANUAL, USE & CARE
74004141 74004141 MANUAL, USE & CARE (FCH)
3411F006-35 3411F006-35 MIXER, AIR
4006W117-45 4006W117-45 NLABOX, FLUE
3801F290-51 3801F290-51 NLABRACKET, REGULATOR
4006D101-45 4006D101-45 NLADUCT ASSEMBLY.
4001F083-51 4001F083-51 NLANHOUSING, FAN
1555-251 1555-251 NUT, LOXIT (3/8``)
7103P030-60 7103P030-60 NUT- WING
74001219 74001219 ORIFICE
71003310 71003310 OVERLAY, CLOCK (BLK)
7103P119-60 7103P119-60 PALNUT
74001651 74001651 PAN, BAKE BURNER
WP3401F075-19 WP3401F075-19 PAN, BROIL
2618F083-51 2618F083-51 PANEL, BODY
71003303 71003303 PANEL, CONTROL (BLK)
71002808 71002808 PANEL, DOOR (BLK)
3605F186-45 3605F186-45 PLATE, FITTING
WPW10282492 WPW10282492 RACK-OVEN
7510P047-60 7510P047-60 REGULATOR, PRESSURE
74001436 74001436 RETAINER
74003391 74003391 RETAINER
3804F245-51 3804F245-51 RETAINER, BOTTOM
74006342 74006342 RETAINER, DOOR LATCH INSULATION
74001844 74001844 RETAINER, GLASS
74001793 74001793 RETAINER, TOP INSULATION
4006D128-45 4006D128-45 RISER DUC
W11233072 W11233072 SCREW
WP4381696 WP4381696 SCREW
WP59002061 WP59002061 SCREW
WP4159193 WP4159193 SCREW
WP98008545 WP98008545 SCREW
7101P287-60 7101P287-60 SCREW
7101P280-60 7101P280-60 SCREW
7101P330-60 7101P330-60 SCREW, SWITCH
12001655 12001655 SENSOR
74004127 74004127 SHIELD AI
3604F166-45 3604F166-45 SHIELD, HEAT
WP74003387 WP74003387 SOCKT-LITE
8010P085-60 8010P085-60 SPACER RU
74003986 74003986 SPACER, DOOR GLASS (BLK)
4005F354-70 4005F354-70 STRIP BOT
3807W388-51 3807W388-51 SUPPORT
74004128 74004128 SUPPORT D
3807F480-45 3807F480-45 SUPPORT, BAKE BNR
74002932 74002932 SUPPORT, CLOCK
74003383 74003383 SWITCH DO
74004098 74004098 SWITCH, FAN
7403P249-60 7403P249-60 SWITCH, HI LIMIT
7403P067-60 7403P067-60 SWITCH, ROCKER (BLK)
8270P090-60 8270P090-60 TAPE, FOIL (3`` WIDE)
74004134 74004134 TRIM
74004133 74004133 TRIM
74004138 74004138 TUBING, BAKE (W/FITTING)
74004139 74004139 TUBING, BROIL (3/8``)
74005520 74005520 TUBING- RE
7501P116-60 7501P116-60 VALVE
7501P041-60 7501P041-60 VALVE, SHUT OFF
15002482 15002482 WIRING INFORMATION
