Model Image
Manufacturer

Whirlpool

Model Number

CHE9800BCB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
74001582 74001582 BACK, MAIN
3601F236-51 3601F236-51 BAFFLE
3601F237-47 3601F237-47 BAFFLE BR
3601F353-45 3601F353-45 BAFFLE, DOOR
74001458 74001458 BASKET, DRAWER
7740P052-60 7740P052-60 BEZEL, KNOB (BLK)
WPW10245259 WPW10245259 BLOCK-TERM
7116P003-60 7116P003-60 BOLT
4006W112-45 4006W112-45 BOX VENT
4011F462-80 4011F462-80 BOX, BURNER
WP3801F656-51 WP3801F656-51 BRACKET
3801F327-51 3801F327-51 BRACKET
74003191 74003191 BRACKET, CLOCK
3801F312-45 3801F312-45 BRACKET, INDICATOR LIGHT
74001632 74001632 BRACKET, SWITCH ACTUATOR
74001631 74001631 BUMPER- RO
W11690131 W11690131 CAMERA LENS-LIGHT
WP9781049 WP9781049 CAMERA LENS-LIGHT
3818F052-80 3818F052-80 CHANNEL
3818F059-51 3818F059-51 CHANNEL, AIR
3818F053-51 3818F053-51 CHANNEL, AIR TOP
3818F054-51 3818F054-51 CHANNEL, BOTTOM
3805F002-34 3805F002-34 CLAMP, WINDOW ASSEMBLY.
W10355051 W10355051 CLEANER, COOKTOP
7112P112-60 7112P112-60 CLIP LATC
7112P087-60 7112P087-60 CLIP, TOP LOCKING
12001607 12001607 CLOCK (BLK)

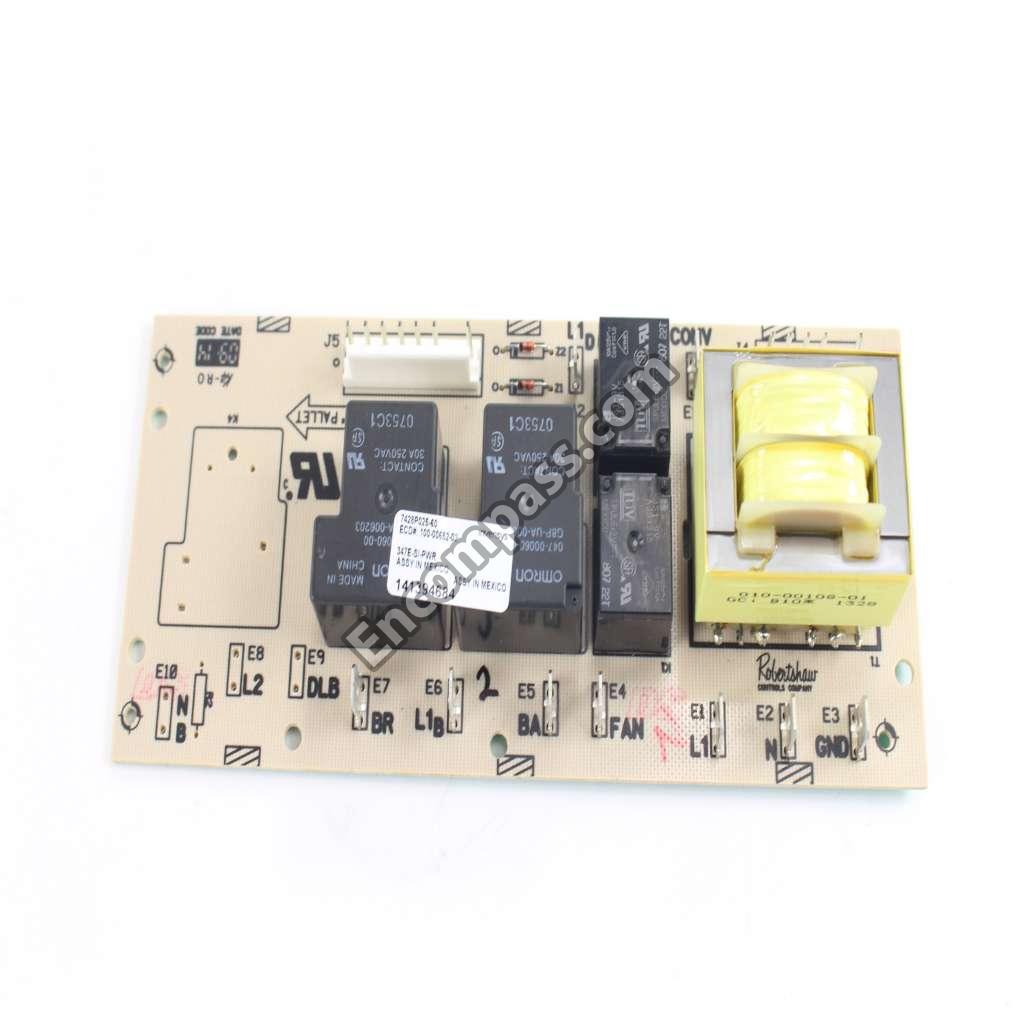

WP74001870 WP74001870 CONTROL BOARD
4005F747-51 4005F747-51 COVER, ACCESS
4005F443-51 4005F443-51 COVER, DOOR DOOR LATCH
4005F420-80 4005F420-80 COVER, LEVELING LEG
74001674 74001674 COVER, VENT
8002P025-60 8002P025-60 DOOR LATCH ASSEMBLY.
74003123 74003123 DOOR LATCH, OVEN DOOR
3405F019-80 3405F019-80 DRAWER, STORAGE
74008337 74008337 DRAWER, STORAGE
3405F018-80 3405F018-80 DRAWER, STORAGE
3818F056-51 3818F056-51 DUCT, AIR
WPY04000059 WPY04000059 ELEMENT- B
WP74003019 WP74003019 ELMNT-BAKE
7744P092-60 7744P092-60 END CAP (BLK)
7744P087-60 7744P087-60 END CAP (BLK)
7427P012-60 7427P012-60 FAN
8312P058-60 8312P058-60 FOIL, INSULATION RETAINER
W11665456 W11665456 FOOT-LEVEL
7706P309-60 7706P309-60 FRAME, DOOR (BLK)
7201P060-60 7201P060-60 GASKET, VENT
WPW10162384 WPW10162384 GASKT-DOOR
7902P361-60 7902P361-60 GLASS, DOOR (OUTER/BLK)
74003320 74003320 GLASS, INNER
16000327 16000327 GUIDE, QUICK REF. - MAYTAG
7701P132-60 7701P132-60 HANDLE, DOOR DOOR LATCH (BLK)
7701P149-60 7701P149-60 HANDLE, OVEN DOOR (BLK)
5170P228-60 5170P228-60 HARNESS S
74001583 74001583 HARNESS, CLOCK/RELAY
5175D076-60 5175D076-60 HARNESS, COOKTOP TO SWITCH
74001595 74001595 HARNESS, WIRE CONTROL PANEL
12400043 12400043 HINGE
WP74011140 WP74011140 HINGE- OVE
4001F098-51 4001F098-51 HOUSING, FAN
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
WP3413F018-19 WP3413F018-19 INSERT
74001842 74001842 INSULATION
74001159 74001159 INSULATION, BACK
4804F051-60 4804F051-60 INSULATION, DOOR
4804F028-60 4804F028-60 INSULATION, DOOR LATCH ASSEMBLY.
74001573 74001573 INSULATION, WRAPPER
7003P067-60 7003P067-60 INSULATOR
74001626 74001626 INSULATOR, DOOR SWITCH
7731P082-60 7731P082-60 KNOB THER
WP7711P492-60 WP7711P492-60 KNOB- CLOC
WP7407P182-60 WP7407P182-60 LAMP-ASM
7101P316-60 7101P316-60 LEG, LEVELING
8009P055-60 8009P055-60 LEVER, DOOR LATCH
8009 8009 LIGHT BULB
7407P098-60 7407P098-60 LIGHT, INDICATOR
74003053 74003053 LIGHT, INDICATOR
W10852510 W10852510 LIGHT-IND
74002652 74002652 LIMITER (8``)
12500041 12500041 LIMITER KIT (6``)
12500040 12500040 LIMITER KIT (8``)
WP2402W271-19 WP2402W271-19 LINER-DOOR
2404F043-80 2404F043-80 LINING
2404F044-80 2404F044-80 LINING
2404F030-51 2404F030-51 LINING DR
2402W209-19 2402W209-19 LINING, DOOR
74001180 74001180 MANUAL, USE & CARE
3604F214-51 3604F214-51 MSHIELD, HEAT RT NLA
74002978 74002978 NLABRACKET, INDICATOR LIGHT
74004034 74004034 NLAMPLUG- HO
4005F447-51 4005F447-51 NLANCOVER, WIRE
3605F174-51 3605F174-51 NLANPLATE, CONDUIT TUBING
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
WP488130 WP488130 NUT
WPW10131078 WPW10131078 NUT
7103P045-60 7103P045-60 NUT NYLON
7103P136-60 7103P136-60 NUT, SNAP
WP74001574 WP74001574 NUT- SNAP
WP7103P114-60 WP7103P114-60 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
WP3401F075-19 WP3401F075-19 PAN, BROIL
2416W002-70 2416W002-70 PANEL ASSEMBLY, BROILER DOOR
2416F059-70 2416F059-70 PANEL, DRAWER (BLK)
2618F106-70 2618F106-70 PANEL, SIDE (LT-BLK)
2618F107-70 2618F107-70 PANEL, SIDE (RT-BLK)
74001648 74001648 PANEL, UPPER FRONT (BLK)
4020F001-80 4020F001-80 PEDESTAL
74003003 74003003 PEDESTAL
4020W015-80 4020W015-80 PEDESTAL, SIDES
WPW10282492 WPW10282492 RACK-OVEN
74003125 74003125 RECEPTACLE, BULB
3804F245-51 3804F245-51 RETAINER, BOTTOM
74001844 74001844 RETAINER, GLASS
3804F103-51 3804F103-51 RETAINER, INSULATION (SIDE)
74003562 74003562 ROD, DOOR LIGHT SWITCH
12001527 12001527 ROLLER, DRAWER
3406F028-51 3406F028-51 RUNNER, DRAWER
W10182835 W10182835 RUNNER, DRAWER (2)
WA906B WA906B SCRAPER, COOKTOP
WP59002061 WP59002061 SCREW
WP7101P309-60 WP7101P309-60 SCREW
74009538 74009538 SCREW
W10828565 W10828565 SCREW
WP98008545 WP98008545 SCREW
W11233072 W11233072 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WP4381696 WP4381696 SCREW
7101P345-60 7101P345-60 SCREW
WP4159193 WP4159193 SCREW
74008798 74008798 SCREW W/SHOULDER (NO.8)
7101P130-60 7101P130-60 SCREW, DOOR LATCH SWITCH
7101P330-60 7101P330-60 SCREW, SWITCH
7208P002-60 7208P002-60 SEAL
WP854334 WP854334 SEAL-STRIP
3604F159-45 3604F159-45 SHIELD INSULATION, CATCH
3604F213-51 3604F213-51 SHIELD, HEAT (LT)
W10857933 W10857933 SPACER
8010P085-60 8010P085-60 SPACER RU
74001629 74001629 SPRING- DO
3807F400-51 3807F400-51 SUPPORT O
3807F387-45 3807F387-45 SUPPORT, BROIL ELEMENT
74002312 74002312 SUPPORT, DRAWER
8004P015-60 8004P015-60 SUPPORT, ELEMENT
74002976 74002976 SUPPORT, ELEMENT
3807F390-45 3807F390-45 SUPPORT, ELEMENT
8004P032-60 8004P032-60 SUPPORT, RELAY
8004P020-60 8004P020-60 SUPPORT, RELAY BOARD
WP8004P026-60 WP8004P026-60 SUPPORT- D
W10823707 W10823707 SURFACE ELEMENT
W10823704 W10823704 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH
74001628 74001628 SWITCH DO
74001708 74001708 SWITCH, DOOR DOOR LATCH
7403P067-60 7403P067-60 SWTCH-LITE
8270P098-60 8270P098-60 TAPE
8270P078-60 8270P078-60 TAPE, FOIL (29 1/2``)
7403P307-60 7403P307-60 THERMOSTAT, SNAP ACTING
74001185 74001185 TOP ASSEMBLY. (BLK TOP/BLK GLASS)
74003025 74003025 TOP ASSEMBLY. (BLK)
7706P305-60 7706P305-60 TRIM, DOOR (UPPER-BLK)
74002647 74002647 TRIM, SHIELD MANIFOLD PANEL
7907P021-60 7907P021-60 WINDOW ASY.
74001672 74001672 WIRES, LOOSE
15001408 15001408 WIRING INFORMATION
