Model Image
Manufacturer

Whirlpool

Model Number

CNSI22M9

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
62128-1 62128-1 AIR DEFLECTOR
53726-1 53726-1 AIR TUNNEL
52307-2 52307-2 ARM, SENSOR
63008-3 63008-3 ARM, WATER
63007-3 63007-3 ARM,ICE
12001773 12001773 ASSY., AUGER MOTOR/YOKE
63099-2 63099-2 AUGER
63024-1 63024-1 AUGER BOX
29838-4 29838-4 BAFFLE
65493-1 65493-1 BAFFLE, AIR DIVIDER
65461-1 65461-1 BIN
52120-1 52120-1 BLADE, FAN FRZR.
WP12587601 WP12587601 BLADE- CON
55878-1 55878-1 BOARD, TERMINAL
66007-1 66007-1 BOOT, ICE DOOR
56936-1 56936-1 BRACKET, FAN MOTOR
64856-2 64856-2 BRACKET, FAN MOTOR
52561-1 52561-1 BRACKET, HEATER SHIELD
63014-1 63014-1 BRACKET, ICE DOOR
29282-2 29282-2 BRACKET, MOUNTING TIMER
63013-2 63013-2 BRACKET, SWITCH
62794-1 62794-1 BRACKET, WHEEL
59090-1 59090-1 BUSHING
WP65889-4 WP65889-4 CAPACITOR
59026-1-WW 59026-1-WW CHANNEL,MULLION DIVID.(WHITE)
23197-7 23197-7 CLAMP
W10833902 W10833902 CLAMP
WP596669 WP596669 CLAMP
53516-5 53516-5 CLAMP, DRAIN HOSE
60333-1 60333-1 CLAMP, SPRING
60333-2 60333-2 CLAMP, SPRING
9602-9 9602-9 CLAMP, TUBING
63035-2 63035-2 CLIP
56686-4 56686-4 CLIP
65358-1 65358-1 CLIP
53060-4 53060-4 CLIP
52067-1 52067-1 CLIP, DEFROST HEATER
65318-1 65318-1 CLIP, DRIVE SHAFT
56438-1 56438-1 CLIP, FOOD LINER MOUNT.TOP&BOT
57051-1 57051-1 CLIP, MOTOR BRACKET
2163787 2163787 CLIP, MOUNTING
65190-1 65190-1 CLIP, OVERLOAD
62581-1 62581-1 CLIP, RETAINING WHEEL (REAR)
65191-1 65191-1 CLIP, TERMINAL COVER
62082-1 62082-1 CLIP, WATER TANK MOUNTING
57418-1 57418-1 CLIP,FOOD LINER MOUNT.(SLIDES)
52824-6 52824-6 COIL SEAL
W10619807 W10619807 COMPRESSOR
RA43644-1 RA43644-1 CONDENSER
65737-1 65737-1 CONTROL HOUSING
52890-2 52890-2 CORD, POWER
66150-1 66150-1 COVER
66033-1 66033-1 COVER
65224-8 65224-8 COVER, COIL
62690-35 62690-35 COVER, COIL
26088-22 26088-22 COVER, HEAT EXCHANGER
65608-2 65608-2 COVER, MEAT PAN
65189-1 65189-1 COVER, TERMINAL
59843-1 59843-1 COVER, WATER TANK
65804-2 65804-2 CRISPER SEAL
60313-1 60313-1 CUP, SHELF
45004-20 45004-20 CUSHION PADDING, DRAIN PAN
52587-2 52587-2 DAMPER
63000-3 63000-3 DISPENSER, WATER
RA43825-1 RA43825-1 DOOR ASSEMBLY., ICE
26527-5 26527-5 DRAIN TUBE
65577-1 65577-1 DRAWER, FRZ.
WPW10143759 WPW10143759 DRIER-UV
RA43643-1 RA43643-1 EVAPORATOR
62795-1 62795-1 FACEPLATE BRACKET
62689-1 62689-1 FAN GRID
RA43684-1 RA43684-1 FLANGE HEATER
63036-1 63036-1 FOIL, BARRIER FRONT
65618-2 65618-2 FRAME, SHELF
WPY013783 WPY013783 GASKET- IN
65598-16 65598-16 GLASS SHELF
65598-14 65598-14 GLASS SHELF
63025-1 63025-1 GRILL
55512-1 55512-1 GROMMET
52526-1 52526-1 GROMMET
17245-4 17245-4 GROMMET, COMPRESSOR
59808-1 59808-1 GROMMET, WATER ENTRY
WP61004743 WP61004743 GROMMET- B
978869 978869 HANDLE
RA43645-1 RA43645-1 HEAT EXCHANGER
64937-1 64937-1 HEATER, FOUNTAIN
WP61001846 WP61001846 HEATER- DE
26911-18 26911-18 HOSE, DRAIN
65033-1 65033-1 HOUSING, FREEZER COIL
58760-2 58760-2 HOUSING, FREEZER CONTROL
59740-2 59740-2 HOUSING, LIGHT SOCKET & WIRES
53682-10 53682-10 HOUSING, TEMPERATURE CONTROL
63084-1 63084-1 HUB, REINFORCING
66205-1 66205-1 ICE DISP FRONT
MHIK7989 MHIK7989 ICEMAKER
65629-1 65629-1 IM DOOR
65653-1 65653-1 IM DUCT
65630-1 65630-1 IM ENCL DOOR LATCH
WP63052-2 WP63052-2 IMPELLER
63083-1 63083-1 IMPELLER
53760-2 53760-2 INLET TUBING ASSEMBLY.
12001414 12001414 INLET VALVE
65583-44 65583-44 INSERT
65583-43 65583-43 INSERT
65583-42 65583-42 INSERT
65583-47 65583-47 INSERT
65628-7 65628-7 INSERT
63089-2 63089-2 INSULATION
58767-1 58767-1 INSULATION, HOUSING
65333-1 65333-1 INSULATOR, SWITCH
12000034 12000034 KIT, TEMP CONTROL
29893-6 29893-6 KNOB
29893-5 29893-5 KNOB
W11117769 W11117769 LEVELER
W10857122 W10857122 LIGHT BULB
W10887190 W10887190 LIGHT BULB
8009 8009 LIGHT BULB
WP56488-2 WP56488-2 MOTOR
65212-1 65212-1 MOTOR, INERTIA
833697 833697 MOTOR-COND
W10080180 W10080180 NUT
WP627018 WP627018 NUT
8201513 8201513 NUT
WP486692 WP486692 NUT
53821-1 53821-1 NUT
66098-1 66098-1 NUT, AUGER
56142-1 56142-1 NUT, MOTOR BOX
19530-2 19530-2 NYLON NUT
54423-1 54423-1 ORIFICE
53835-2 53835-2 ORIFICE, FREEZER CONTROL
53067-80 53067-80 OVERLOAD
WP63066-1 WP63066-1 PAD- ARM
65574-2 65574-2 PAN, CRISPER
65576-2 65576-2 PAN, DELI
65575-2 65575-2 PAN, MEAT
WP68236-1 WP68236-1 PAN- DRAIN
63071-1 63071-1 PIN, AUGER
63053-1 63053-1 PIN, ICE DOOR
64965-1 64965-1 PIN, WHEEL
62580-1 62580-1 PIVOT PIN, WHEEL (REAR)
52656-2 52656-2 PLUG, COMPRESSOR
65604-1 65604-1 RAIL, SLIDE
29814-2 29814-2 RECEPTACLE, LIGHT
29915-12 29915-12 REFLECTOR
57411-1 57411-1 RETAINER
53727-1 53727-1 RETAINER, AIR TUNNEL
58706-1 58706-1 RING, RETAINER
WP61003336 WP61003336 RING- DRIV
405021-1 405021-1 SCREW
W11380570 W11380570 SCREW
405022-1 405022-1 SCREW
405009-103 405009-103 SCREW
WP400021-1 WP400021-1 SCREW
400039-1 400039-1 SCREW
WP1163283 WP1163283 SCREW
WP33002917 WP33002917 SCREW
61005388 61005388 SCREW
64139-1 64139-1 SCREW
WP488729 WP488729 SCREW
3-80732-001 3-80732-001 SCREW
402005-103 402005-103 SCREW
400027-1 400027-1 SCREW
WP489478 WP489478 SCREW
WP67006908 WP67006908 SCREW
400015-1 400015-1 SCREW
56487-1 56487-1 SCREW, WHEEL ADJUSTMENT
63056-1 63056-1 SEAL
52077-10 52077-10 SEAL
65650-2 65650-2 SEAL, CRISPER PAN (FRONT)
65648-2 65648-2 SEAL, MEAT PAN (FRONT)
65649-2 65649-2 SEAL, MEAT PAN (REAR)
65063-1 65063-1 SEAL, STYROFOAM-(LEFT)
65064-1 65064-1 SEAL, STYROFOAM-(RIGHT)
52077-9 52077-9 SEAL,HOUSING TO LINER
52077-19 52077-19 SEAL,UPPER COIL COVER TO LINER
65319-1 65319-1 SHAFT, DRIVE
65803-2 65803-2 SHELF TRIM
65802-1 65802-1 SHELF TRIM
65687-2 65687-2 SHELF, CRISPER
65722-1 65722-1 SHELF, FRZ.
65651-2 65651-2 SHELF, FRZ.
65651-9 65651-9 SHELF, FRZ. NO.1
53837-1 53837-1 SHIELD
65578-12 65578-12 SHIELD, LIGHT
65654-1 65654-1 SHIELD, LIGHT
65736-1 65736-1 SLIDE CONTROL, (MEAT)
63039-1 63039-1 SOCKET, LIGHT
65317-1 65317-1 SPACER
53748-1 53748-1 SPOUT, FILL
63306-1 63306-1 SPRING
52648-1 52648-1 SPRING, BAFFLE
63428-1 63428-1 SPRING, ICE DOOR
WPW10189190 WPW10189190 START-DEV
59920-3 59920-3 STUD, DIVIDER CHANNEL MOUNTING
59920-1 59920-1 STUD, MOUNTING COIL COVER
58381-1 58381-1 SUPPORT
53686-2 53686-2 SUPPORT
54424-2 54424-2 SUPPORT
53687-2 53687-2 SUPPORT
56432-1 56432-1 SWITCH
56432-2 56432-2 SWITCH
55440-2 55440-2 SWITCH, ICE & WATER
63040-1 63040-1 SWITCH, LIGHT
62920-1 62920-1 TANK, WATER
59101-1 59101-1 TAPPING PLATE, WHEEL
WP52085-29 WP52085-29 THERMOSTAT

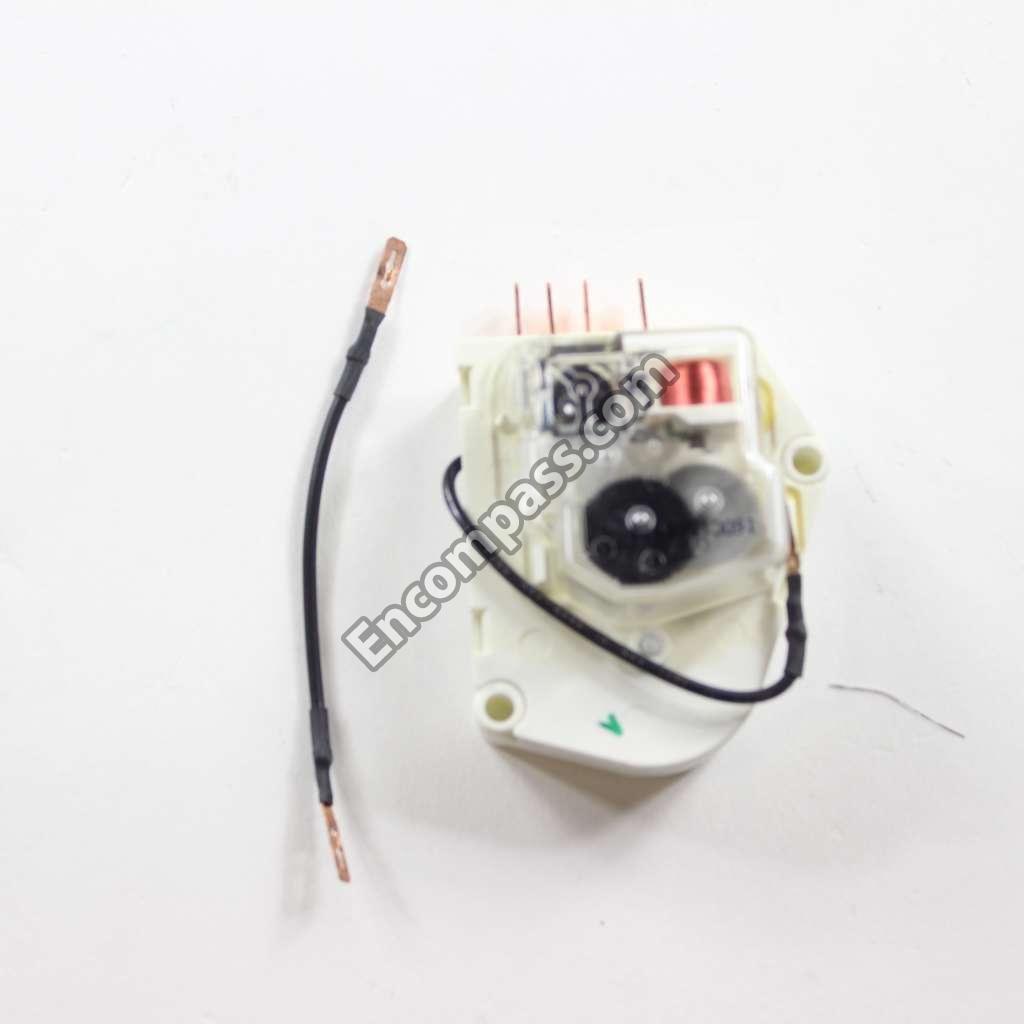

WP4391974 WP4391974 TIMER-DEF
WP59688-1A WP59688-1A TRAY
65276-13 65276-13 TRIM
53523-1 53523-1 TROUGH, DRAIN
W10772617 W10772617 TUB-OUTER
WPB5705307 WPB5705307 TUBE
55513-1 55513-1 TUBE
56125-1 56125-1 TUBE, FEEDER
58461-4 58461-4 TUBE, FILL
55602-21 55602-21 TUBING, ARM PINS
55603-6 55603-6 TUBING, VALVE TO ICE MAKER
65002-15 65002-15 TUBING, WATER LINE
57410-1 57410-1 TUNNEL
53726-2 53726-2 TUNNEL, AIR (MEAT)
60408-1 60408-1 U-NUT, CONDENSER
19913-2 19913-2 WASHER, FAN BLADE
63038-2 63038-2 WATER LINE
29834-2 29834-2 WHEEL
63372-1 63372-1 WIRE HARNESS
63059-1 63059-1 WIRE HARNESS
65979-1 65979-1 WIRE HARNESS
66185-2 66185-2 WIRE HARNESS
