Model Image
Manufacturer

Whirlpool

Model Number

CP1961XLQ00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "INSULATION (2 PIECES, 3"" X 24"" X 48"")"
WP72107 WP72107 ALMOND
4390680 4390680 ANCHOR, SCREW
WP2196003 WP2196003 BARRIER
W10508629 W10508629 BASKET
4390713 4390713 BLOCK, THERMOSTAT
WP8204624 WP8204624 BOLT
4357250 4357250 BOTTOM HINGE (WHITE)
4390714 4390714 BOX, THERMOSTAT
4390626 4390626 BRACKET
2-32304 2-32304 BUZZER, ALARM
100000 100000 CABINET (NOT A SERVICEABLE PART)
3-35956-013 3-35956-013 CAPACITOR
1-80308-101 1-80308-101 CLAMP
1-80247-101 1-80247-101 CLIP
4390604 4390604 CLIP
W10309994 W10309994 COMPRESSOR
2217635 2217635 COVER
3-80838-003 3-80838-003 COVER, HINGE (WHITE)

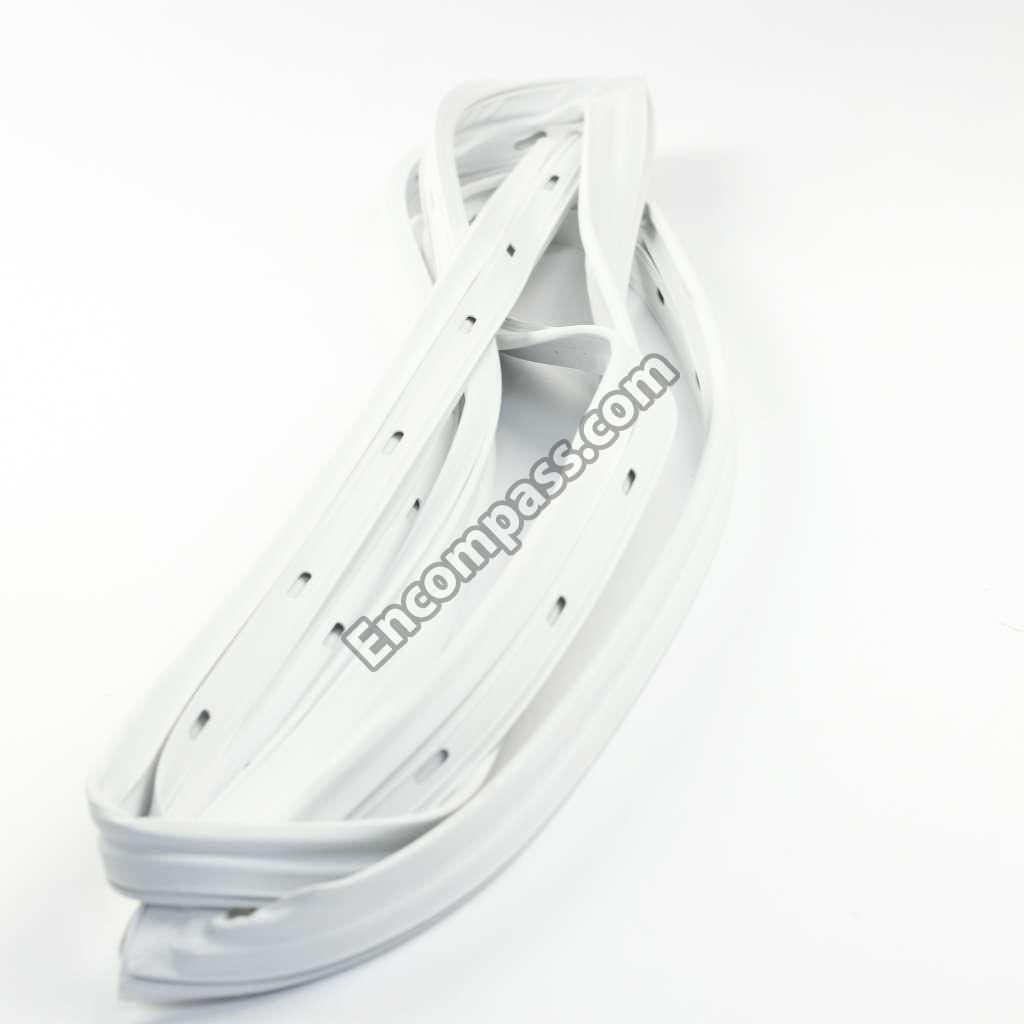

WP4-81049-001 WP4-81049-001 DOOR GASKET (WHITE MODEL)
4390702 4390702 DOOR SHELF TRIM (4)
4390917 4390917 DOOR, EXTERIOR
1-80860 1-80860 DRAIN PLUG
W10843121 W10843121 DRIER-TUBE
4390873 4390873 EVAPORATOR SHELF
4390705 4390705 EVAPORATOR SHELF
4390706 4390706 EVAPORATOR SHELF
4390874 4390874 EVAPORATOR SHELF, BOTTOM
4390872 4390872 EVAPORATOR TOP
4356893 4356893 FOAM BLOCK
WP4-60461-006 WP4-60461-006 GRILLE
4356335 4356335 GROMMET
2-81437-002 2-81437-002 GROMMET, DRAIN
3-82596-002 3-82596-002 HANDLE (WHITE)
4390809 4390809 HEAT EXCHANGER
4390731 4390731 HINGE, BUSHING
WP2-82012-001 WP2-82012-001 INSERT, HANDLE
4390718 4390718 INTERIOR DOOR

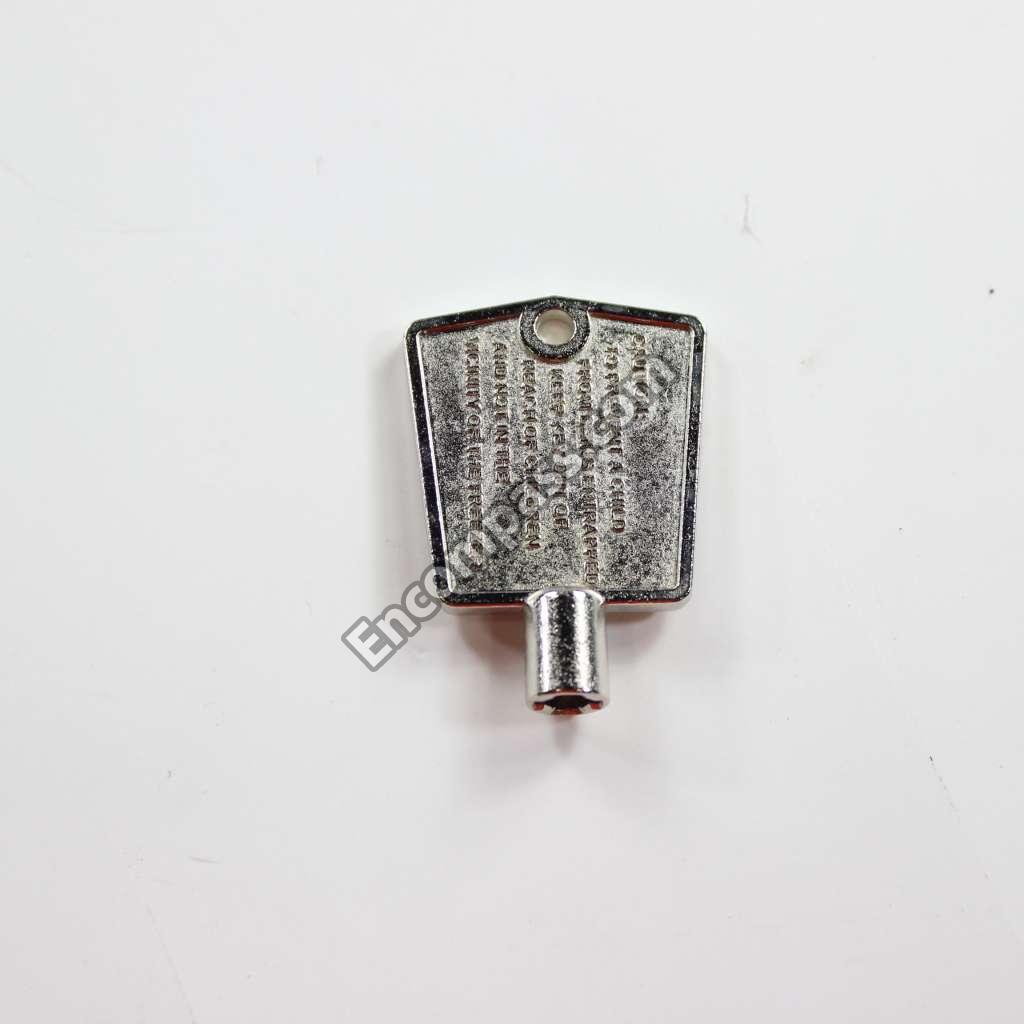

WP4356840 WP4356840 KEY
4-81294-004 4-81294-004 KNOB, THERMOSTAT
W11117769 W11117769 LEVELER
4390712 4390712 LID, THERMOSTAT BOX
W10873798 W10873798 LIGHT BULB
LIT4390699 LIT4390699 LITERATURE PARTS (ENERGY LABEL)
LIT4390678 LIT4390678 LITERATURE PARTS (OWNERS MANUAL)
4357145 4357145 LOCK KIT (INCLUDES ITEMS 6, 7, 8, 9, 10 & 13)
4357224 4357224 LOCK, BOLT
4390867 4390867 NAMEPLATE
2-34286-021 2-34286-021 OVERLOAD
799344 799344 PAINT
4357258 4357258 PAN, COMPRESSOR MOUNTING
1-81154 1-81154 PLATE, THERMOSTAT
4390693 4390693 POWER CORD
WP4356738 WP4356738 RELAY-STRT
WP489478 WP489478 SCREW
WPW10068250 WPW10068250 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP3-24838-048 WP3-24838-048 SCREW
W10491985 W10491985 SCREW
4390716 4390716 SCREW
4390598 4390598 SCREW
WP489491 WP489491 SCREW
4356852 4356852 SCREW, COMPRESSOR MOUNTING
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
4357285 4357285 SHIELD, LIGHT
4356828 4356828 SHIM, BOTTOM
4356846 4356846 SLEEVE, GROMMET
2005042 2005042 SOCKET, LIGHT
350930 350930 SPRAY (13 OZ.) (WHITE)
4356842 4356842 SPRING CLIP
W11384469 W11384469 SWITCH
4390711 4390711 SWITCH, ALARM
W11238399 W11238399 TAPE
4390715 4390715 THERMODISC, ALARM
8210226 8210226 THERMOSTAT
4390673 4390673 TOP, HINGE (WHITE)
3-24898-007 3-24898-007 VENT PLUG
4356847 4356847 WASHER
W10903204 W10903204 WASHER
4356992 4356992 WASHER
W10851331 W10851331 WASHER, DOOR SPACER
