Model Image
Manufacturer

Whirlpool

Model Number

CS25B7DB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
61004136 61004136 ARM, SENSOR
WP627843 WP627843 ARM-EJECTR
WP2182124 WP2182124 ARM-STRIPR
61003326 61003326 AUGER
69697-1 69697-1 BEARING, SPACER
61002504 61002504 BEZEL NAM
WP627985 WP627985 BIMETL-DEF
61004802 61004802 BIN, ICE
69702-1 69702-1 BLADE CRU
69706-1 69706-1 BLADE CRU
69702-2 69702-2 BLADE, CRUSHER
WP61005066 WP61005066 BLADE, EVAPORATOR FAN
WP12587601 WP12587601 BLADE- CON
69702-3 69702-3 BLADE-CRU
61003213 61003213 BLOCK, AIR
61003288 61003288 BOARD- DEL
WP2256087 WP2256087 BRACKET
61003216 61003216 BRACKET E
61003215 61003215 BRACKET E
69181-1 69181-1 BRACKET F
61004278 61004278 BRACKET M
61004809 61004809 BRACKET, CONTROL ROD
61001930 61001930 BRACKET, EVAPORATOR FAN
61003591 61003591 BRACKET, FOUNTAIN (BLK)
61002235 61002235 BUSHING, EVAPORATOR FAN
WP65889-4 WP65889-4 CAPACITOR
876776 876776 CAPACITOR
876595 876595 CAPACITOR
61004801 61004801 CHUTE ICE
WP488878 WP488878 CLAMP
53516-9 53516-9 CLAMP
WP67005457 WP67005457 CLIP
WP2315522 WP2315522 CLIP
61003137 61003137 CLIP TEMP
M0104102 M0104102 CLIP, CORD
67877-1 67877-1 CLIP, FILL TUBE
2163787 2163787 CLIP, MOUNTING
61003647 61003647 CLOSER- DO
WP61003456 WP61003456 CNTRL-TEMP
W10309995 W10309995 COMPRESSOR
61003130 61003130 CONDENSER
69699-1 69699-1 CONE ICE
61004803 61004803 COVER
61003387 61003387 COVER EVA
61003537 61003537 COVER LOW
61003388 61003388 COVER, COIL (LWR)
61003383 61003383 COVER, COIL (UPR)
61005374 61005374 COVER, ICE MAKER
61004678 61004678 COVER, UPPER HINGE (BLK)
61003529 61003529 COVER- LOW
WP61006081 WP61006081 COVER-TOP
WP628356 WP628356 CUP-FILL
61003205 61003205 DIVERTER, AIR
61003142 61003142 DOOR DAMP
69718-1 69718-1 DOOR ICE
61004609 61004609 DOOR, DAIRY
61004776 61004776 DOOR, ICE ACCESS
12001991 12001991 DOOR-CHUTE
61003463 61003463 DRAWER, FRZ.
WPW10143759 WPW10143759 DRIER-UV
61005614 61005614 ENCLOSURE, ICE
61003682 61003682 ENDCAP (BLK)
61004334 61004334 ESCUTCHEON (BLK)

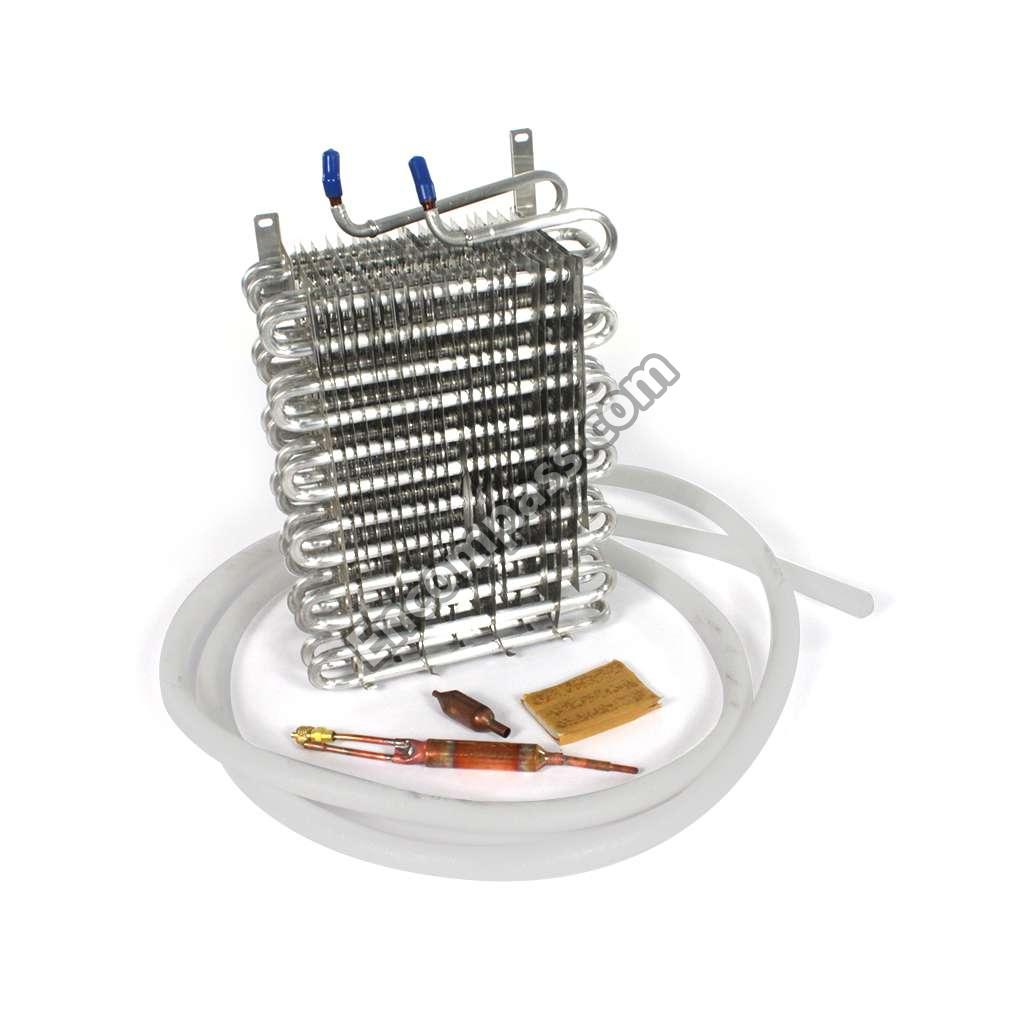

12001640 12001640 EVAPORATOR
WP61004888 WP61004888 EVAPORATOR MOTOR
WP2300868 WP2300868 FITTING
61003152 61003152 FOIL HEAT
WP61003304 WP61003304 FOIL, FTN. BACK
61003140 61003140 FOLLOWER
61003373 61003373 FRAME SHE
61003168 61003168 FRAME, HANDLE
61003775 61003775 FRONT, PICK-OFF
61003499 61003499 FRONT, PICK-OFF
A3189394 A3189394 GASKET, BOTTOM
WP61003241 WP61003241 GLASS, CRISPER SHELF
61003157 61003157 GLASS, MEAT SHELF
61003374 61003374 GLASS, SHELF
61003594 61003594 GRILL BLK
WP4387558 WP4387558 GROMMET
61002033 61002033 GROMMET C
17245-4 17245-4 GROMMET, COMPRESSOR
61003300 61003300 GROMMET, WATER TUBE
WP61004743 WP61004743 GROMMET- B
WP69715-1 WP69715-1 GUIDE- YOK
61003684 61003684 HANDLE FR
WP61006116 WP61006116 HEATER T
WP61003125 WP61003125 HEATER, FOUNTAIN
WP61004896 WP61004896 HINGE, UPPER
61002361 61002361 HINGE-DOOR
61002657 61002657 HOLDER BE
WP61003133 WP61003133 HOSE, DRAIN
WP61004681 WP61004681 HOUSING
61003135 61003135 HOUSING C
61003382 61003382 HOUSING E
61004804 61004804 HOUSING, CRUSHER
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
70036-1 70036-1 IMPELLER
WP63052-2 WP63052-2 IMPELLER
61003527 61003527 INSERT HA
61004800 61004800 INSULATION
61003144 61003144 INSULATION
61004279 61004279 INSULATION
WP61003339 WP61003339 INSULATION
WP61003340 WP61003340 INSULATION
WP61003308 WP61003308 INSULATION
WP61003343 WP61003343 INSULATION
61004584 61004584 ISOLATOR
61004067 61004067 KICKPLATE (BLK)
12001345 12001345 KIT-UNIT C
61003136 61003136 KNOB TEMP
61003138 61003138 KNOB, FRZ. CONTROL
61002014 61002014 LEG- LEVEL
W10887190 W10887190 LIGHT BULB
W10857122 W10857122 LIGHT BULB
W11679940 W11679940 LIGHT BULB
61005416 61005416 LINER, F.F. DOOR
61003476 61003476 LINER, FRZ. DOOR
69708-1 69708-1 LOCK FIXE
61003134 61003134 MANUAL
12001773 12001773 MOTOR
833697 833697 MOTOR-COND
61002508 61002508 NAMEPLATE (BLK)
WP486692 WP486692 NUT
8201513 8201513 NUT
WP627018 WP627018 NUT
WP245183 WP245183 NUT
69709-1 69709-1 NUT, AUGER
61002640 61002640 ORGANIZER
12002783 12002783 OVERLOAD
61003593 61003593 PAD ACTUA
61005268 61005268 PAN COMPR
61003371 61003371 PAN, COMPRESSOR MTG.
61003159 61003159 PAN, CRISPER
61006208 61006208 PAN, DELI
61004095 61004095 PAN, DRAIN
61006111 61006111 PAN, MEAT
61004479 61004479 PANEL, F.F. DOOR (BLK)
61003585 61003585 PANEL, FRZ. DOOR (BLK)
69705-1 69705-1 PIN BLADE
WP61003174 WP61003174 PIN- LOWER
WP61002104 WP61002104 PIN- WHEEL
WP9705445 WP9705445 PIN-ROLL
69755-1 69755-1 PLATE DRI
69701-1 69701-1 PLATE, IMPELLER
52656-2 52656-2 PLUG COMP
61001952 61001952 PLUGHOLE
61003240 61003240 RAIL SHEL
70119-1 70119-1 RECEPTACLE
68974-3 68974-3 RECEPTACLE, BULB
12001547 12001547 REPAIR KIT
61003139 61003139 RETAINER
61003250 61003250 RETAINER, CONTROL SLIDE
61002234 61002234 RETAINER, EVAPORATOR FAN
69704-1 69704-1 RING, SNAP
WP61003336 WP61003336 RING- DRIV
61004807 61004807 ROD, CRUSHER CONTROL
61003155 61003155 ROD, DAMPER CAM
WP61003826 WP61003826 ROLLER-CAB
WP681249 WP681249 SCREW
61004052 61004052 SCREW
415013-35 415013-35 SCREW
61003307 61003307 SCREW
415041-35 415041-35 SCREW
61004424 61004424 SCREW
WPW10348409 WPW10348409 SCREW
WP489069 WP489069 SCREW
WPM0223816 WPM0223816 SCREW
WP67006715 WP67006715 SCREW
WP489478 WP489478 SCREW
W11233072 W11233072 SCREW
61005388 61005388 SCREW
WP488234 WP488234 SCREW
WP67006908 WP67006908 SCREW
WP489399 WP489399 SCREW
61003172 61003172 SCREW
W10856122 W10856122 SCREW
WP3-24838-048 WP3-24838-048 SCREW
3400112 3400112 SCREW
WP8281196 WP8281196 SCREW
WP8281227 WP8281227 SCREW
WP489128 WP489128 SCREW
2006253 2006253 SCREW, 8-32 X .340
61004869 61004869 SEAL
61003161 61003161 SEAL CRIS
61003206 61003206 SEAL, AIR DIVERTER
61003531 61003531 SEAL, F.F. DOOR (BLK)
61003540 61003540 SEAL, FRZ. DOOR (BLK)
61003837 61003837 SEAL, LOWER COVER
61003386 61003386 SEAL, UPPER COVER (TOP)
61003819 61003819 SEAL- TUNN
WP854334 WP854334 SEAL-STRIP
Y00000000 Y00000000 SEE NOTE (STRIKE NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)
61003592 61003592 SELECTOR
61003392 61003392 SHELF, FRZ.
61003461 61003461 SHELF, FRZ. (SHALLOW)
61003498 61003498 SHELF, PICK-OFF
61003239 61003239 SHELF, SPILL PROOF
61003149 61003149 SHIELD HE
61003217 61003217 SHIELD LI
61002272 61002272 SHIELD, LIGHT
61001922 61001922 SHIM- UPPE
61001941 61001941 SHROUD CO
61003380 61003380 SHROUD, FAN
WP487627 WP487627 SLEEVE
61003249 61003249 SLIDE, CONTROL (MEAT)
WPW10119935 WPW10119935 SOCKET
WP61005253 WP61005253 SOLENOID
69696-2 69696-2 SPACER BL
69696-1 69696-1 SPACER CR
61004808 61004808 SPRING, CONTROL ROD
61003141 61003141 SPRING- DA
61004388 61004388 SPRING- FT
61003471 61003471 STOP, DOOR
W11096517 W11096517 SUPPORT- E
WP61005028 WP61005028 SUPPORT- I
16010154 16010154 SVC MAN,SXS
55440-3 55440-3 SWITCH
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
61003290 61003290 SWITCH LI
55440-2 55440-2 SWITCH, ICE & WATER
WP61005520 WP61005520 SWITCH, LIMIT
7403P067-60 7403P067-60 SWITCH, ROCKER (BLK)
WP61003689 WP61003689 TANK-WATER
WP61003286 WP61003286 TAPE (1FT.)
WP68233-2 WP68233-2 TIMER- DEF
67004412A 67004412A TRAY, BUTTER
WP67004411 WP67004411 TRAY-EGG
61003162 61003162 TRIM
61003681 61003681 TRIM, HANDLE EXT. (LWR-BLK)
61003680 61003680 TRIM, HANDLE EXT. (UPR-BLK)
61003245 61003245 TRIM, SHELF
61003244 61003244 TRIM, SHELF
61003248 61003248 TRIM, SHELF (CRISPER-W/SLIDE)
61003390 61003390 TRIM, SHELF (FRT)
WPB5705307 WPB5705307 TUBE
61004751 61004751 TUBE, DRAIN
12001935 12001935 TUBE-INLET
61004557 61004557 TUBING, FOUNTAIN
53726-2 53726-2 TUNNEL AI
61003146 61003146 TUNNEL, CONTROL HOUSING
61005626 61005626 VALVE, WATER (ICE MAKER)
489234 489234 WASHER
WPM0274039 WPM0274039 WASHER
69698-1 69698-1 WASHER, CONE STOP
61005232 61005232 WHEEL ASSEMBLY. (FRT)
61004805 61004805 WIRE HARNE
61003259 61003259 WIRE HARNE
61003468 61003468 WIRE HARNE
61004280 61004280 WIRE HARNE
61004917 61004917 WIRE HARNE
61003204 61003204 WIRE HARNESS, FAN & HEATER
61003154 61003154 WIRE HARNESS, FRZ./F.F.
61003455 61003455 WIRE HARNESS, FTN. SWITCHES
61003318 61003318 WIRE HARNESS, ICE MAKER
15002403 15002403 WIRING INFORMATION
61005844 61005844 YOKE ASSEMBLY.
