Model Image
Manufacturer

Whirlpool

Model Number

CSP2740KQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
279731 279731 4``-90 ELBOW
W10545923 W10545923 ASSEMBLY, DRUM
WPW10113136 WPW10113136 BAFFLE-DRM
WP3387242 WP3387242 BEARING & SEAL
661570 661570 BELT
WP3397659 WP3397659 BLOCK-TERM
WP8576635 WP8576635 BOLT

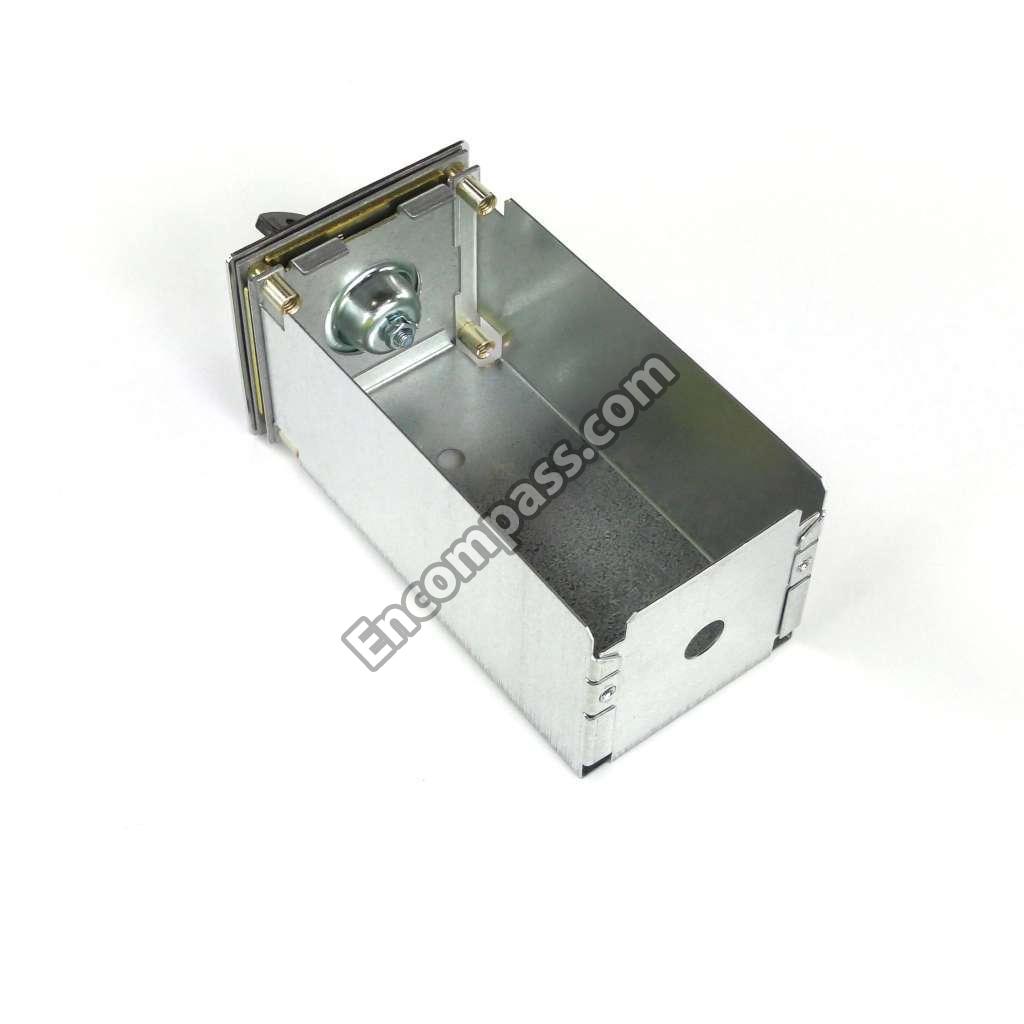

W11190039 W11190039 BOX
W10802681 W10802681 BOX
8066099 8066099 BRACKET
3390115 3390115 BRACKET
3979115 3979115 BRACKET, ANGLE
W10837240 W10837240 BRACKET, IDLER
WP3387118 WP3387118 BRACKET, MOTOR
279457 279457 BRACKET-FRONT FRAME SUPPORT (2 REQ)
W11299300 W11299300 BULKHEAD
WP697557 WP697557 BULKHEAD
3389233 3389233 BUSHING
W11417441 W11417441 CABINET
WP339855 WP339855 CAM
WP343777 WP343777 CAM
WP339853 WP339853 CAM
WP339854 WP339854 CAM
WP3387974 WP3387974 CAM (3 PIN (60 MIN.))
279570 279570 CATCH, DOOR
WP660658 WP660658 CLAMP
WP297092 WP297092 CLIP
3391846 3391846 CLIP
WP3390902 WP3390902 CLIP
3388600 3388600 CLIP, LINT DUCT
WP3388229 WP3388229 CLIP, TOE PANEL LOCK
W10862444 W10862444 COLLAR
WP717253 WP717253 CONNECTOR
3936144 3936144 CONNECTOR
3395683 3395683 CONNECTOR, (MOTOR)
63823 63823 COTTER PIN
WPW10354249 WPW10354249 COVER
279780 279780 COVER
W11736322 W11736322 COVER, TERMINAL BLOCK
67001285 67001285 COVER- FZ
W11663440 W11663440 DOOR
W11222846 W11222846 DOOR, LINT SCREEN
280083 280083 DOOR-REAR
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10841144 W10841144 DRIVE MOTOR
WP3387911 WP3387911 DUCT-AIR
W10470674 W10470674 EXHAUST KIT
3390424 3390424 EXTENSION
WP689172 WP689172 FEET-LVLNG
49621 49621 FOOT, PLASTIC
279950 279950 FUNNEL
WP385421 WP385421 FUNNEL, COIN (COIN MECHANISM PARTS MAY BE ORDERED FROM WHIRLPOOL OR THE VENDOR(S) LISTED BELOW)
W11086603 W11086603 GRILLE, OUTLET
3389522 3389522 HANDLE
WP3401103 WP3401103 HARNESS (UPPER) 56A
8283296 8283296 HARNS-WIRE
8576522 8576522 HARNS-WIRE
8283298 8283298 HARNS-WIRE
3401104 3401104 HARNS-WIRE
W10864898 W10864898 HEATER ELEMENT
W11175815 W11175815 HINGE & PIN ASSEMBLY (2)
WP8544363 WP8544363 HOUSING
W11129408 W11129408 HOUSNG-OUT
W11312584 W11312584 INSERT
4396667 4396667 INSERT
WP8565384 WP8565384 INSERT, DECORATIVE
LIT8527813 LIT8527813 INSTALLATION INSTRUCTIONS
279973 279973 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
285875 285875 KIT-SECUR
3979326 3979326 LAMP, INDICATOR (AMBER)
3979327 3979327 LAMP, INDICATOR (BLUE)
3979325 3979325 LAMP, INDICATOR (RED)
WP8066120 WP8066120 LEVER
8530036 8530036 LINT DUCT ASSEMBLY

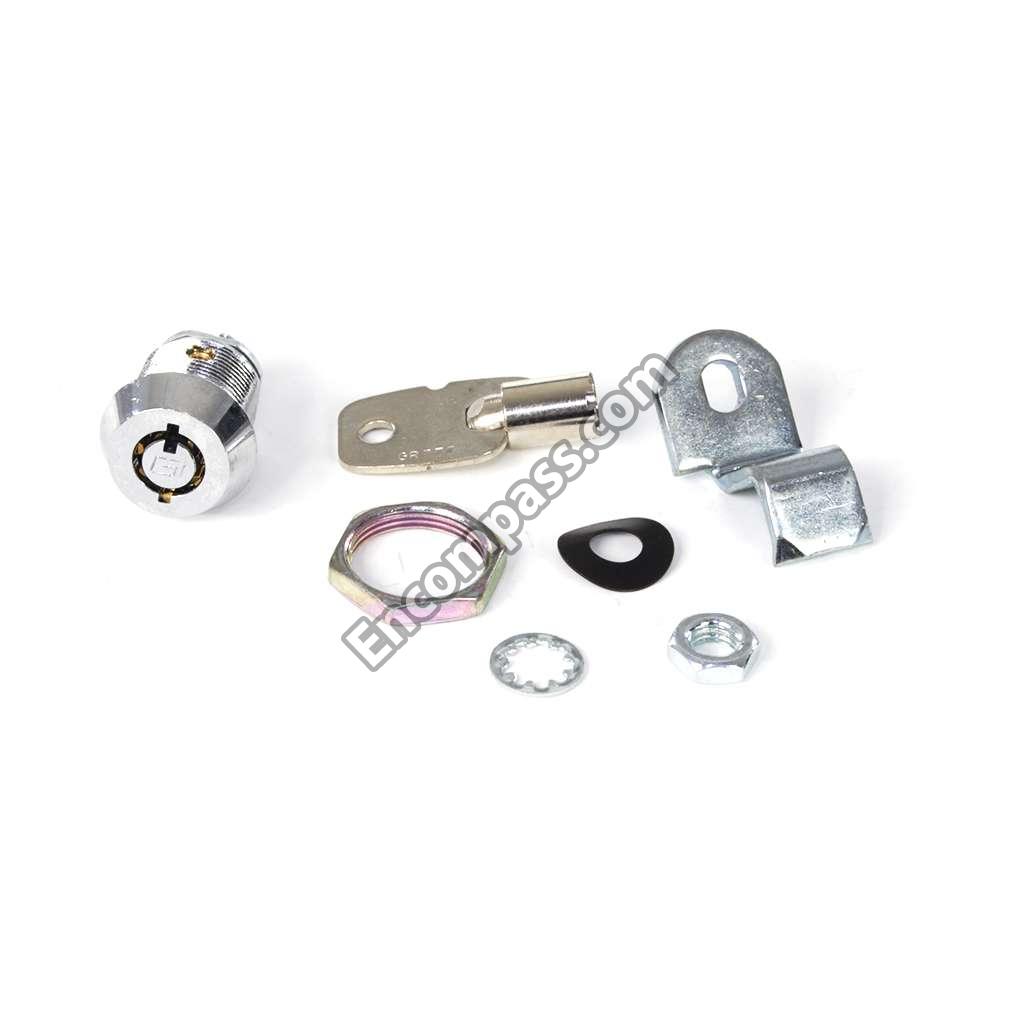

W11315637 W11315637 LOCK-CAM
303776 303776 NO DESCRIPTION AVALIABLE
WP3389249 WP3389249 NUT
WP3359452 WP3359452 NUT, 3/8 X 16 (R.H.)
WP3387709 WP3387709 NUT, 3/8-16 (L.H.)
799344 799344 PAINT
279722 279722 PANEL
3979100 3979100 PANEL, CONTROL
279936 279936 PIPE-EXHST
8066086 8066086 PLUG
692997 692997 PLUG, MULT- TERMINAL 56B
350938 350938 PRIMER, GRAY
279640 279640 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
717252 717252 RECEPTACLE
692998 692998 RECEPTACLE (2)
4392067 4392067 REPAIR-DYR
3390443 3390443 RETAINER
354239 354239 RIVET
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN

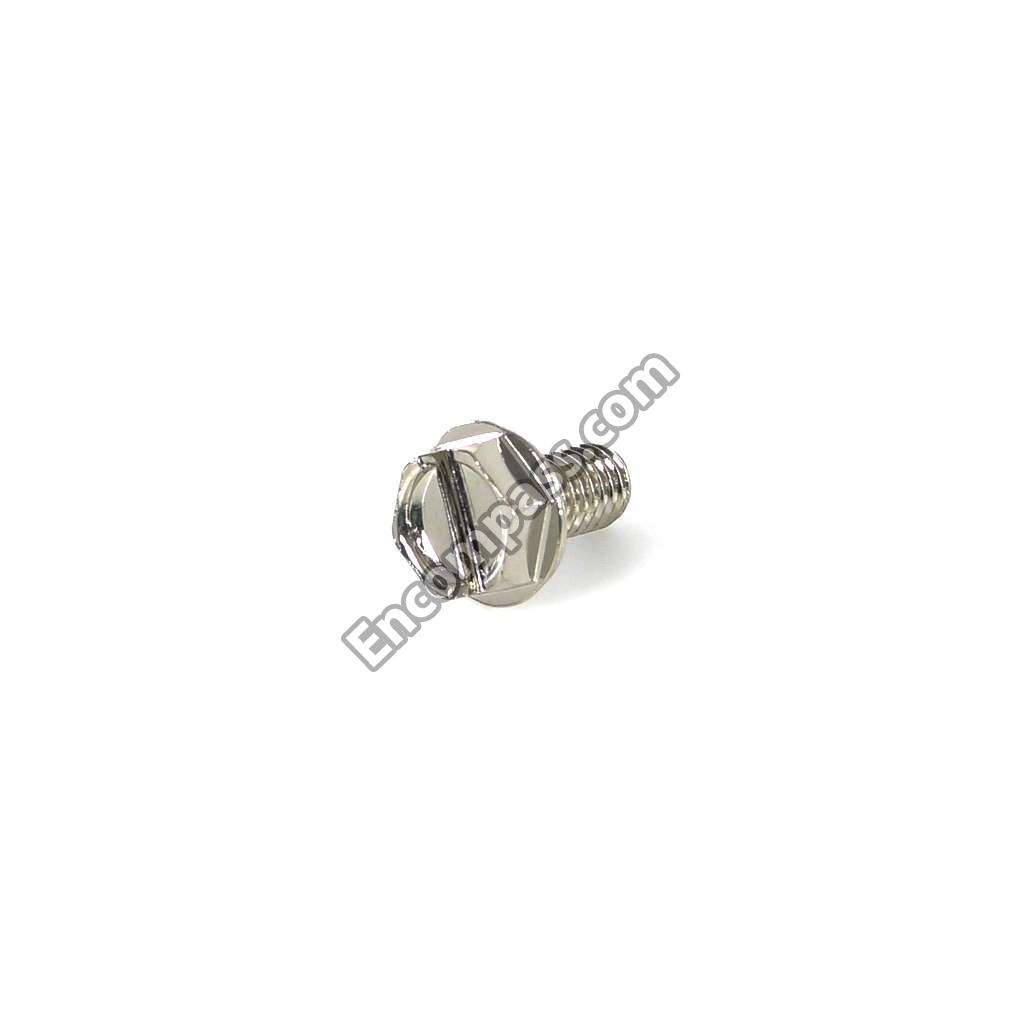

WP3387230 WP3387230 SCREW
W11676450 W11676450 SCREW
3400086 3400086 SCREW
3400500 3400500 SCREW
WP681414 WP681414 SCREW
WP3373329 WP3373329 SCREW
WP3389420 WP3389420 SCREW
WP3395530 WP3395530 SCREW
681615 681615 SCREW
WP98129 WP98129 SCREW
WP488627 WP488627 SCREW
WP694091 WP694091 SCREW
W10850756 W10850756 SCREW
WP489128 WP489128 SCREW
WP356418 WP356418 SCREW
WP3400094 WP3400094 SCREW
WPW10139210 WPW10139210 SCREW
WP308685 WP308685 SCREW
WPW10109200 WPW10109200 SCREW
WP90767 WP90767 SCREW, 8 A X 3/8
WP488729 WP488729 SCREW, 8 X 3/8
280114 280114 SEAL
WP697770 WP697770 SEAL
WP8566209 WP8566209 SEAL
WP3390735 WP3390735 SEAL, DOOR
WP697813 WP697813 SEAL, OUTLET HOUSING
LIT8533551 LIT8533551 SERVICE PARTS LIST
WPW10359271 WPW10359271 SHAFT
WPW10359272 WPW10359272 SHAFT

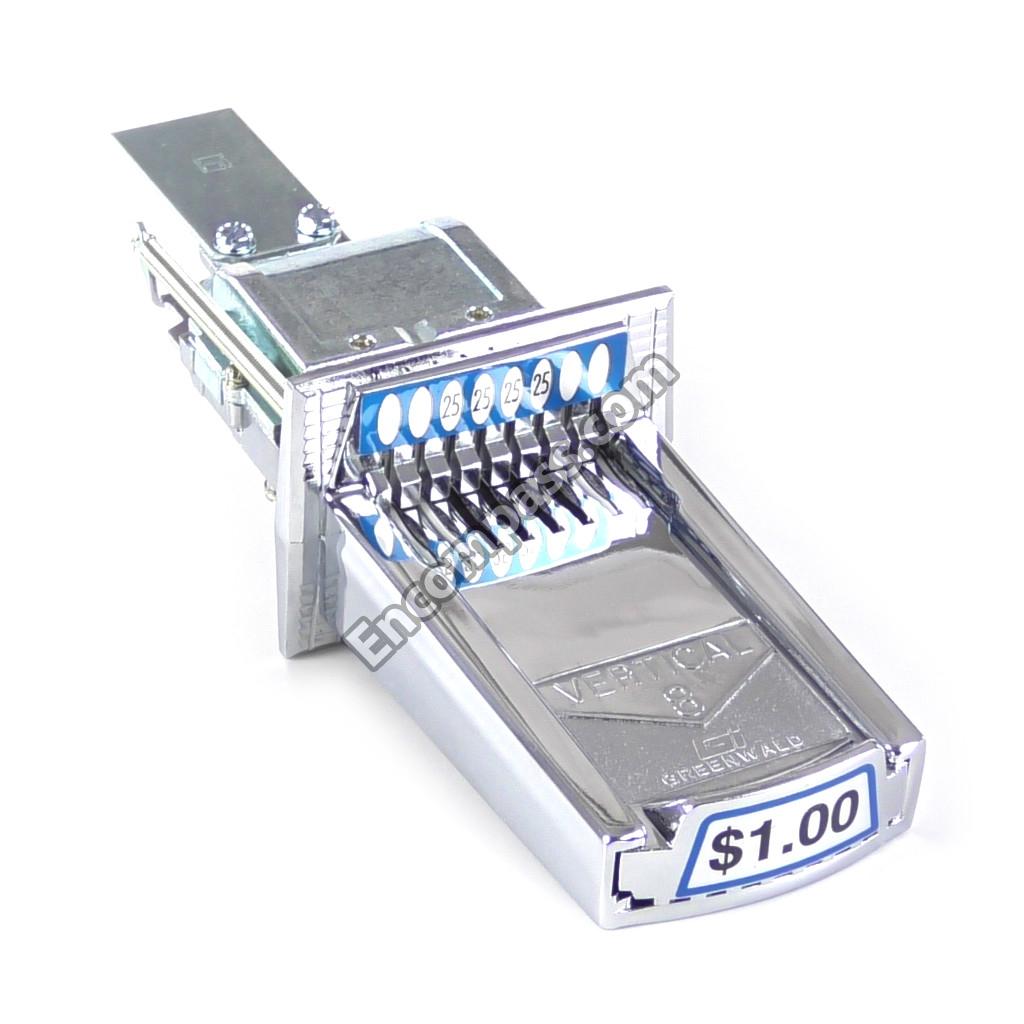

W11244229 W11244229 SLIDE-COIN
350930 350930 SPRAY (13 OZ.) (WHITE)
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING, IDLER
WPW10314173 WPW10314173 SUPPORT

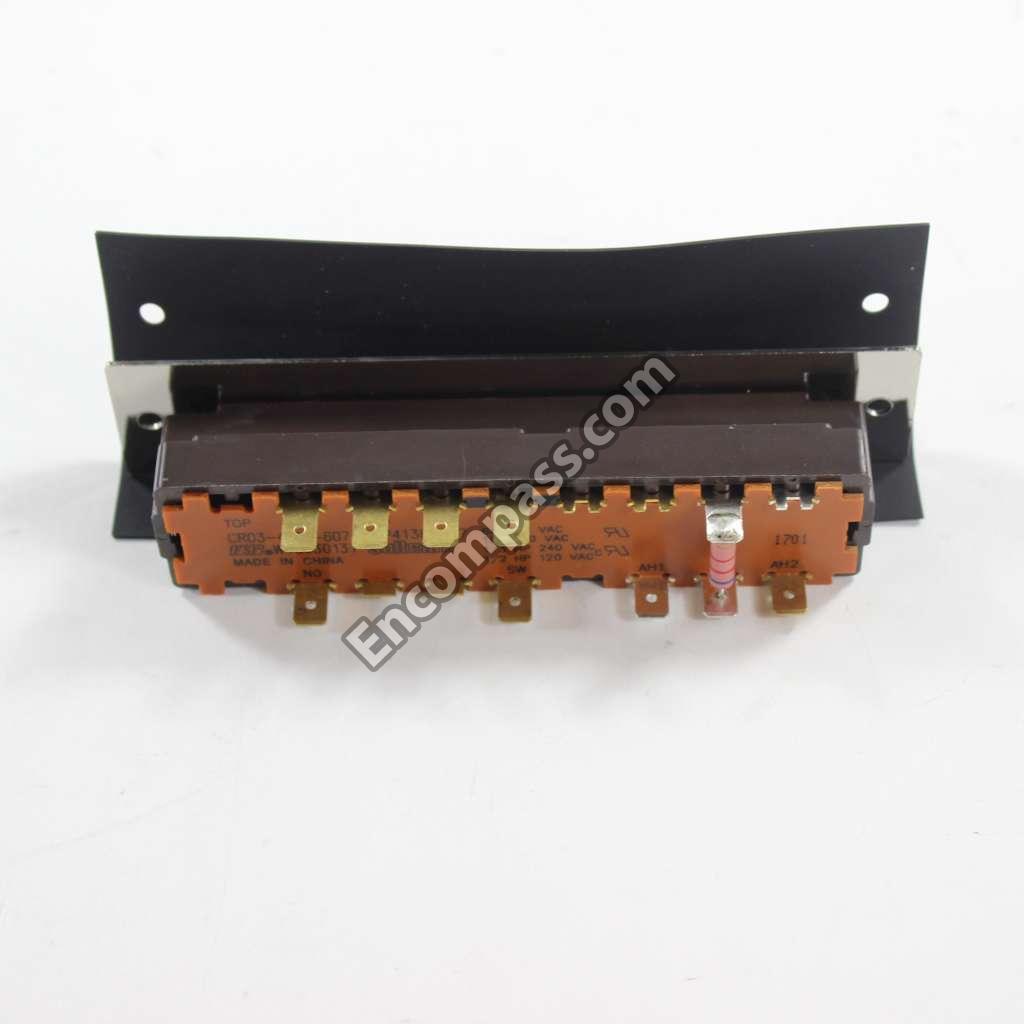

WPW10330137 WPW10330137 SWITCH, PUSHBUTTON (2)
WPW10237959 WPW10237959 SWITCH-DOR
279782 279782 SWITCH-PLG
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 42)
W11224254 W11224254 TEST KIT
WP3390719 WP3390719 THERMAL FUSE
WP3391914 WP3391914 THERMOSTAT 295~ (146~C)
WP3387138 WP3387138 THERMOSTAT, INTERNAL BIAS
WP3391018 WP3391018 TIE-WIRE

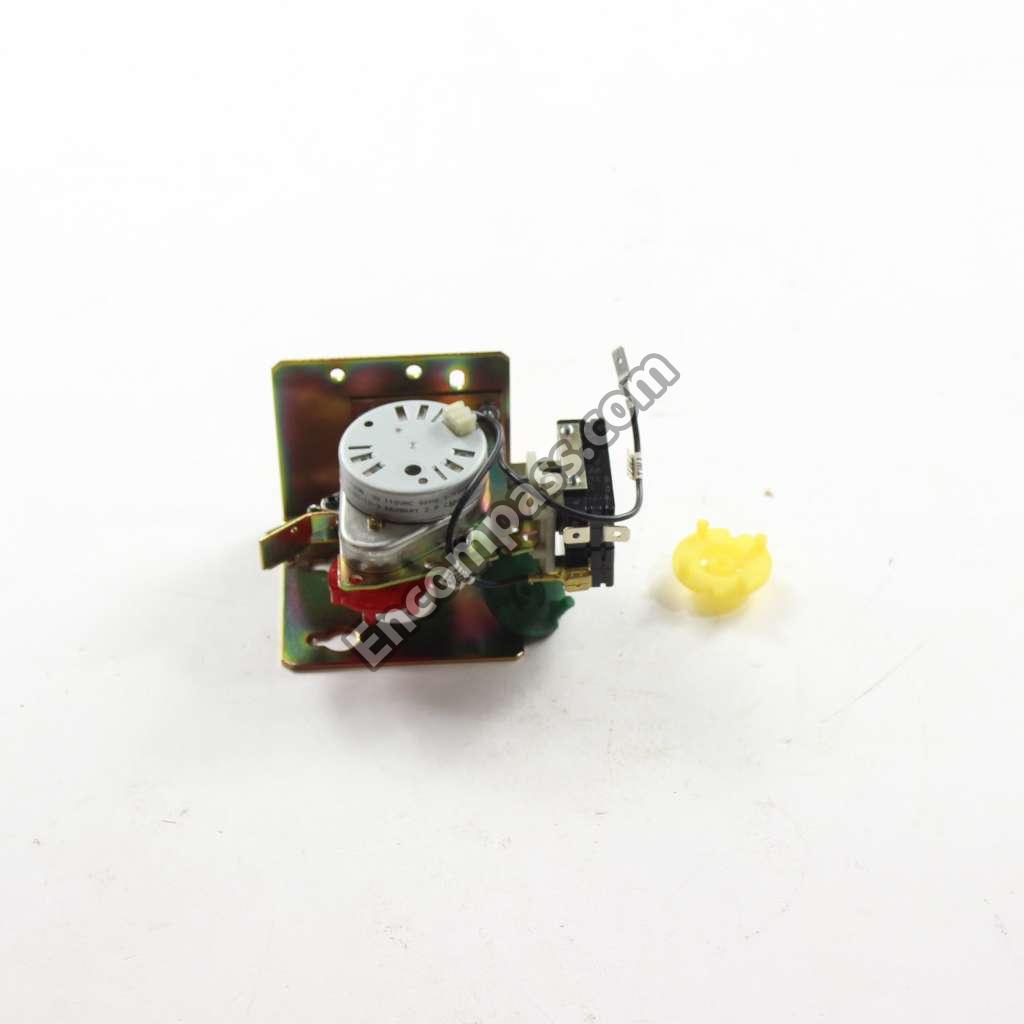

279737 279737 TIMER
WP3406797 WP3406797 TOEPNL
3389351 3389351 TOP
WPW10512946 WPW10512946 TRI-RING (4)
WPW10121334 WPW10121334 WASHER
W11089212 W11089212 WASHER (2)
W11236646 W11236646 WASHER, SUPPORT
WP697772 WP697772 WHEEL, BLOWER
3394081 3394081 WIRE
3398948 3398948 WIRE
3401699 3401699 WIRE
LIT8528098 LIT8528098 WIRING DIAGRAM (LOWER)
LIT8528099 LIT8528099 WIRING DIAGRAM (UPPER)
