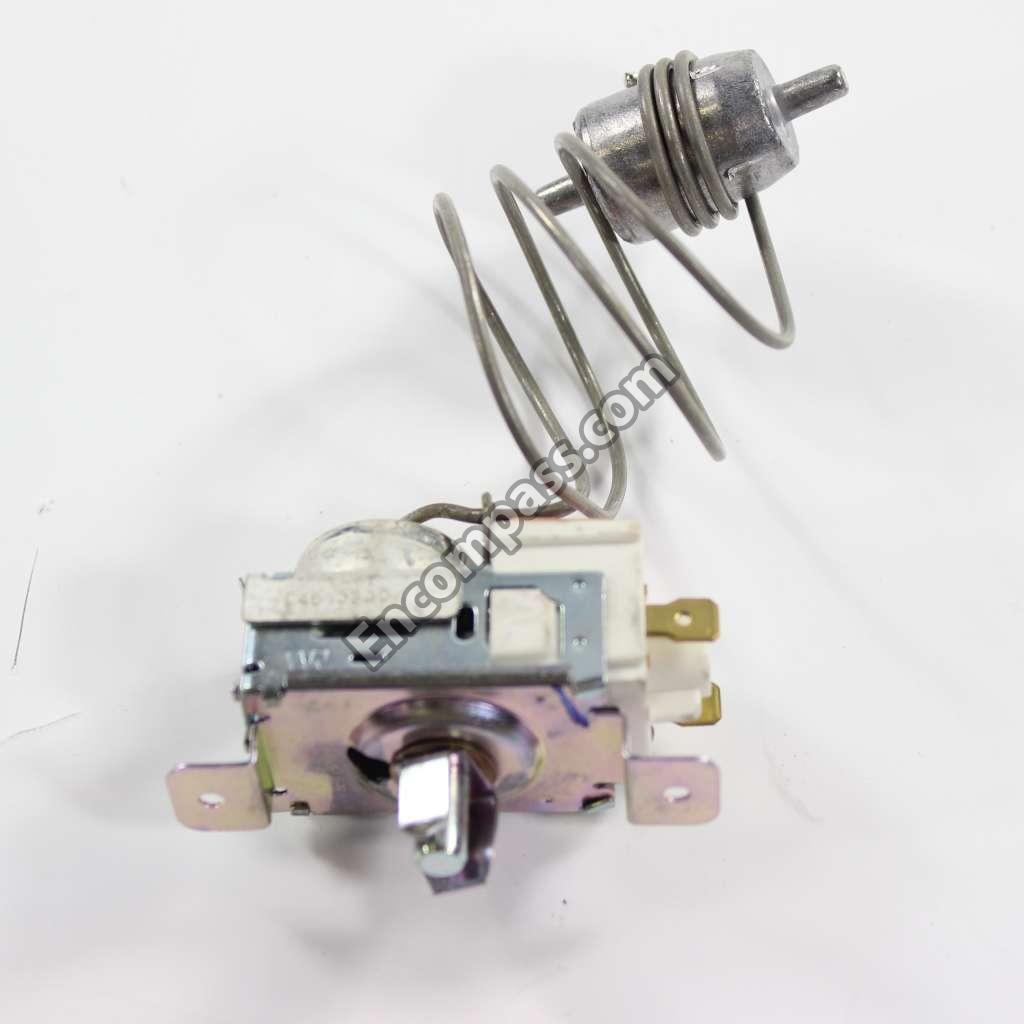

Model Image
Manufacturer

Whirlpool

Model Number

CTB1710DRW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
12593203B 12593203B ACTR PAD FRAME ASSEMBLY (BLK)
61002000 61002000 ARM ACTUA
WP627843 WP627843 ARM-EJECTR
WP2182124 WP2182124 ARM-STRIPR
68112-1 68112-1 ARMSHUT
WP627985 WP627985 BIMETL-DEF
WP61005066 WP61005066 BLADE, EVAPORATOR FAN
WP12587601 WP12587601 BLADE- CON
WP2256087 WP2256087 BRACKET
69181-1 69181-1 BRACKET F
61001930 61001930 BRACKET, EVAPORATOR FAN
61002235 61002235 BUSHING, EVAPORATOR FAN
61002026 61002026 CAP FILL
61002027 61002027 CAP I M W
876776 876776 CAPACITOR
876595 876595 CAPACITOR
W10833902 W10833902 CLAMP
WP61003071 WP61003071 CLIP
WP2315522 WP2315522 CLIP
61002117 61002117 CLIP RECE
M0104102 M0104102 CLIP, CORD
2163787 2163787 CLIP, MOUNTING
65886-1 65886-1 CLIP, TERMINAL COVER
WPM0114003 WPM0114003 CLIP- SPEE
61001975 61001975 CLIP-KICKPLATE
W10170276 W10170276 COMPRESSOR
61002811 61002811 CONDENSER
12001377 12001377 CONTROL
61005790 61005790 CONTROL ASSEMBLY., TEMPERATURE
61001993 61001993 COVER EVA
66589-1 66589-1 COVER TER
61002076 61002076 COVER UPP
61004397 61004397 COVER, COMPRESSOR COMPARTMENT
61005374 61005374 COVER, ICE MAKER
WP628356 WP628356 CUP-FILL
WP61001920 WP61001920 DOOR HINGE
W11045462 W11045462 DOOR TRIM
61002469 61002469 DOOR, DAIRY
WPW10143759 WPW10143759 DRIER-UV
70058-2 70058-2 END CAP, HANDLE (WHT)
WP61002112 WP61002112 ENDCAP
12001396 12001396 EVAPORATOR
WP61004888 WP61004888 EVAPORATOR MOTOR
70052-1 70052-1 FRAME HAN
61002247 61002247 FRAME, HANDLE
61002131 61002131 GLASS- CRI
95099-1 95099-1 GREASE, SILICONE
69743-1 69743-1 GROMMET
61002033 61002033 GROMMET C
17245-4 17245-4 GROMMET, COMPRESSOR
WP61005940 WP61005940 GROMMET, WATER ENTRY
WP61004743 WP61004743 GROMMET- B
70051-3 70051-3 HANDLE F
61005399 61005399 HANDLE, FRZ. DOOR (WHT)
WP61001946 WP61001946 HEATER- DE
WP61004896 WP61004896 HINGE, UPPER
WP61001918 WP61001918 HINGE- LOW
61004622 61004622 HOUSING- C
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP61005273 WP61005273 INLET VALVE
70053-18 70053-18 INSERT HA
61002248 61002248 INSERT, HANDLE (WHT)
WP61002680 WP61002680 KICKPLATE W/CLIPS (WHT)
12001441 12001441 KIT, GLASS SHELF (W/STOPS)
WP61006074 WP61006074 KNOB- CONT
WP61006073 WP61006073 KNOB- CONT
61002014 61002014 LEG- LEVEL
W11679940 W11679940 LIGHT BULB
61001990 61001990 LINER FRZ
61003055 61003055 LINER, F.F. DOOR
16008248 16008248 MANUAL, SERVICE-NO REFUND
61003420 61003420 MANUAL, USE & CARE
833697 833697 MOTOR-COND
66982-31 66982-31 NAMEPLATE
WP486692 WP486692 NUT
WP627018 WP627018 NUT
WP245183 WP245183 NUT
WP2183456 WP2183456 OVERLOAD
61005242 61005242 PAN, COMPRESSOR MTG.
61002175 61002175 PAN, CRISPER
61004095 61004095 PAN, DRAIN
WP61001886 WP61001886 PAN, ICE
61002199 61002199 PANEL, F.F. DOOR (WHT)
61002201 61002201 PANEL, FRZ. DOOR (WHT)
WP61001925 WP61001925 PIN- LOWER
WP61002104 WP61002104 PIN- WHEEL
61001908 61001908 PLUG BUTTON, HINGE CUP (WHT)
52656-2 52656-2 PLUG COMP
67557-2 67557-2 PLUG HOLE
67678-2 67678-2 PLUGHOLE
61001923 61001923 PLUGHOLE
61001795 61001795 PLUGHOLE
WP10097204 WP10097204 RELAY-STRT
61002234 61002234 RETAINER, EVAPORATOR FAN
WP61003826 WP61003826 ROLLER-CAB
WP681249 WP681249 SCREW
61001876 61001876 SCREW
415033-1 415033-1 SCREW
61002924 61002924 SCREW
65275-81 65275-81 SCREW
WP489069 WP489069 SCREW
WPM0223816 WPM0223816 SCREW
WP67006715 WP67006715 SCREW
WP489399 WP489399 SCREW
WP489478 WP489478 SCREW
61005388 61005388 SCREW
W11233072 W11233072 SCREW
61002984 61002984 SCREW
WP489474 WP489474 SCREW
3400112 3400112 SCREW
W10856122 W10856122 SCREW
61002025 61002025 SCREW
WP489128 WP489128 SCREW
WP400021-1 WP400021-1 SCREW
WP8281227 WP8281227 SCREW
61004583 61004583 SEAL
61001967 61001967 SEAL FOAM
WP61004006 WP61004006 SEAL, FRZ. DOOR (WHT)
61001977 61001977 SEAL- DRAI
WP61003998 WP61003998 SEAL- F.F.
61002171 61002171 SHELF, CRISPER
61002141 61002141 SHELF, FREEZER
61001956 61001956 SHIELD DE
61001926 61001926 SHIM LOWE
67934-1 67934-1 SHIM, HANDLE
61001922 61001922 SHIM- UPPE
61001941 61001941 SHROUD CO
WP487627 WP487627 SLEEVE
WPW10119935 WPW10119935 SOCKET
61006147 61006147 STOP, DOOR
61004481 61004481 STOP, DOOR (WHT)
61002241 61002241 STOP, SHELF
61002133 61002133 SUPPORT R
61003012 61003012 SUPPORT, EVAPORATOR (LT)
61003013 61003013 SUPPORT, EVAPORATOR (RT)
WP67764-1 WP67764-1 SUPPORT- C
61002143 61002143 SUPPORT- F
61002142 61002142 SUPPORT- F
W11384469 W11384469 SWITCH
61001999 61001999 TAPE, DAMPER ACTUATOR
WP61002992 WP61002992 THERMOSTAT
WP68233-2 WP68233-2 TIMER- DEF
WP841180A WP841180A TRAY
61004856 61004856 TRAY, DRIP
61003127 61003127 TRIM, FULL SHELF (REAR)
61002240 61002240 TRIM, SHELF (FRT)
WPB5705307 WPB5705307 TUBE
WP61006123 WP61006123 TUBE- DRAI
61005596 61005596 TUNNEL, AIR
WPM0274039 WPM0274039 WASHER
WP61002231 WP61002231 WASHER- HI
61001978 61001978 WHEEL ASM
61002321 61002321 WIRE HARNE
61002212 61002212 WIRE HARNE
WP61001882 WP61001882 WIRE HARNESS
61002012 61002012 WIRE HARNESS, COMP(W/PWR.CORD)
61005033 61005033 WIRE HARNESS, FRZ.
15002064 15002064 WIRING INFORMATION
12001492 12001492 YODER LOOP
