Model Image
Manufacturer

Whirlpool

Model Number

CVG4280B

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601F261-51 3601F261-51 BAFFL-CONV
3415F003-51 3415F003-51 BAND, MOTOR
Y712275 Y712275 BOX, BURNER
WP3801F403-80 WP3801F403-80 BRACKET
71001642 71001642 BRACKET M
74005189 74005189 BURNER RE
Y712601 Y712601 BURNR-GRIL
WP7505P283-60 WP7505P283-60 BURNR-TOP
712311 712311 BUSHING
715780 715780 CLAMP CAB
Y707335 Y707335 CLIP
3415F004-51 3415F004-51 CLIP
705463 705463 CLIP
701958 701958 CLIP TINN
Y704423 Y704423 CLIP, J
Y700503 Y700503 CLIP, RETAINER
Y705155 Y705155 CONDUIT M
Y705154 Y705154 CONNECTOR
71003288 71003288 CONNECTOR-
Y704538 Y704538 COVER BUR
702333 702333 COVER, ACCESS(R.H)
Y704968 Y704968 COVER, MOTOR
74004833 74004833 COVER- BUR
71001651 71001651 ESCUTCHEON (BLK)
Y700556 Y700556 F*CLIP J
WP707929 WP707929 FILTER- GR
715957K 715957K GASKET
12001481 12001481 GRATE
12001178 12001178 GRATE, GRILL (2)
71003267 71003267 GRATE-GRIL
71001648 71001648 GRILL, AIR (BLK)
211881 211881 GROMMET, CORD
16000326 16000326 GUIDE, QUICK REF - JENN-AIR
704556 704556 HARNESS, WIRE
71001654 71001654 HARNESS, WIRE
WP71002179 WP71002179 IGNTR-SURF
Y704534 Y704534 INSULATOR
WP71003558 WP71003558 ISOLATOR-
WPY707869 WPY707869 JAR- DRAIN
12200044 12200044 KIT BURNE
12200022 12200022 KIT GRILL PAN LH
WP71001641 WP71001641 KNOB- VALV
Y706006 Y706006 LID, JAR
WPY707702 WPY707702 LOCKNUT
702889 702889 LOCKNUT CA
70288-9 70288-9 LOCKNUT CAP, W/NYLON INSERT
704568 704568 LOCKWASHER
74006155 74006155 MANIFOLD
71002032 71002032 MANUAL, USE & CARE
1430322 1430322 MODULE, SPARK
Y712550 Y712550 MOTOR COVE
71001578 71001578 MOTOR, BLOWER
Y04100253 Y04100253 NLAMCORD- PO
707161 707161 NUT
M0282005 M0282005 NUT
M0282009 M0282009 NUT
WPY703856 WPY703856 NUT
Y052721 Y052721 NUT
Y704977 Y704977 NUT- 5 8
7103P159-60 7103P159-60 NUT-RETAIN
71001561 71001561 PALNUT
WP3401F034-19 WP3401F034-19 PAN-MODULE
3401X055-09 3401X055-09 PAN-MODULE
71001764 71001764 PIN- LOCAT
4005F648-80 4005F648-80 PLATE, COVER
712434 712434 PLENUM
W11106948 W11106948 REGULATOR-
7428P029-60 7428P029-60 RELAY
12001452 12001452 RELAY CHAN
8038P003-60 8038P003-60 RETAINER
Y707688 Y707688 RETAINER, FILTER
4026F009-51 4026F009-51 RING
4026F008-51 4026F008-51 RING
WP210720 WP210720 RIVET
Y707121 Y707121 SCREW
707407 707407 SCREW
WP90767 WP90767 SCREW
702380 702380 SCREW
WP4381696 WP4381696 SCREW
910187 910187 SCREW
WP71001171 WP71001171 SCREW
W11233072 W11233072 SCREW
WP59002061 WP59002061 SCREW
WP12990527 WP12990527 SCREW
W10491986 W10491986 SCREW
7101P286-60 7101P286-60 SCREW, BURNER MTG
W10777874 W10777874 SCROLL, BLOWER ASSEMBLY.
Y704979 Y704979 SEAL- PAN
12001809 12001809 SPUD-ORFCE
W10341820 W10341820 SWITCH, FAN (BLK)
7403P620-60 7403P620-60 SWITCH, MICRO
WPY704512 WPY704512 SWITCH- VA
WPY704513 WPY704513 SWTCH-IGNR
2001W134-09 2001W134-09 TOP, BLACK
12200047 12200047 TUBING-GAS
12200046 12200046 TUBING-GAS
12200045 12200045 TUBING-GAS

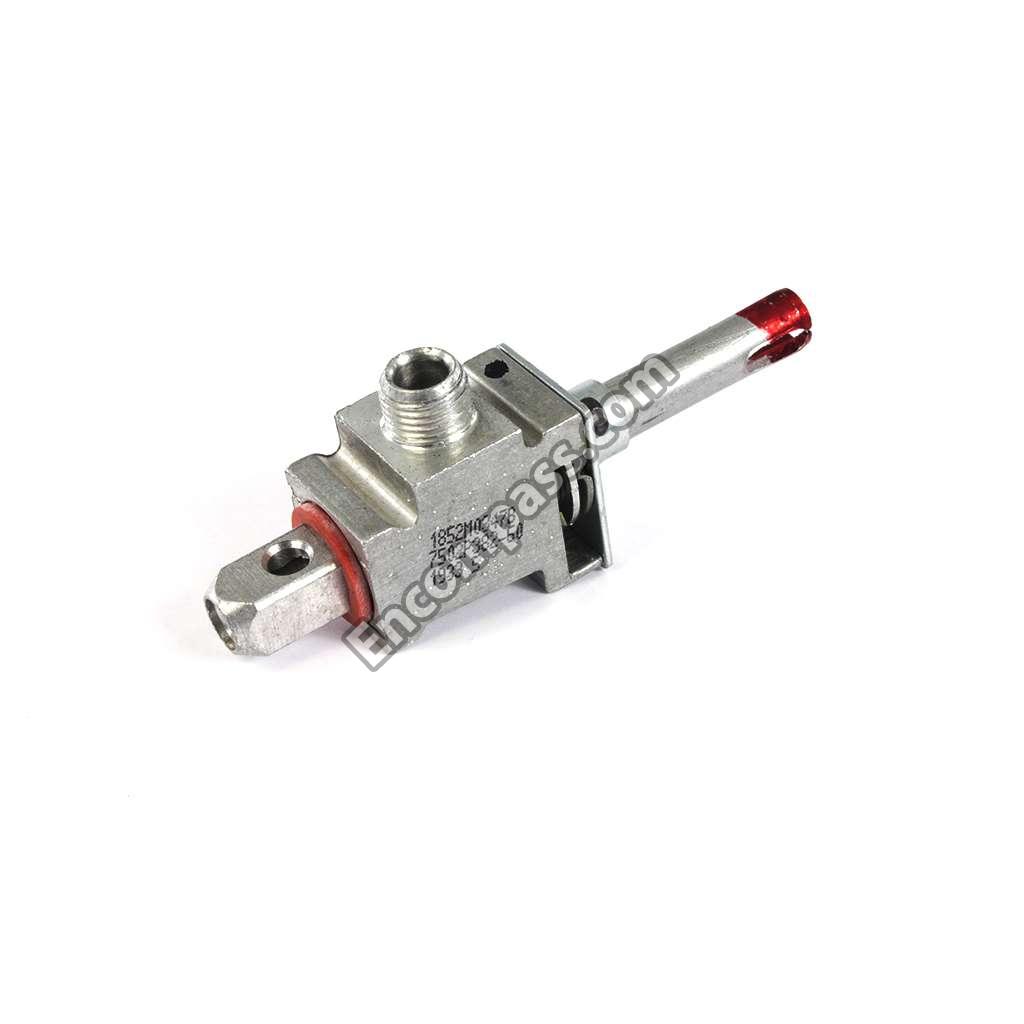

WP7502P382-60 WP7502P382-60 VALVE-BRNR
WPY04100188 WPY04100188 VALVE-BRNR
Y704947 Y704947 WASHER
715617 715617 WASHER TE
WPY707985 WPY707985 WHEEL-FAN
71001568 71001568 WIRE (BLU-BLK)
71001643 71001643 WIRE (BLUE)----NA
71001566 71001566 WIRE (BRN)
71001644 71001644 WIRE (WHT)
71001567 71001567 WIRE (YLW)
704514 704514 WIRE, GREEN
15002637 15002637 WIRING INFORMATION
