Model Image
Manufacturer

Whirlpool

Model Number

CVG4380PG

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601F261-51 3601F261-51 BAFFL-CONV
3415F003-51 3415F003-51 BAND, MOTOR
71002978 71002978 BEZEL, KNOB
71001056 71001056 BEZEL, KNOB (SS)
5525M049-51 5525M049-51 BOTTM-BOX
WP3801F403-80 WP3801F403-80 BRACKET
04100806 04100806 BRACKET, FRONT
04100805 04100805 BRACKET, SIDE
74005189 74005189 BURNER (REAR-BLK)
Y712601 Y712601 BURNR-GRIL
WP7505P283-60 WP7505P283-60 BURNR-TOP
712311 712311 BUSHING
715780 715780 CLAMP CAB
Y707335 Y707335 CLIP
3415F004-51 3415F004-51 CLIP
705463 705463 CLIP
Y04100791 Y04100791 CLIP STRE
701958 701958 CLIP TINN
Y704423 Y704423 CLIP, J
Y705155 Y705155 CONDUIT M
Y705154 Y705154 CONNECTOR
702333 702333 COVER, ACCESS(R.H)
Y704968 Y704968 COVER, MOTOR
7770P005-60 7770P005-60 ESCUTCHEON
WP707929 WP707929 FILTER- GR
715957K 715957K GASKET

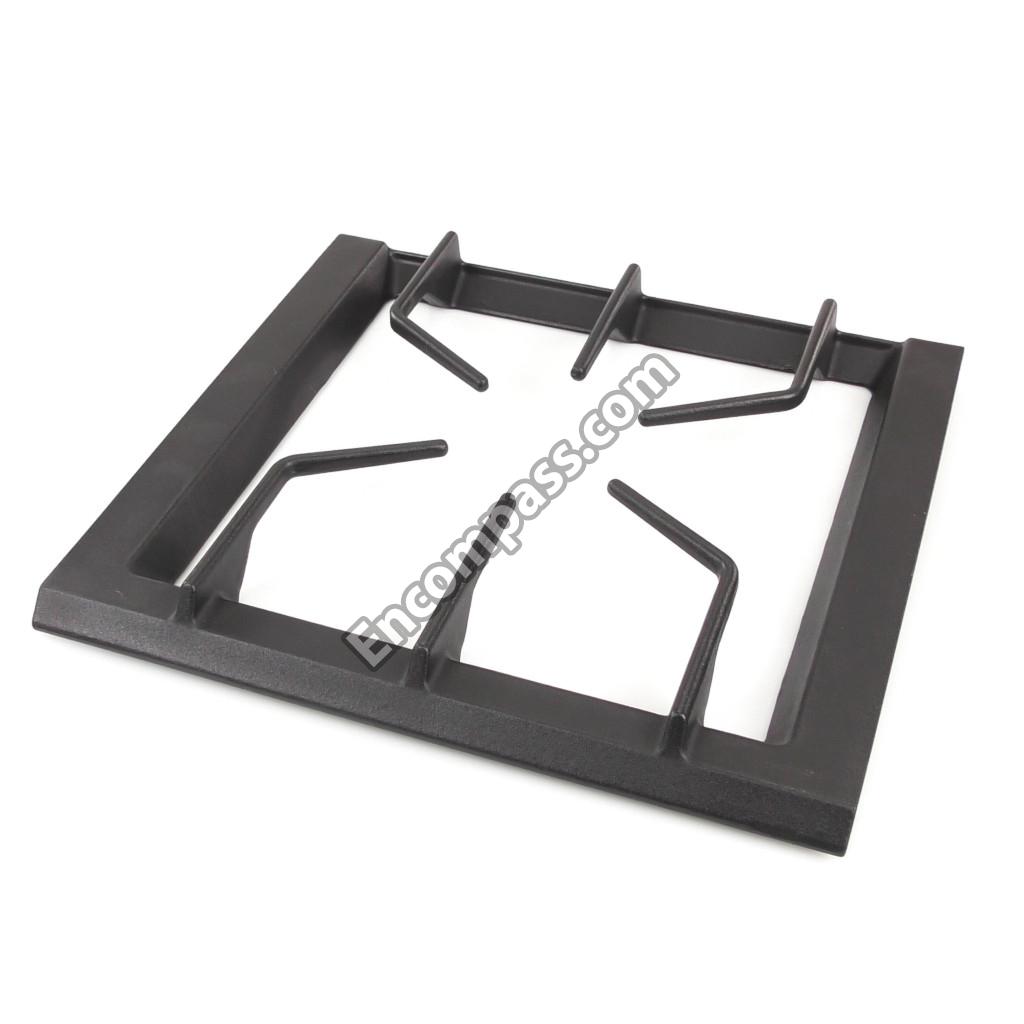

12001481 12001481 GRATE
12001178 12001178 GRATE, GRILL (2)
71003267 71003267 GRATE-GRIL
7772P024-60 7772P024-60 GRILL, AIR (BLK)
211881 211881 GROMMET, CORD
16000326 16000326 GUIDE, QUICK REF - JENN-AIR
Y04100792 Y04100792 HARNESS, WIRE
WP71002179 WP71002179 IGNTR-SURF
Y704534 Y704534 INSULATOR
WP71003558 WP71003558 ISOLATOR-
WPY707869 WPY707869 JAR- DRAIN
12200022 12200022 KIT GRILL PAN LH
71001042 71001042 KNOB FAN

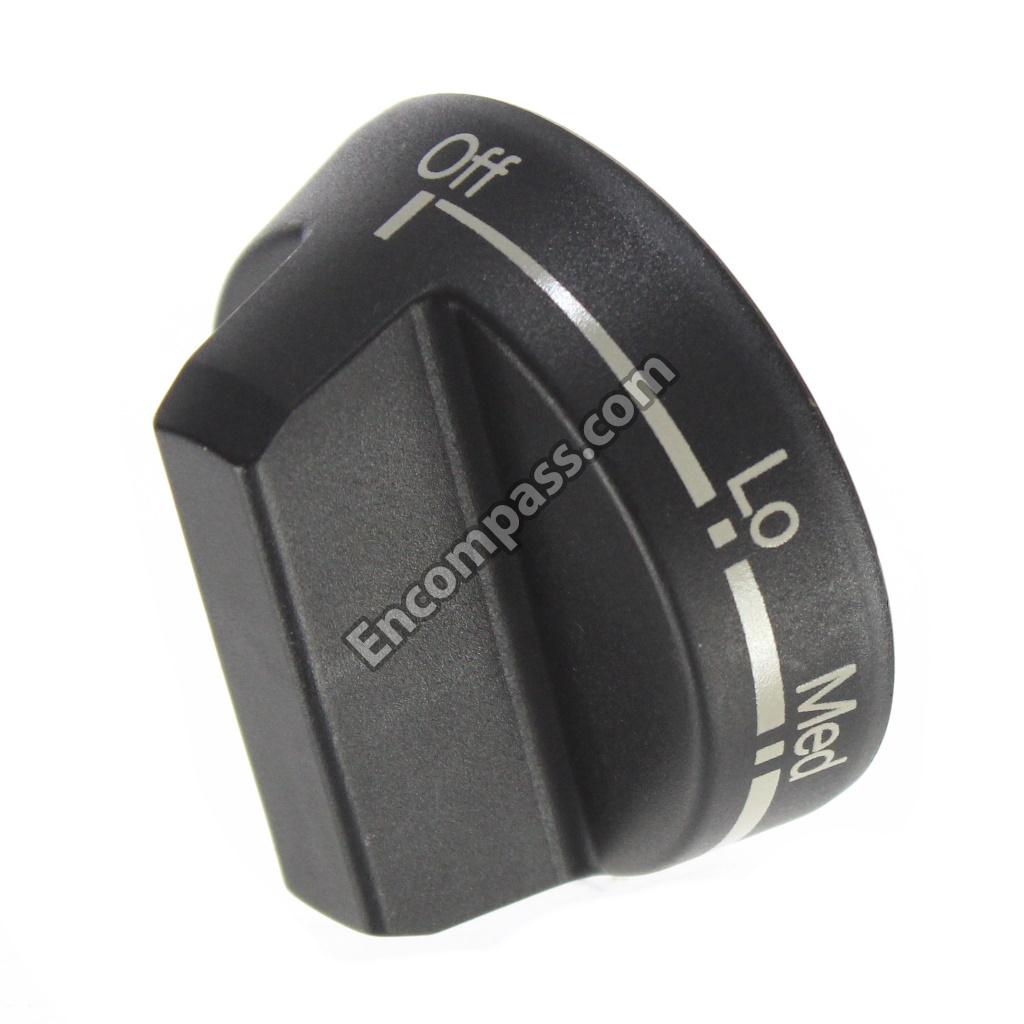

WP71001057 WP71001057 KNOB- VALV
Y706006 Y706006 LID, JAR
WPY707702 WPY707702 LOCKNUT
702889 702889 LOCKNUT CA
70288-9 70288-9 LOCKNUT CAP, W/NYLON INSERT
704568 704568 LOCKWASHER
Y04100687 Y04100687 LP CONVERSION KIT
71001040 71001040 MANIFOLD
71001905 71001905 MANUAL, USE & CARE
8215557 8215557 MODULE, SPARK (4+0)
WPY705032 WPY705032 MOTOR, BLOWER
71001894 71001894 NAMEPLATE (J/A)
Y04100253 Y04100253 NLAMCORD- PO
707161 707161 NUT
M0282005 M0282005 NUT
7103P166-60 7103P166-60 NUT
WPY703856 WPY703856 NUT
7103P159-60 7103P159-60 NUT-RETAIN
WP3401F034-19 WP3401F034-19 PAN-MODULE
3401X055-09 3401X055-09 PAN-MODULE
71001898 71001898 PANEL, CONTROL (LWR-GRN)
71001897 71001897 PANEL, CONTROL (UPR-GRN)
71001764 71001764 PIN- LOCAT
71001055 71001055 PLATE COV
4005F648-80 4005F648-80 PLATE, COVER
04100812 04100812 PLENUM WELD ASSEMBLY.
W11106948 W11106948 REGULATOR-
7428P029-60 7428P029-60 RELAY
8038P003-60 8038P003-60 RETAINER
Y707688 Y707688 RETAINER, FILTER
4026F009-51 4026F009-51 RING
4026F008-51 4026F008-51 RING
W10491986 W10491986 SCREW
WP3400202 WP3400202 SCREW
707407 707407 SCREW
702380 702380 SCREW
WP4381696 WP4381696 SCREW
WP59002061 WP59002061 SCREW
WP71001171 WP71001171 SCREW
W11233072 W11233072 SCREW
WP90767 WP90767 SCREW
WP12990527 WP12990527 SCREW
7101P286-60 7101P286-60 SCREW, BURNER MTG
W10777874 W10777874 SCROLL, BLOWER ASSEMBLY.
Y704979 Y704979 SEAL- PAN
71001048 71001048 SUPPORT, CONTROL PANEL
71001047 71001047 SWITCH RO
7403P620-60 7403P620-60 SWITCH, MICRO
WP4330739 WP4330739 SWTCH-IGNR
WPY704513 WPY704513 SWTCH-IGNR
71003262 71003262 TOP, MAIN
71001045 71001045 TUBE BURN
7506P164-60 7506P164-60 TUBE, BURNER (CF, RF)
7506P163-60 7506P163-60 TUBE, BURNER (CR, RR)
7506P166-60 7506P166-60 TUBE, BURNER (LF)
Y04100187 Y04100187 VALVE- GAS
Y04100184 Y04100184 VALVE- GAS
715617 715617 WASHER TE
WPY707985 WPY707985 WHEEL-FAN
71001051 71001051 WIRE HARNE
71001049 71001049 WIRE HARNE
04100248 04100248 WIRE, GROUND
15001406 15001406 WIRING INFORMATION
