Model Image
Manufacturer

Whirlpool

Model Number

CVGX2423B

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3415F003-51 3415F003-51 BAND, MOTOR
Y706061 Y706061 BOX- LIGHT
74007641 74007641 BOX-BURNER
Y706011 Y706011 BRACKET P
3801F428-80 3801F428-80 BRACKET, CONTROL PANEL
71002771 71002771 BRACKET, ORIFICE HOLDER
WP7540P030-60 WP7540P030-60 BURNER, BASE (LRG)
WP7540P028-60 WP7540P028-60 BURNR-BASE
WP7718P023-60 WP7718P023-60 BUTTON-PLG
7730P015-60 7730P015-60 CAMERA LENS, LIGHT
WP7504P157-60 WP7504P157-60 CAP, BURNER (LG-BLK)
WP7504P145-60 WP7504P145-60 CAP-BURNER
71002748 71002748 CORD POWE
Y04100505 Y04100505 CORD RECE
74005926 74005926 CORD, POWER
3188867 3188867 CORD, POWER
Y702733 Y702733 CORDPOWER
WP4005F513-80 WP4005F513-80 COVER
71003219 71003219 FASTENER
WPY706012 WPY706012 FILTER
71001004 71001004 GRATE (BLK)
Y706005 Y706005 GRILL- AIR
WP8008P071-60 WP8008P071-60 GROMMET
Y706103 Y706103 GROMMET- F
16000326 16000326 GUIDE, QUICK REF - JENN-AIR
71002770 71002770 HARNESS W
71001383 71001383 HARNESS, WIRE (UPR)
WP7507P238-60 WP7507P238-60 HOLDER-ORF
WP7507P240-60 WP7507P240-60 HOLDER-ORF
7507P241-60 7507P241-60 IGNITOR, (RIGHT FRONT)
WP7432P109-60 WP7432P109-60 IGNTR-OVEN
WP71003558 WP71003558 ISOLATOR-
71002785 71002785 KIT- LP OR
W11715914 W11715914 KNOB
WP71002372 WP71002372 KNOB- BURN
WPY707702 WPY707702 LOCKNUT
702889 702889 LOCKNUT CA
70288-9 70288-9 LOCKNUT CAP, W/NYLON INSERT
71002803 71002803 MANIFOLD
71002788 71002788 MANUAL, USE & CARE
71002822 71002822 MANUAL, USE & CARE (FCH)
71001304 71001304 MOTOR, BLOWER
71002769 71002769 NLAFBOTTOM, BURNER BOX
WP7103P027-60 WP7103P027-60 NUT
WP7103P178-60 WP7103P178-60 NUT
9831122 9831122 NUT, HEX 3/8``
71002728 71002728 ORIFICE
WP7918P354-60 WP7918P354-60 PANEL, CONTROL (BLK)
71002568 71002568 PLATE SWI
3605W287-51 3605W287-51 PLATE, SWITCH
W10777876 W10777876 PLENUM ASSEMBLY.
WPW10475147 WPW10475147 RANGE SPARK MODULE
W11106948 W11106948 REGULATOR-
705833 705833 RELIEF, STRAIN
8019P019-60 8019P019-60 RELIEF-STR
8038P003-60 8038P003-60 RETAINER
4026F009-51 4026F009-51 RING
4026F008-51 4026F008-51 RING
W10491986 W10491986 SCREW
WP4159193 WP4159193 SCREW
WP4381696 WP4381696 SCREW
WP90767 WP90767 SCREW
WPY706189 WPY706189 SCREW
W10777874 W10777874 SCROLL, BLOWER ASSEMBLY.
71003223 71003223 SEAL ROPE
WP7509P062-60 WP7509P062-60 SPUD-ORFCE
71001303 71001303 SWITCH, FAN CONTROL

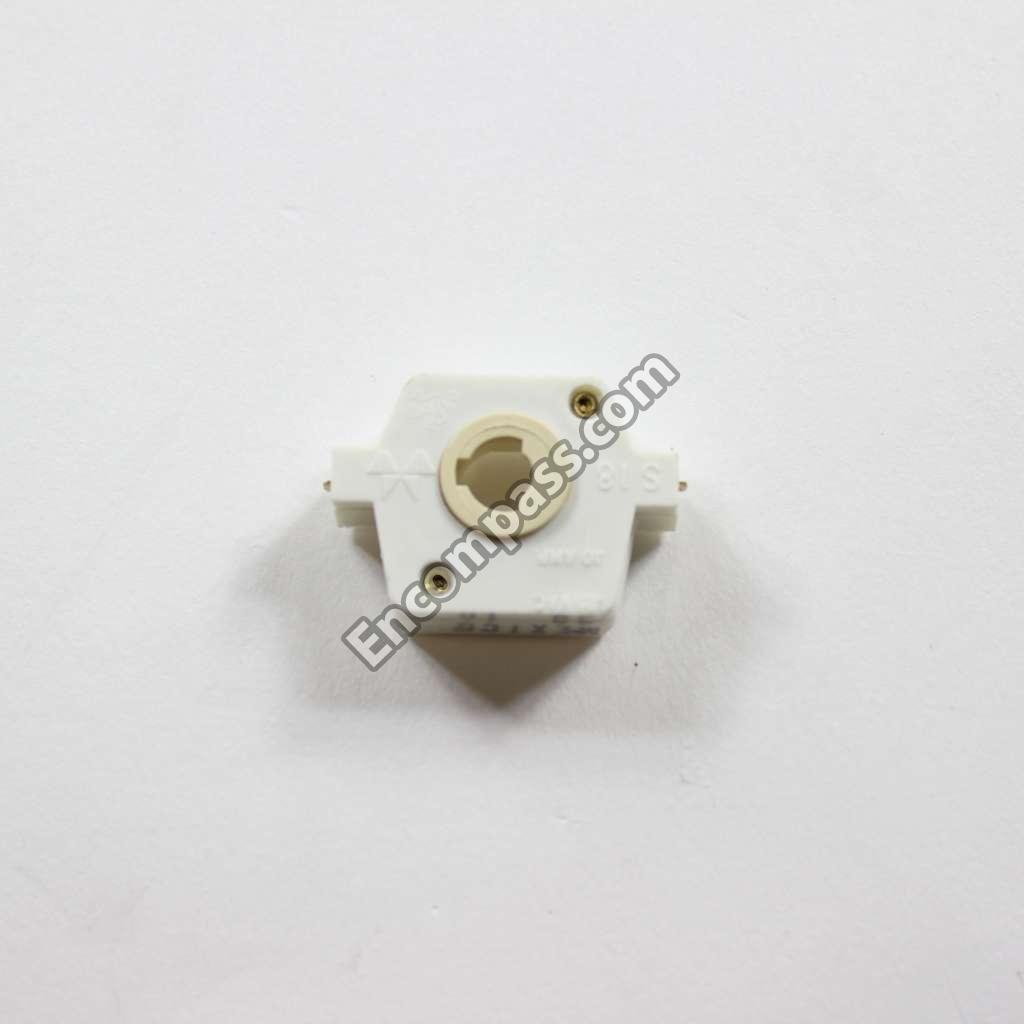

WP71003385 WP71003385 SWITCH- IG
WP7403P876-60 WP7403P876-60 SWITCH-FAN
71002558 71002558 TOP
3424F017-09 3424F017-09 TRAY-DRIP
71002806 71002806 TUBE (LF/LR)
7506P213-60 7506P213-60 TUBING, GAS (RF)
7506P214-60 7506P214-60 TUBING-GAS
715957-FT 715957-FT URETHAN FOAM

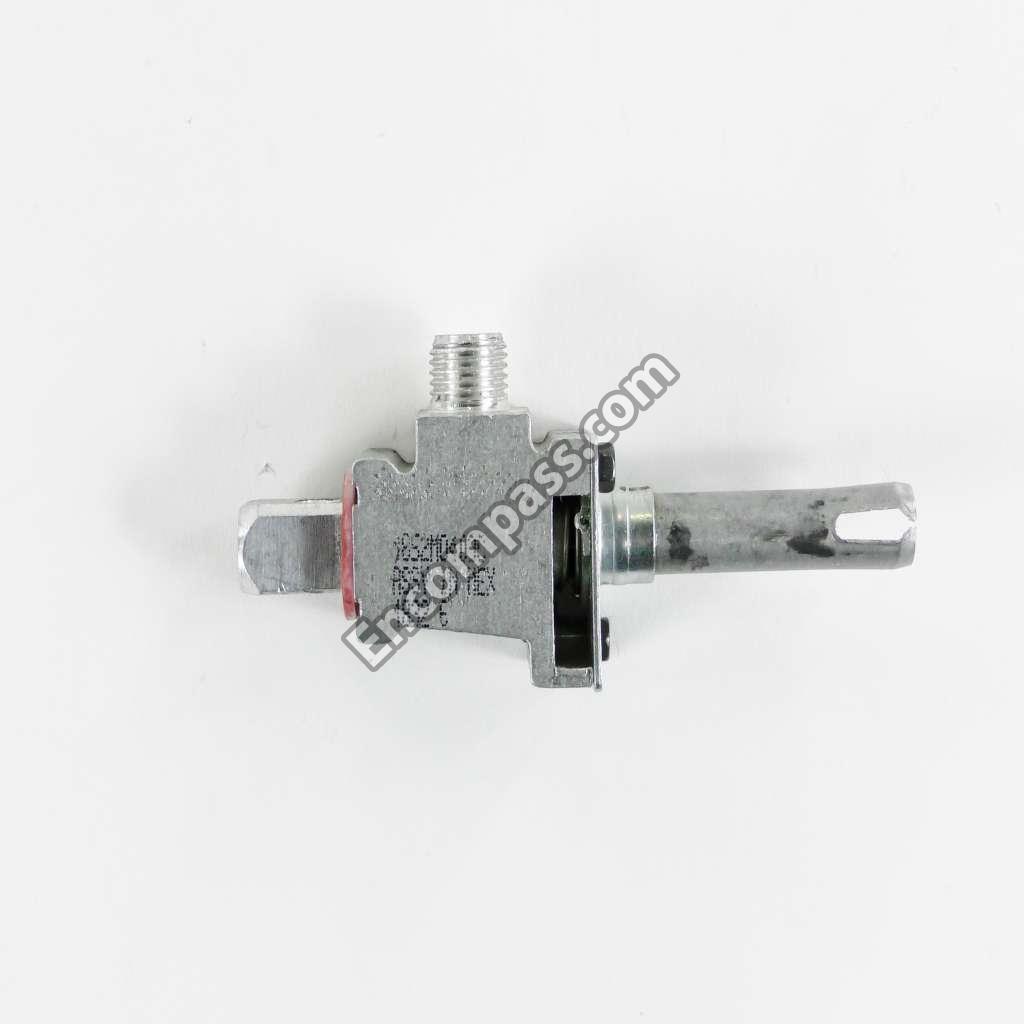

71002776 71002776 VALVE, BURNER
WP71002775 WP71002775 VALVE, BURNER (LG)
WP7538P003-60 WP7538P003-60 VENTURI
WPY707985 WPY707985 WHEEL-FAN
Y04100536 Y04100536 WIRE WHIT
71001159 71001159 WIRE, BROWN (38``)
Y04100378 Y04100378 WIRE, ORANGE (18``)
Y04100535 Y04100535 WIRE- WHIT
15003345 15003345 WIRING INFORMATION
15003116 15003116 WIRING INFORMATION
15002136 15002136 WIRING INFORMATION
