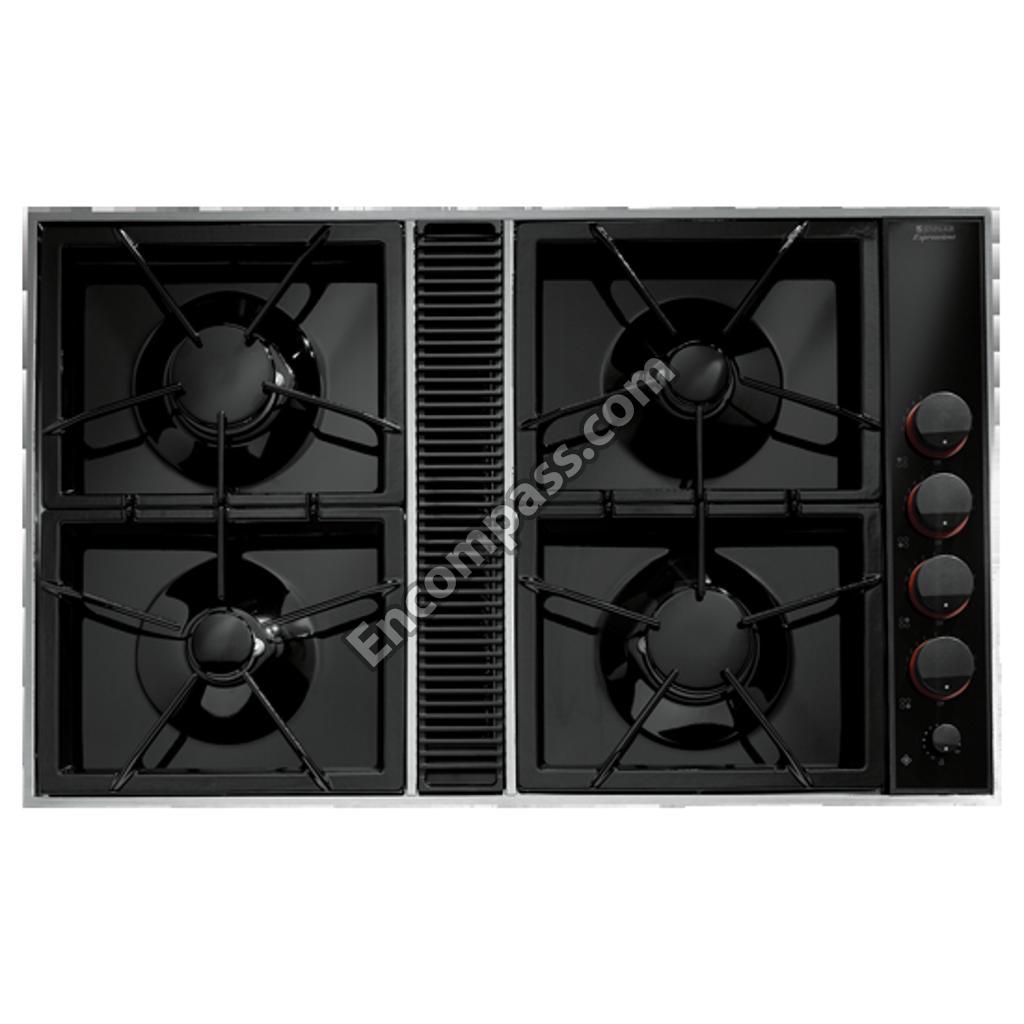

Model Image
Manufacturer

Whirlpool

Model Number

CVGX2423B18

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3415F003-51 3415F003-51 BAND-MOTOR
W10777874 W10777874 BLWR ASSEMBLY, SCROLL
Y706061 Y706061 BOX, LIGHT
4011F411-51 4011F411-51 BOX-BURNER
3801F495-51 3801F495-51 BRACKET O
3801F427-80 3801F427-80 BRACKET, FILLER
3801F428-80 3801F428-80 BRKT-MNTG
WP7540P028-60 WP7540P028-60 BURNR-BASE
WP7718P023-60 WP7718P023-60 BUTTON-PLG
WP7504P157-60 WP7504P157-60 CAP, BURNER (LR/RF)
WP7504P145-60 WP7504P145-60 CAP-BURNER
8106P068-60 8106P068-60 CARD, FLOW TESTER
3188867 3188867 CORD, POWER
7402P105-60 7402P105-60 CORD, POWER FEMALE
7402P096-60 7402P096-60 CORD, POWER MALE
WP4005F513-80 WP4005F513-80 COVER
8101P183-60 8101P183-60 DUCTING INSTRUCTIONS (ENGLISH)
8101P189-60 8101P189-60 DUCTING INSTRUCTIONS (FRENCH)
WPY706012 WPY706012 FILTER
7518P389-60 7518P389-60 GRATE-KIT
Y706005 Y706005 GRILL, AIR (BLK)
8008P061-60 8008P061-60 GROMMET
Y706103 Y706103 GROMMET, FAN
8312P151-60 8312P151-60 GUARD, BLOWER

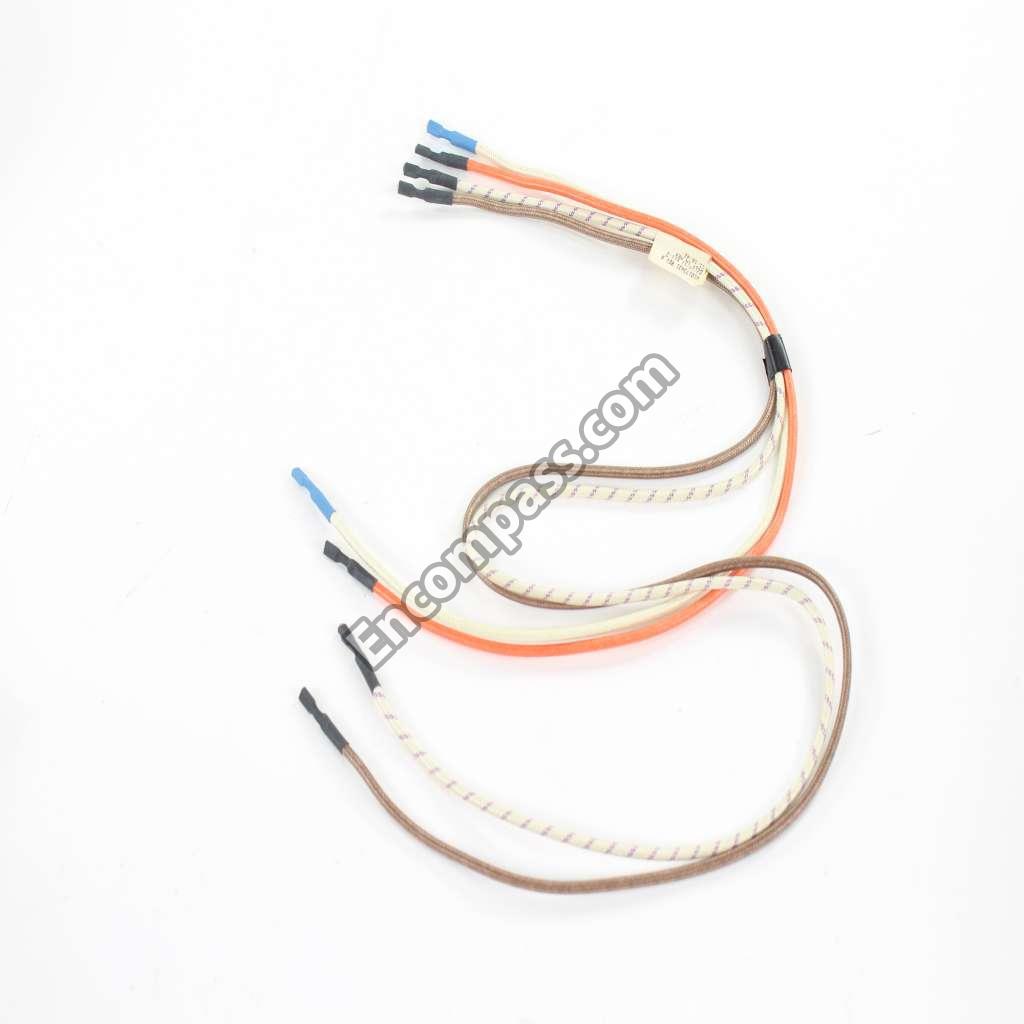

5170P834-60 5170P834-60 HARNESS, LEFT CERAMIC BLOCK

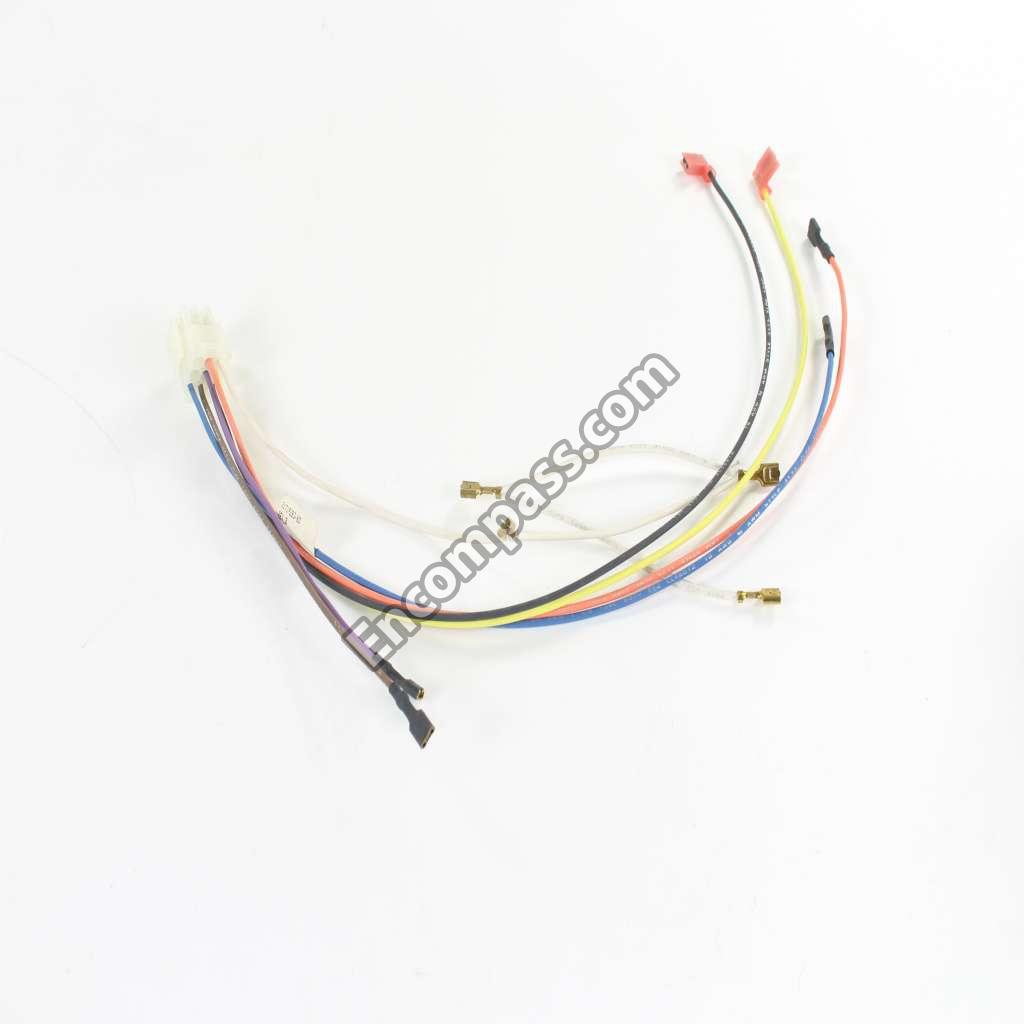

W10173431 W10173431 HARNS-WIRE
5171P293-60 5171P293-60 HARNS-WIRE
WP7540P030-60 WP7540P030-60 HEAD, BURNER (LR/RF)
7507P241-60 7507P241-60 HOLDER-ORF
WP7507P240-60 WP7507P240-60 HOLDER-ORF
WP7507P238-60 WP7507P238-60 HOLDER-ORF
WP7432P109-60 WP7432P109-60 IGNTR-OVEN
8101P575-60 8101P575-60 INSTALLATION INSTRUCTIONS
WP71003558 WP71003558 ISOLATOR-
W11715914 W11715914 KNOB
WP71002372 WP71002372 KNOB- BURN
7730P015-60 7730P015-60 LENS-LIGHT
WPY707702 WPY707702 LOCKNUT

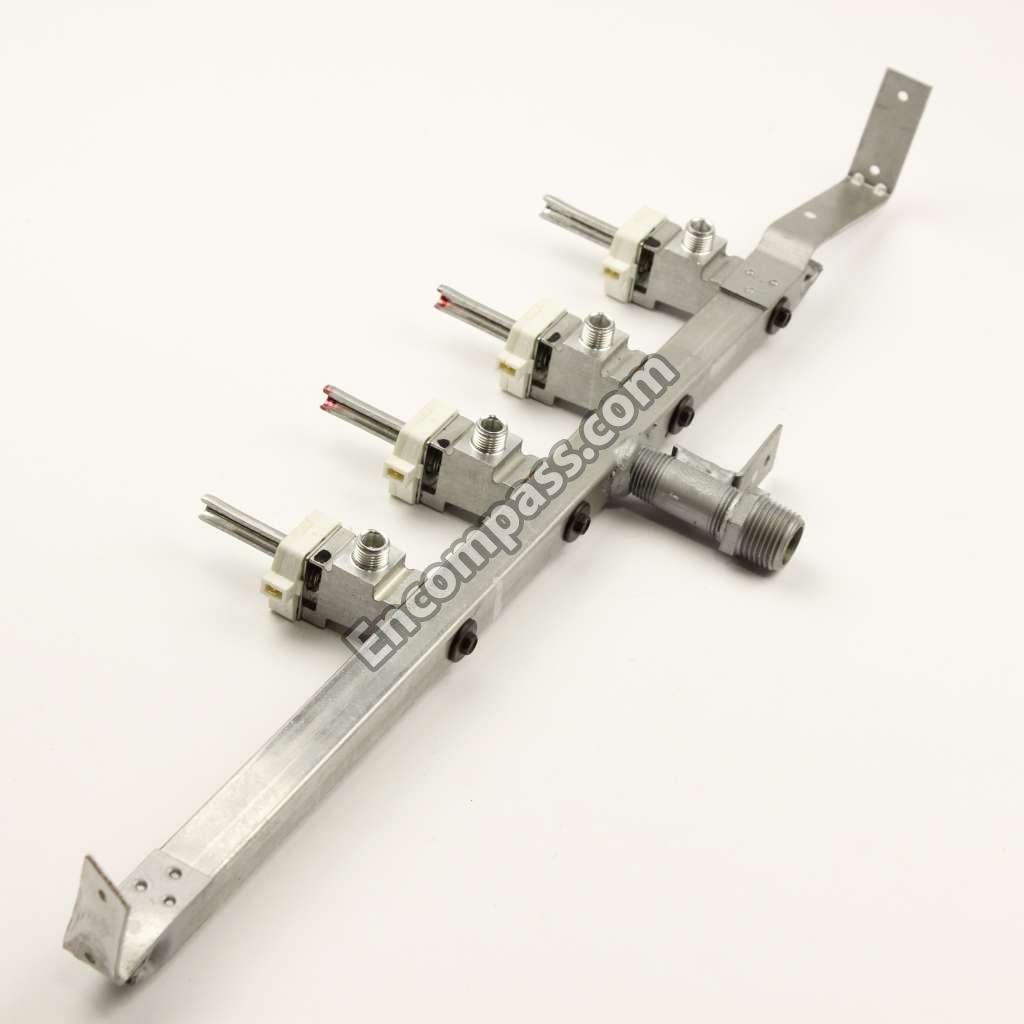

71002803 71002803 MANIFOLD

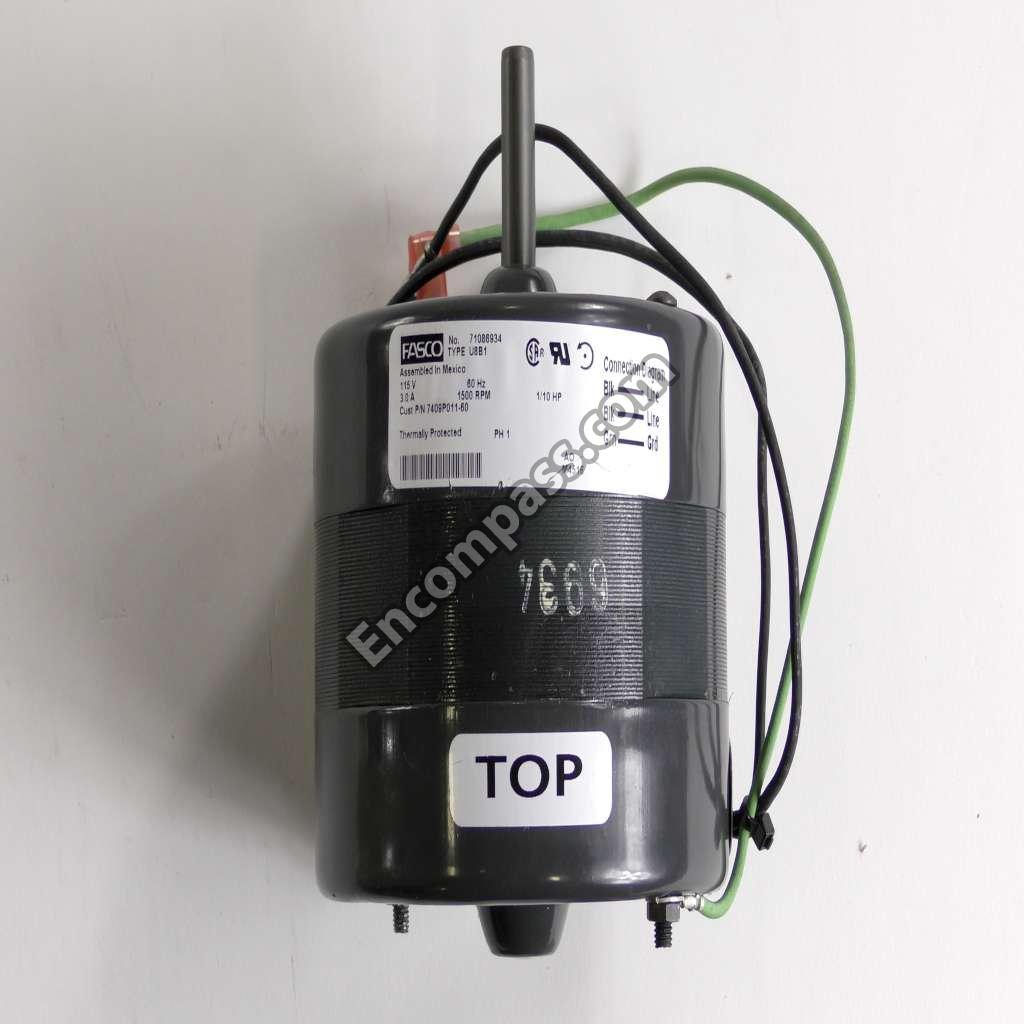

WP7409P011-60 WP7409P011-60 MOTOR-BLWR
WP7103P027-60 WP7103P027-60 NUT
WP7103P178-60 WP7103P178-60 NUT
9831122 9831122 NUT, 3/8-32 HEX
7103P192-60 7103P192-60 NUT, ACORN
WP7918P354-60 WP7918P354-60 PANEL, CONTROL (BLACK)
3605W287-51 3605W287-51 PLATE-SW
W10777876 W10777876 PLENUM ASY
WPW10475147 WPW10475147 RANGE SPARK MODULE
W11106948 W11106948 REGULATOR
4026F008-51 4026F008-51 RING
4026F009-51 4026F009-51 RING
WP90767 WP90767 SCREW
W11233072 W11233072 SCREW
WPY706189 WPY706189 SCREW
W11206744 W11206744 SCREW
WP4381696 WP4381696 SCREW
WP4159193 WP4159193 SCREW
7212P054-60 7212P054-60 SEAL, ROPE COMPLETE ASSEMBLY
71002785 71002785 SPUD-ORFCE

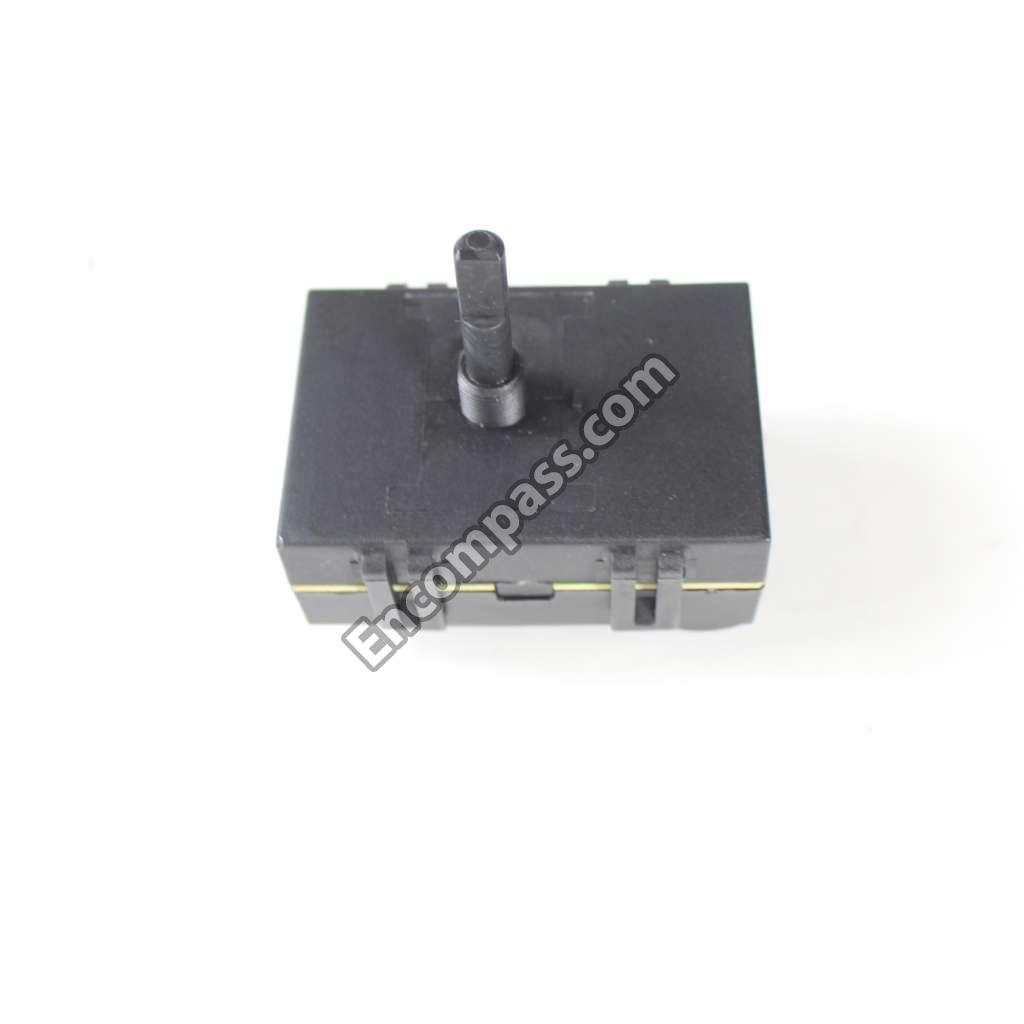

WP7403P876-60 WP7403P876-60 SWITCH-FAN
7746P051-60 7746P051-60 TOP, MAIN
3424F017-09 3424F017-09 TRAY-DRIP
7506P218-60 7506P218-60 TUBING-GAS
7506P213-60 7506P213-60 TUBING-GAS
7506P214-60 7506P214-60 TUBING-GAS
7506P215-60 7506P215-60 TUBINGGAS
8111P422-60 8111P422-60 USE & CARE GUIDE (ENGLISH)
8111P423-60 8111P423-60 USE & CARE GUIDE (FRENCH)
WP7538P003-60 WP7538P003-60 VENTURI
WP74001521 WP74001521 WASHER
WPY707985 WPY707985 WHEEL-FAN
8119P010-60 8119P010-60 WIRING DIAGRAM
