Whirlpool

Model Number

CWE470

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
4002F121-51 4002F121-51 BACK MAIN
3601F005-80 3601F005-80 BAFFLE BA
8003P002-60 8003P002-60 BUMPER DOOR (ROUND)
7112P017-60 7112P017-60 CLIP DOOR
7112P020-60 7112P020-60 CLIP OVEN
WP7112P004-60 WP7112P004-60 CLIP- THER

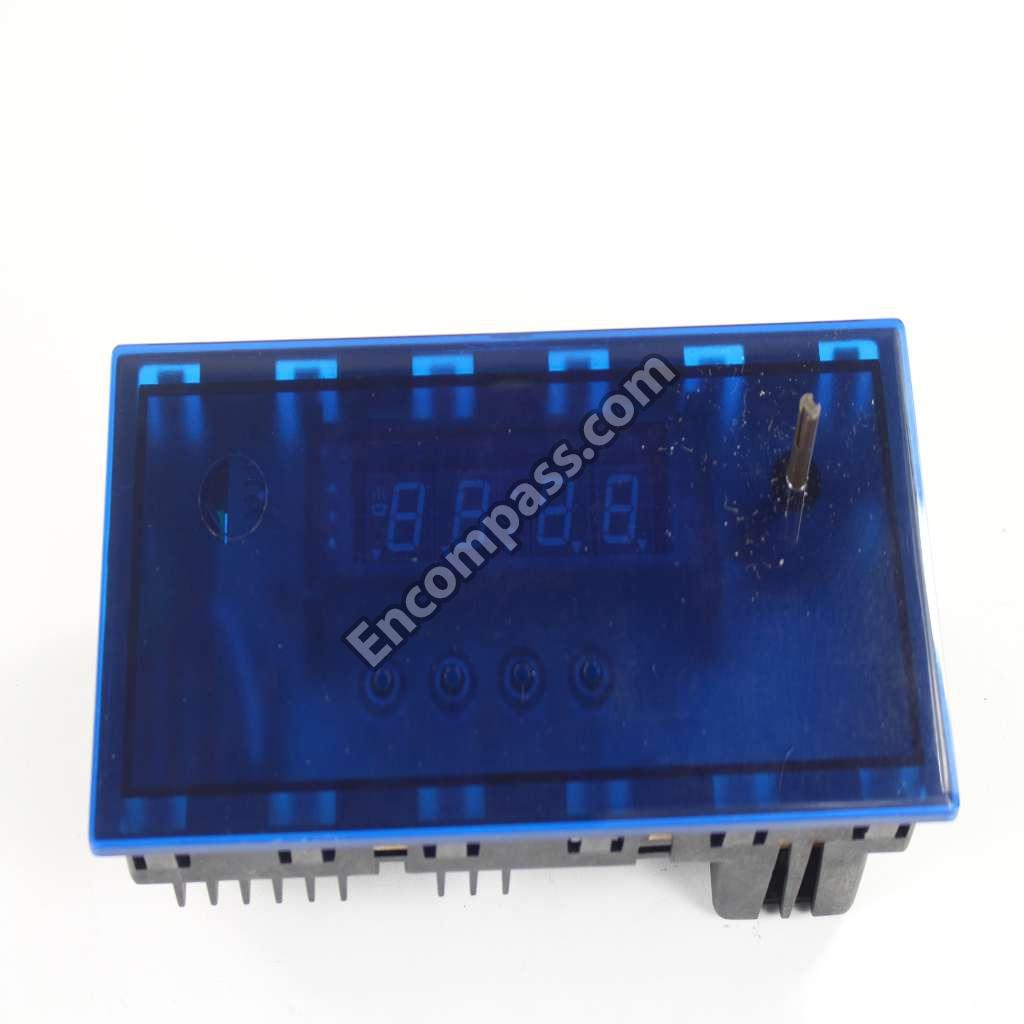

7601P123-60K 7601P123-60K CLOCK
7417P017-60 7417P017-60 CONNECTOR
4005F262-51 4005F262-51 COVER FAN
4005F150-51 4005F150-51 COVER, WIRE
WPY04000066 WPY04000066 ELMNT-BAKE
7706P075-60 7706P075-60 EXTRUSION, BOTTOM (CHR)
7706P198-60 7706P198-60 EXTRUSION, TOP FRONT
7706P078-60 7706P078-60 EXTRUSION, TOP WHT NLA
7706P082-60 7706P082-60 EXTRUSION, TRIM
7706P081-60 7706P081-60 EXTRUSION, TRIM
7427P006-60 7427P006-60 FAN ASSEMBLY
8010P050-60 8010P050-60 FELT DISC
7706P249-60 7706P249-60 FRAME
7201P004-60 7201P004-60 GASKET
7902P172-60 7902P172-60 GLASS, CONTROL
7902P265-60 7902P265-60 GLASS, DOOR SCREENED
WP7902P097-60 WP7902P097-60 GLASS, INNER
7701P060-60 7701P060-60 HANDLE, DOOR
7002P021-60 7002P021-60 INSULATION
7002P023-60 7002P023-60 INSULATION, DOOR----NA
7414P004-60 7414P004-60 INSULATOR, TERMINAL
7711P172-60 7711P172-60 KNOB CLOC
W11238392 W11238392 KNOB- CLOC
WP7711P357-60 WP7711P357-60 KNOB- SELE
WP7711P354-60 WP7711P354-60 KNOB- THER
8009 8009 LIGHT BULB
2402W130-15 2402W130-15 LINING ASSEMBLY
2402W130-19 2402W130-19 LINING, DOOR
3804F096-51 3804F096-51 NLARETAINER, REAR
3807F137-80 3807F137-80 NLASUPPORT
7103P051-60 7103P051-60 NUT
7103P040-60 7103P040-60 NUT SNAP
WP7103P114-60 WP7103P114-60 NUT- SNAP
2410W034-15 2410W034-15 PAD, DOOR
2410A038-15 2410A038-15 PAD, OVEN DOOR ASSEMBLY
2410W042-19 2410W042-19 PAD- DOOR
3605F164-51 3605F164-51 PLATE CON
71003346 71003346 RACK, OVEN (FLAT)
WPW10273818 WPW10273818 RACK-OVEN
3804F051-80 3804F051-80 RETAINER
3804F021-45 3804F021-45 RETAINER, GASKET
WP98008545 WP98008545 SCREW
WP7101P126-60 WP7101P126-60 SCREW
7101P280-60 7101P280-60 SCREW
7101P079-60 7101P079-60 SCREW
7101P279-60 7101P279-60 SCREW W WA
7101P035-60 7101P035-60 SCREW, SWITCH
7208P001-60 7208P001-60 SEAL, GLASS
WP854334 WP854334 SEAL-STRIP
8312P017-60 8312P017-60 SHAFT, CLOCK
3604F101-80 3604F101-80 SHIELD, AIR
3604F048-60 3604F048-60 SHIELD, TERMINAL
7214P007-60 7214P007-60 SLEEVE, SWITCH (BLK)
WP74008246 WP74008246 SWITCH, PUSH (BLK)
7403P023-60 7403P023-60 SWITCH, SELECTOR
7404P039-60 7404P039-60 THERMOSTAT, UPPER
5700A082-60 5700A082-60 WINDOW ASY
