Model Image
Manufacturer

Whirlpool

Model Number

CWE4800ACB25

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4002F121-51 4002F121-51 BACK MAIN
3601F005-61 3601F005-61 BAFFLE BA
4003F049-80 4003F049-80 BASE, CHASSIS
2205F003-19 2205F003-19 BOTTOM OV
W10196355 W10196355 BRKT-MNTG
3807F749-45 3807F749-45 BRKT-SUPRT
9762761 9762761 BROCHURE, TIPS SAFE COOKING (ENGLISH)
W10065852 W10065852 BROCHURE, TIPS SAFE COOKING (FRENCH)
W10105790 W10105790 BUMPER
W10336909 W10336909 CLEANER
31682 31682 CLEANER
7112P020-60 7112P020-60 CLIP OVEN
7112P093-60 7112P093-60 CLIP- GLAS
5700P367-60 5700P367-60 CONDUIT
7417P017-60 7417P017-60 CONNECTOR

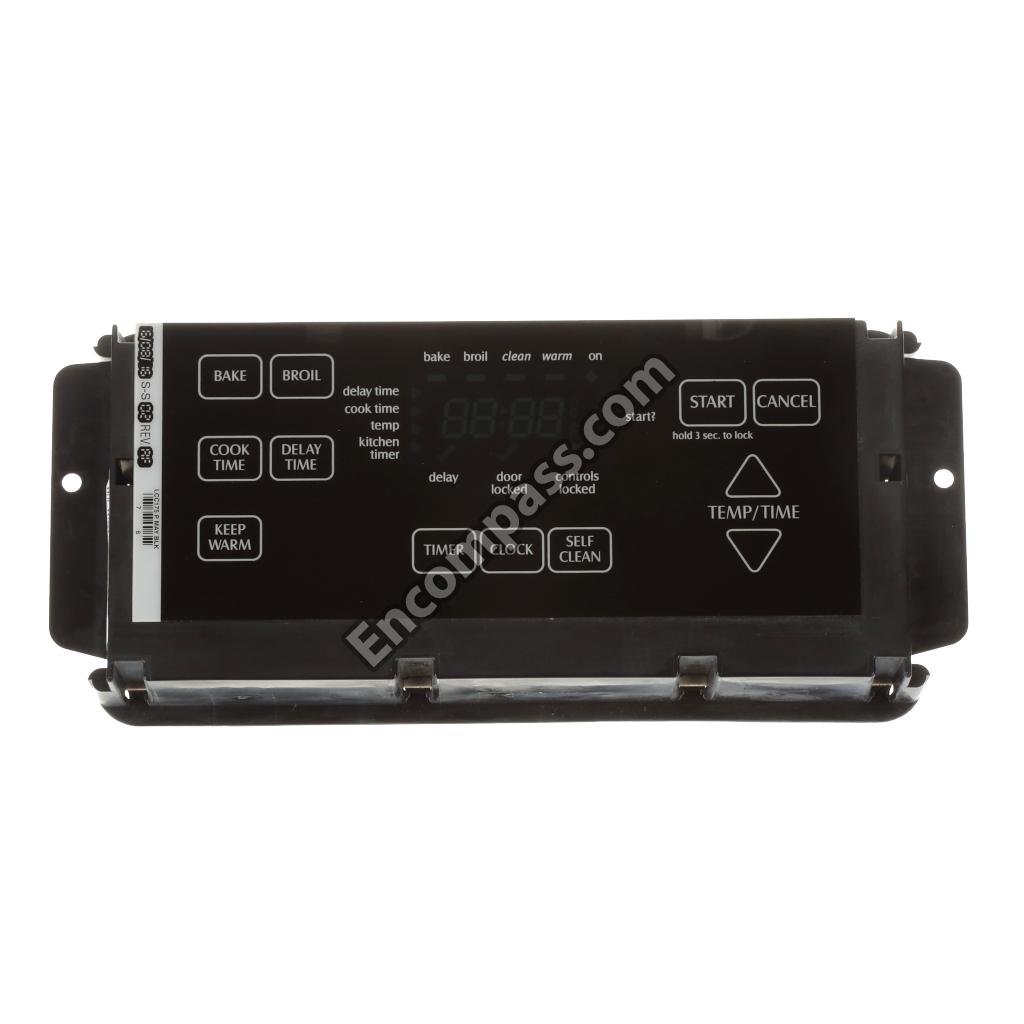

WPW10201915 WPW10201915 CONTROL BOARD
4005F262-51 4005F262-51 COVER FAN
W10214294 W10214294 COVR-WIRE
31552A 31552A DEGREASER, HEAVY DUTY
WPY04000066 WPY04000066 ELMNT-BAKE
WP7406P203-60 WP7406P203-60 ELMNT-BROL
W10218753 W10218753 EXTRUSION
7752P011-60 7752P011-60 EXTRUSION, TOP FRONT
7427P031-60 7427P031-60 FAN-BLWR
7201P018-60 7201P018-60 GASKET WI
7201P053-60 7201P053-60 GASKET, OVEN DOOR
WP7902P097-60 WP7902P097-60 GLASS, INNER
WP7902P336-60 WP7902P336-60 GLASS, OVEN DOOR
WP7902P349-60 WP7902P349-60 GLASS, WINDOW INNER
4396096RB 4396096RB GRIDDLE
WP7701P136-60 WP7701P136-60 HANDLE, DOOR
W10196376 W10196376 HARNS-WIRE
74001984 74001984 HINGE, DOOR
8009P055-60 8009P055-60 HNDLE-LTCH
7002P021-60 7002P021-60 INSULATION
7002P153-60 7002P153-60 INSULATION
7002P163-60 7002P163-60 INSULATION
8002P072-60 8002P072-60 LATCH-DOOR
8009 8009 LIGHT BULB
WP74011278 WP74011278 LIGHT- OVE
2402W218-19 2402W218-19 LINER-DOOR
WP7103P114-60 WP7103P114-60 NUT- SNAP
2410W042-19 2410W042-19 PAD- DOOR
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
W10123240 W10123240 PAN-BROILR
2401F103-70 2401F103-70 PANEL-DOOR
2618F150-51 2618F150-51 PANEL-SIDE
W10196425 W10196425 PANL-CNTRL
3605F164-51 3605F164-51 PLATE CON
71003346 71003346 RACK, OVEN (FLAT)
WPW10273818 WPW10273818 RACK-OVEN
3804F051-80 3804F051-80 RETAINER
3804F118-51 3804F118-51 RETAINER
3804F104-51 3804F104-51 RETAINER
3804F021-45 3804F021-45 RETAINER, DOOR GASKET
WP90767 WP90767 SCREW
WP59002061 WP59002061 SCREW
WP4381696 WP4381696 SCREW
WP4159193 WP4159193 SCREW
WP98008545 WP98008545 SCREW
WP7101P126-60 WP7101P126-60 SCREW
7101P287-60 7101P287-60 SCREW
8010P127-60 8010P127-60 SPACER
5700A082-60 5700A082-60 SPACER, WINDOW
350938 350938 SPRAY
4378577 4378577 STONE-BAKE
7403P067-60 7403P067-60 SWITCH, ROCKER (BLK)
7403P063-60 7403P063-60 SWITCH- HI
WP7430P044-60 WP7430P044-60 TOP-OVEN
7754P003-60 7754P003-60 TRIM-BOTTM
7750P144-60 7750P144-60 TRIM-SIDE
7750P145-60 7750P145-60 TRIM-SIDE
72032 72032 TUCHUP
