Model Image
Manufacturer

Whirlpool

Model Number

DP450C

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
911426 911426 ACCESS PANEL BARRIER
757053 757053 ACCESS PANEL HARVEST WHEAT
WPW10254672 WPW10254672 ADAPTER
757085 757085 AIR INLET
911575 911575 AIR INLET CAP
757337 757337 ASSEMBLY, HEATER HOOK
Y757301 Y757301 BAFFLE FOR
Y911202 Y911202 BAFFLE FOR PUMP
901932 901932 BEARING KIT F/LOWER WASH AR

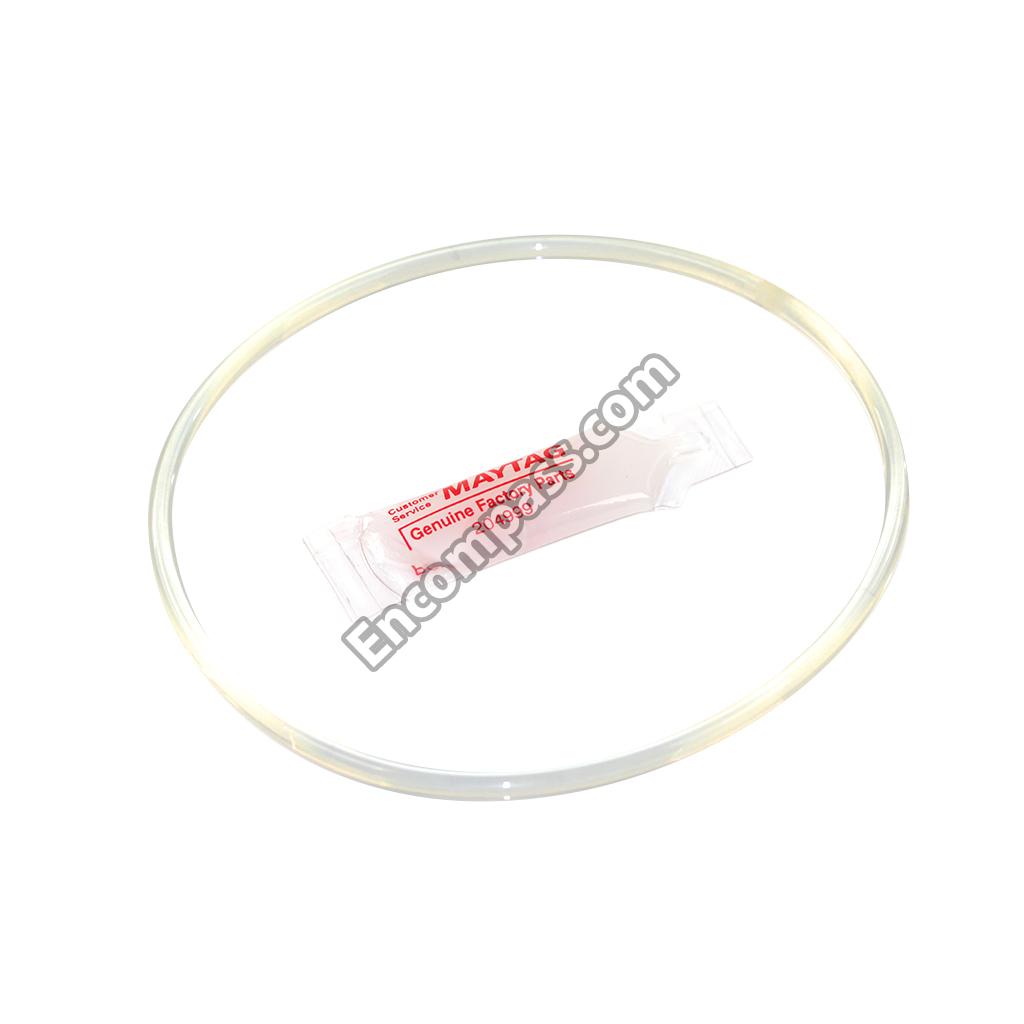

6-9021150 6-9021150 BELT
901011 901011 BI-METAL RELEASE
757242 757242 BLOWER BRACKET
911577 911577 BLOWER HOUSING
901290 901290 BLOWER MOTOR
911958 911958 BLOWER MOTOR COVER-CANADA
911580 911580 BLOWER SUPPORT
901289 901289 BLOWER WHEEL
901037 901037 BOLT, WASHER AND SEAL ASSM.
757270 757270 BRACKET, GROUNDING
757068 757068 BUTTON SELECTOR SWITCH
757211 757211 BUTTON VALVE
757021 757021 CABINET ALMOND
757022 757022 CABINET HARV. WHEAT
757020 757020 CABINET WHITE
757220 757220 CABLE STRAP
902247 902247 CAM AND SPRING KIT
900043 900043 CASTER, 2 INCH
900979 900979 CIRCULATING IMPELLER
WP596669 WP596669 CLAMP
WPW10548433 WPW10548433 CLAMP
WP285655 WP285655 CLAMP
WP489503 WP489503 CLAMP
WPY015825 WPY015825 CLIP- MOTO
757350 757350 COMPARTMENT, TERMINAL
757064 757064 CONTROL PANEL W/INSERTS
757105 757105 CONTROL SWITCH BUTTON
757232 757232 CORD BARRIER
WP910218 WP910218 COUPLER GA
910123 910123 COUPLER GRIP
Y757216 Y757216 COVER
911598 911598 COVER FOR DOOR VENT
910148 910148 COVER FOR HOSE CLAMPS
Y757092 Y757092 COVER, SILVERWARE BASKET
911221 911221 COVER, TERMINAL
Y911355 Y911355 CUSHION WASHER
911348 911348 DETERGENT CUP PIN
901839 901839 DETERGENT CUP, CANADA
901108 901108 DETERGENT CUP,COVER & SEAL
757212 757212 DISCONNECT LEVER
757039 757039 DISHRACK LOWER
901551 901551 DOOR AND GASKET ASSEMBLY
757043 757043 DOOR DOOR LATCH
757056 757056 DOOR PANEL (HARVEST WHEAT)
901111 901111 DOOR SPRING KIT
Y901862 Y901862 DOOR SPRING KIT
757104 757104 DOOR VENT (CANADIAN)
911250 911250 DRAIN HOSE
900894 900894 DRAIN IMPELLER
757332 757332 DRIP FLANGE CANADIAN
Y757325 Y757325 FASTENER
757240 757240 FASTENER
910196 910196 FASTENER
911268 911268 FASTENER
Y757396 Y757396 FASTENER
WP910208 WP910208 FAUCET ADAPTOR
900065 900065 FAUCET COUPLER
757219 757219 FAUCET COUPLER RETAINER
910431 910431 FILLER PLUG-DISPENSER VALVE
Y757080 Y757080 FILTER SCREEN
Y757316 Y757316 FLANGE TOP
911692 911692 FLAPPER FOR VENT
901141 901141 FLOAT
901114 901114 FLOAT GUIDE WITH GASKET
Y911219 Y911219 FRAME, BASE
757238 757238 GASKET
911578 911578 GASKET
910413 910413 GASKET
911244 911244 GASKET
911799 911799 GASKET FOR LOWER SPRAY ARM
901674 901674 GASKET W/SCREWS & FASTENERS
WP901403 WP901403 GASKET- DO
757352 757352 GROMMET
912005 912005 GROMMET
911702 911702 GROUND RECEPTACLE
911875 911875 GROUNDING CLIP
911036 911036 GUIDE BUTTON
900871 900871 HEATING ELEMENT
Y757226 Y757226 HEX NUT
Y911264 Y911264 HEX NUT, PULLEY TO SHAFT
910747 910747 HINGE PIN
911467 911467 HINGE-LEFT HAND
Y911215 Y911215 HOSE, DRAIN
757046 757046 HOSE, TOP SPRAY
757089 757089 INDICATOR DIAL FOR TIMER
757047 757047 INDICATOR LIGHT
757106 757106 INDICATOR LIGHT CAMERA LENS
911249 911249 INJECTOR HOSE
757012 757012 INLET HOSE
WP910391 WP910391 INSERT
911190 911190 INSERT FOR PUMP HOUSING
757349 757349 INSULATING BUSHING
757283 757283 INSULATION
757096 757096 INSULATION
Y757097 Y757097 INSULATION
757351 757351 JAM NUT FOR ELEMENT
911599 911599 KNOB FOR DOOR LATCH HANDLE
912014 912014 LEVER, ACTUATOR
757225 757225 LOCKWASHER
486009 486009 LOCKWASHER (10)
901119 901119 LOWER SPRAY ARM ASSEMBLY
901556 901556 MOTOR
Y757076 Y757076 MOTOR PULLEY
757361 757361 MOTOR SUPPORT
912013 912013 MOUNTING PLATE
910017 910017 NIPPLE FOR COUPLER - BRASS
900796-- 900796-- NOZZLE
Y757094 Y757094 NUT
757254 757254 NUT
WP911265 WP911265 NUT
Y052721 Y052721 NUT
WP3400029 WP3400029 NUT
911576 911576 NUT, AIR INLET
Y757230 Y757230 NYLON WASHER,CABINET TO TUB
WPY913079 WPY913079 O-RING- HE
Y757084 Y757084 OUTLET UPPER SPRAY
901979 901979 PAIR OF 9-475 CASTERS
757221 757221 PALNUT
757052 757052 PANEL ALMOND
901827L 901827L PANEL, FRONT (ALM)
901827 901827 PANEL, FRONT (WHT)
902804 902804 PANEL- ACC
Y757075 Y757075 PANELTOE
910649 910649 PIN-RACK STOP
Y757160 Y757160 PLASTIC NUT
Y912907 Y912907 PLUG, TUB
901115 901115 POWER CORD W/CONNECTING NUT
Y757098 Y757098 PULLEY
911239 911239 PULLEY FOR MOTOR AND PUMP
911918 911918 PULLEY ON PUMP ASSEMBLY
757037 757037 PUMP ASSEMBLY (INCLUDES 7 THRU 31)
900868 900868 PUMP COVER
901110 901110 PUMP HOUSING ASSEMBLY
901109 901109 PUMP REPAIR KIT
900896 900896 PUMP SHAFT & BEARING ASSM.
901836 901836 RACK ROLLER KIT
Y757357 Y757357 RACK STOP
901531 901531 RACK, CUP
Y757099 Y757099 RADIANT SH
911919 911919 RADIANT SHIELD
Y911196 Y911196 RETAINER FOR BEARING
911592 911592 RETURN SPRING
WP910934 WP910934 RING-O
901278 901278 RINSE ARM WITH SEAL RINGS
901572 901572 RINSE DISPENSER KIT
WP210720 WP210720 RIVET
910390 910390 ROLLER
911593 911593 RUBBER COUPLING
757237 757237 RUBBER WASHER
Y912660 Y912660 SCREEN, BLOWER VALVE
757335 757335 SCREW
757299 757299 SCREW
757360 757360 SCREW
757251 757251 SCREW
757256 757256 SCREW
22003781 22003781 SCREW
WPW10139210 WPW10139210 SCREW
WP489399 WP489399 SCREW
W11684507 W11684507 SCREW
WP3-24004-109 WP3-24004-109 SCREW
W10756178 W10756178 SCREW
Y757208 Y757208 SCREW
911536 911536 SCREW
911857 911857 SCREW
Y757244 Y757244 SCREW
910993 910993 SCREW
67001441 67001441 SCREW
Y757222 Y757222 SCREW
W11233072 W11233072 SCREW
WP3390631 WP3390631 SCREW
WP8281227 WP8281227 SCREW
WP489128 WP489128 SCREW
911066 911066 SCREW
911814 911814 SCREW
Y314062 Y314062 SCREW
99002757 99002757 SCREW
WPY313561 WPY313561 SCREW
WP910654 WP910654 SCREW
WP3400094 WP3400094 SCREW
W10850756 W10850756 SCREW
WP1163839 WP1163839 SCREW
901090 901090 SCREW AND WASHER ASSEMBLY
Y757255 Y757255 SCREW BUSHNG
4318099 4318099 SCREW DETERGENT CUP
Y757205 Y757205 SCREW W C
757340 757340 SCREW WASHER
911267 911267 SCREW, PUMP COVER
Y913220 Y913220 SCREW, W C SPACER
757392 757392 SCREW-DOOR SW. SHIELD
901303 901303 SCREWS,WASHERS & SHIELD ASS
Y757395 Y757395 SEAL
910375 910375 SEAL
900202 900202 SEAL ASSEMBLY
911220 911220 SEAL RING FOR STRAINER
757200 757200 SEALING WASHER
910053 910053 SHAFT, RACK ROLLER
901038 901038 SHAFT, WASHER AND SEAL ASSM
757391 757391 SHIELD-DOOR SW(CANADIAN)
Y757041 Y757041 SILVERWARE BASKET
901217 901217 SLINGER AND DEFLECTOR KIT
900414 900414 SOLENOID
M0288107 M0288107 SPEED NUT
911425 911425 SPRING ACCESS COVER
747389 747389 SPRING FOR INTERLOCK
911193 911193 STRAINER
757324 757324 SUPP0RT, TUB L.H.
911191 911191 SUPPORT FOR WASH ARM
757323 757323 SUPPORT, TUB R.H.
757382 757382 SWITCH MOTOR START
757358 757358 SWITCH MOTOR START
WP99002560 WP99002560 SWITCH- WA
757027 757027 SWITCH-DOOR
910140 910140 THUMB RELEASE BUTTON
901649 901649 TIMER
757194 757194 TIMER KNOB W/INSERT
901829 901829 TIMER MOTOR
911941 911941 TOP FLANGE CHANNEL
757009 757009 TRACK ASSEMBLY
757006 757006 TRACK SHAFT & SEAL KIT
757034 757034 TUB
757284 757284 U FASTENER
911765 911765 U TYPE FASTENER
12001295 12001295 UPPER RACK ASSEMBLY
900020 900020 UPPER SPRAY ARM (W/NUT)
911610 911610 VENT COVER
757397 757397 WASHER
910223 910223 WASHER
WP348197 WP348197 WASHER
910377 910377 WASHER
911356 911356 WASHER
900669 900669 WASHER
757236 757236 WASHER & SEAL
910209 910209 WASHER FOR FAUCET ADAPTER
757266 757266 WASHER ONLY
910069 910069 WASHER, TUB TOP
901299 901299 WATER VALVE-WC MODELS
757373 757373 WIRE HARNESS (CANADA)
900709 900709 WOOD TOP
