Model Image
Manufacturer

Whirlpool

Model Number

DRT1802AW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
R0156897 R0156897 ASSY DRAIN BLOCK
10698560Q 10698560Q ASSY, CRISP FRAME
R0161074 R0161074 ASSY, DAMPER CONTROL
R9700006 R9700006 ASSY, FRZ CONTROL
10925612W 10925612W ASSY, FZ DR FOAM
10480425Q 10480425Q ASSY, GLASS SHELF
10480424Q 10480424Q ASSY, GLASS SHELF
10925409W 10925409W ASSY, REF DR FOAM(WHITE)
12452601Q 12452601Q ASSY, ROLLER BRACKET
10481224 10481224 ASSY,COND/PAN-E CT
R0170058 R0170058 ASSY,LOW SIDE(TSI18A3)
10450901 10450901 AXLE, ROLLER
12039807 12039807 BACK, MACH COMP
65886-1 65886-1 BALE STRAP
10467802 10467802 BAND, CRISPER CONTROL (18-19)
B5742604 B5742604 BLADE, FAN
W10116797 W10116797 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
10428301 10428301 BLOCK, EVAP. L.
10991002 10991002 BLOCK, R EVAP.
10995003 10995003 BOTTOM, FRZ
10582501 10582501 BRACKET, COND. MOTOR
WP10492701 WP10492701 BRAKT-MTR
WP10492801 WP10492801 BRKT, UP EVAP. FAN
10502917 10502917 BUCKET, REF DOOR
12028601 12028601 BUSHING, DOOR (WHT)
WP67004975 WP67004975 BUSHING, DOOR (WHT)
WP67001130 WP67001130 BUTTON- PL
10427110 10427110 CABINET BRACE-PNT
10453001 10453001 CAP, SWITCH
10913501 10913501 CAP, W DR HANDLE
10907402 10907402 CAP, W DR HANDLE
10907401 10907401 CAP, W DR HANDLE
10433361WD 10433361WD CENTER MULLION-(WHITE)E CT
B8372901 B8372901 CLAMP
M0103904 M0103904 CLAMP, SPEED
10526701 10526701 CLAMP, WIRE
WP628379 WP628379 CLIP
B5720302 B5720302 CLIP
WP2315522 WP2315522 CLIP
W11673433 W11673433 CLIP
B5720303 B5720303 CLIP
WPM0104106 WPM0104106 CLIP
10547001 10547001 CLIP, DRIER
10442301 10442301 CLIP, EVAPORATOR
10586601 10586601 CLIP, HT TRANSFER
10202001 10202001 CLIP, RETAINER
10547101 10547101 CLIP, TUBE
WP10551502 WP10551502 CLIP- TOE
12044401 12044401 CLIP-DOOR CAP
12028501 12028501 CLOSURE, DOOR (WHT)
W10309994 W10309994 COMPRESSOR
10426911 10426911 COND FAN SHRD-E CT
10916502 10916502 CORD, POWER
W11033771 W11033771 COUPLING
10432402 10432402 COVER, EVAPORATOR
10440713 10440713 COVER, EVAPORATOR
12076302 12076302 COVER, HINGE (WHT)
10442205 10442205 COVER, HT EXCH
10584802 10584802 COVER, LOWER HINGE (WHITE)
12100525 12100525 COVER, MC
D7874403 D7874403 COVER-FL TB/PLUG
WP628356 WP628356 CUP-FILL
10423419 10423419 DOOR,DAIRY
WPB2150504 WPB2150504 DRIER
10440406 10440406 DUCT, FRZ AIR
10163201 10163201 ELBOW DRAIN TUBE
WP10449501 WP10449501 EVAPORATOR MOTOR
WPW10189703 WPW10189703 EVAPORATOR MOTOR
10459940 10459940 EXTR, FRONT SHELF
10459937 10459937 EXTR, FRONT SHELF
10946010 10946010 EXTR, REAR SHELF
10946009 10946009 EXTR, REAR SHELF
10688086 10688086 EXTR,L CRISP FRONT
10688087 10688087 EXTR,R CRISP FRONT
10252903 10252903 FILTER, BUSHING
10460104 10460104 FRAME, GLASS SHELF (FULL)
10435513 10435513 FRAME, REF TOP BRK
WPW10289690 WPW10289690 FRONT COVER
A3030354 A3030354 GASKET
A3030356 A3030356 GASKET
B8386613 B8386613 GASKET
A3132301 A3132301 GASKET
10442702 10442702 GASKET, COND. FAN
A3189358 A3189358 GASKET, FOAM
10685507 10685507 GASKET, SEALING
B5759626 B5759626 GASKET, SEALING
WP12550110Q WP12550110Q GASKET- FR
WP12550109Q WP12550109Q GASKET- RE
10370098 10370098 GLASS, FULL SHELF
10370016 10370016 GLASS, SHELF (18)
10370097 10370097 GLASS, SPLIT SHELF
12027101 12027101 GLIDE, L DELI
12027201 12027201 GLIDE, R DELI
10474902 10474902 GRILLE, TOE (WHITE) (19)
WP2264462 WP2264462 GROMMET
10699301 10699301 GROMMET
67003493 67003493 GROMMET, COMPRESSOR
12325501 12325501 HANDLE, W FRZ
12325502 12325502 HANDLE, W REF
12509201 12509201 HARNESS, CABINET
10573402 10573402 HARNESS, CONTROL
10573506 10573506 HARNESS, DRAIN BLOCK
12346502 12346502 HARNESS, MACH COMP
10991108 10991108 HEATER, EVAPORATOR
10543613 10543613 HEATER, MULLION
12077316 12077316 HINGE, TOP-E CT
10585508 10585508 HINGE,(W)BTM-E CT
12446503 12446503 HINGE,CTR-E CT(WHITE)
12035107 12035107 HOUSING, CONTROL
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
W10833899 W10833899 INLET VALVE
10476402 10476402 INSERT, DRAIN BLOCK
10442801 10442801 INSERT,DAMPER
10992120 10992120 INSERT,HANDLE(WHITE)
10995201 10995201 INSERT-MK AIR SUPPLY
10527052 10527052 INSTR,INSTALL(ICE MAKER)
12123325 12123325 INSTR,INSTALL(V SERIES TOP MOU
10779602 10779602 INSUL. AIR DUCT
10663002 10663002 INSUL., L. FOOT
10663001 10663001 INSUL., R. FOOT
10772301 10772301 INSULATION
10673603 10673603 INSULATION, CAP
10442901 10442901 INSULATION, DAMPER
10565401 10565401 KNOB, CONTROL
A3036901 A3036901 LABEL WARRANTY
10834701 10834701 LABEL, IM
12435801 12435801 LADDER, CENTER
12435701 12435701 LADDER, SIDE (L/R)
8009 8009 LIGHT BULB
10461001Q 10461001Q LINER, FRZ DOOR (18)
10461705 10461705 LINER,REF DOOR
10450855 10450855 MEMBRANE,18 BREAKER
10937046 10937046 MNL,OWNERS(TR18,TX18,TXI18)
RP1100065 RP1100065 MNL,PTS-TOP FRZR/REFRIG
833697 833697 MOTOR-COND
Y12528501 Y12528501 NAMEPLATE (AMANA PLUS)
10926601 10926601 NAMEPLATE, HANDLE
10377024 10377024 OVERLOAD
10427404 10427404 PAN, DRAIN
10417119 10417119 PAN,MEATKEEPER
10430216 10430216 PAN-CRISPER
WP67001255 WP67001255 PAN-ICE
67007018 67007018 PIN HINGE BOTTOM
10351002 10351002 PIN, HINGE (CTR)
10442601 10442601 PINION, CONTROL
10433610 10433610 PLATE, CENTER TOP
12047201 12047201 PLATE-WATER VALVE
M0311301 M0311301 PLUG BUTTON
10686401 10686401 PLUG BUTTON
WPA3076901 WPA3076901 PLUG, BUTTON
M0311605 M0311605 PLUG, BUTTON (WHT)
M0310308 M0310308 PLUG, BUTTON (WHT)
M0310330 M0310330 PLUG, BUTTON WHITE
10428001 10428001 PLUG, HT EXCH V
10544301 10544301 PLUG, IM TUNNEL
10461901 10461901 POST, CRISPER SUPPORT
10439601 10439601 RACK, CONTROL
10435605 10435605 RAIL, CRISPER BACK
10433805 10433805 RAIL, CRISPER BACK
10687701 10687701 RAIL, CRISPER FR0NT(R)
10687702 10687702 RAIL, CRISPER FRONT(L)
10432806 10432806 RAIL, CTR. CRISPER
10432805 10432805 RAIL, CTR. CRISPER
10432704 10432704 RAIL, SIDE CRISPER
10432703 10432703 RAIL, SIDE CRISPER
12035214 12035214 REF TOP-E CT
WP10097204 WP10097204 RELAY-STRT
WP10419107 WP10419107 RETAINER, REF DOOR
10419207 10419207 RETAINER, REF DOOR
10450701 10450701 ROLLER, REAR
W11233072 W11233072 SCREW
67006692 67006692 SCREW
WPM0223816 WPM0223816 SCREW
W11573574 W11573574 SCREW
WP67006715 WP67006715 SCREW
W10856125 W10856125 SCREW
M0253916 M0253916 SCREW
R0186040 R0186040 SCREW
R0186041 R0186041 SCREW
WP489399 WP489399 SCREW
WP90767 WP90767 SCREW
WP98165 WP98165 SCREW
WP489349 WP489349 SCREW
WP67006380 WP67006380 SCREW
WPW10348409 WPW10348409 SCREW
WP489464 WP489464 SCREW
WP489069 WP489069 SCREW
67006425 67006425 SCREW (3)
M0211520 M0211520 SCREW - SM
M0204336 M0204336 SCREW, ADJ ROLLER
M0221523 M0221523 SCREW, SHLDR
M0227217 M0227217 SCREW, SM
M0260242 M0260242 SCREW, TF
M0238636 M0238636 SCREW-SM
M0221744 M0221744 SCREW-SM SHLDR
10530205 10530205 SEAL, CRISPER
10460106 10460106 SHELF, GLASS FRAME
10419707 10419707 SHELF, REF DOOR
Y10440001 Y10440001 SHELF, WIRE FRZ. (18)
10427710 10427710 SHIELD, EVAP.
10508701 10508701 SHIELD, REFRIG. LIGHT
10565101 10565101 SHIELD, WIRE
10447906 10447906 SHIM HINGE
10562203 10562203 SHIM, CENTER HINGE
10562202 10562202 SHIM, CENTER HINGE
10562201 10562201 SHIM, CENTER HINGE
10447905 10447905 SHIM, HINGE (BTM)
12545201 12545201 SHIM, POSI PIN
WPM0274058 WPM0274058 SHIM- NON
WPM0274057 WPM0274057 SHIM- NON
10422304 10422304 SHROUD, EVAP. FAN
10422306 10422306 SHROUD,EVAP FAN-E CT
10797501 10797501 SLIDE, CRISPER
D7714408 D7714408 SOCKET, LIGHT
12968202W 12968202W STOP, DOOR (WHITE)
W11384469 W11384469 SWITCH
M0350201 M0350201 SWITCH, ST
RT1100044 RT1100044 TECH SHEET-REFRIG XSEE
C8960801 C8960801 TERM COVER

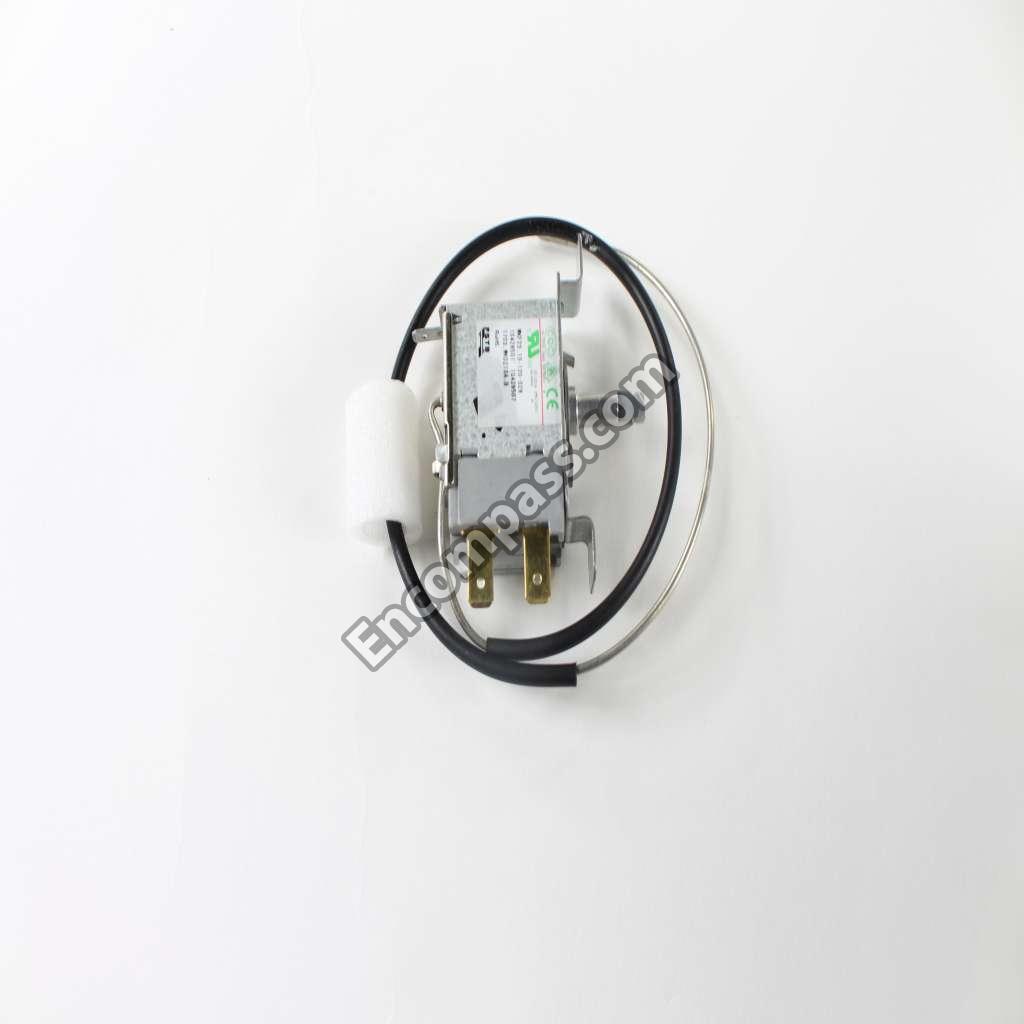

WP10442410 WP10442410 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
R0168027 R0168027 TIMER-DEF
10435911 10435911 TRAY, DRIP
10908101 10908101 TUBE, DRAIN
A3012543 A3012543 TUBE-PLASTIC
B5667304 B5667304 WIRE CLIP
WPD7813010 WPD7813010 WIRE HARNESS
