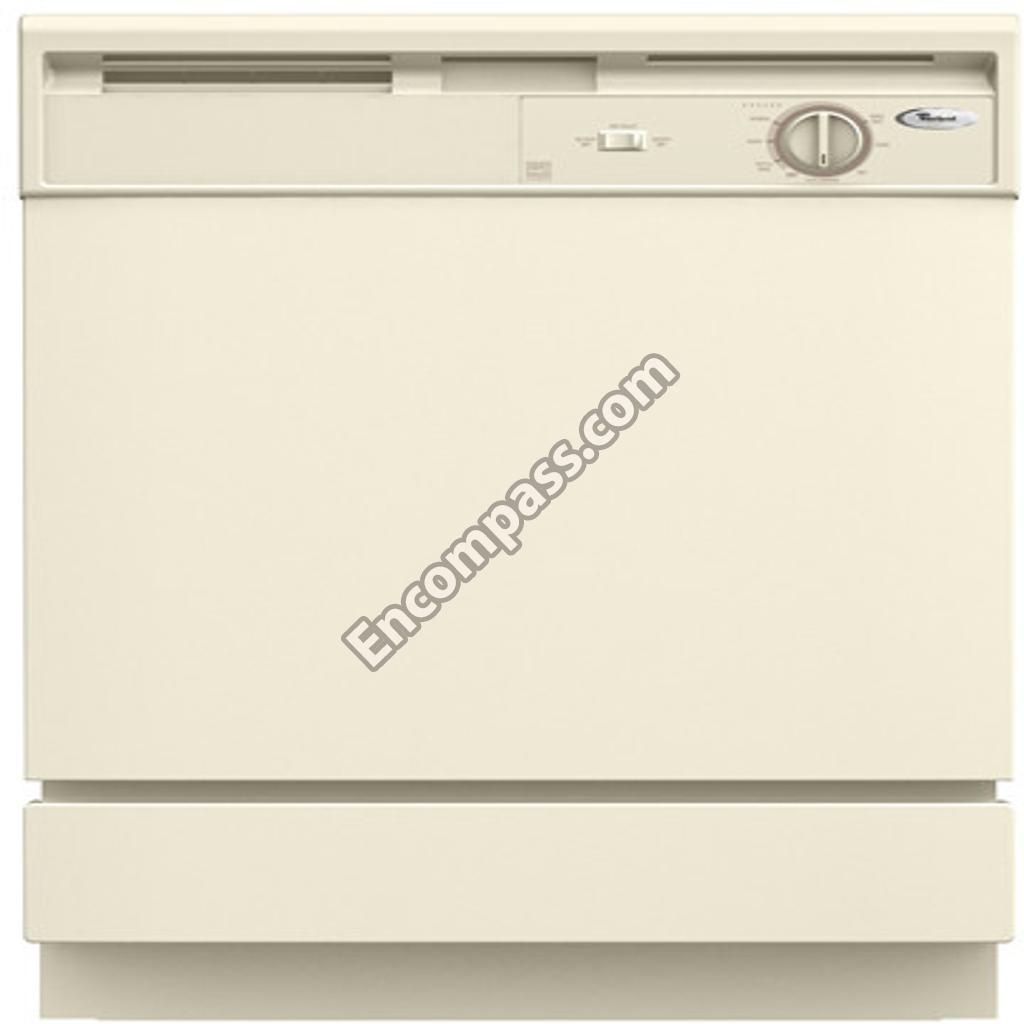

Model Image
Manufacturer

Whirlpool

Model Number

DU810SWPT0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
9743896 9743896 ACCESS PANEL & CLIP ASSEMBLY (INCLUDES ITEMS 11 & 12) (BISCUIT)
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
8193646 8193646 ACTUATOR
350956 350956 ALMOND
WP3369178 WP3369178 BALL, CHECK VALVE
WP8539107 WP8539107 BASKT-WARE
3371746 3371746 BEARING
WP3373234 WP3373234 BEARING, SPRING (2)
72032 72032 BLACK
WP3380854 WP3380854 BOLT, LATCH
8529303 8529303 BOX-TERM
WP3385142 WP3385142 BUMPER
WP8271510 WP8271510 CAM
WP596669 WP596669 CLAMP
371499 371499 CLAMP
3400959 3400959 CLAMP (2)
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
WP3378123 WP3378123 CLIP, GROUNDING
WP8520839 WP8520839 COLLECTOR WITH CHECK VALVE
8535321 8535321 CONSOLE
8535320 8535320 CONSOLE
WP3378138 WP3378138 COVER
8051644 8051644 COVER, CONTROL
3369030 3369030 COVER, DRAIN VALVE
3371569 3371569 COVER, DRIP
300068 300068 COVR-BOX
8318219 8318219 COVR-HOUSG
WP8528862 WP8528862 DEFLECTOR (2)
3385496 3385496 DIAGRAM, WIRING
WP8563504 WP8563504 DIAPHRAGM
W10161215 W10161215 DISHRACK
W11169039 W11169039 DISHRACK
WP3369012 WP3369012 DISK & MOUNT ASSEMBLY
W10131216 W10131216 DIY
WP9743028 WP9743028 DOOR FRAME (ALSO ORDER ITEM 22) (WHITE)
676413 676413 DOOR LATCH DOOR KIT
100000 100000 DOOR SPRING KIT:
WP3369000 WP3369000 DRAW BAR, (UPPER DISPENSER)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3376405 3376405 ELBOW
WP8519552 WP8519552 FLOAT
WP3369529 WP3369529 FOLLOWER, CAM
WP3379376 WP3379376 FRONT PANEL (WHITE)
WP8520841 WP8520841 FUNNEL
WP3368928 WP3368928 FUSE, THERMAL
WPW10509257 WPW10509257 GASKET
WP3369322 WP3369322 GRATE
8535657 8535657 GROMMET, MOTOR SUPPORT
WP3369037 WP3369037 GROMMET, PUMP SEAL
8535421 8535421 GUIDE, ENERGY
8535037 8535037 GUIDE, USE & CARE
3385498 3385498 HARNS-WIRE
WPW10082894 WPW10082894 HEATER (INCLUDES ITEM 14)
4318050 4318050 HEAVY DUTY DRAIN HOSE
8520842 8520842 HOSE
WP3374077 WP3374077 HOSE, DRAIN
W11189178 W11189178 HOSE, PUMP INLET
WP304669 WP304669 HOSE-FILL
8318218 8318218 HOUSING
WP3369011 WP3369011 HOUSING ASSEMBLY
4386996A 4386996A IMPELLER
WP8528310 WP8528310 INNER DOOR ASSEMBLY
8535378 8535378 INSERT, CONSOLE (BISCUIT)
WP8535377 WP8535377 INSERT, CONSOLE (WHITE)
8535436 8535436 INSTRUCTIONS, INSTALLATION
3367007 3367007 INSTRUCTIONS, INSTRUCTIONS (SUPPLEMENT) (LOCATING YOUR WATER SUPPLY)
8275309 8275309 KNOB, TIMER
8275310 8275310 KNOB-TIMER
3375062 3375062 LEVER
WP3369457 WP3369457 LEVER, LATCH
8193716 8193716 LEVLER-LEG
8539093 8539093 LID
WP3369816 WP3369816 MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS) REFER TO DISHWASHER REPLACEMENT PANEL PARTS LIST NO. 678345
WP8283457 WP8283457 MOTOR-PUMP
3370856 3370856 NUT
717488 717488 NUT
WPW10477552 WPW10477552 NUT (2) (HEATER TERMINAL)
W10084502 W10084502 NUT, PUMP OUTLET
8052018 8052018 PAD
978883 978883 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
WP8054178 WP8054178 PANEL FRONT (BISCUIT)
WP9744143 WP9744143 PANEL, ACCESS W/CLIP ASSEMBLY (INCLUDES ITEM 39) (WHITE)
WP3384157 WP3384157 PANEL-TOE
WP3379921 WP3379921 PANEL-TOE
WP3372028 WP3372028 PIN (LID HINGE)
WP3368955 WP3368955 PIN, SWITCH (2)
WP3378149 WP3378149 PLATE, LATCH
350942 350942 PRIMER
WPW10247394 WPW10247394 PUMP & MOTOR ASSEMBLY( FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE)
W10102260 W10102260 RELAY
W10858635 W10858635 RING, DIAPHRAGM
3368933 3368933 RUNNER
WP3371710 WP3371710 SCREEN, VENT
3369138 3369138 SCREW
3369181 3369181 SCREW
WP304231 WP304231 SCREW
WP3400892 WP3400892 SCREW
WPW10348413 WPW10348413 SCREW
WP681414 WP681414 SCREW
WP3374720 WP3374720 SCREW
WP489069 WP489069 SCREW
WP489128 WP489128 SCREW
WP3400014 WP3400014 SCREW
WP3368921 WP3368921 SCREW, 7-18 X 3/4
WP302868 WP302868 SCREW, 8-18 X 1/2 (2)
WP3370389 WP3370389 SCREW, SHOULDER
3368922 3368922 SCREW-TORX
WP3369177 WP3369177 SEAL
WP3369020 WP3369020 SEAL SEAT
WP3369031 WP3369031 SEAL, DRAIN COVER
WP8520843 WP8520843 SEAL, FUNNEL
WP3369045 WP3369045 SEAL, SPLIT RING
WP3385557 WP3385557 SEAL-HEAD
W11086533 W11086533 SHIELD
4317929 4317929 SIDE PANEL KITS (ALMOND)
4317925 4317925 SIDE PANEL KITS: (WHITE)
WPW10164258 WPW10164258 SPRAY ARM, ASSEMBLY LOWER
WP3368999 WP3368999 SPRING (DRAW BAR)
WP3374343 WP3374343 SPRING, DOOR
WP8066018 WP8066018 SPRING, LID
WP8565925 WP8565925 STOP
WP3371745 WP3371745 SUPPORT
W10113908 W10113908 SUPPORT, MOTOR
3379740 3379740 SUPPRT-HTR
8274578 8274578 SWITCH
8051730 8051730 SWITCH, 5-PUSHBUTTON (WHITE)
WPW10102498 WPW10102498 SWITCH, FLOAT
4318273 4318273 SWITCH-KIT
WP8535372 WP8535372 TIMER
WP8268825 WP8268825 TOWER, PROTECTOR
WP3385089 WP3385089 TRACK
W10082653 W10082653 TUB ASSEMBLY
WP8528831 WP8528831 TUB, WHEEL ASSEMBLY
WP676455 WP676455 TUCHUP
W10840471 W10840471 VINYL TOUCH-UP (BLUE)
WP676453 WP676453 VINYL TOUCH-UP (WHITE)
3369044 3369044 WASHER
3371634 3371634 WASHER
WP3378128 WP3378128 WASHER
3369038 3369038 WASHER, GROMMET
WP717273 WP717273 WASHER, RUBBER
W10844024 W10844024 WATER VALVE
WP8052027 WP8052027 WET AGENT, DISPENSER
WP3378134 WP3378134 WET-AGENT CAP ASSEMBLY
WP8268645 WP8268645 WHEEL & TRANSPORT ASSEMBLY (4)
WP302819 WP302819 WHEEL LEG (2)
WPW10204131 WPW10204131 WHEEL, ASSEMBLY
