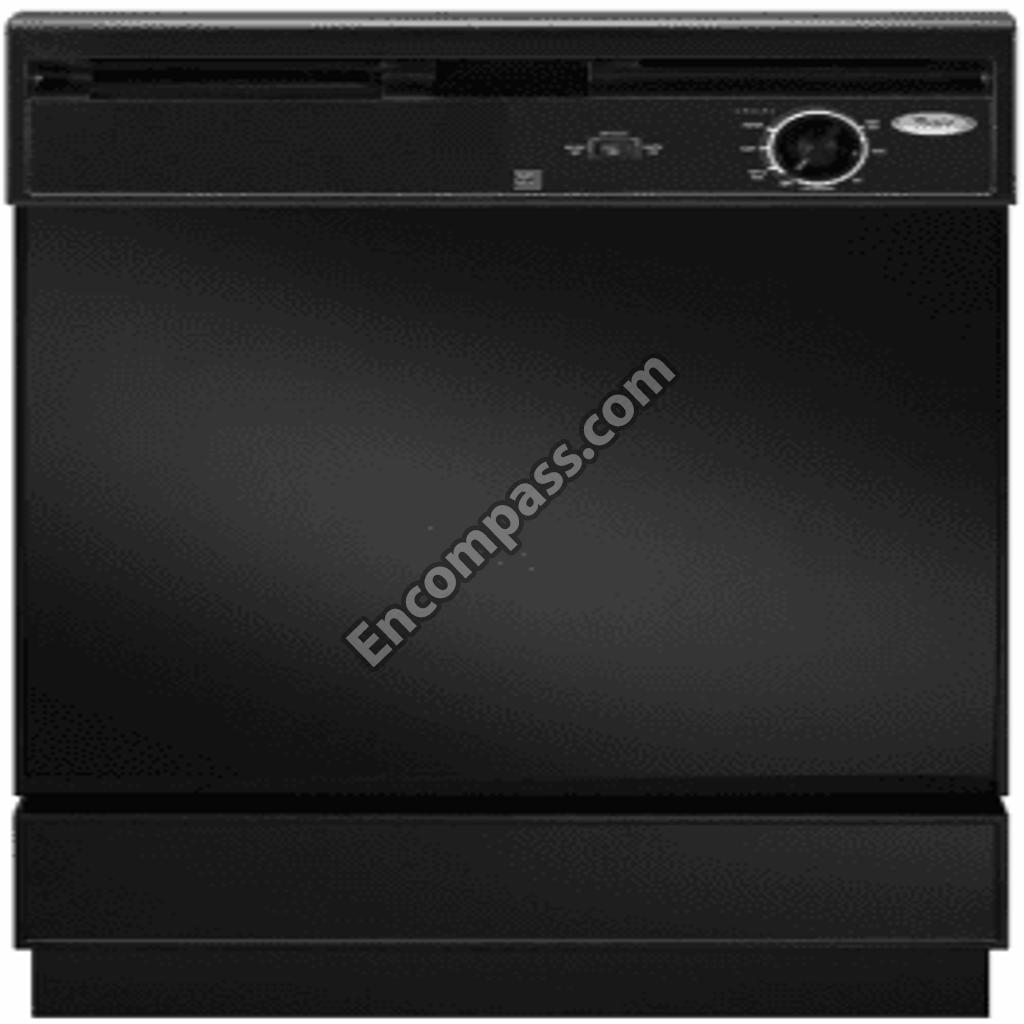

Model Image
Manufacturer

Whirlpool

Model Number

DU811SWPU3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
8193646 8193646 ACTUATOR
WPW10204131 WPW10204131 ADJUSTER
WPW10164258 WPW10164258 ARM-SPRAY
WP3369178 WP3369178 BALL-CHECK
WP8539107 WP8539107 BASKT-WARE
3371746 3371746 BEARING
WP3373234 WP3373234 BEARING
WP3380854 WP3380854 BOLT-DOOR LATCH
WP3385142 WP3385142 BUMPER
WP8271510 WP8271510 CAM
WP3378134 WP3378134 CAP
WP3374716 WP3374716 CHANNEL
3400959 3400959 CLAMP
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP
371499 371499 CLAMP
WP3378123 WP3378123 CLIP
W10072730 W10072730 CONSOLE
3371542 3371542 CORD, POWER
3369030 3369030 COVER
WP3378138 WP3378138 COVER
8051644 8051644 COVER, CONTROL
3371569 3371569 COVER-DRIP
8318219 8318219 COVR-HOUSG
WP8528862 WP8528862 DEFLECTOR
WP8563504 WP8563504 DIAPHRAGM
W10161215 W10161215 DISHRACK
W11169039 W11169039 DISHRACK
100000 100000 DISHRACK REPAIR
WP3369012 WP3369012 DISK-MOUNT
WP8052027 WP8052027 DISPENSER
W10131216 W10131216 DIY
676413 676413 DOOR LATCH DOOR KIT
WP8528310 WP8528310 DOOR-INNER
WP3369000 WP3369000 DRAW BAR
3376405 3376405 ELBOW
W10039850 W10039850 ENERGY GUIDE
WP8519552 WP8519552 FLOAT
WP3369529 WP3369529 FOLLOWER
3374711 3374711 FRAME
WP8520841 WP8520841 FUNNEL-SEP
WP3368928 WP3368928 FUSE
WPW10509257 WPW10509257 GASKET
WP3369322 WP3369322 GRATE
8535657 8535657 GROMMET, MOTOR SUPPORT
WP3369037 WP3369037 GROMMET, PUMP SEAL
W10039800 W10039800 GUIDE, USE & CARE
3385500 3385500 HARNS-WIRE
WPW10082894 WPW10082894 HEATER
4318050 4318050 HEAVY DUTY
8520842 8520842 HOSE
W11189178 W11189178 HOSE
WP3374077 WP3374077 HOSE-DRAIN
WP304669 WP304669 HOSE-FILL
8318218 8318218 HOUSING
WP3369011 WP3369011 HOUSING
4386996A 4386996A IMPELLER
W10844024 W10844024 INLET VALVE
W10039510 W10039510 INSERT
8535436 8535436 INSTRUCTIONS, INSTALLATION
3367007 3367007 INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATING YOUR WATER SUPPLY)
8275308 8275308 KNOB-TIMER
WP3369457 WP3369457 LEVER, DOOR LATCH (BLACK)
8193716 8193716 LEVLER-LEG
8539093 8539093 LID
WP3369816 WP3369816 MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS
WP8528831 WP8528831 MOUNT
3370856 3370856 NUT
717488 717488 NUT
WPW10477552 WPW10477552 NUT (2) (HEATER TERMINAL)
W10084502 W10084502 NUT, PUMP OUTLET
3371881 3371881 NUT, TINNERMAN
8052018 8052018 PAD
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP3369769 WP3369769 PANEL
WP3374730 WP3374730 PANEL
WP3379920 WP3379920 PANEL-TOE
WP3368955 WP3368955 PIN
WP3372028 WP3372028 PIN-DOWEL
350942 350942 PRIMER
WP8268825 WP8268825 PROTECTOR
WPW10247394 WPW10247394 PUMP & MOTOR
WP8283457 WP8283457 PUMP MOTOR
W10102260 W10102260 RELAY-MTR
WP3374010 WP3374010 RETAINER
W10858635 W10858635 RING
3368933 3368933 RUNNER
WP3371710 WP3371710 SCREEN
8534039 8534039 SCREW
WP304231 WP304231 SCREW
WP3400892 WP3400892 SCREW
WPW10348413 WPW10348413 SCREW
WP681414 WP681414 SCREW
WP3374720 WP3374720 SCREW
WP489069 WP489069 SCREW
WP489128 WP489128 SCREW
WP302868 WP302868 SCREW
WP3370389 WP3370389 SCREW, SHOULDER
3368922 3368922 SCREW-TORX
WP3368921 WP3368921 SCREW-TORX
WP3369045 WP3369045 SEAL
WP8520843 WP8520843 SEAL
WP3369177 WP3369177 SEAL
WP3369031 WP3369031 SEAL
WP3385557 WP3385557 SEAL-HEAD
WP3369020 WP3369020 SEAL-SEAT
WP8520839 WP8520839 SEPARATOR
W11086533 W11086533 SHIELD
4317929 4317929 SIDE PANEL KITS (ALMOND)
4317925 4317925 SIDE PANEL KITS: (WHITE)
WP3368979 WP3368979 SPACER, CORRUGATED
285006 285006 SPRAY
WP3368999 WP3368999 SPRING
WP8066018 WP8066018 SPRING
WP3373228 WP3373228 SPRING
WP8565925 WP8565925 STOP
WP3378149 WP3378149 STRIKE
WP3371745 WP3371745 SUPPORT
W10113908 W10113908 SUPPORT, MOTOR
3379740 3379740 SUPPRT-HTR
8051729 8051729 SWITCH
WPW10102498 WPW10102498 SWITCH
4318273 4318273 SWITCH-KIT
WPW10199588 WPW10199588 TIMER
12022 12022 TINE TIP REPAIR KIT (BLUE - ENOUGH FOR TWO COMPLETE DISHRACKS)
676458 676458 TINE TIP REPAIR KIT (GREY ENOUGH FOR TWO COMPLETE DISHRACKS)
675679 675679 TINE TIP REPAIR KIT (WHITE - ENOUGH FOR TWO COMPLETE DISHRACKS)
WP3385089 WP3385089 TRACK
W10082653 W10082653 TUB-DISHWR
W10840471 W10840471 TUCHUP
WP676455 WP676455 TUCHUP
WP676453 WP676453 TUCHUP
3369038 3369038 WASHER
3369044 3369044 WASHER
3371634 3371634 WASHER
WP717273 WP717273 WASHER
WP302819 WP302819 WHEEL
WP8268645 WP8268645 WHEEL
