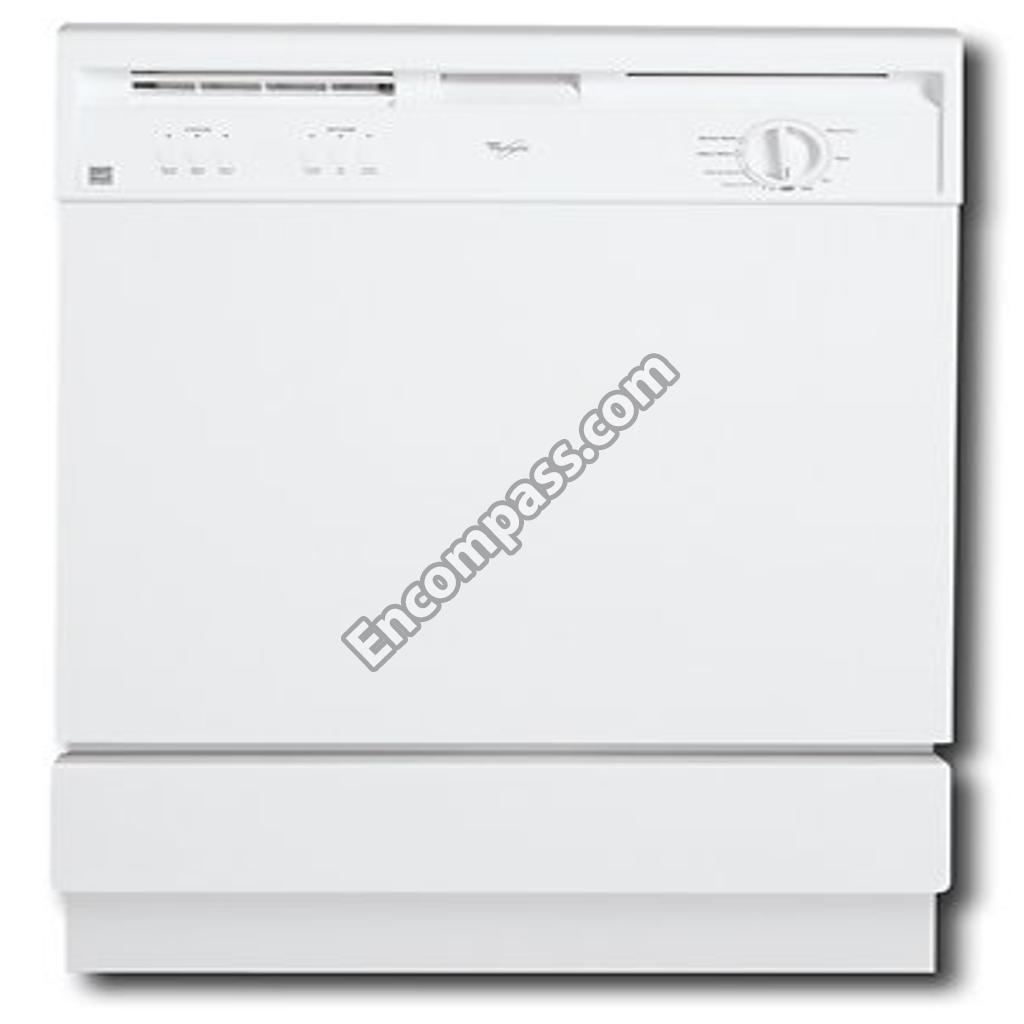

Model Image
Manufacturer

Whirlpool

Model Number

DU850SWLQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
8193646 8193646 ACTUATOR
350956 350956 ALMOND
WP72107 WP72107 ALMOND
WP3369178 WP3369178 BALL, CHECK VALVE
3371746 3371746 BEARING
WP3373234 WP3373234 BEARING, SPRING (2)
72032 72032 BLACK
WP3380854 WP3380854 BOLT, LATCH
8529303 8529303 BOX-TERM
WP3385142 WP3385142 BUMPER
WP8271510 WP8271510 CAM
WP596669 WP596669 CLAMP
3400959 3400959 CLAMP (2)
371499 371499 CLAMP, HOSE
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
WP3378123 WP3378123 CLIP, GROUNDING
WP8520839 WP8520839 COLLECTOR WITH CHECK VALVE
3384060 3384060 CONSOLE
3384061 3384061 CONSOLE
WP3378138 WP3378138 COVER
3369030 3369030 COVER, DRAIN VALVE
3371569 3371569 COVER, DRIP
300068 300068 COVR-BOX
8318219 8318219 COVR-HOUSG
8269526 8269526 COVR-TIMER
WP8528862 WP8528862 DEFLECTOR (2)
WP8563504 WP8563504 DIAPHRAGM
8519550 8519550 DIFFUSER
W10161215 W10161215 DISHRACK
W11169039 W11169039 DISHRACK, UPPER
WP3369012 WP3369012 DISK & MOUNT ASSEMBLY
LIT0677967 LIT0677967 DO-IT YOURSELF MANUAL
WP9743028 WP9743028 DOOR FRAME (ALSO ORDER ITEM 22) (WHITE)
676413 676413 DOOR LATCH DOOR KIT
100000 100000 DOOR SPRING KIT:
WP3369000 WP3369000 DRAW BAR, (UPPER DISPENSER)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3376405 3376405 ELBOW
WP8519552 WP8519552 FLOAT
WP3369529 WP3369529 FOLLOWER, CAM
WP3379376 WP3379376 FRONT PANEL (WHITE)
WP8520841 WP8520841 FUNNEL
WP3368928 WP3368928 FUSE, THERMAL
WPW10509257 WPW10509257 GASKET
WP3369322 WP3369322 GRATE
8535657 8535657 GROMMET, MOTOR SUPPORT
WP3369037 WP3369037 GROMMET, PUMP SEAL
8275123 8275123 HARNS-WIRE
WPW10082894 WPW10082894 HEATER (INCLUDES ITEM 14)
4318050 4318050 HEAVY DUTY DRAIN HOSE
8520842 8520842 HOSE
WP3374077 WP3374077 HOSE, DRAIN
W11189178 W11189178 HOSE, PUMP INLET
WP304669 WP304669 HOSE-FILL
8318218 8318218 HOUSING
WP3369011 WP3369011 HOUSING ASSEMBLY
4386996A 4386996A IMPELLER
WP8528310 WP8528310 INNER DOOR ASSEMBLY
3385505 3385505 INSERT
3385506 3385506 INSERT
LIT3385181 LIT3385181 INSTALLATION GUIDE
8275309 8275309 KNOB, TIMER
8275308 8275308 KNOB, TIMER (BLACK)
WP3369457 WP3369457 LEVER, LATCH
8193716 8193716 LEVLER-LEG
LIT3385497 LIT3385497 LITERATURE PARTS (DIAGRAM, WIRING)
LIT8534945 LIT8534945 LITERATURE PARTS (GUIDE, ENERGY)
LIT3385495 LIT3385495 LITERATURE PARTS (GUIDE, USE & CARE)
LIT3367007 LIT3367007 LITERATURE PARTS (INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATING YOUR WATER SUPPLY))
WP3369816 WP3369816 MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS) REFER TO DISHWASHER REPLACEMENT PANEL PARTS LIST NO. 678345
WP8283457 WP8283457 MOTOR-PUMP
3370856 3370856 NUT
717488 717488 NUT
WPW10477552 WPW10477552 NUT (2) (HEATER TERMINAL)
W10084502 W10084502 NUT, PUMP OUTLET
8052018 8052018 PAD
978883 978883 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
WP9744142 WP9744142 PANEL, ACCESS (INCLUDES ITEM 39) (BLACK)
WP9744143 WP9744143 PANEL, ACCESS (INCLUDES ITEM 39) (WHITE)
WP3379375 WP3379375 PANEL, FRONT (BLACK MDL.)
WP3379921 WP3379921 PANEL-TOE
WP3379920 WP3379920 PANEL-TOE
WP3372028 WP3372028 PIN (LID HINGE)
WP3368955 WP3368955 PIN, SWITCH (2)
WP3378149 WP3378149 PLATE, LATCH
350942 350942 PRIMER
WPW10247394 WPW10247394 PUMP & MOTOR ASSEMBLY( FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE)
W10102260 W10102260 RELAY
W10858635 W10858635 RING, DIAPHRAGM
3368933 3368933 RUNNER
WP3371710 WP3371710 SCREEN, VENT
3369138 3369138 SCREW
3369181 3369181 SCREW
WP304231 WP304231 SCREW
WP3400892 WP3400892 SCREW
WPW10348413 WPW10348413 SCREW
WP681414 WP681414 SCREW
WP3374720 WP3374720 SCREW
WP489069 WP489069 SCREW
WP489128 WP489128 SCREW
WP3400014 WP3400014 SCREW
WP3368921 WP3368921 SCREW, 7-18 X 3/4
WP302868 WP302868 SCREW, 8-18 X 1/2 (2)
WP3370389 WP3370389 SCREW, SHOULDER (2)
3368922 3368922 SCREW-TORX
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP3369177 WP3369177 SEAL
WP3369020 WP3369020 SEAL SEAT
WP3369031 WP3369031 SEAL, DRAIN COVER
WP8520843 WP8520843 SEAL, FUNNEL
WP3369045 WP3369045 SEAL, SPLIT RING
WP3385557 WP3385557 SEAL-HEAD
3379671 3379671 SHIELD
W11086533 W11086533 SHIELD
4317929 4317929 SIDE PANEL KITS (ALMOND)
4396188 4396188 SIDE PANEL KITS: (BISCUIT)
4317925 4317925 SIDE PANEL KITS: (WHITE)
WP8268866 WP8268866 SILVERWARE BASKET
WPW10164258 WPW10164258 SPRAY ARM, ASSEMBLY LOWER
WP3368999 WP3368999 SPRING (DRAW BAR)
WP3379383 WP3379383 SPRING, DOOR
WP8066018 WP8066018 SPRING, LID
WP8565925 WP8565925 STOP
WP3371745 WP3371745 SUPPORT
W10113908 W10113908 SUPPORT, MOTOR
3379740 3379740 SUPPRT-HTR
WPW10102498 WPW10102498 SWITCH, FLOAT
4318273 4318273 SWITCH-KIT

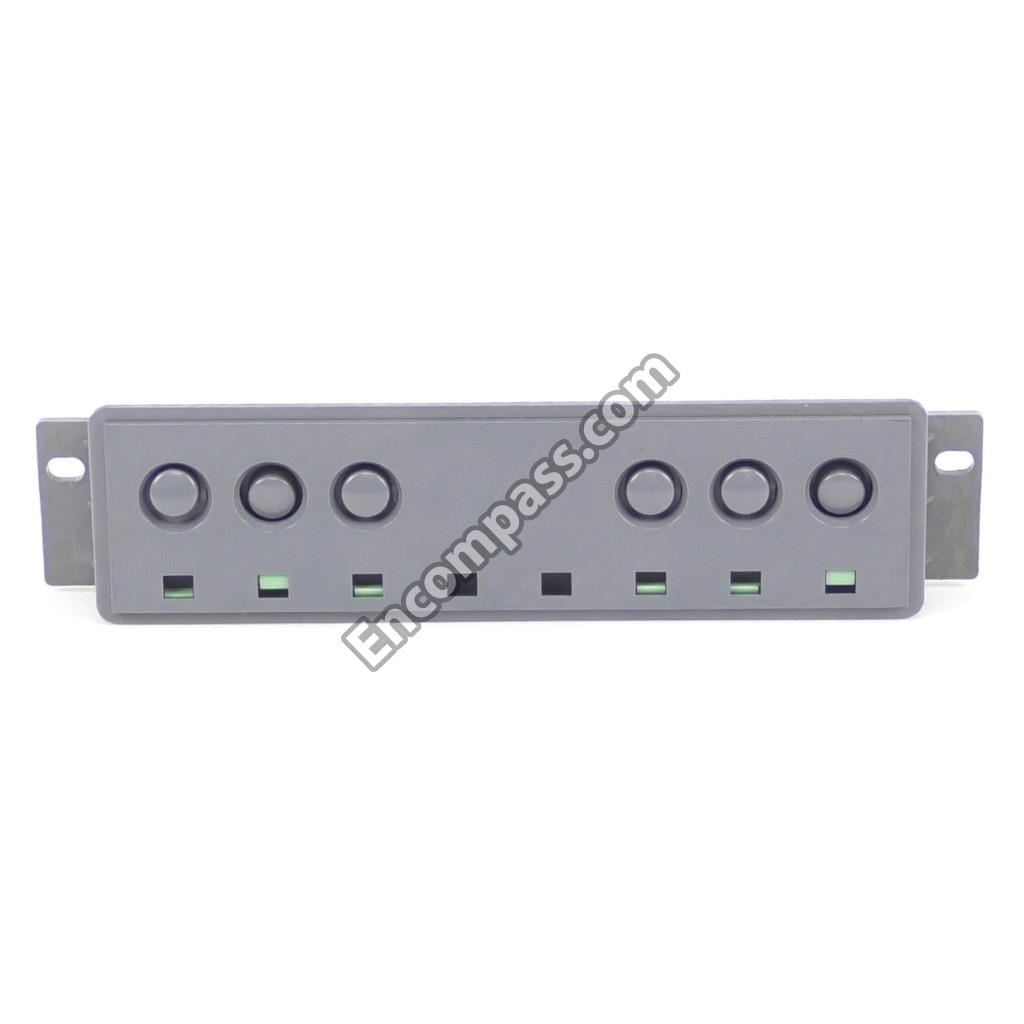

8269366 8269366 SWITCH-PB

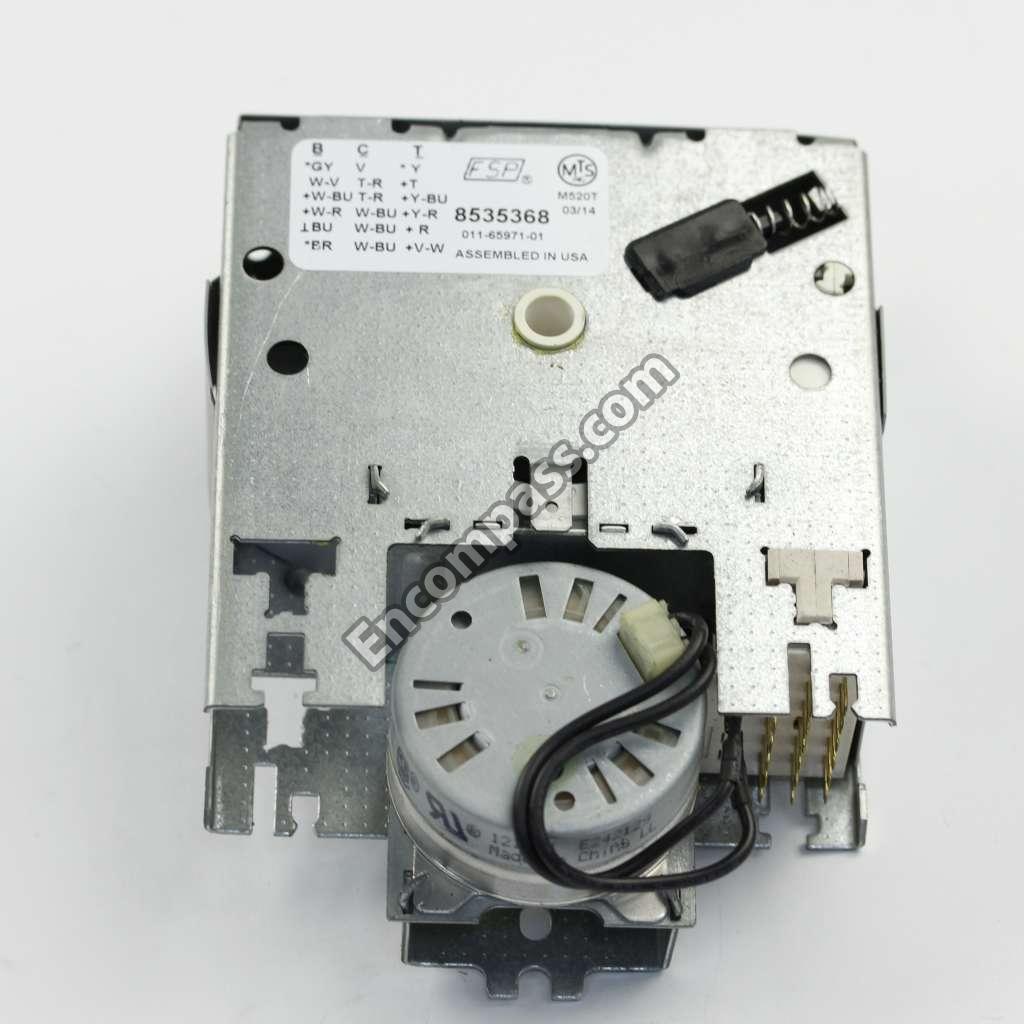

WP8535368 WP8535368 TIMER
WP8268825 WP8268825 TOWER, PROTECTOR
WP3385089 WP3385089 TRACK
W10082653 W10082653 TUB ASSEMBLY
WP8528831 WP8528831 TUB, WHEEL ASSEMBLY
WP676455 WP676455 TUCHUP
W10840471 W10840471 VINYL TOUCH-UP (BLUE)
WP676453 WP676453 VINYL TOUCH-UP (WHITE)
3369044 3369044 WASHER
3371634 3371634 WASHER
WP3378128 WP3378128 WASHER
3369038 3369038 WASHER, GROMMET
WP717273 WP717273 WASHER, RUBBER
W10844024 W10844024 WATER VALVE
WP8052027 WP8052027 WET AGENT, DISPENSER
WP3378134 WP3378134 WET-AGENT CAP ASSEMBLY
WP8268645 WP8268645 WHEEL & TRANSPORT ASSEMBLY (4)
WP302819 WP302819 WHEEL LEG (2)
WPW10204131 WPW10204131 WHEEL, ASSEMBLY
