Model Image
Manufacturer

Whirlpool

Model Number

DU8700XT5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
300109 300109 ACTUATOR
304443 304443 ACTUATOR
WP72107 WP72107 ALMOND
350956 350956 ALMOND
WP303650 WP303650 ALTERNATE
303978 303978 BAFFLE
WP302709 WP302709 BALL, CHECK
303908 303908 BARRIER, CONSOLE
303223 303223 BARRIER, DOOR
675498 675498 BASE-INLET
8193528 8193528 BASE-PUMP
WP719576 WP719576 BEARING, NOZZLE
3368107 3368107 BLOCK FOAM, TUB (2)
3368647 3368647 BRACE
3368272 3368272 BRACKET
300796 300796 BRACKET, MOUNTING (2)
719342 719342 BRACKET, OVERFLOW
675531 675531 BUMPER
302707 302707 BUSHING, GRIND
300239 300239 BUTTON
304670 304670 BUTTON KIT
718577 718577 CAP
WP3367910 WP3367910 CAP, CONNECTOR
718576 718576 CAP, DRIP
675488 675488 CHECK BALL & RETAINER
675806 675806 CHOP-IMPLR
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP, HOSE (2) (SUDS)
3367172 3367172 CLIP, TRIM GUARD (2)
301857 301857 CLIP, WIRE (2)
261887 261887 COFFEE (UNCUT)
358736 358736 CONNECTOR BLOCK (ALTERNATE)
374230 374230 CONNECTOR BLOCK (ALTERNATE)
300708 300708 CONNECTOR, BLOCK (ALTERNATE)
3367886 3367886 CONSOLE
4387043 4387043 COVER
675749 675749 COVER
301066 301066 COVER, HOUSING (2)
302721 302721 COVER, VALVE
300068 300068 COVR-BOX
3369366 3369366 DICONNECT BLOCK, TIMER
W11169039 W11169039 DISHRACK
W10311986 W10311986 DISHRACK
675551 675551 DISPENSER
3367058 3367058 DOOR LATCH ASSEMBLY
675628 675628 DOOR-INNER
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WP300845 WP300845 END CAP, TRACK (4)
LIT3370048 LIT3370048 ENERGY GUIDE
718035 718035 FLOAT
3368537 3368537 FOAM, SEAL
301662 301662 GASKET
713878 713878 GASKET
675582 675582 GASKET

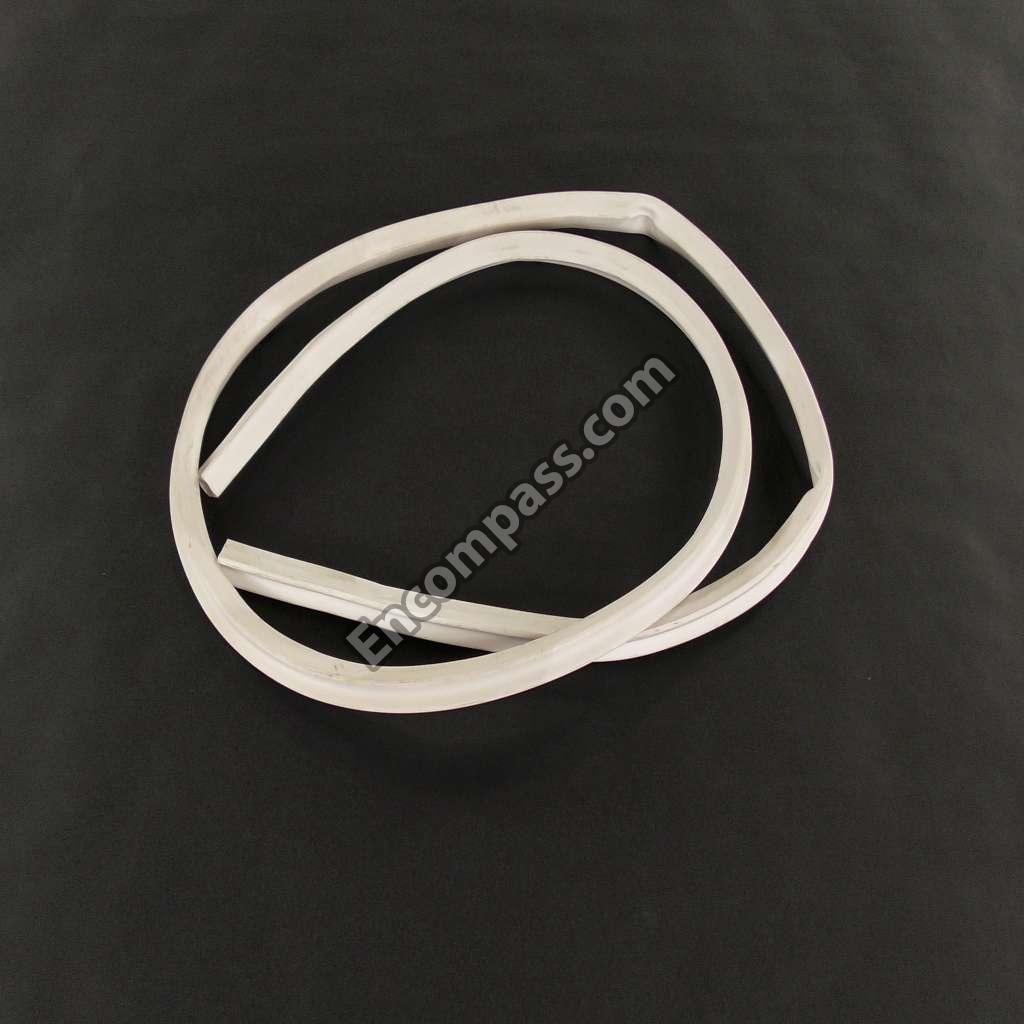

WP3368007 WP3368007 GASKET, DOOR
719966 719966 GASKET, OVERFLOW
717000 717000 GASKET, PUMP
261890 261890 GOLDEN HARVEST
261891 261891 GOLDEN HARVEST (UNCUT)
303469 303469 GRATE
304602 304602 GRILL-VENT
LIT304290 LIT304290 GUIDE, USE & CARE
300086 300086 HANDLE
3368330 3368330 HARNESS, WIRING
675489 675489 HEATER
WP3367052 WP3367052 HOSE CLAMP
675544 675544 HOSE-DRAIN
304208 304208 HOUSING, GEAR (2)
3367572 3367572 INLET, WATER
301656 301656 INSERT, CUP-HOSE
3367841 3367841 INSERT, DECORATIVE
LIT3367228 LIT3367228 INSTRUCTIONS, INSTALLATION
LIT3367007 LIT3367007 INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATING YOUR WATER SUPPLY)
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
3367282 3367282 KNOB, TIMER
LIT3367993 LIT3367993 LABEL, WIRING DIAGRAM
3367284 3367284 LEG & HINGE ASSEMBLY, L.H.
3367498 3367498 LEG & HINGE ASSEMBLY, R.H.
350941 350941 LEVELER (THINNER)
3367283 3367283 LEVER
300119 300119 LEVER, CATCH
8193716 8193716 LEVLER-LEG
304422 304422 LIGHT-IND
718829 718829 LOCKNUT, 10-32 (8)
3369472 3369472 MOTOR (INCLUDES ITEMS 24, 27 & 31) (ALSO ORDER ITEM 30) (FOR ELECTRICAL CONNECTOR ONLY, SEE WIRING H
261889 261889 NEW AVOCADO (UNCUT)
3367288 3367288 NLASCREW
W10080180 W10080180 NUT
718575 718575 NUT, 1-14
717488 717488 NUT, 1/8
120614 120614 NUT, 10-32 (2)
718537 718537 NUT, 7/16 X 20 (2)
713799 713799 NUT, 7/8-16
303080 303080 NUT, TWIN SPRING
675494 675494 OUTLET-PMP
978883 978883 PAINT
799344 799344 PAINT
285367 285367 PAINT
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
WP3367549 WP3367549 PANEL
3367012 3367012 PANEL, ACCESS (ALMOND/BLACK)
304047 304047 PANEL, EDGING (DOOR)
675553 675553 PANEL, FRONT (ALMOND/BLACK)
100000 100000 PANEL, REVERSIBLE SIDE
LIT3367268 LIT3367268 PARTS LIST
300234 300234 PIN, PIVOT
675497 675497 PLATE, PERFORATED (INCLUDES ITEM 5) (ALSO ORDER ITEM 30) SEE NOTE A.
3367671 3367671 PLATE, TOE
285368 285368 PLATINUM (UNCUT)
351296 351296 POD-INSLTN
351297 351297 POD-INSLTN
3367669 3367669 PROTECTOR, EDGE
675748A 675748A PUMP & MOTOR
675703 675703 PUMP SEAL KIT (INCLUDES ITEMS 12, 13, 22 & 36)
304391 304391 RAIL, SUPPORT
719585 719585 RECEPTACLE (5-CIRCUIT)
304658 304658 RELAY, START
3370307 3370307 RELIEF-STR
WP3368002 WP3368002 RETAINER
3367720 3367720 RETAINER, CLIP
300104 300104 RETAINER, SEAL
WP716401 WP716401 RETAINER, SPRING (2)
300844 300844 ROLLER, RACK TRACK
300246 300246 SCREEN
WP488729 WP488729 SCREW
WP304231 WP304231 SCREW
WP489128 WP489128 SCREW
WP308685 WP308685 SCREW
WP3368008 WP3368008 SCREW
WP489069 WP489069 SCREW
W11693756 W11693756 SCREW
WP488627 WP488627 SCREW
WP9741232 WP9741232 SCREW
WP9419621 WP9419621 SCREW
WP3371152 WP3371152 SCREW
304232 304232 SCREW NLA
3369331 3369331 SCREW, 13-16 (4)
304444 304444 SCREW, 4-20 X 3/8 (2)
302203 302203 SCREW, 4-40 X 5/8
301582 301582 SCREW, 6-32 X 1
718250 718250 SCREW, 8 X 1/2 (3)
302251 302251 SCREW, 8 X 1/2 (3)
302717 302717 SCREW, 8-18 X 1-5/8
304233 304233 SCREW, 8-18 X 1-7/8 (2)
WP302868 WP302868 SCREW, 8-18 X 1/2 (2)
303220 303220 SCREW, 8-18 X 3/8 (2)
WP718178 WP718178 SCREW, 8-32 X 3/8
WP3370389 WP3370389 SCREW, SHOULDER
712499 712499 SCREW, SHOULDER (8)
WP302710 WP302710 SEAL, INLET BASE
WP300105 WP300105 SEAL, LEVER
WP302711 WP302711 SEAL, PUMP OUTLET
WP302704 WP302704 SEAL-RING
675509 675509 SEPARATOR
W11086533 W11086533 SHIELD
W10586589 W10586589 SHIELD
303362 303362 SHIELD, HARNESS
712302 712302 SHIM
304779 304779 SILVERWARE BASKET
3378139 3378139 SLEEVE, DRAIN IMPELLER
W10909679 W10909679 SLINGER
303755 303755 SPACER, CORRUGATED
301957 301957 SPACER, PANEL
285365 285365 SPRAY
350930 350930 SPRAY (13 OZ.) (WHITE)
WP304204 WP304204 SPRAY ARM
302767 302767 SPRAY ARM, LEVER
WP8066018 WP8066018 SPRING
675611 675611 SPRING
675485 675485 STANDPIPE
300233 300233 STRIKE
WP3367197 WP3367197 SUPPORT
3367202 3367202 SUPPORT, DOOR (L.H.)
3367201 3367201 SUPPORT, DOOR (R.H.)
675484 675484 SUPPRT-HTR
3367741 3367741 SWITCH
660951 660951 SWITCH, INTERLOCK
66074-1 66074-1 SWITCH, PRESSURE
660741 660741 SWITCH, PRESSURE
WP596797 WP596797 TERMINAL
3378131 3378131 TERMINAL BOX
WP94614 WP94614 TERMINAL, FEMALE
304759 304759 TERMINAL, FEMALE
303282 303282 THERMOSTAT (ALTERNATE)
WPW10144763 WPW10144763 TIE-WIRE
WPW10339879 WPW10339879 TIE-WIRE
3368534 3368534 TIMER (FOR ELECTRICAL CONNECTOR ONLY, SEE WIRING HARNESS PAGE.)
12022 12022 TINE TIP REPAIR KIT (BLUE-ENOUGH FOR TWO COMPLETE DISHRACKS)
WP303918 WP303918 TOOL, PUMP CENTERING (INCLUDED WITH ILLUS 24)
WP304170 WP304170 TOWER, PRESSURE
300846 300846 TRACK (2)
303753 303753 TRIM, ACCESS PANEL
303754 303754 TRIM, ACCESS PANEL TOP
717528 717528 TRIM, BASKET
3368000 3368000 TRIM, DOOR L.H.
3367999 3367999 TRIM, DOOR R.H.
675630 675630 TUB-DISHWR
675496 675496 VALVE STEM KIT (INCLUDES ILLUS. 12, 13 & 22) SEE NOTE A.
675238 675238 VALVE, CHECK (INCLUDES ITEMS 21 & 23)
675476 675476 VINYL TOUCH UP (BLUE)
487596 487596 WASHER
300237 300237 WASHER
W11089212 W11089212 WASHER
713080 713080 WASHER (2)
711284 711284 WASHER (2)
717624 717624 WASHER (8)
718750 718750 WASHER (8)
718817 718817 WASHER, CUP (8)
717289 717289 WASHER, RETAINER (2)
WP717273 WP717273 WASHER, RUBBER
WP3376961 WP3376961 WHEEL
304200 304200 WHEEL & GEAR ASSEMBLY (2)
WP302819 WP302819 WHEEL LEG (2)
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
304203 304203 WORM, DISHRACK (2)
WP357574 WP357574 ``O`` RING
