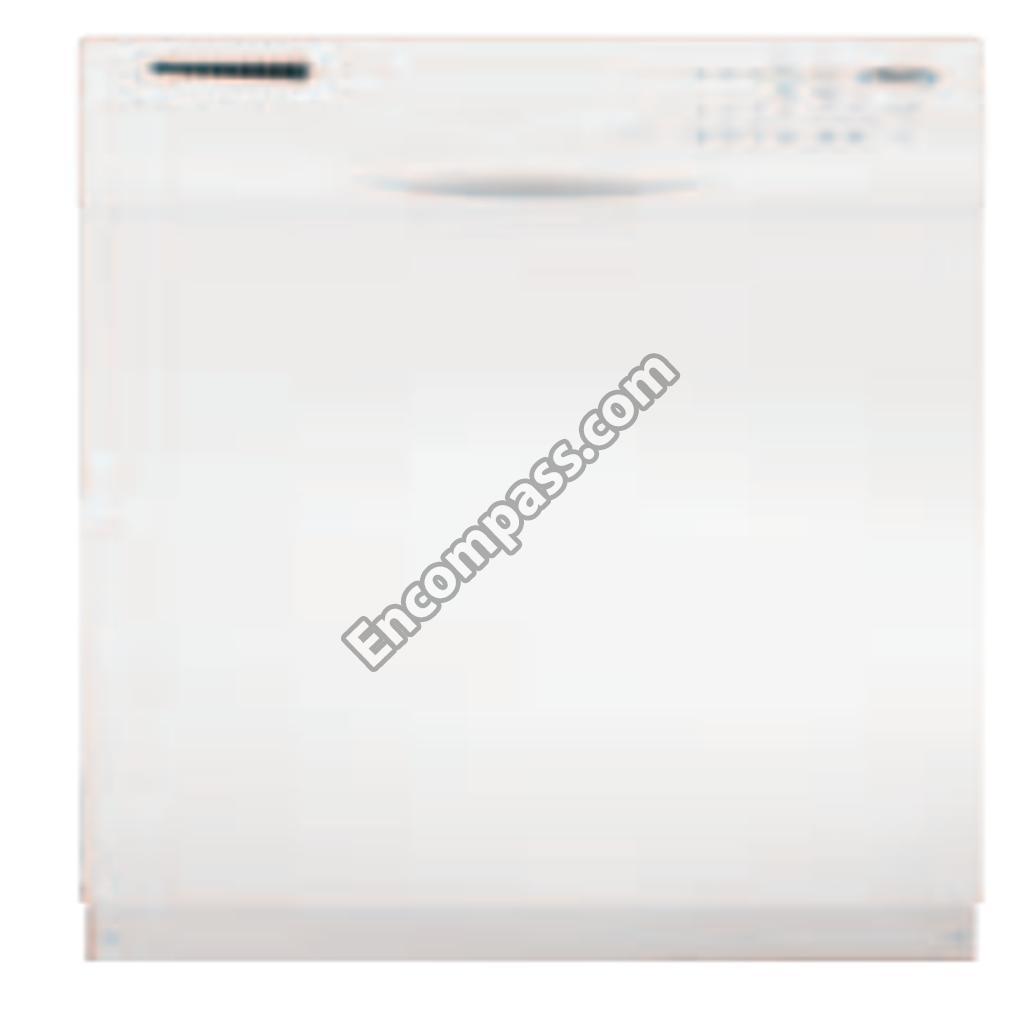

Model Image
Manufacturer

Whirlpool

Model Number

DU945PWPB2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP8271325 WP8271325 ABSORBER, SOUND
4378869 4378869 ACCESSORIES SIDE PANEL KITS (ALMOND CUSTOM TRIM & PANEL KITS)
675788 675788 ACCESSORIES SIDE PANEL KITS (BISCUIT)
675775 675775 ACCESSORIES SIDE PANEL KITS (BLACK)
4378868 4378868 ACCESSORIES SIDE PANEL KITS (BLACK)
4318050 4318050 ACCESSORIES SIDE PANEL KITS (SPRING)
675776 675776 ACCESSORIES SIDE PANEL KITS (WHITE)
4378867 4378867 ACCESSORIES SIDE PANEL KITS (WHITE)
4392899 4392899 ACCESSORIES SIDE PANEL KITS PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
3385556 3385556 ACCESSORIES, DRAIN HOSE 12 FT.
WP3369505 WP3369505 ACTUATOR
WPW10204141 WPW10204141 ADJUSTER
WP8519604 WP8519604 ARM-SPRAY
WP8268874 WP8268874 ARM-SPRAY
WP302709 WP302709 BALL-CHECK
WP719929 WP719929 BALL-CHECK
4396277 4396277 BARRIER KIT
675498 675498 BASE-INLET
8193525 8193525 BASE-PUMP
W11027965 W11027965 BASKT-WARE
WP3373234 WP3373234 BEARING
WP9742946 WP9742946 BEARING
WP3380854 WP3380854 BOLT-DOOR LATCH
8573951 8573951 BOX-TERM
W10539489 W10539489 BRCKT-STAT
3371748 3371748 CAP
WP3378134 WP3378134 CAP
675782 675782 CATCH
675806 675806 CHOP-IMPLR
WP596669 WP596669 CLAMP
WP356138 WP356138 CLAMP
8268868 8268868 CLIP
8268867 8268867 CLIP
WP3400935 WP3400935 CLIP
WP3378123 WP3378123 CLIP
WP8535167 WP8535167 CONTROL PANEL
WP8535166 WP8535166 CONTROL PANEL
WPW10039780 WPW10039780 CONTROL, ELECTRONIC
8051304 8051304 COVER
3376845 3376845 COVER
WP3378138 WP3378138 COVER
3371569 3371569 COVER-DRIP
300068 300068 COVR-BOX
8318219 8318219 COVR-HOUSG
WP3400919 WP3400919 COVR-SCREW
WP8528862 WP8528862 DEFLECTOR
W11169039 W11169039 DISHRACK
W10161215 W10161215 DISHRACK
4396853 4396853 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
WP8052028 WP8052028 DISPENSER
8519541 8519541 DOOR LATCH ASSEMBLY
676413 676413 DOOR LATCH DOOR KIT
8519540 8519540 DOOR, SILVERWARE BASKET
WP8051463 WP8051463 DOOR-INNER
WP3369448 WP3369448 DRAW BAR, ELECTRONIC
3376405 3376405 ELBOW
WP3384593 WP3384593 FILTR-PUMP
WP3376397 WP3376397 FLOAT-ASM
4378968 4378968 FLOOR MOUNTING KIT
WP9743028 WP9743028 FRAME
675813 675813 FUSE
WPW10509257 WPW10509257 GASKET
WP9740674 WP9740674 GASKET
717000 717000 GASKET, PUMP
8535640 8535640 GUIDE, ENERGY
8575990 8575990 GUIDE, USE & CARE
WP8573190 WP8573190 HARNESS AND PROTECTOR
WPW10082896 WPW10082896 HEATER
WP3385160 WP3385160 HOLDER
WP3374077 WP3374077 HOSE-DRAIN
WP304669 WP304669 HOSE-FILL
8318218 8318218 HOUSING
WP8274950 WP8274950 IMPELLER
W10844024 W10844024 INLET VALVE
8535436 8535436 INSTRUCTIONS, INSTALLATION
3367007 3367007 INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATING YOUR WATER SUPPLY)
3375062 3375062 LEVER
WP3369457 WP3369457 LEVER, DOOR LATCH (BLACK)
8193716 8193716 LEVLER-LEG
8562000 8562000 LID
WPW10258149 WPW10258149 MANIFOLD
WP3369816 WP3369816 MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS
4317824 4317824 MOISTURE BARRIER KIT, POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)
WP8534971 WP8534971 MOTOR & FAN ASSEMBLY (INCLUDES ITEM 27) (ALSO ORDER ITEM 30) SEE NOTE A.
WP3374501 WP3374501 MOTOR, DUAL
WP8528831 WP8528831 MOUNT
WP3385159 WP3385159 MOUNT
100000 100000 NOTE A: PUMP CENTERING TOOL REQUIRED FOR PUMP RE-ASSEMBLING ORDER ITEM 31.
717488 717488 NUT
WP8268873 WP8268873 NUT
WPW10477552 WPW10477552 NUT (2) (HEATER TERMINAL)
8194582 8194582 OUTLET
8052018 8052018 PAD
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
3385929 3385929 PANEL
3385927 3385927 PANEL
3385928 3385928 PANEL
WPW10214220 WPW10214220 PANEL
WP3379375 WP3379375 PANEL
WP3379376 WP3379376 PANEL FRONT (WHITE)
WPW10082780 WPW10082780 PANEL, ACCESS (STAINLESS)
WP8054178 WP8054178 PANEL, FRONT (BISCUIT)
WP3384157 WP3384157 PANEL, TOE (BISCUIT)
8535168 8535168 PANEL-CNTL
WP3379921 WP3379921 PANEL-TOE
WP3379920 WP3379920 PANEL-TOE
WP3368955 WP3368955 PIN
WP3372028 WP3372028 PIN-DOWEL
675497 675497 PLATE-PERF
W10428167 W10428167 PUMP & MOTOR
675703 675703 PUMP SEAL KIT (INCLUDES ITEMS 12, 13, 22 & 36)
4396838RC 4396838RC RAK KIT
4396840RC 4396840RC RAK KIT
W11384788 W11384788 RELIEF-STR
WP3376358 WP3376358 RETAINER
3368933 3368933 RUNNER
WP3371710 WP3371710 SCREEN
3369138 3369138 SCREW
3400001 3400001 SCREW
WP3400892 WP3400892 SCREW
WPW10348413 WPW10348413 SCREW
WP681414 WP681414 SCREW
WP3374720 WP3374720 SCREW
WP489069 WP489069 SCREW
WP304231 WP304231 SCREW
WP302868 WP302868 SCREW
WP3400014 WP3400014 SCREW
WP9741232 WP9741232 SCREW
WP3371152 WP3371152 SCREW
WPW10349488 WPW10349488 SCREW
WP489443 WP489443 SCREW
8281183 8281183 SCREW (4)
WP3370389 WP3370389 SCREW, SHOULDER (2)
9742953 9742953 SEAL
WP3379673 WP3379673 SEAL
WP3376723 WP3376723 SEAL
WP3376846 WP3376846 SEAL
WP302710 WP302710 SEAL-RING
WP302711 WP302711 SEAL-RING
WP302704 WP302704 SEAL-RING
W10586589 W10586589 SHIELD
W11086533 W11086533 SHIELD
W10909679 W10909679 SLINGER
285006 285006 SPRAY
350930 350930 SPRAY
WP3368999 WP3368999 SPRING
WP8066018 WP8066018 SPRING
WP3379383 WP3379383 SPRING
WP8565925 WP8565925 STOP
WP3378149 WP3378149 STRIKE
WP3367197 WP3367197 SUPPORT
3379740 3379740 SUPPRT-HTR
WPW10102498 WPW10102498 SWITCH
4318273 4318273 SWITCH-KIT
8535431 8535431 TECH SHEET ENGLISH/FRENCH
WP661566 WP661566 THERMOSTAT
675740 675740 THERMOSTAT
WP303918 WP303918 TOOL, PUMP CENTERING
WP3385089 WP3385089 TRACK
W10082654 W10082654 TUB-DISHWR
WP9743958 WP9743958 TUBE, FEED
661651 661651 TUBE, WATER
WP676453 WP676453 TUCHUP
WP676455 WP676455 TUCHUP
675238 675238 VALVE, CHECK (INCLUDES ITEMS 21 & 23)
WP3379674 WP3379674 VENT
WP3379369 WP3379369 WASH-ASM
WP717273 WP717273 WASHER
WP3378128 WP3378128 WASHER
WP302819 WP302819 WHEEL
WP8268645 WP8268645 WHEEL
WP357574 WP357574 ``O`` RING
