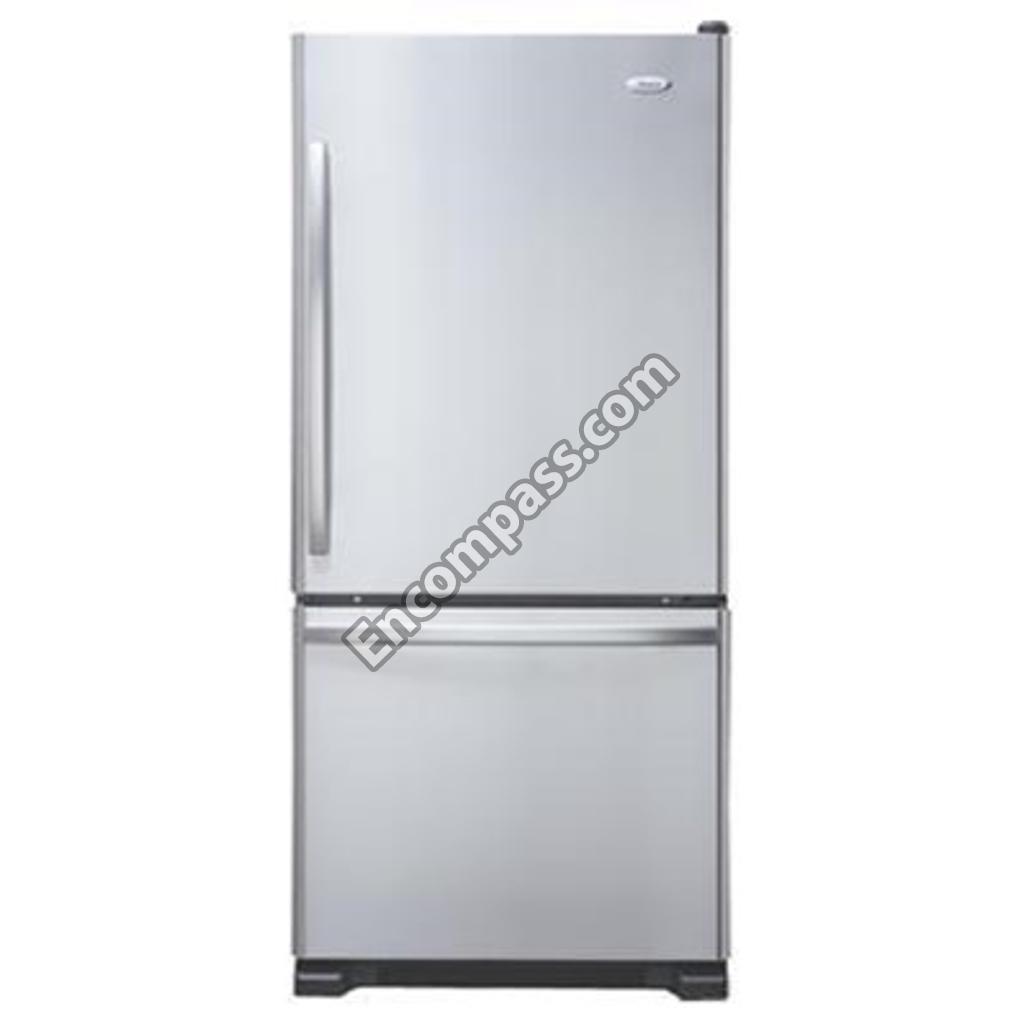

Model Image
Manufacturer

Whirlpool

Model Number

EB9FVHRWS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
67006434 67006434 AXLE, ROLLER (2)
W10503182 W10503182 BASKET, FREEZER (LOWER)
WPW10348236 WPW10348236 BASKET-FZR
WPW10371194 WPW10371194 BIN CONTROL LEVER
WPW10351081 WPW10351081 BIN CONTROL LEVER
WP2169142 WP2169142 BLADE-FAN
WP12825803 WP12825803 BLADE-FAN
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10284684 WPW10284684 BRACKET
WPW10284685 WPW10284685 BRACKET
N_P N_P CABINET (NOT A SERVICABLE PART)
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10281329 W10281329 CLAMP
31462A 31462A CLEANER, 10 OZ. STAINLESS STEEL
W11092534 W11092534 CLIP
10623002 10623002 CLIP, EVAP (2)
13058002 13058002 CLIP, EVAP. MOTOR
W11673433 W11673433 CLIP- EVAP
WP67003639 WP67003639 CLOSER
W10170276 W10170276 COMPRESSOR
W10346423 W10346423 CONDENSER
WPW10196393 WPW10196393 CONTROL
WPW10503278 WPW10503278 CONTROL BOARD
W11284721 W11284721 COVER
67003485 67003485 COVER, CORNER (BLK)
67001012 67001012 COVER, TOP HINGE (BLK)
WP67003924 WP67003924 COVER- FZ
W10210978 W10210978 COVER-BACK
WP12806701 WP12806701 COVER-BOX
WPW10308414 WPW10308414 COVER-EVAP
WP67001098 WP67001098 COVER-TUBE
W11684617 W11684617 COVER-VALV
W10833528 W10833528 CRISPER PAN
12225602 12225602 DAM (LEFT SIDE)
12225702 12225702 DAM (RIGHT SIDE)
W10205416 W10205416 DIVIDER
W10241046 W10241046 DIVIDER
13107540SQ 13107540SQ DOOR ASSEMBLY SS
WP12607104ED WP12607104ED DOOR HINGE
WP12566606ED WP12566606ED DOOR HINGE
WP67003637 WP67003637 DOOR-COMP
13092272SQ 13092272SQ DOR-FIP SS
13107509SQ 13107509SQ DOR-FIP SS
WPW10143759 WPW10143759 DRIER-UV
W10299331 W10299331 ENERGY GUIDE
WPW10128551 WPW10128551 EVAPORATOR MOTOR
W10206336 W10206336 EXTENSION
W10206339 W10206339 FASTENER
W11459724 W11459724 FIELD INSTALLABLE ICE MAKER, ICEMAKER ADD-ON KIT (INCLUDES VALVE & ICE BIN)
WPW10671240 WPW10671240 FRAME
W10815413 W10815413 FUNNEL
W11250029 W11250029 GASKET
W10856123 W10856123 GASKET
WPW10436247 WPW10436247 GASKET ASSEMBLY
WPW10436245 WPW10436245 GASKET ASSEMBLY
WPB8381501 WPB8381501 GASKET- DR
W11451451 W11451451 GASKET- FO
12002497 12002497 GEAR
WPW10474716 WPW10474716 GEAR
WPW10474715 WPW10474715 GEAR
W11402522 W11402522 GLASS SHELF
WP67006877 WP67006877 GLASS SHELF
WP67001054 WP67001054 GLIDE LT
WP67001053 WP67001053 GLIDE RT
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534167 WPW10534167 GRILLE-FRT
W10121318 W10121318 GROMMET
W10852725 W10852725 GROMMET
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W11448709 W11448709 GUIDE, FILL TUBE
W11351147 W11351147 HANDLE
WP12729127 WP12729127 HEATER
WPW10277025 WPW10277025 HOUSING
WPW10464769 WPW10464769 HOUSING
12806601 12806601 HOUSING, LIGHT
67003900 67003900 INSERT, DAMPER COVER
W11706807 W11706807 INSULATION
12820505 12820505 INSULATION
WP13012402 WP13012402 INSULATION
W11553819 W11553819 INSULATION
12002051 12002051 KIT, EVAPORATOR
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
W11685757 W11685757 LABEL
W10273463 W10273463 LADDER
W10251970 W10251970 LADDER
WPW10141622 WPW10141622 LEVELER
W11679940 W11679940 LIGHT BULB
Y67003896 Y67003896 MODULE, LIGHT
W11613295 W11613295 MOTOR-COND
W10348259 W10348259 MOUNT-GEAR (LEFT HAND)
W10348260 W10348260 MOUNT-GEAR (RIGHT HAND)
WP2213265 WP2213265 NAMEPLATE
W10207256 W10207256 OVERLAY
799344 799344 PAINT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67001308 WP67001308 PAN- DELI
WPW10655367 WPW10655367 PAN-DRIP
WP67006642 WP67006642 PIN
W10480107 W10480107 PLATE
M0310731 M0310731 PLUG, BUTTON (3) (BLACK)
M0310343 M0310343 PLUG-HOLE
350942 350942 PRIMER
W11489994 W11489994 RAIL
W11489993 W11489993 RAIL
WPW10671238 WPW10671238 RAIL-CENTR
67001139 67001139 RETAINER, DOOR
WP67005149 WP67005149 ROLLER
WPW10515763 WPW10515763 ROLLER-CAB
WPW10515762 WPW10515762 ROLLER-CAB
W10829281 W10829281 SCREW
12992301 12992301 SCREW
WP8281196 WP8281196 SCREW
WP489349 WP489349 SCREW
WP98165 WP98165 SCREW
WP489474 WP489474 SCREW
WP12992902 WP12992902 SCREW
WP400021-1 WP400021-1 SCREW
W10709798 W10709798 SCREW
W11233072 W11233072 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPM0500703 WPM0500703 SEAL- O RI
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
212643 212643 SEALER-GUM
12812906WD 12812906WD SHAFT
W10802329 W10802329 SHAFT- RAC
W11469652 W11469652 SHIELD
WPW10167023 WPW10167023 SHROUD
W11556315 W11556315 SHROUD
W11658402 W11658402 SLIDE
WP67005864 WP67005864 SLIDE
W11447232 W11447232 SOCKET
350930 350930 SPRAY
WPW10197426 WPW10197426 START-DEV
WP2320150 WP2320150 START-DEV
W11708403 W11708403 STOP-DOOR
WP12227302WD WP12227302WD SUPPORT
W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
W10308611 W10308611 TECH SHEET
833938 833938 TERMINAL
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
WP67001279 WP67001279 TRAY- DAIR
W11337775 W11337775 TRAY-DRIP
WPW10231481 WPW10231481 TRIM-SHELF
W10217744 W10217744 TUBE
W10619951 W10619951 TUBE-DRAIN
W10208431 W10208431 USE & CARE GUIDE
978030 978030 VALVE
978029 978029 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
WP978025 WP978025 VALVE
978028 978028 VALVE, ACCESS (1/2``)
W11619328 W11619328 WIRE HARNESS
W11260592 W11260592 WIRE HARNESS
WPW10234024 WPW10234024 WIRE HARNESS
