Model Image
Manufacturer

Whirlpool

Model Number

EC5100XFN0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "INSULATION (2 PIECES, 3"" X 24"" X 48"")"
978030 978030 ACCESS VALVE (3/4``)
2180807 2180807 ACCUMULATOR
2165477 2165477 ADAPTER
WP279368 WP279368 ADHESIVE
2180938 2180938 BASE-CONDR

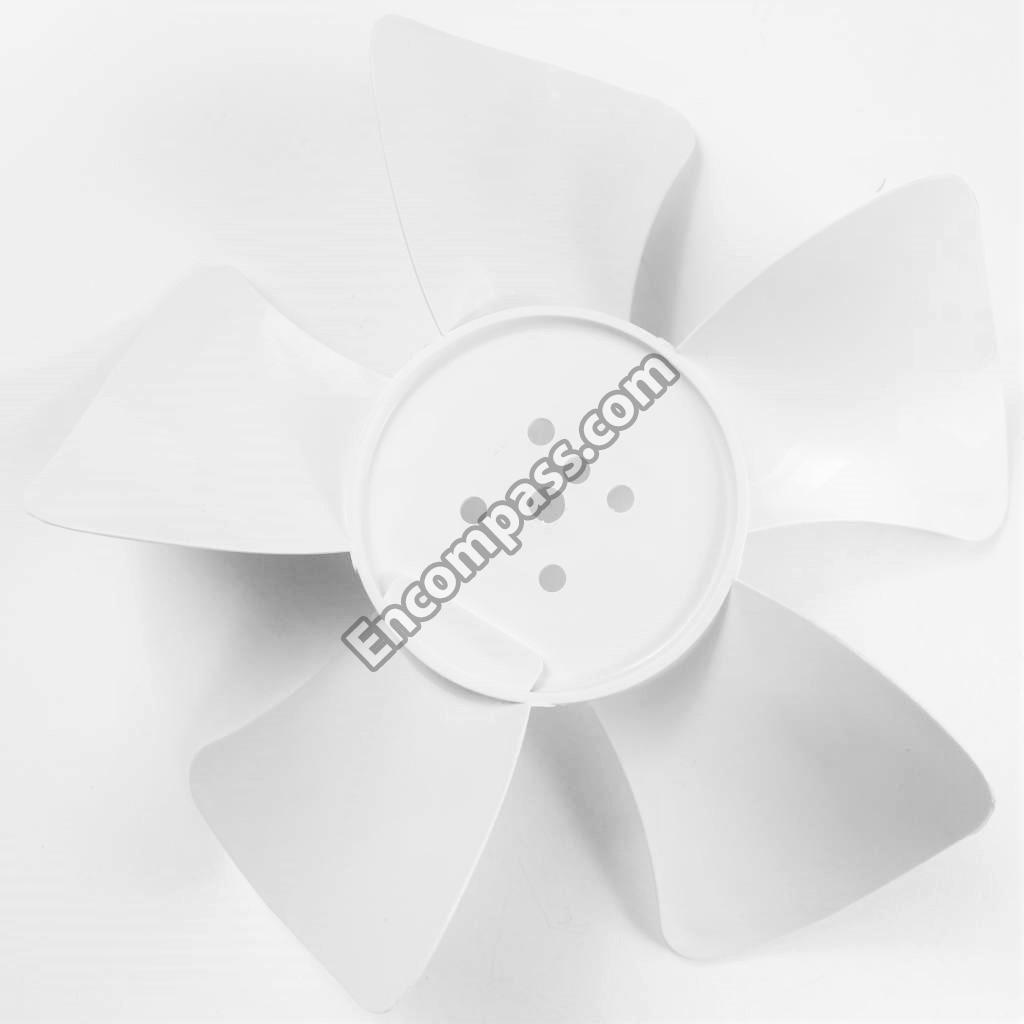

587096 587096 BLADE, FAN
978655 978655 BLADE-FAN
560817 560817 BRACKET
756122 756122 BRACKET
2172846 2172846 BRACKET, CONTROL
756564 756564 BRACKET, GRID MOUNTING (2)
587662 587662 CLAMP
596023 596023 CLAMP (2)
596605 596605 CLIP, PANEL (14)
WP759112 WP759112 COIL, SOLENOID
W10309988 W10309988 COMPRESSOR
W10139458 W10139458 CONDENSER
593577 593577 CONNECTOR, HOSE
WP68601-6 WP68601-6 CONTROL- T
756124 756124 COVER
WP2162358 WP2162358 COVER ((PRODUCTION ALTERNATE))
4387020 4387020 CUTTR-WIRE
758811 758811 DEFLECTOR
1129798 1129798 DISPENSER, WATER
2180773 2180773 DOOR LATCH (ALMOND)
759123 759123 DOOR LATCH (WHITE)
756330 756330 DOOR, INNER BIN
W10843121 W10843121 DRIER-TUBE
2181147 2181147 ESCUTCHEON (ALMOND)
2180974 2180974 ESCUTCHEON (BLACK)
2180994 2180994 ESCUTCHEON (WHITE)
2165530 2165530 ESCUTCHEON, PANEL
2181076 2181076 EVAPORATOR
2175619 2175619 FRONT, SHELL
758921 758921 GASKET
2172898 2172898 GASKET, BOTTOM
2174861 2174861 GRID-CUTTR
758769 758769 GRILLE
2180778 2180778 GRILLE, FRONT (ALMOND)
596807 596807 GROMMET
553583 553583 GROMMET
596016 596016 GROMMET (2)
2180790 2180790 HANDLE, RECESSED (ALMOND)
2175685 2175685 HANDLE, RECESSED (BLACK)
2175668 2175668 HANDLE, RECESSED (WHITE)
2181157 2181157 HARNESS, CABINET
2174750 2174750 HARNESS, GRID
759109 759109 HOSE, OVERFLOW
583155 583155 HOUSING
583426 583426 IMPELLER (INCLUDES RETAINING RING 15)
4387491 4387491 INSERT, TUBE
LIT2180913 LIT2180913 INSTRUCTIONS, INSTALLATION
758608 758608 INSULATION, DOOR
588490 588490 INSULATION, KIT (BIN BOTTOM)
2181148 2181148 KNOB
2181038 2181038 KNOB (BLACK)
2181039 2181039 KNOB (WHITE)
756350 756350 LINER (INCLUDES ILLUS. 17, 18, 19, 20 & 21)
819361 819361 LINER-DOOR
978483 978483 MOTOR, FAN (INCLUDES NO.23)
681650 681650 NUT
681542 681542 NUT
WP627018 WP627018 NUT, COMPRESSION 1/4``
681676 681676 NUT, WING
2183404 2183404 OVERLOAD
756659 756659 PAN
4210783 4210783 PANEL
4210784 4210784 PANEL
2190138 2190138 PANEL, FILLER
593171 593171 PANEL, GRID
758771 758771 PANEL, INNER
2175604 2175604 PANELFRONT SPRT
587578 587578 PLUG
758597 758597 PLUG (2)
593192 593192 PLUG, HINGE
2181119 2181119 POCKET, HANDLE (ALMOND)
2181118 2181118 POCKET, HANDLE (BLACK)
2181117 2181117 POCKET, HANDLE (WHITE)
583518 583518 PUMP

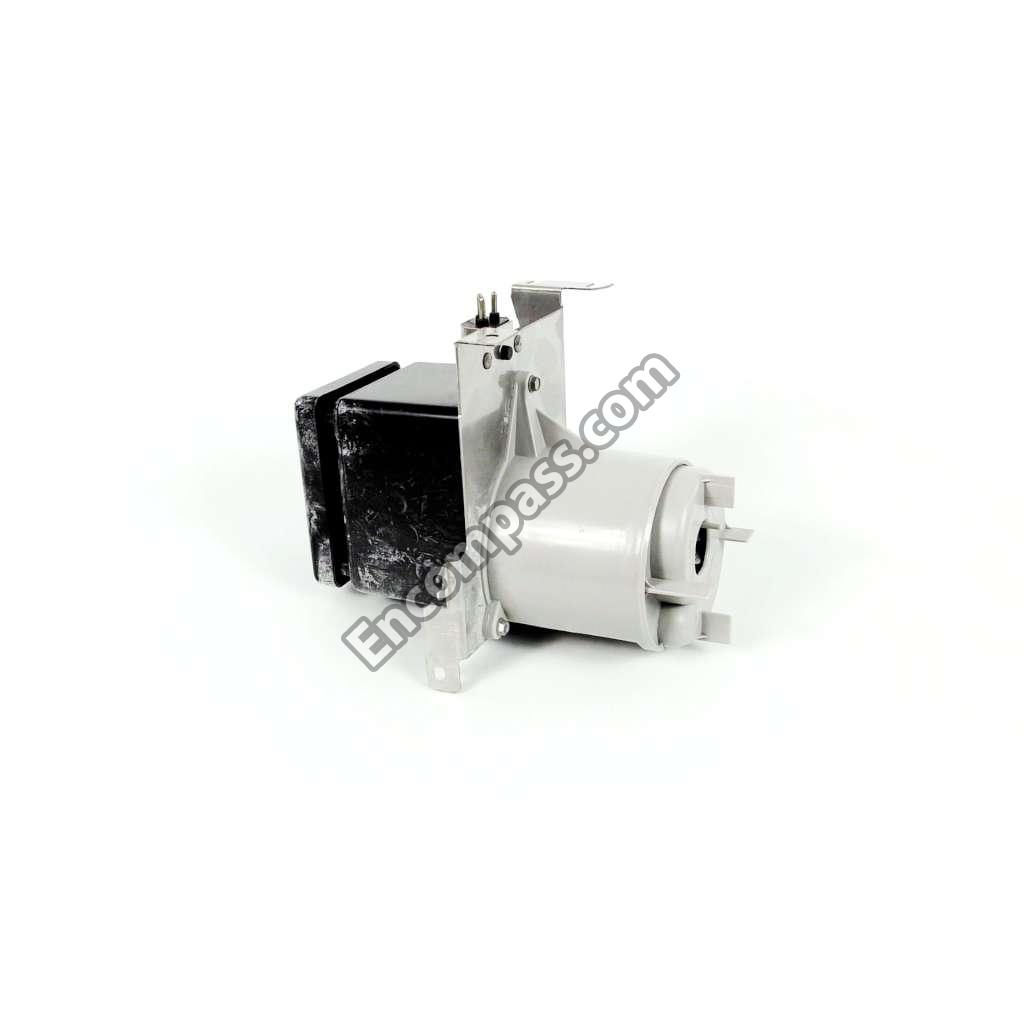

WP756782 WP756782 PUMP ASSEMBLY, COMPLETE
588572 588572 PUMP MOTOR
593185 593185 RAIL
593184 593184 RAIL, R.S.
2183410 2183410 RELAY-STRT
489482 489482 RETAINER, WIRE
68130-1 68130-1 RING, RETAINING
681301 681301 RING-E
W11420408 W11420408 SCOOP 0 3400884 SCREW 8-18 X 5/8
680233 680233 SCREW
681196 681196 SCREW
WP488729 WP488729 SCREW
WP681414 WP681414 SCREW
WP489443 WP489443 SCREW
WP486579 WP486579 SCREW
680198 680198 SCREW
489472 489472 SCREW
WP90767 WP90767 SCREW
WP488868 WP488868 SCREW
4162214 4162214 SCREW (4)
596037 596037 SCREW, 10-32 X 1/2
68139-1 68139-1 SCREW, 8-18 X 3/4
681390 681390 SCREW, 8-32 X 3/8
WP487277 WP487277 SCREW, 8-32 X 3/8 (8)
681459 681459 SCREW, 8-32 X 5/8 (6)
241428 241428 SCREW, NO.10X24X1/2 (4)
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
LIT2180946 LIT2180946 SERVICE AND WIRING SHEET
585853 585853 SHELF
2175636 2175636 SHELL
2175696 2175696 SHELL
2175698 2175698 SHELL
2180948 2180948 SHROUD
WP593229 WP593229 SLEEVE
482739 482739 SLEEVE
2174724 2174724 SPACER
2174725 2174725 SPACER
2174726 2174726 SPACER
2174727 2174727 SPACER, FIXED (SIDE)
759043 759043 STOPPER, PAN
593104 593104 STRIP, TAPPING (2)
758220 758220 STUD (2)
2181045 2181045 SWITCH, SERVICE
759309 759309 THERMOSTAT, BIN CONTROL

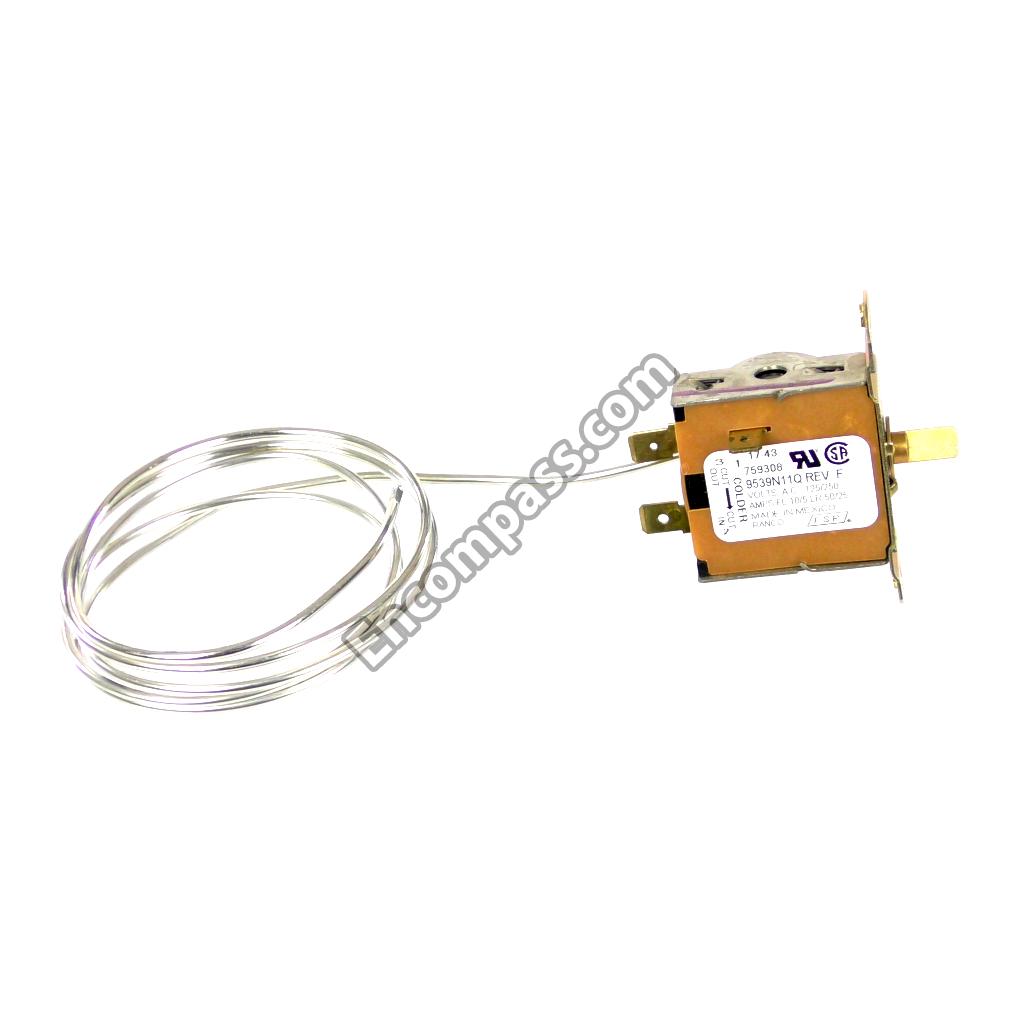

WP759308 WP759308 THERMOSTAT, ICE-CONTROL
681611 681611 THUMBSCREW
681534 681534 THUMBSCREW
680930 680930 THUMBSCREW, 10-1/2
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
2165483 2165483 TRANSFORMER
758714 758714 TRIM FRONT, PANEL (SIDE)
2181114 2181114 TRIM, DOOR (2) (BLACK)
2181113 2181113 TRIM, DOOR (2) (WHITE)
2181110 2181110 TRIM, DOOR (LOWER) (BLACK)
2181109 2181109 TRIM, DOOR (LOWER) (WHITE)
2181103 2181103 TRIM, SIDE (2) (BLACK)
2181102 2181102 TRIM, SIDE (2) (WHITE)
2181107 2181107 TRIM, TOP AND BOTTOM (ALMOND)
2181106 2181106 TRIM, TOP AND BOTTOM (BLACK)
2181111 2181111 TRIM-DOOR
2181115 2181115 TRIM-DOOR
2181105 2181105 TRIMGRILE
585856 585856 TUBE, PLASTIC
759213 759213 TUBE, WATER FILL
LIT2181065 LIT2181065 USE & CARE GUIDE
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
WP759113 WP759113 VALVE, BODY
WP759296 WP759296 VALVE, COMPLETE WATER
593060 593060 WASHER
681613 681613 WASHER
68161-3 68161-3 WASHER
486645 486645 WASHER
758492 758492 WASHER (2)
681245 681245 WASHER,
561814 561814 WELL
596715 596715 WELL NUT (3)
