Model Image
Manufacturer

Whirlpool

Model Number

ED20DFXEN01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 ACCESS VALVE (3/4``)
WP4317852 WP4317852 ADHESIVE
4343658 4343658 AIR DUCT
4343879 4343879 AIR DUCT
WP72107 WP72107 ALMOND
350956 350956 ALMOND
12002642 12002642 ARM-DISPSR
W11342242 W11342242 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
R0161092 R0161092 ASSY, CONTROL-FZ
12321807Q 12321807Q ASSY, TOE GRILLE (WHITE)
4343659 4343659 BACK COVER
12021201 12021201 BAFFLE, AIR
4344553 4344553 BAFFLE-AIR
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
4343915 4343915 BAND, CRISPER (LOWER)
4343911 4343911 BAND, CRISPER (UPPER)
4344065 4344065 BASKET, SLOPE (2)
WP4387503 WP4387503 BIMETL-DEF
WP10520405 WP10520405 BIN CONTROL LEVER
4344130 4344130 BIN CONTROL LEVER
4344129 4344129 BIN CONTROL LEVER
72032 72032 BLACK
4343901 4343901 BLADE, FIXED (2)
4343903 4343903 BLADE, ROTARY
R0000199 R0000199 BLADE-FAN
4343907 4343907 BLOCK, BLADE
4343921 4343921 BLOCK, EVAPORATOR (LEFT SIDE)
4343922 4343922 BLOCK, EVAPORATOR (RIGHT SIDE)
WP2256087 WP2256087 BRACKET
4343949 4343949 BRACKET, CHUTE DOOR
4343832 4343832 BRACKET, CONTROL
4343808 4343808 BRACKET, DOOR STOP (ALMOND)
4343807 4343807 BRACKET, DOOR STOP (WHITE)
4343668 4343668 BRACKET, REAR
4344551 4344551 BRACKET, WATER VALVE
WP10492701 WP10492701 BRAKT-MTR
12414701 12414701 BRKT, CONT COVER
C8982102 C8982102 BRKT,COND. MTR
WP10111905 WP10111905 BUCKET- CR
12083408 12083408 BUCKET-REF
WP67004977 WP67004977 BUSHING- D
100000 100000 CABINET (NOT A SERVICEABLE PART)
4343767 4343767 CAP, BOTTOM (ALMOND)
4343770 4343770 CAP, BOTTOM (ALMOND)
4343768 4343768 CAP, BOTTOM (SILVER)
4343771 4343771 CAP, BOTTOM (SILVER)
4343766 4343766 CAP, BOTTOM (WHITE)
4343769 4343769 CAP, BOTTOM (WHITE)
4343625 4343625 CAP, CUBE/CRUSH SWITCH (ALMOND)
4343626 4343626 CAP, CUBE/CRUSH SWITCH (BLACK)
4343624 4343624 CAP, CUBE/CRUSH SWITCH (WHITE)
4343631 4343631 CAP, HANDLE TOP (ALMOND)
4343632 4343632 CAP, HANDLE TOP (SILVER)
4343630 4343630 CAP, HANDLE TOP (WHITE)
4343628 4343628 CAP, TOP (ALMOND)
4343629 4343629 CAP, TOP (SILVER)
4343627 4343627 CAP, TOP (WHITE)
WPD7749401 WPD7749401 CAP- HELIX
1185344 1185344 CAPACITOR
10876015 10876015 CAVITY, DISP (ALMOND)
10876016 10876016 CAVITY, DISP (BLACK)
10876040 10876040 CAVITY-DIS
10504103 10504103 CHUTE- ICE
4343777 4343777 CLAMP
B5794201 B5794201 CLAMP
4343984 4343984 CLAMP
4343689 4343689 CLAMP, AIR DUCT
M0103904 M0103904 CLAMP, SPEED
4343869 4343869 CLAMP, WIRE
WPM0104106 WPM0104106 CLIP
W10819546 W10819546 CLIP
4343687 4343687 CLIP
W11673433 W11673433 CLIP
4343703 4343703 CLIP
WP628379 WP628379 CLIP
4343866 4343866 CLIP, CONDENSER
4343823 4343823 CLIP, COVER
10063102 10063102 CLIP, DOOR DIKE
4343763 4343763 CLIP, DRIER
4343798 4343798 CLIP, EVAPORATOR
4343797 4343797 CLIP, EVAPORATOR
WPM0117303 WPM0117303 CLIP, GRILLE
4343682 4343682 CLIP, GROUND
4343947 4343947 CLIP, LEVER (4)
4343810 4343810 CLIP, RETAINER
4343705 4343705 CLIP, WATER TUBE
4343697 4343697 CLIP, WATER VALVE
4343982 4343982 CLIP, WIRING
WPM0114003 WPM0114003 CLIP- SPEE
4317943 4317943 COMPLETE ICEMAKER ASSEMBLY
W10309990 W10309990 COMPRESSOR
4343841 4343841 CONDENSER & PAN ASSEMBLY
12050506 12050506 CONT, ADAP. DEFROST
4344128 4344128 CONTAINER
4343649 4343649 CONTROL, DAMPER
WP10114901 WP10114901 COUPLING
2169935 2169935 COVER
4343970 4343970 COVER
4343696 4343696 COVER
4343672 4343672 COVER, AIR
4343671 4343671 COVER, AIR SUPPLY
4344060 4344060 COVER, CONTROL
4343719 4343719 COVER, CRISPER (LOWER)
4343718 4343718 COVER, CRISPER (UPPER)
4343750 4343750 COVER, EVAPORATOR
4343864 4343864 COVER, HIGH VOLTAGE BOX
10504007 10504007 COVER, HINGE (WHITE)
4343638 4343638 COVER, MOTOR
4343646 4343646 COVER, RESERVIOR
8170341 8170341 COVER, SWITCH
4343978 4343978 COVER, UNIT
4344043 4344043 COVER-TERM
4343716 4343716 CRISPER PAN (LOWER)
4343717 4343717 CRISPER PAN (UPPER)
WP628356 WP628356 CUP-WATER FILL
10275201 10275201 DAMPER, ICE
4343872 4343872 DAMPNER
4343834 4343834 DOOR GASKET, MAGNETIC (BLACK)
WP10359710Q WP10359710Q DOOR GASKET, MAGNETIC (BLACK)
4343729 4343729 DOOR HANDLE (ALMOND)
4343730 4343730 DOOR HANDLE (SILVER)
4343728 4343728 DOOR HANDLE (WHITE)
4378878 4378878 DOOR PANEL TRIM KIT (WHITE)
4378877 4378877 DOOR PANEL TRIM KITS (ALMOND)
4378876 4378876 DOOR PANEL TRIM KITS (SILVER)
4343816 4343816 DOOR, DAIRY
4343955 4343955 DOOR, ICE
4343792 4343792 DRAIN PAN
4343863 4343863 DRAIN PAN
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 DRIER-TUBE
10113801 10113801 DRIVE BAR
W10136387A W10136387A EGG-CONTNR
WP627843 WP627843 EJECTOR
LIT4344131 LIT4344131 ENERGY LABEL

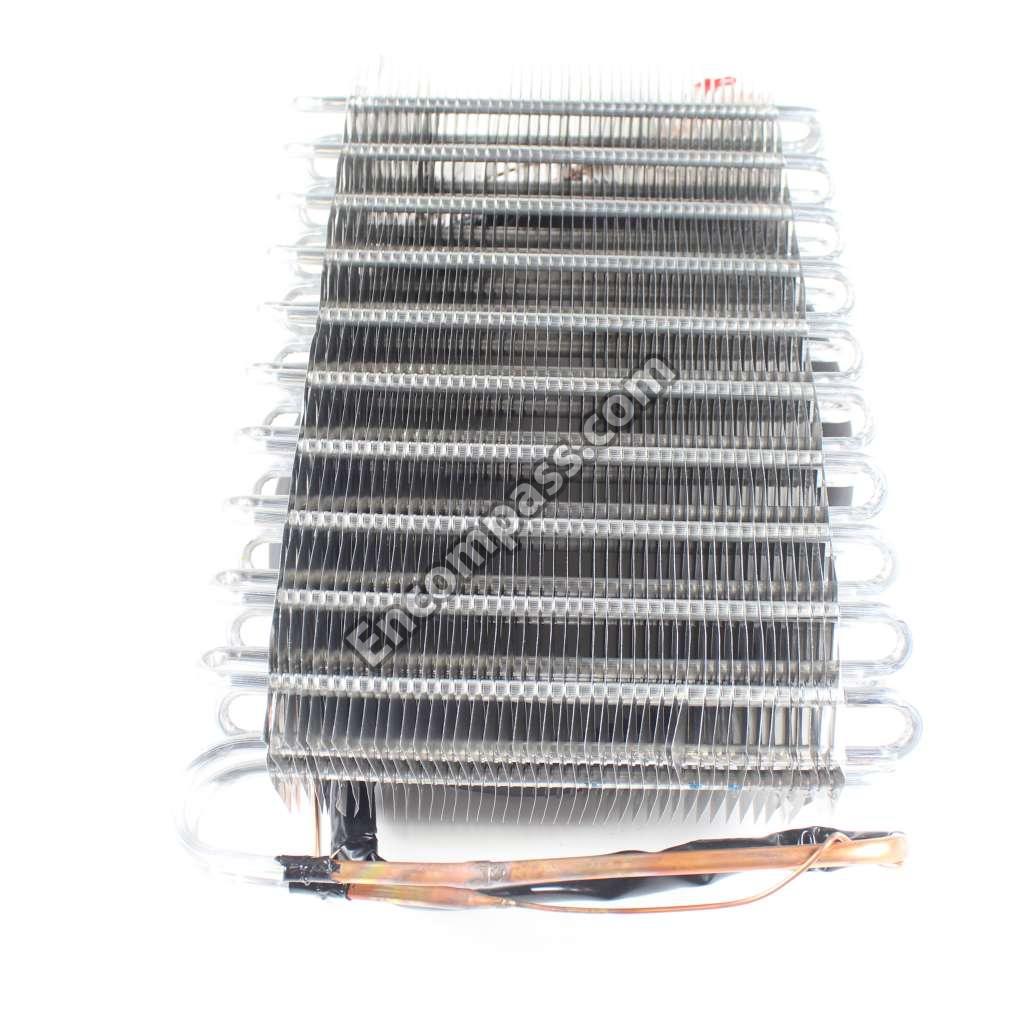

WPR0170055 WPR0170055 EVAPORATOR
W11227913 W11227913 EVAPORATOR
4343880 4343880 EXTENSION, AIR DUCT
4343875 4343875 EXTRUSION
R0151004 R0151004 FAN MOTOR
4343799 4343799 FAN SHROUD
4343843 4343843 FAN, BLADE
4343789 4343789 FOAM SEAL
4343883 4343883 FRAME, MEAT PAN
4343819 4343819 FREEZER DOOR PANEL (INCLUDES INSULATION) (ALMOND)
4343818 4343818 FREEZER DOOR PANEL (INCLUDES INSULATION) (BLACK)
4343820 4343820 FREEZER DOOR PANEL (INCLUDES INSULATION) (WHITE)
4343622 4343622 FRONT COVER, HOUSING (ALMOND)
4343623 4343623 FRONT COVER, HOUSING (BLACK)
4343621 4343621 FRONT COVER, HOUSING (WHITE)
10115001 10115001 FRONT, ICE CRUSHER
10112001 10112001 FRONT-CRSH ICE BRKT
W10815413 W10815413 FUNNEL
4343933 4343933 GASKET
4343886 4343886 GASKET
4343831 4343831 GASKET
B8386606 B8386606 GASKET
4343673 4343673 GASKET
4343688 4343688 GASKET COVER
WP10359709Q WP10359709Q GASKET W
10177901 10177901 GASKET, AIR DUCT
WPB8345401 WPB8345401 GASKET, DAMPER
4343822 4343822 GASKET, FOAM
4343753 4343753 GASKET, FOAM
4343724 4343724 GASKET, FRONT
4343909 4343909 GASKET, REAR
WPB8381501 WPB8381501 GASKET- DR
WP10359708Q WP10359708Q GASKET-DR
12044501 12044501 GASKET-ICE CHUTE
4343916 4343916 GLASS, CRISPER COVER (LOWER)
4343913 4343913 GLASS, CRISPER COVER (UPPER)
4343889 4343889 GLASS, MEAT COVER
67005375 67005375 GLIDE, CONTAINER (LEFT)
67004323 67004323 GLIDE, FRZ. (RT)
WP542638 WP542638 GREASE, SILICONE (1/2 OZ.)
4343606 4343606 GRILLE (ALMOND)
R0131553 R0131553 GRILLE (BLACK)
4343925 4343925 GRILLE, AIR RETURN
4343680 4343680 GRILLE, OVERFLOW (ALMOND)
4343678 4343678 GRILLE, OVERFLOW (BLACK)
4343679 4343679 GRILLE, OVERFLOW (WHITE)
WP2264462 WP2264462 GROMMET
798392 798392 GROMMET (3)
4343878 4343878 GROMMET, AIR DUCT
4343657 4343657 GROMMET, SCREW
4343735 4343735 HANDLE (ALMOND)
4343734 4343734 HANDLE (WHITE)
12020916 12020916 HANDLE-SAT
4343826 4343826 HARNESS, DOOR
8170407 8170407 HARNESS, UNIT
D7824601 D7824601 HARNESS, WIRING
4343919 4343919 HEAT EXCHANGER
4343762 4343762 HEAT SHIELD
WP12049801 WP12049801 HEATER- EV
4343854 4343854 HIGH VOLTAGE BOX
4343778 4343778 HINGE BOTTOM (L.H) (BLACK)
4343780 4343780 HINGE BOTTOM (R.H) (BLACK)
4343740 4343740 HINGE COVER (ALMOND)
4343738 4343738 HINGE COVER (BLACK)
WP67004975 WP67004975 HINGE SLEEVE (BLACK)
4343944 4343944 HINGE SLEEVE (BLACK)
4343737 4343737 HINGE TOP (2)
WP67002271 WP67002271 HOUSING, CRUSHER
4343932 4343932 HOUSING, SIDE LIGHT
4343927 4343927 HOUSING, TOP LIGHT
WP2195914 WP2195914 HOUSING-IM

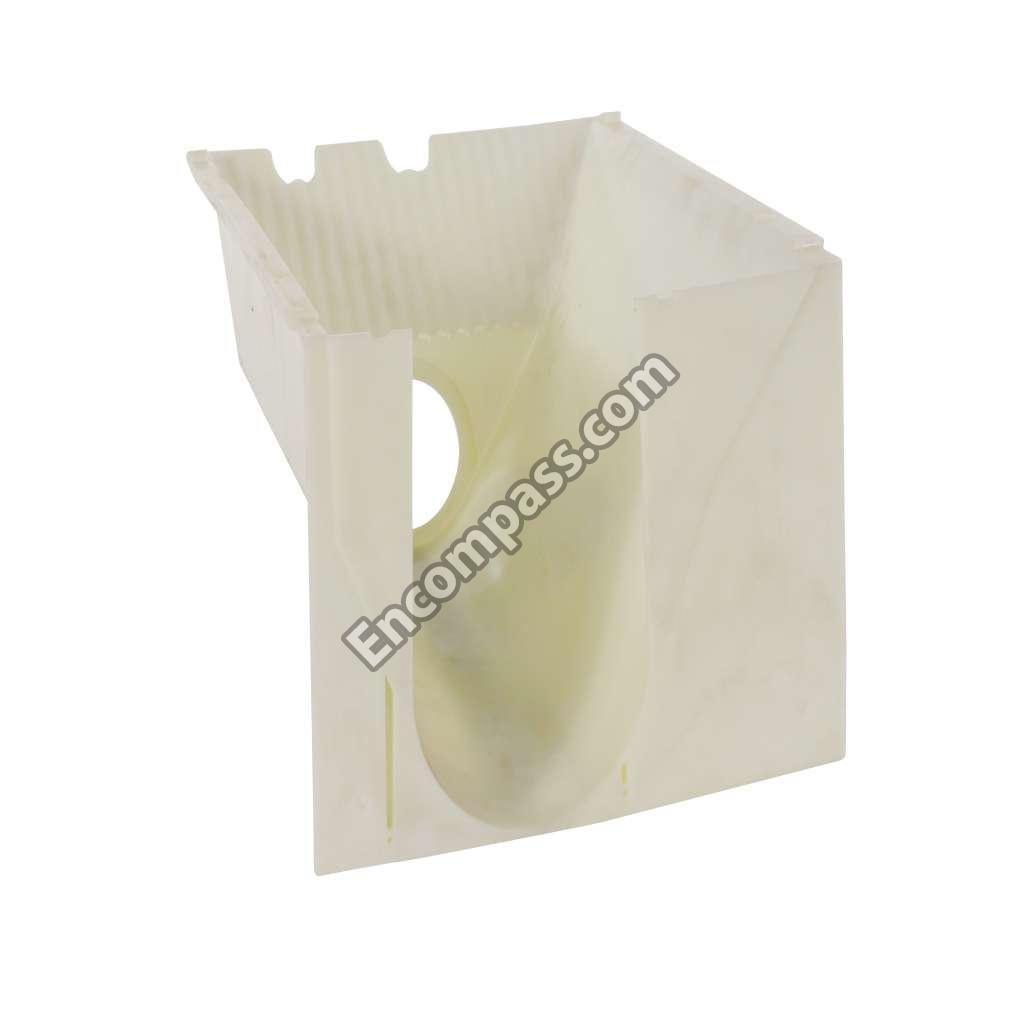

4343700 4343700 ICE CONTAINER ASSEMBLY

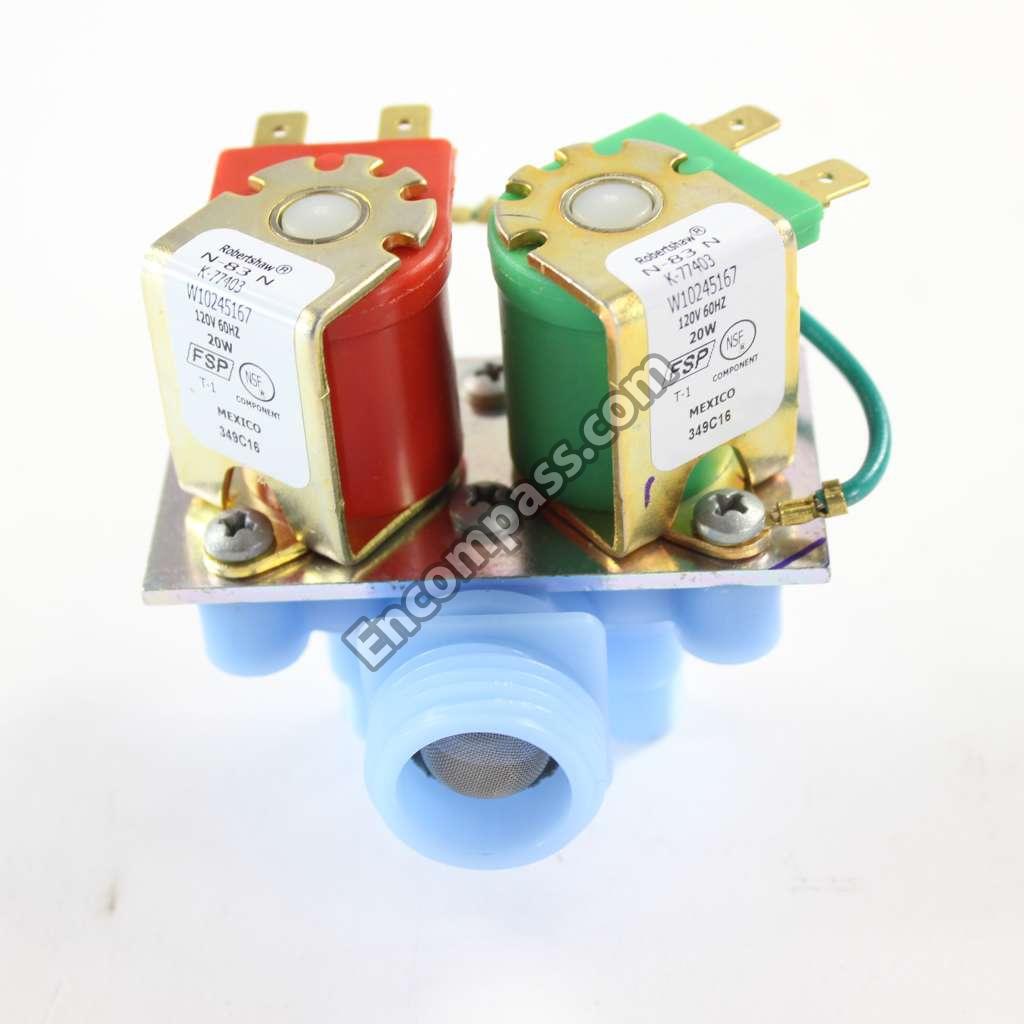

WPW10245167 WPW10245167 INLET VALVE
4343650 4343650 INSERT
8171167 8171167 INSERT
4343892 4343892 INSERT, COVER
4343732 4343732 INSERT, HANDLE (ALMOND)
4343742 4343742 INSERT, HANDLE (ALMOND)
4343733 4343733 INSERT, HANDLE (SILVER)
4343743 4343743 INSERT, HANDLE (SILVER)
4343731 4343731 INSERT, HANDLE (WHITE)
4343741 4343741 INSERT, HANDLE (WHITE)
4343981 4343981 INSERT, TOP SHELF
4387491 4387491 INSERT, TUBE
876370 876370 INSULATION
4343666 4343666 INSULATION, DAMPER
4343830 4343830 INSULATION, DISPENSER
4343948 4343948 INSULATION, DOOR
10851302 10851302 INSULATION, TUBE
4343804 4343804 INTERIOR PANEL
4343821 4343821 INTERIOR PANEL
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
R0181181 R0181181 KIT,DR CLOSURE
R9900509 R9900509 KIT-HINGE
R9900507 R9900507 KIT-HINGE
4343710 4343710 KNOB, THERMOSTAT
4343967 4343967 LAMP HOLDER
W11679940 W11679940 LIGHT BULB
WP548049 WP548049 LIGHT BULB
WP22002263 WP22002263 LIGHT BULB
4343645 4343645 LIGHT CAMERA LENS
4343751 4343751 LIGHT CAMERA LENS, SIDE
4343726 4343726 LIGHT CAMERA LENS, TOP
4343800 4343800 LIGHT SOCKET
4343643 4343643 LIGHT SOCKET
10166101 10166101 LIGHT SWITCH
4343888 4343888 MEAT PAN
C8973602 C8973602 MECHANISM DELAY
WPW10190929 WPW10190929 MOLD & HEATER ASSEMBLY (ALSO ORDER) 542638 SILICONE GREASE
12002089 12002089 MOTOR, DISPENSER
833697 833697 MOTOR-COND
W10190935 W10190935 MOTOR-MODL
WP627018 WP627018 NUT
4318011 4318011 NUT
4343641 4343641 NUT, LOCKING
WP4344040 WP4344040 OVERLOAD
978883 978883 PAINT
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
4378875 4378875 PERIMITER TRIM KIT (WHITE)
4378874 4378874 PERIMITER TRIM KITS (ALMOND)
4378873 4378873 PERIMITER TRIM KITS (SILVER)
4343946 4343946 PIN, CHUTE DOOR
4343776 4343776 PIN, CLEVIS (4)
4343620 4343620 PLAQUE, FRONT COVER (BLACK)
4343618 4343618 PLAQUE, FRONT COVER (WHITE)
4343644 4343644 PLATE, SOCKET
4343926 4343926 PLUG, BUTTON (BLACK)
A3080001 A3080001 PLUG, BUTTON (BLK)
M0311605 M0311605 PLUG, BUTTON (WHT)
4343760 4343760 POWER CORD
350942 350942 PRIMER
D7839703 D7839703 RACK, JUICE V
4343655 4343655 REAR COVER
4343802 4343802 REFRIGERATOR DOOR PANEL (INCLUDES INSULATION) (ALMOND)
4343801 4343801 REFRIGERATOR DOOR PANEL (INCLUDES INSULATION) (BLACK)
4343803 4343803 REFRIGERATOR DOOR PANEL (INCLUDES INSULATION) (WHITE)
4343837 4343837 REMOVABLE DOOR DIKE, BOTTOM
4343836 4343836 REMOVABLE DOOR DIKE, TOP
R0181175 R0181175 RESERVOIR
8170316 8170316 RETAINER
4343835 4343835 RETAINER (SIDE)
4343824 4343824 RETAINER (TOP & BOTTOM)
C8972501 C8972501 RETAINER DOOR DELAY
WP2315522 WP2315522 RETAINER THERMOSTAT
8170315 8170315 RETAINER, DECORATIVE PANEL (BLACK)
8170314 8170314 RETAINER, DECORATIVE PANEL (WHITE)
WP10492801 WP10492801 RETAINER, FAN MOTOR
4343906 4343906 ROLL PIN
8170461 8170461 ROLLER-CAB
W10005070 W10005070 SCREW
WP681249 WP681249 SCREW
WP67006715 WP67006715 SCREW
W11227370 W11227370 SCREW
WP489069 WP489069 SCREW
4343684 4343684 SCREW
WP250830 WP250830 SCREW
4344384 4344384 SCREW
4343979 4343979 SCREW
WP489478 WP489478 SCREW
WP489464 WP489464 SCREW
WP98165 WP98165 SCREW
WP489474 WP489474 SCREW
WP489399 WP489399 SCREW
4343674 4343674 SCREW
WPW10068250 WPW10068250 SCREW
WPW10139210 WPW10139210 SCREW
4343898 4343898 SCREW
4343908 4343908 SCREW
4343693 4343693 SCREW
WPM0219730 WPM0219730 SCREW
3387484 3387484 SCREW
4343962 4343962 SCREW
4343974 4343974 SCREW
4343971 4343971 SCREW
4343965 4343965 SCREW
12992301 12992301 SCREW
4343860 4343860 SCREW
WPM0223816 WPM0223816 SCREW
4343764 4343764 SCREW
489136 489136 SCREW
4159465 4159465 SCREW (18)
8533917 8533917 SCREW (2)
4343727 4343727 SCREW (4)
486210 486210 SCREW (4)
4343394 4343394 SCREW, 8-15 A X 1/2
681390 681390 SCREW, 8-32 X 3/8
4343785 4343785 SCREW, FRONT ROLLER ADJUST
4343725 4343725 SCREW, GROUND
8170349 8170349 SCREW, REAR ROLLER ADJUST
M0221523 M0221523 SCREW, SHLDR
4343882 4343882 SEAL, CONTROL
10523401 10523401 SEAL, CRISPER FRONT
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER MASTIC (1 QUART)
212643 212643 SEALER, PERMAGUM (4 - 12`` STRIPS)
4344061 4344061 SHELF (2)
4343884 4343884 SHELF ARM (LEFT SIDE)
4343885 4343885 SHELF ARM (RIGHT SIDE)
4343873 4343873 SHELF ASSEMBLY, GLASS SLIDING (2)

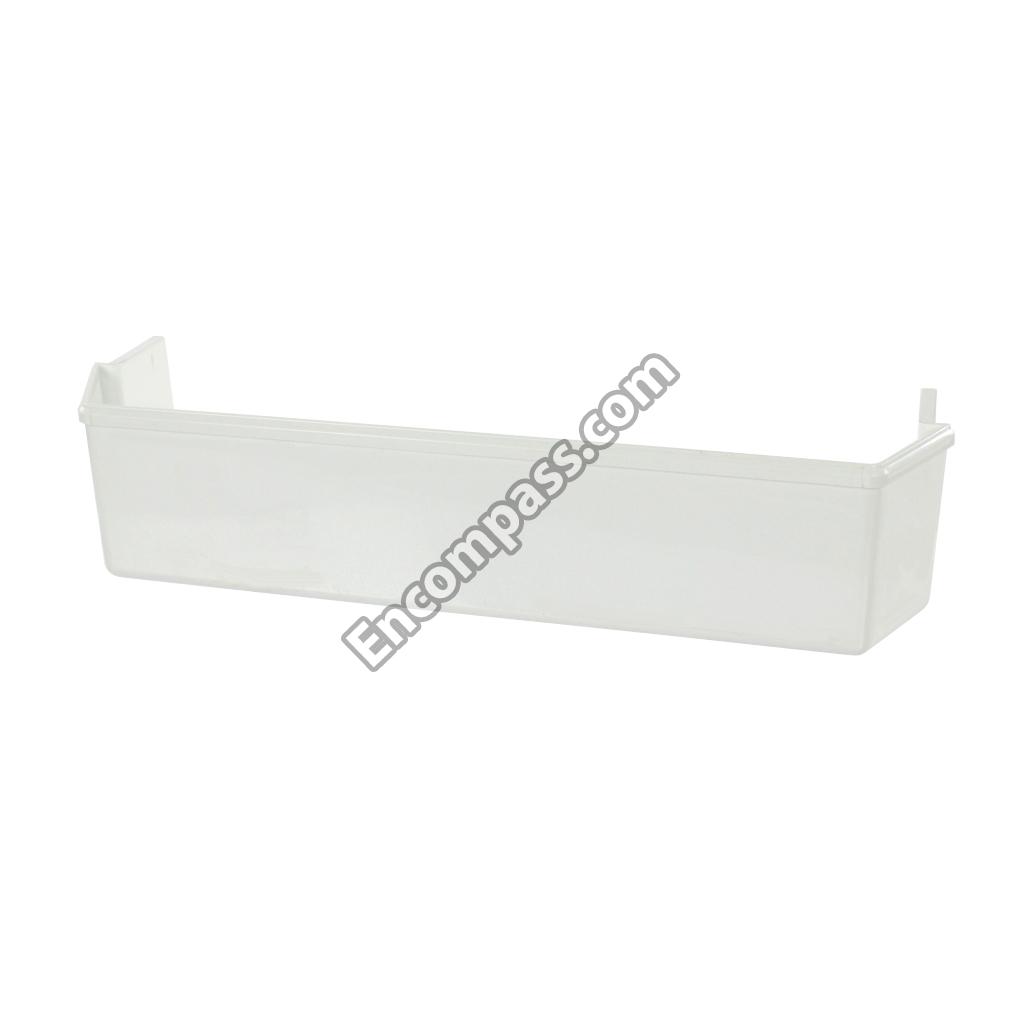

4343817 4343817 SHELF BIN (2)
4343814 4343814 SHELF BIN (2)
4343975 4343975 SHELF LADDER (LEFT SIDE)
4343976 4343976 SHELF LADDER (RIGHT SIDE)
4343663 4343663 SHELF TRACK (LEFT SIDE (2))
4343664 4343664 SHELF TRACK (RIGHT SIDE (2))
4343745 4343745 SHELF TRACK (SINGLE) (LEFT SIDE)
4343744 4343744 SHELF TRACK (SINGLE) (RIGHT SIDE)
4343809 4343809 SHELF, DAIRY
4343867 4343867 SHELF, HIGH VOLTAGE BOX
4343654 4343654 SHIELD, LIGHT
8170339 8170339 SHIM, DOOR CLOSER (BLACK)
8170340 8170340 SHIM, DOOR CLOSER (WHITE)
4343756 4343756 SHIM, DOOR CLOSER (WHITE)
4343977 4343977 SHIM, HINGE
B8389007 B8389007 SHIM, TOP HINGE
4343877 4343877 SLEEVE
4343870 4343870 SLEEVE
4343924 4343924 SLEEVE
4343881 4343881 SLIDE, CONTROL
4343912 4343912 SLIDE, HUMIDITY CONTROL
4343642 4343642 SOCKET, DUAL
4343787 4343787 SPACER
4343902 4343902 SPACER
A3044208 A3044208 SPACER DAMPER
4343890 4343890 SPACER, WAVERED
350930 350930 SPRAY (13 OZ.) (WHITE)
WPA1055105 WPA1055105 SPRING
4343950 4343950 SPRING, CHUTE DOOR
4343951 4343951 SPRING, LEVER
WP10097202 WP10097202 START-DEV
12636401B 12636401B STOP, DOOR (BLK)
M0560005 M0560005 SUPPORT
4343868 4343868 SUPPORT
4343774 4343774 SUPPORT (2)
D7749207 D7749207 SUPPORT,AUGER MOTOR
W11384469 W11384469 SWITCH
WP4387911 WP4387911 SWITCH
4343963 4343963 SWITCH
4343973 4343973 SWITCH, CUBE/ CRUSH
10533001 10533001 SWITCH, LIMIT
4343972 4343972 SWITCH, SENSOR
WP10533003 WP10533003 SWITCH- LI
W11238399 W11238399 TAPE
LIT4343600 LIT4343600 TECH SHEET
LIT628370 LIT628370 TECH SHEET
833938 833938 TERMINAL

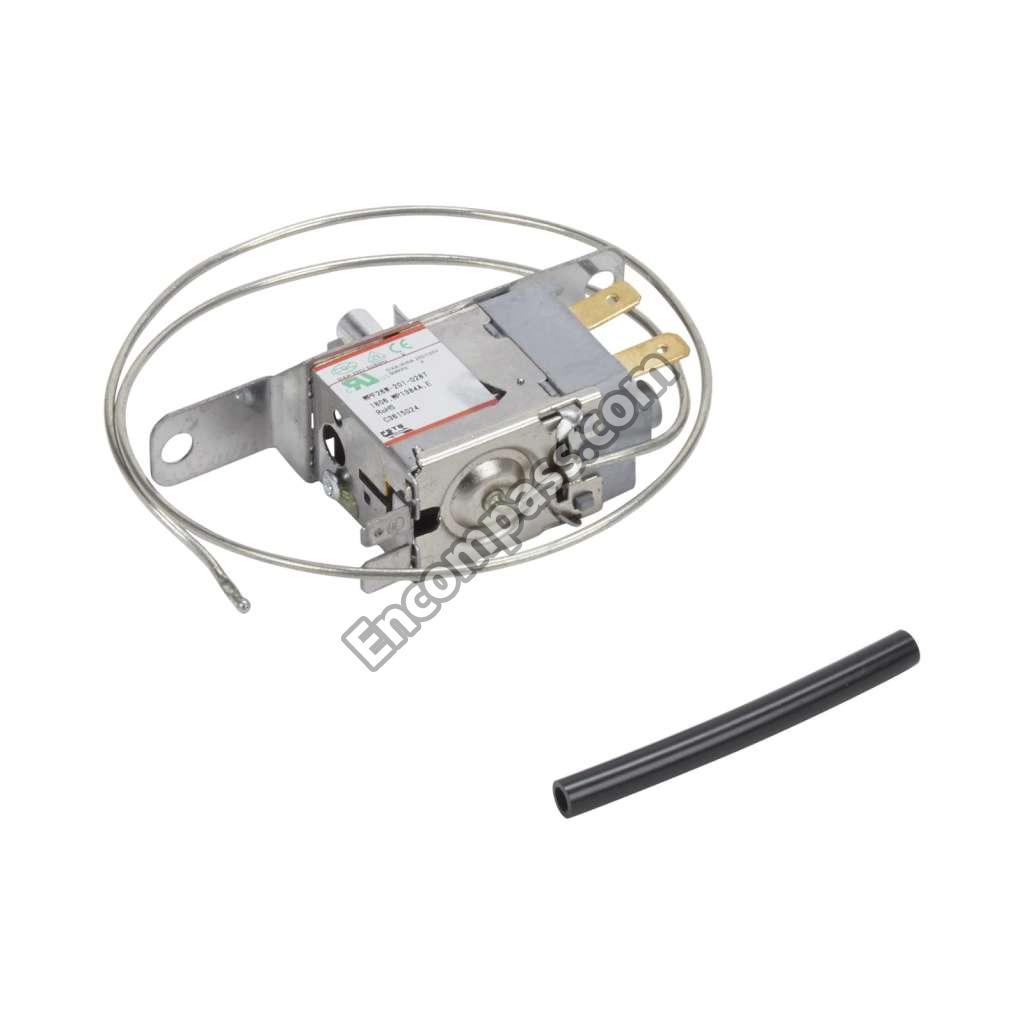

WP627985 WP627985 THERMOSTAT
4343677 4343677 THERMOSTAT BRACKET
978026 978026 TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 TORX KE
4343887 4343887 TRIM, FRAME
4343914 4343914 TRIM, FRONT (2)
4343876 4343876 TRIM, REAR
4343858 4343858 TUBE, CONDENSER/ PC LOOP
4343857 4343857 TUBE, DISCHARGE
4343848 4343848 TUBE, SUCTION
4343722 4343722 TUBE, WATER INLET
4343648 4343648 UNION
LIT4343601 LIT4343601 USE & CARE GUIDE
978027 978027 VALVE, ACCESS ((3/8``) TUBE)
978028 978028 VALVE, ACCESS (1/2``)
WP978025 WP978025 VALVE, ACCESS (1/4``)
978029 978029 VALVE, ACCESS (5/8)
876764 876764 VALVE,ACCESS (3/16)
4343786 4343786 WASHER
10114401 10114401 WASHER AGITATOR, ICE
10114301 10114301 WASHER STEPPED
W10823511 W10823511 WATER TUBE
WP67002052 WP67002052 WHEEL- CRS
B5667304 B5667304 WIRE CLIP
4343707 4343707 WIRE COVER
8170701 8170701 WIRE HARNESS
LIT4343656 LIT4343656 WIRING DIAGRAM
Main Menu x
