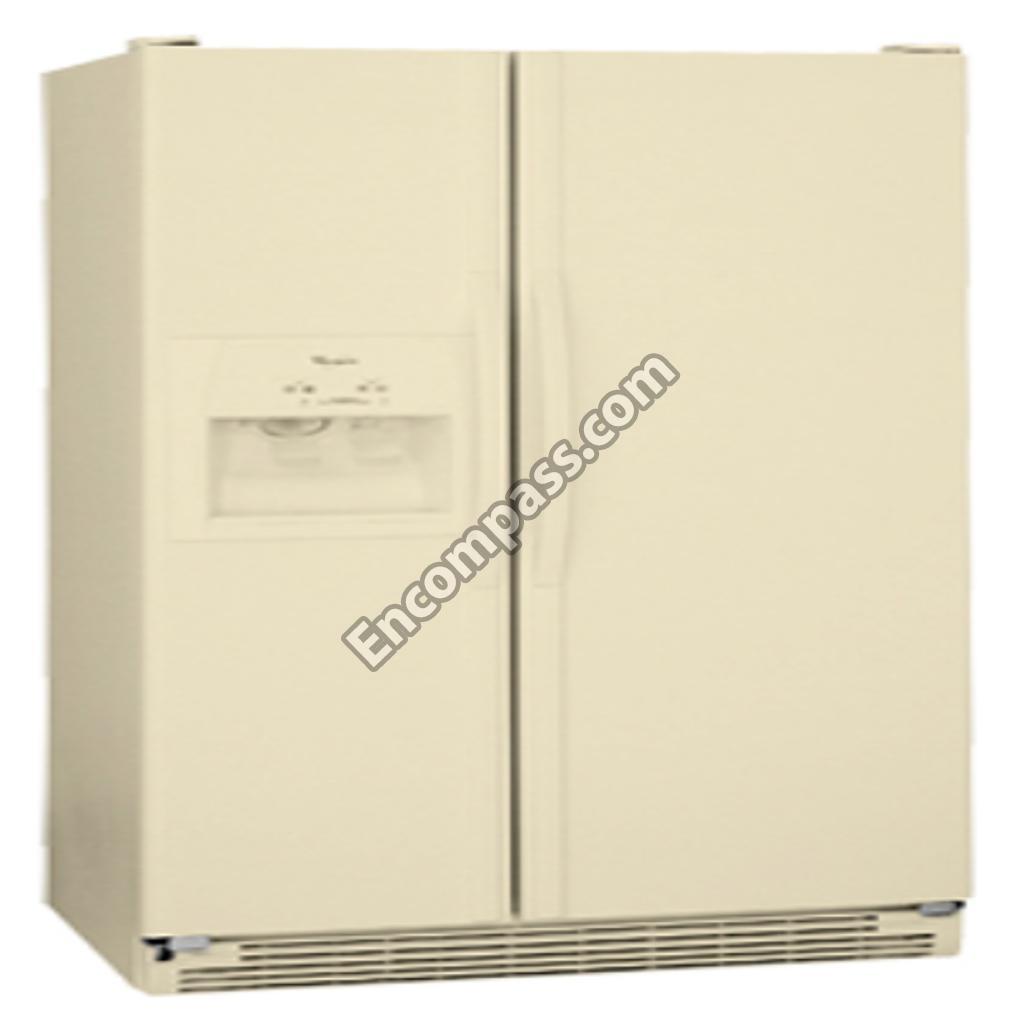

Model Image
Manufacturer

Whirlpool

Model Number

ED2CHQXKQ07

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2152019 2152019 Whirlpool AIR DIFFUSER COVER
W11596045 W11596045 Whirlpool ARM-CONTRL
WP2255431W WP2255431W Whirlpool ARM-DISPSR
WP2255431B WP2255431B Whirlpool ARM-DISPSR
WP2255432B WP2255432B Whirlpool ARM-DISPSR
WP2255432T WP2255432T Whirlpool ARM-DISPSR
WP2255432W WP2255432W Whirlpool ARM-DISPSR
WP627843 WP627843 Whirlpool ARM-EJECTR
W11256541 W11256541 Whirlpool ARM-PIVOT
W11342242 W11342242 Whirlpool ARM-SHUT
WP2182124 WP2182124 Whirlpool ARM-STRIPR
W10422851 W10422851 Whirlpool AUGER-ICE
W10852691 W10852691 Whirlpool BAFFLE
W10896764 W10896764 Whirlpool BAFFLE, AIR
606755 606755 Whirlpool BAG, INSULATION (36-5/8`` X 46``)
2212996 2212996 Whirlpool BALE STRAP
WP2196003 WP2196003 Whirlpool BARRIER
1110560 1110560 Whirlpool BEARING
WP1119018 WP1119018 Whirlpool BEARING
WP627985 WP627985 Whirlpool BIMETL-DEF
WP2203828 WP2203828 Whirlpool BIN CONTROL LEVER
1119009 1119009 Whirlpool BLADE
W10278731 W10278731 Whirlpool BLADE, ROTARY A
W10278732 W10278732 Whirlpool BLADE, ROTARY B
W10278733 W10278733 Whirlpool BLADE, ROTARY C
WP2169142 WP2169142 Whirlpool BLADE-FAN
W11458267 W11458267 Whirlpool BLADE-FAN
2157405 2157405 Whirlpool BLOCK BLADE
WP2179343 WP2179343 Whirlpool BODY-CNTRL
2256035 2256035 Whirlpool BRACKET
1110629 1110629 Whirlpool BRACKET
WP2206629B WP2206629B Whirlpool BRACKET
WP2180226 WP2180226 Whirlpool BRACKET
WP2181929 WP2181929 Whirlpool BRACKET
W11500948 W11500948 Whirlpool BRACKET
WPW10284487 WPW10284487 Whirlpool BRACKET, MOTOR
4392899 4392899 Whirlpool BRUSH TOUCH-UP KIT (BISCUIT
W10132427 W10132427 Whirlpool BUSHING
940014 940014 Whirlpool BUTTON-PLG
100000 100000 Whirlpool CABINET (NOT A SERVICE PART)
WP2182195 WP2182195 Whirlpool CAM
WPW10329686 WPW10329686 Whirlpool CAM-DOOR
WP2182179 WP2182179 Whirlpool CAM-DOOR
WP2317782 WP2317782 Whirlpool CAMERA LENS-LIGHT
WP2171706 WP2171706 Whirlpool CAMERA LENS-LIGHT
WPW10662129 WPW10662129 Whirlpool CAPACITOR
WP65889-4 WP65889-4 Whirlpool CAPACITOR
4387478 4387478 Whirlpool CAPACITOR (SERVICE)
WP4317852 WP4317852 Whirlpool CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11505385 W11505385 Whirlpool CHUTE
WP488366 WP488366 Whirlpool CLAMP
549193 549193 Whirlpool CLAMP, SERVICE CORD
1119021 1119021 Whirlpool CLIP
2208280 2208280 Whirlpool CLIP
W10683556 W10683556 Whirlpool CLIP
2155547 2155547 Whirlpool CLIP
W11623163 W11623163 Whirlpool CLIP
WP2155013 WP2155013 Whirlpool CLIP
WP1115374 WP1115374 Whirlpool CLIP
WP2195327 WP2195327 Whirlpool CLIP
WP2194719 WP2194719 Whirlpool CLIP
WP2195051 WP2195051 Whirlpool CLIP
WP2161324 WP2161324 Whirlpool CLIP
489396 489396 Whirlpool CLIP
WP628379 WP628379 Whirlpool CLIP
WP2315522 WP2315522 Whirlpool CLIP
WP2196062 WP2196062 Whirlpool CLIP
1115375 1115375 Whirlpool CLIP, WIRING
2215823 2215823 Whirlpool CLIP-AIR, DUCT
W10355489 W10355489 Whirlpool COMPRESSOR
2324712 2324712 Whirlpool CONDENSER ASSEMBLY
1123960 1123960 Whirlpool CONNECTING ROD
2154472 2154472 Whirlpool CONNECTOR
WPW10334458 WPW10334458 Whirlpool CONNECTOR
WP2196089 WP2196089 Whirlpool CONTAINER
2200137 2200137 Whirlpool CONTRL-BOX
2311636 2311636 Whirlpool CONTROL BOX HARNESS
W11115203 W11115203 Whirlpool CONTROL PANEL
WPW10169511 WPW10169511 Whirlpool COUPLING
2203407T 2203407T Whirlpool COVER
2203408T 2203408T Whirlpool COVER
WP2203408B WP2203408B Whirlpool COVER
WP2203408W WP2203408W Whirlpool COVER
WP2203407B WP2203407B Whirlpool COVER
WP2203407W WP2203407W Whirlpool COVER
W10508993 W10508993 Whirlpool COVER
WP2171709 WP2171709 Whirlpool COVER
4388357 4388357 Whirlpool COVER-EVAP
2255741T 2255741T Whirlpool COVER-FRNT
2255741B 2255741B Whirlpool COVER-FRNT
2255741W 2255741W Whirlpool COVER-FRNT
WP2162358 WP2162358 Whirlpool COVER-TERM
2304898 2304898 Whirlpool COVER-UNIT
WP2188756 WP2188756 Whirlpool COVER-UNIT
2150331 2150331 Whirlpool COVER-WIRE
WP2188656 WP2188656 Whirlpool CRISPER PAN
W10122561 W10122561 Whirlpool CUP, WATER FILL
2179350 2179350 Whirlpool DEFLECTOR
WP1119017 WP1119017 Whirlpool DEFLECTOR
2149544 2149544 Whirlpool DIFFUSER
WPW10151374 WPW10151374 Whirlpool DIFFUSER
L2206716B L2206716B Whirlpool DOOR ASSEMBLY BL
L2206716T L2206716T Whirlpool DOOR ASSEMBLY BT
L2206716W L2206716W Whirlpool DOOR ASSEMBLY WH
2159081 2159081 Whirlpool DOOR GASKET, MAGNETIC
2159073 2159073 Whirlpool DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
WP2203770 WP2203770 Whirlpool DOOR HINGE
WP2203771 WP2203771 Whirlpool DOOR HINGE
8201707 8201707 Whirlpool DOOR HINGE
WP2156022 WP2156022 Whirlpool DOOR TRIM
WP2156021 WP2156021 Whirlpool DOOR TRIM
WPW10307490 WPW10307490 Whirlpool DOOR TRIM
2159080 2159080 Whirlpool DOOR, GASKET MAGNETIC
2159072 2159072 Whirlpool DOOR, GASKET MAGNETIC
WP2180353 WP2180353 Whirlpool DOOR-CHUTE
WP2256101 WP2256101 Whirlpool DOOR-COMP
2171712 2171712 Whirlpool DOOR-ICE
W10843121 W10843121 Whirlpool DRIER-TUBE
WPW10143759 WPW10143759 Whirlpool DRIER-UV
4388736 4388736 Whirlpool DRUM
2182146 2182146 Whirlpool DUCT
W10136387A W10136387A Whirlpool EGG-CONTNR
2318627 2318627 Whirlpool ENERGY GUIDE
W10127398 W10127398 Whirlpool ESCUTCHEON
2194744 2194744 Whirlpool ESCUTCHEON
WP2188822 WP2188822 Whirlpool EVAPORATOR
2194971T 2194971T Whirlpool EXTENSION, TOP (BISCUIT)
4389144 4389144 Whirlpool FAN MOTOR
W11254898 W11254898 Whirlpool FAN-SCROLL
489285 489285 Whirlpool FASTENER, PUSH-ON
2304846 2304846 Whirlpool FILLER
2304848 2304848 Whirlpool FILLER
2304849 2304849 Whirlpool FILLER
W11566763 W11566763 Whirlpool FITTING
8201537 8201537 Whirlpool FITTING
2304903 2304903 Whirlpool FRAME
2216111 2216111 Whirlpool FREEZER BIN
2255742T 2255742T Whirlpool FREEZER DOOR (INCLUDES ITEM 7 AND DISPENSER FRONT PARTS) (BISCUIT)
2255742B 2255742B Whirlpool FREEZER DOOR (INCLUDES ITEM 7 AND DISPENSER FRONT PARTS) (BLACK)
2255742W 2255742W Whirlpool FREEZER DOOR (INCLUDES ITEM 7 AND DISPENSER FRONT PARTS) (WHITE)
WPW10289690 WPW10289690 Whirlpool FRONT COVER
4386774 4386774 Whirlpool FRONT ROLLER (2)
WP2304241 WP2304241 Whirlpool GASKET
WP2155789 WP2155789 Whirlpool GASKET
4388500 4388500 Whirlpool GASKET
W10864399 W10864399 Whirlpool GLASS SHELF
WP542638 WP542638 Whirlpool GREASE
W10283944 W10283944 Whirlpool GRILLE
W11167901 W11167901 Whirlpool GRILLE
W10804014 W10804014 Whirlpool GRILLE
WP2206671T WP2206671T Whirlpool GRILLE
WP2206671B WP2206671B Whirlpool GRILLE
WP2206671W WP2206671W Whirlpool GRILLE
WP2176759 WP2176759 Whirlpool GROMMET
WP4387558 WP4387558 Whirlpool GROMMET
2176134 2176134 Whirlpool GROMMET (4)
876811 876811 Whirlpool GROMMET (4) ((PRODUCTION))
1105612 1105612 Whirlpool GUARD, FAN
W10850503 W10850503 Whirlpool GUIDE
WP2180224 WP2180224 Whirlpool GUIDE-ICE
2186649T 2186649T Whirlpool HANDLE
WP2186649B WP2186649B Whirlpool HANDLE
WP2186649W WP2186649W Whirlpool HANDLE, CENTER (WHITE)
2311639 2311639 Whirlpool HARNS-DISP
2311637 2311637 Whirlpool HARNS-WIRE
2187408 2187408 Whirlpool HARNS-WIRE
WP2323197 WP2323197 Whirlpool HEATER
WPW10185018 WPW10185018 Whirlpool HOUSING
WP2195914 WP2195914 Whirlpool HOUSING-IM
W10823377 W10823377 Whirlpool ICE DOR KT
WPW10312301 WPW10312301 Whirlpool ICE-CONTNR
WPW10190965 WPW10190965 Whirlpool ICEMAKER
W10853654 W10853654 Whirlpool INLET VALVE
2216001 2216001 Whirlpool INSTR SHEE
876370 876370 Whirlpool INSULATION
876029 876029 Whirlpool INSULATION
W11553819 W11553819 Whirlpool INSULATION
799833 799833 Whirlpool KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
2197871 2197871 Whirlpool KNOB
2182111 2182111 Whirlpool KNOB-THERM
2206270 2206270 Whirlpool LADDER
W10851295 W10851295 Whirlpool LEVER, ICE DISPENSER (BISCUIT)
8009 8009 Whirlpool LIGHT BULB
WP22002263 WP22002263 Whirlpool LIGHT BULB
2255137 2255137 Whirlpool LITSERVIC
8201651 8201651 Whirlpool LOUVER-CAB
628370 628370 Whirlpool MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 Whirlpool MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 Whirlpool MOLD-ICE
WP2188242 WP2188242 Whirlpool MOTOR
W10124096 W10124096 Whirlpool MOTOR, FAN
WP2213265 WP2213265 Whirlpool NAMEPLATE
4387535 4387535 Whirlpool OVERLOAD
978883 978883 Whirlpool PAINT
799344 799344 Whirlpool PAINT
4392900 4392900 Whirlpool PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 Whirlpool PAINT, BULK (1 QT.) (BLACK (UNCUT))
4392901 4392901 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
72032 72032 Whirlpool PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
WP2188664 WP2188664 Whirlpool PAN-MEAT
W11497323 W11497323 Whirlpool PAN-SNACK
WP2196195 WP2196195 Whirlpool PIN-DOOR
350942 350942 Whirlpool PRIMER
WP2256126 WP2256126 Whirlpool RESERVOIR
WP2256085 WP2256085 Whirlpool RETAINER
WP2155590 WP2155590 Whirlpool RETAINER
WP489236 WP489236 Whirlpool RING-E
489229 489229 Whirlpool ROLL PIN
WPW10250570 WPW10250570 Whirlpool ROLLER-CAB
WP2161231 WP2161231 Whirlpool SCOOP-AIR
8533917 8533917 Whirlpool SCREW
W11544659 W11544659 Whirlpool SCREW
WP681249 WP681249 Whirlpool SCREW
W10850698 W10850698 Whirlpool SCREW
WP489427 WP489427 Whirlpool SCREW
WP489128 WP489128 Whirlpool SCREW
W10853301 W10853301 Whirlpool SCREW
WP489497 WP489497 Whirlpool SCREW
WP489464 WP489464 Whirlpool SCREW
WP8281227 WP8281227 Whirlpool SCREW
WPW10141645 WPW10141645 Whirlpool SCREW
WP489483 WP489483 Whirlpool SCREW
WP3-24004-109 WP3-24004-109 Whirlpool SCREW
WP489478 WP489478 Whirlpool SCREW
W10759522 W10759522 Whirlpool SCREW
WP488488 WP488488 Whirlpool SCREW
798639 798639 Whirlpool SCREW
WP3400806 WP3400806 Whirlpool SCREW
W11233072 W11233072 Whirlpool SCREW
WP489399 WP489399 Whirlpool SCREW
WP488787 WP488787 Whirlpool SCREW
WP489491 WP489491 Whirlpool SCREW
WP3400012 WP3400012 Whirlpool SCREW
WP3400852 WP3400852 Whirlpool SCREW
WP3196557 WP3196557 Whirlpool SCREW
WP8533993 WP8533993 Whirlpool SCREW
489340 489340 Whirlpool SCREW
WP488163 WP488163 Whirlpool SCREW
WPW10141625 WPW10141625 Whirlpool SCREW
489136 489136 Whirlpool SCREW
489392 489392 Whirlpool SCREW
WP965173 WP965173 Whirlpool SCREW
627068 627068 Whirlpool SCREW
W10142289 W10142289 Whirlpool SCREW 8-18 X 5/8
WP503695 WP503695 Whirlpool SEALER
WP505587 WP505587 Whirlpool SEALER
212643 212643 Whirlpool SEALER-GUM
WP2174265K WP2174265K Whirlpool SHELF (SHELF, LARGE (2))
2188695 2188695 Whirlpool SHELF ASSEMBLY, CANTILEVER (2)
WP2211581 WP2211581 Whirlpool SHELF, SNACK BIN
WP2174249K WP2174249K Whirlpool SHELF-WIRE
2217195 2217195 Whirlpool SHIELD
WP2209697 WP2209697 Whirlpool SHIM
W11661094 W11661094 Whirlpool SLEEVE
1115380 1115380 Whirlpool SLIDE
WP2179342 WP2179342 Whirlpool SLIDE
2182757 2182757 Whirlpool SLIDE MEAT PAN CONTROL
WP2261448 WP2261448 Whirlpool SLIDE, FREEZER BIN (LEFT SIDE)
2180200 2180200 Whirlpool SOCKET
WP2152713 WP2152713 Whirlpool SOLENOID
WP1119005 WP1119005 Whirlpool SPACER
WP1119007 WP1119007 Whirlpool SPACER
WP625834 WP625834 Whirlpool SPACER
350930 350930 Whirlpool SPRAY
350956 350956 Whirlpool SPRAY
1119020 1119020 Whirlpool SPRING
WPW10224328 WPW10224328 Whirlpool SPRING
489203 489203 Whirlpool SPRING, WASHER
WP2188831 WP2188831 Whirlpool START-DEV
W11223328 W11223328 Whirlpool STUD-SHELF
4388405 4388405 Whirlpool STUD-SHELF
WP2196207 WP2196207 Whirlpool STUD-SHELF
WP2196483 WP2196483 Whirlpool STUD-SHELF
4388358 4388358 Whirlpool SUPPORT KIT (CONTAINS RIGHT AND LEFT)
W11457217 W11457217 Whirlpool SWITCH
WP2149705 WP2149705 Whirlpool SWITCH
WP2162361 WP2162361 Whirlpool SWTCH-MICR
W11238399 W11238399 Whirlpool TAPE
833938 833938 Whirlpool TERMINAL
WP2198202 WP2198202 Whirlpool THERMOSTAT
WP2182181 WP2182181 Whirlpool THIMBLE
WPW10339879 WPW10339879 Whirlpool TIE-WIRE
W10822278 W10822278 Whirlpool TIMER-DEF
WP1117510 WP1117510 Whirlpool TORX SCREW WRENCH, TORX KEY
W10845585 W10845585 Whirlpool TRACK
W10845583 W10845583 Whirlpool TRACK
WP2261449 WP2261449 Whirlpool TRACK
WPW10614158 WPW10614158 Whirlpool TRAY-EVAP
2194969T 2194969T Whirlpool TRIM-HANDL
WP2194969B WP2194969B Whirlpool TRIM-HANDL
WP2194969W WP2194969W Whirlpool TRIM-HANDL
WP2194971B WP2194971B Whirlpool TRIM-HANDL
WP2194971W WP2194971W Whirlpool TRIM-HANDL
WP2179234 WP2179234 Whirlpool TRIM-PAN
WP2179243 WP2179243 Whirlpool TRIM-PAN
W11512417 W11512417 Whirlpool TRIVET
2220642 2220642 Whirlpool TUBE
WP72107 WP72107 Whirlpool TUCHUP
2149718 2149718 Whirlpool UNIT MOUNTING RAIL
4389205 4389205 Whirlpool UNIT, HARNESS
2318594 2318594 Whirlpool USE & CARE GUIDE
978030 978030 Whirlpool VALVE
978029 978029 Whirlpool VALVE
978027 978027 Whirlpool VALVE
978026 978026 Whirlpool VALVE
876764 876764 Whirlpool VALVE
WP978025 WP978025 Whirlpool VALVE
978028 978028 Whirlpool VALVE, ACCESS (1/2``)
WP489235 WP489235 Whirlpool WASHER
489234 489234 Whirlpool WASHER, PLAIN
W10823511 W10823511 Whirlpool WATER TUBE
511873 511873 Whirlpool WHITE PORCELAIN (2 OZ.)
W11234406 W11234406 Whirlpool WIRE HARNESS
2311642 2311642 Whirlpool WIRE HARNESS (WHITE)
Main Menu x
